Rabbit Recombinant Monoclonal F4/80 antibody - conjugated to Alexa Fluor® 647. Suitable for Flow Cyt (Intra), ICC/IF and reacts with Transfected cell line - Human samples.

Be the first to review this product! Submit a review

Images

Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-EMR1/ADGRE1 antibody [EPR23225-94] (AB322230), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-EMR1/ADGRE1 antibody [EPR23225-94] (AB322230), expandable thumbnail

Key facts

Isotype
IgG
Host species
Rabbit
Conjugation
Alexa Fluor® 647
Excitation/Emission
Ex: 650nm, Em: 665nm
Storage buffer

pH: 7.4
Preservative: 0.02% Sodium azide
Constituents: 68% PBS, 30% Glycerol (glycerin, glycerine), 1% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
Flow Cyt (Intra)ICC/IF
Human
Predicted
Predicted
Transfected cell line - Human
Tested
Tested

Tested
Tested

Species
Transfected cell line - Human
Dilution info
1/500
Notes

-

Predicted
Predicted

Species
Human
Dilution info
-
Notes

-

Tested
Tested

Species
Transfected cell line - Human
Dilution info
1/100
Notes

-

Predicted
Predicted

Species
Human
Dilution info
-
Notes

-

Target data

Function

Orphan receptor involved in cell adhesion and probably in cell-cell interactions specifically involving cells of the immune system. May play a role in regulatory T-cells (Treg) development.

Alternative names

EMR1, TM7LN3, ADGRE1, Adhesion G protein-coupled receptor E1, EGF-like module receptor 1, EGF-like module-containing mucin-like hormone receptor-like 1, EMR1 hormone receptor

Recommended products

Rabbit Recombinant Monoclonal F4/80 antibody - conjugated to Alexa Fluor® 647. Suitable for Flow Cyt (Intra), ICC/IF and reacts with Transfected cell line - Human samples.

Key facts

Isotype
IgG
Conjugation
Alexa Fluor® 647
Excitation/Emission
Ex: 650nm, Em: 665nm
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EPR23225-94
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle, Store in the dark

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

The EMR1/ADGRE1 (F4/80) is a protein known for its role in cellular adhesion and migration. It is also referred to as EMR1 or ADGRE1 and is a member of the class B seven-span transmembrane receptor family. The protein has a molecular mass of about 90 kDa and primarily expresses on the surface of tissue-resident macrophages. Its expression serves as a marker to identify murine macrophages thereby providing a way to study subsets of immune cells within diverse tissues.

Biological function summary

This protein influences the regulation of immune responses and macrophage actions. It does not appear to work alone; it forms part of a larger receptor complex that participates in interaction with other cellular components modulating biological processes such as phagocytosis and the release of cytokines. These roles position the ADGRE1 macrophage in the immune surveillance of tissues influencing homeostasis and response to injury or infection.

Pathways

ADGRE1/EMR1 (F4/80) takes part in signal transduction pathways related to the innate immune response. It interacts with proteins involved in macrophage activation and cellular signaling such as TLR4 and CD14. These pathways are instrumental in mediating responses to pathogens and tissue damage integrating the ADGRE1 marker in processes that initiate and propagate immune signaling cascades.

Associated diseases and disorders

ADGRE1/EMR1 (F4/80) shows involvement in inflammatory conditions and autoimmune disorders. For example it is relevant to research in diseases like inflammatory bowel disease and rheumatoid arthritis where macrophage-mediated inflammation plays a significant role. In these conditions the protein interacts with cytokines like TNF-alpha linking its expression to clinical manifestations and therapeutic targets. This association makes this protein a potential focal point for understanding and potentially mitigating disease pathology.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

2 product images

  • Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-EMR1/ADGRE1 antibody [EPR23225-94] (ab322230), expandable thumbnail

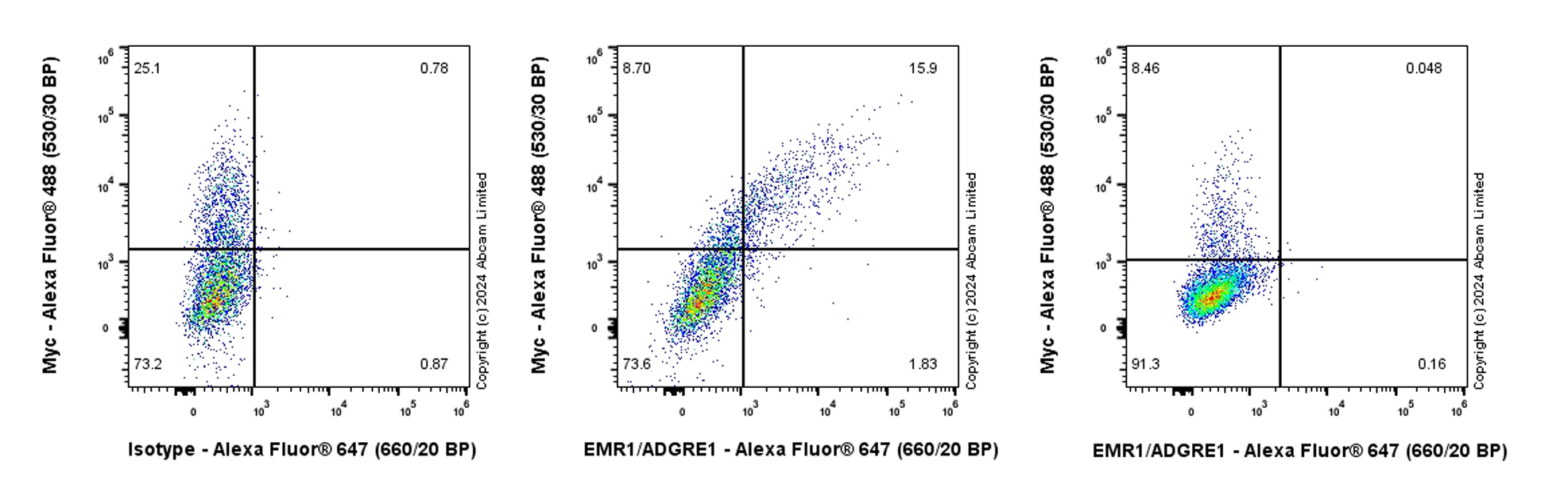

    Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-EMR1/ADGRE1 antibody [EPR23225-94] (ab322230)

    Flow cytometric analysis of 2% paraformaldehyde fixed 0.1% Tween-20 permeabilized Isotype (Left) / 293T cells transfected with a human EMR1/ADGRE1expression vector containing a Myc tag (Middle) / 293T cells transfected with an empty vector containing a Myc tag (Right) cells labelling EMR1/ADGRE1 with ab322230 at 1/500 dilution (0.1ug) / Middle and Right compared with a Rabbit IgG monoclonal [EPR25A] - Isotype Control (Alexa Fluor® 647) (Alexa Fluor® 647 Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab199093) / Left isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

    Live cells were surface stained with ab, then fixed with 2% PFA followed by intracellular staining with Myc-tag conjugated to Alexa Fluor® 488.

  • Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-EMR1/ADGRE1 antibody [EPR23225-94] (ab322230), expandable thumbnail

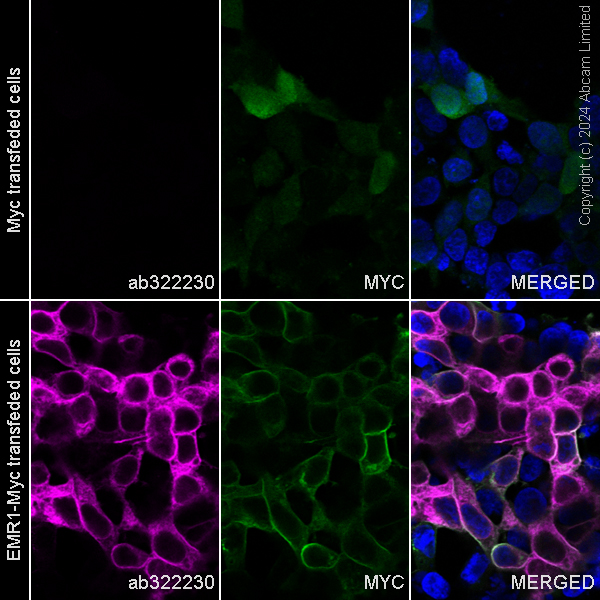

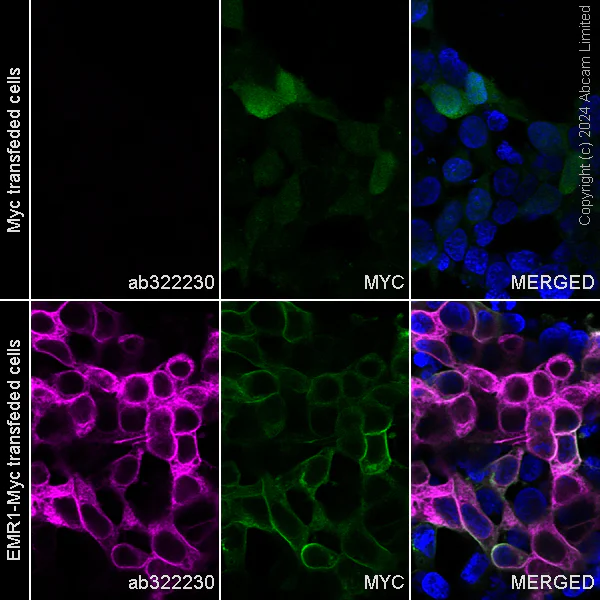

    Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-EMR1/ADGRE1 antibody [EPR23225-94] (ab322230)

    Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (Human embryonic kidney epithelial cell) transfected with myc tagged EMR1/ADGRE1 construct cells labelling EMR1/ADGRE1 with ab322230 at 1/100 (5.0 ug/ml) dilution (Green).

    Confocal image showing positive staining in 293T cell line transfected with a myc-tagged EMR1/ADGRE1 expression vector (shown in magenta). The counterstain was observed in green. Nuclear DNA was labelled with DAPI (shown in blue).

    Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

    Alexa Fluor® 488 Anti-Myc tag antibody [9E10] ab202008 Anti-Myc tag mouse monoclonal antibody (Alexa Fluor® 488) was used to counterstain tubulin at 1/100 5ug/ml dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
