Rabbit Recombinant Monoclonal ENPP1/PC1 antibody - conjugated to Alexa Fluor® 647. Suitable for IHC-P, ICC/IF and reacts with Human samples.

Be the first to review this product! Submit a review

Images

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-ENPP1/PC1 antibody [EPR22262-22] (AB315846), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-ENPP1/PC1 antibody [EPR22262-22] (AB315846), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-ENPP1/PC1 antibody [EPR22262-22] (AB315846), expandable thumbnail

Key facts

Isotype

IgG

Host species

Rabbit

Conjugation

Alexa Fluor® 647

Excitation/Emission

Ex: 650nm, Em: 665nm

Storage buffer

pH: 7.4
Preservative: 0.02% Sodium azide
Constituents: 68% PBS, 30% Glycerol (glycerin, glycerine), 1% BSA

Form

Liquid

Clonality

Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IHC-PICC/IFFlow Cyt
Human
Tested
Tested
Not recommended

Tested
Tested

Species

Human

Dilution info

1/50

Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Tested
Tested

Species

Human

Dilution info

1/50

Notes

-

Not recommended
Not recommended

Species

Human

Dilution info

-

Notes

-

Associated Products

Select an associated product type

3 products for Alternative Version

    Target data

    Function

    Nucleotide pyrophosphatase that generates diphosphate (PPi) and functions in bone mineralization and soft tissue calcification by regulating pyrophosphate levels (By similarity). PPi inhibits bone mineralization and soft tissue calcification by binding to nascent hydroxyapatite crystals, thereby preventing further growth of these crystals (PubMed:11004006). Preferentially hydrolyzes ATP, but can also hydrolyze other nucleoside 5' triphosphates such as GTP, CTP, TTP and UTP to their corresponding monophosphates with release of pyrophosphate and diadenosine polyphosphates, and also 3',5'-cAMP to AMP (PubMed:27467858, PubMed:8001561, PubMed:25344812). May also be involved in the regulation of the availability of nucleotide sugars in the endoplasmic reticulum and Golgi, and the regulation of purinergic signaling (PubMed:27467858, PubMed:8001561). Inhibits ectopic joint calcification and maintains articular chondrocytes by repressing hedgehog signaling; it is however unclear whether hedgehog inhibition is direct or indirect (By similarity). Appears to modulate insulin sensitivity and function (PubMed:10615944). Also involved in melanogenesis (PubMed:28964717). Also able to hydrolyze 2'-3'-cGAMP (cyclic GMP-AMP), a second messenger that activates TMEM173/STING and triggers type-I interferon production (PubMed:25344812). 2'-3'-cGAMP degradation takes place in the lumen or extracellular space, and not in the cytosol where it is produced; the role of 2'-3'-cGAMP hydrolysis is therefore unclear (PubMed:25344812). Not able to hydrolyze the 2'-3'-cGAMP linkage isomer 3'-3'-cGAMP (PubMed:25344812).

    Alternative names

    Ectonucleotide pyrophosphatase/phosphodiesterase family member 1, E-NPP 1, Membrane component chromosome 6 surface marker 1, Phosphodiesterase I/nucleotide pyrophosphatase 1, Plasma-cell membrane glycoprotein PC-1, M6S1, PDNP1, PC1, NPPS, ENPP1

    Recommended products

    1. Loading...
    2. Loading...
    3. Loading...
    4. Loading...

    Rabbit Recombinant Monoclonal ENPP1/PC1 antibody - conjugated to Alexa Fluor® 647. Suitable for IHC-P, ICC/IF and reacts with Human samples.

    Alternative names

    Ectonucleotide pyrophosphatase/phosphodiesterase family member 1, E-NPP 1, Membrane component chromosome 6 surface marker 1, Phosphodiesterase I/nucleotide pyrophosphatase 1, Plasma-cell membrane glycoprotein PC-1, M6S1, PDNP1, PC1, NPPS, ENPP1

    Key facts

    Isotype

    IgG

    Conjugation

    Alexa Fluor® 647

    Excitation/Emission

    Ex: 650nm, Em: 665nm

    Form

    Liquid

    Clonality

    Monoclonal

    Immunogen
    • The exact immunogen used to generate this antibody is proprietary information.
    Clone number

    EPR22262-22

    Purification technique

    Affinity purification Protein A

    Concentration
    Loading...

    Storage

    Shipped at conditions

    Blue Ice

    Appropriate short-term storage duration

    1-2 weeks

    Appropriate short-term storage conditions

    +4°C

    Appropriate long-term storage conditions

    -20°C

    Aliquoting information

    Upon delivery aliquot

    Storage information

    Avoid freeze / thaw cycle, Store in the dark

    Notes

    Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

    This product is a recombinant monoclonal antibody, which offers several advantages including:

    • - High batch-to-batch consistency and reproducibility
    • - Improved sensitivity and specificity
    • - Long-term security of supply
    • - Animal-free batch production

    For more information, read more on recombinant antibodies.

    Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

    Product promise

    We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

    In the unlikely event of one of our products not working as expected, you are covered by our product promise.

    Full details and terms and conditions can be found here:
    Terms & Conditions.

    3 product images

    • Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-ENPP1/PC1 antibody [EPR22262-22] (ab315846), expandable thumbnail

      Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-ENPP1/PC1 antibody [EPR22262-22] (ab315846)

      Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HepG2 (human hepatocellular carcinoma epithelial cell) cells labelling ENPP1/PC1 with ab315846 at 1/50 (10.0 ug/ml) dilution (Red).

      Confocal image showing membranous staining in HepG2 cells. Negative control: Huh7 (PMID:32425926)Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

      Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 (2.5ug/ml) dilution (Green). The Nuclear counterstain was DAPI (Blue).

    • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-ENPP1/PC1 antibody [EPR22262-22] (ab315846), expandable thumbnail

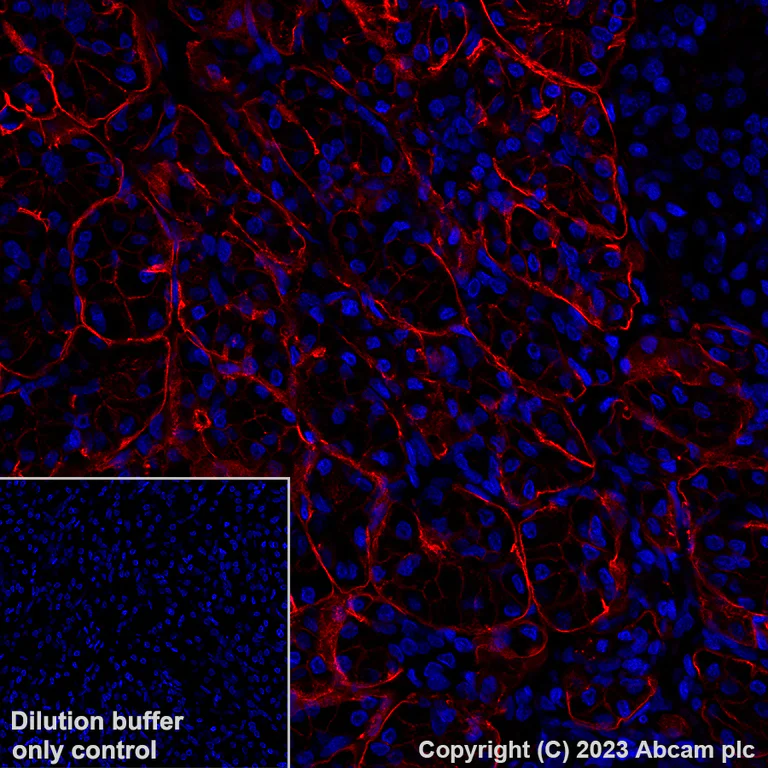

      Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-ENPP1/PC1 antibody [EPR22262-22] (ab315846)

      Immunohistochemical analysis of paraffin-embedded Human pancreas tissue labeling ENPP1/PC1 with ab315846 at 1/50 (10.0 ug/ml) dilution.

      Membranous staining on human pancreas. The section was incubated with ab315846 for 60 mins at room temperature (shown in red). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount®. The immunostaining was performed on a Leica Biosystems BOND RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

      Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 40 mins

    • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-ENPP1/PC1 antibody [EPR22262-22] (ab315846), expandable thumbnail

      Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-ENPP1/PC1 antibody [EPR22262-22] (ab315846)

      Immunohistochemical analysis of paraffin-embedded Human liver tissue labeling ENPP1/PC1 with ab315846 at 1/50 (10.0 ug/ml) dilution.

      Positive staining on human liver. The section was incubated with ab315846 for 60 mins at room temperature (shown in red). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount®. The immunostaining was performed on a Leica Biosystems BOND RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

      Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 40 mins

    Downloads

    Product protocols

    For this product, it's our understanding that no specific protocols are required. You can:

    Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
