Rabbit Recombinant Monoclonal F4/80 antibody - conjugated to Alexa Fluor® 647. Suitable for IHC-P, IHC-Fr and reacts with Rat, Mouse samples.

Be the first to review this product! Submit a review

Images

Immunohistochemistry (Frozen sections) - Alexa Fluor® 647 Anti-F4/80 antibody [EPR26545-166] (AB307470), expandable thumbnail
  • Immunohistochemistry (Frozen sections) - Alexa Fluor® 647 Anti-F4/80 antibody [EPR26545-166] (AB307470), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-F4/80 antibody [EPR26545-166] (AB307470), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-F4/80 antibody [EPR26545-166] (AB307470), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-F4/80 antibody [EPR26545-166] (AB307470), expandable thumbnail

Key facts

Isotype
IgG
Host species
Rabbit
Conjugation
Alexa Fluor® 647
Excitation/Emission
Ex: 650nm, Em: 665nm
Storage buffer

pH: 7.4
Preservative: 0.02% Sodium azide
Constituents: 68% PBS, 30% Glycerol (glycerin, glycerine), 1% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IHC-PIHC-Fr
Mouse
Tested
Tested
Rat
Tested
Expected

Tested
Tested

Species
Rat
Dilution info
1/50
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species
Mouse
Dilution info
1/50
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Tested
Tested

Species
Mouse
Dilution info
1/50
Notes

-

Expected
Expected

Species
Rat
Dilution info
Use at an assay dependent concentration.
Notes

-

Associated Products

Select an associated product type

1 product for Alternative Version

Target data

Function

Orphan receptor involved in cell adhesion and probably in cell-cell interactions specifically involving cells of the immune system. May play a role in regulatory T-cells (Treg) development.

Alternative names

Emr1, Gpf480, Adgre1, Adhesion G protein-coupled receptor E1, Cell surface glycoprotein F4/80, EGF-like module receptor 1, EGF-like module-containing mucin-like hormone receptor-like 1, EMR1 hormone receptor

Recommended products

Rabbit Recombinant Monoclonal F4/80 antibody - conjugated to Alexa Fluor® 647. Suitable for IHC-P, IHC-Fr and reacts with Rat, Mouse samples.

Key facts

Isotype
IgG
Conjugation
Alexa Fluor® 647
Excitation/Emission
Ex: 650nm, Em: 665nm
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EPR26545-166
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle, Store in the dark

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

5 product images

  • Immunohistochemistry (Frozen sections) - Alexa Fluor® 647 Anti-F4/80 antibody [EPR26545-166] (ab307470), expandable thumbnail

    Immunohistochemistry (Frozen sections) - Alexa Fluor® 647 Anti-F4/80 antibody [EPR26545-166] (ab307470)

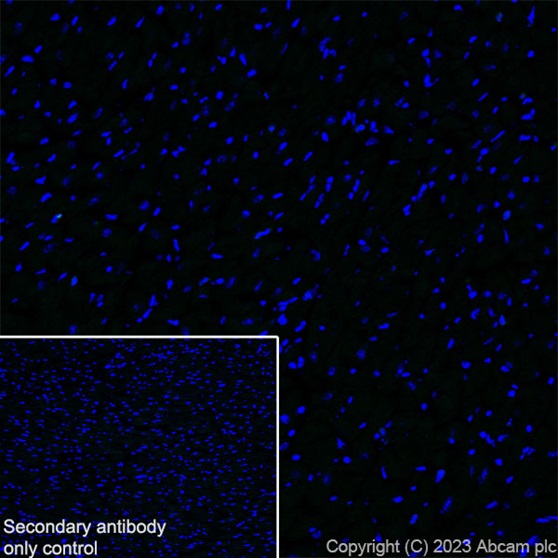

    Immunohistochemistry (Frozen sections) analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized mouse cardiac muscle (fresh) tissue labeling F4/80 with ab307470 at 1/50 (10 μg/ml). Negative control: no staining on mouse cardiac muscle. The nuclear counterstain was DAPI (Blue).

  • Immunohistochemistry (Frozen sections) - Alexa Fluor® 647 Anti-F4/80 antibody [EPR26545-166] (ab307470), expandable thumbnail

    Immunohistochemistry (Frozen sections) - Alexa Fluor® 647 Anti-F4/80 antibody [EPR26545-166] (ab307470)

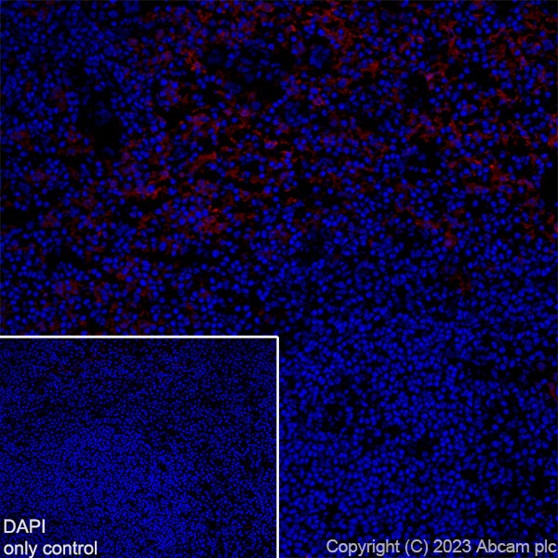

    Immunohistochemistry (Frozen sections) analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized mouse spleen (fresh) tissue labeling F4/80 with ab307470 at 1/50 (10 μg/ml). Positive staining on mouse spleen. The nuclear counterstain was DAPI (Blue).

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-F4/80 antibody [EPR26545-166] (ab307470), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-F4/80 antibody [EPR26545-166] (ab307470)

    Immunohistochemical analysis of paraffin-embedded Rat liver tissue labeling F4/80 with ab307470 at 1/50 (10.0 μg/ml) dilution. Positive staining on Kupffer cells of rat liver. The section was incubated with ab307470 for 60 mins at room temperature (shown in red). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount®. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

    Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 40 mins.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-F4/80 antibody [EPR26545-166] (ab307470), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-F4/80 antibody [EPR26545-166] (ab307470)

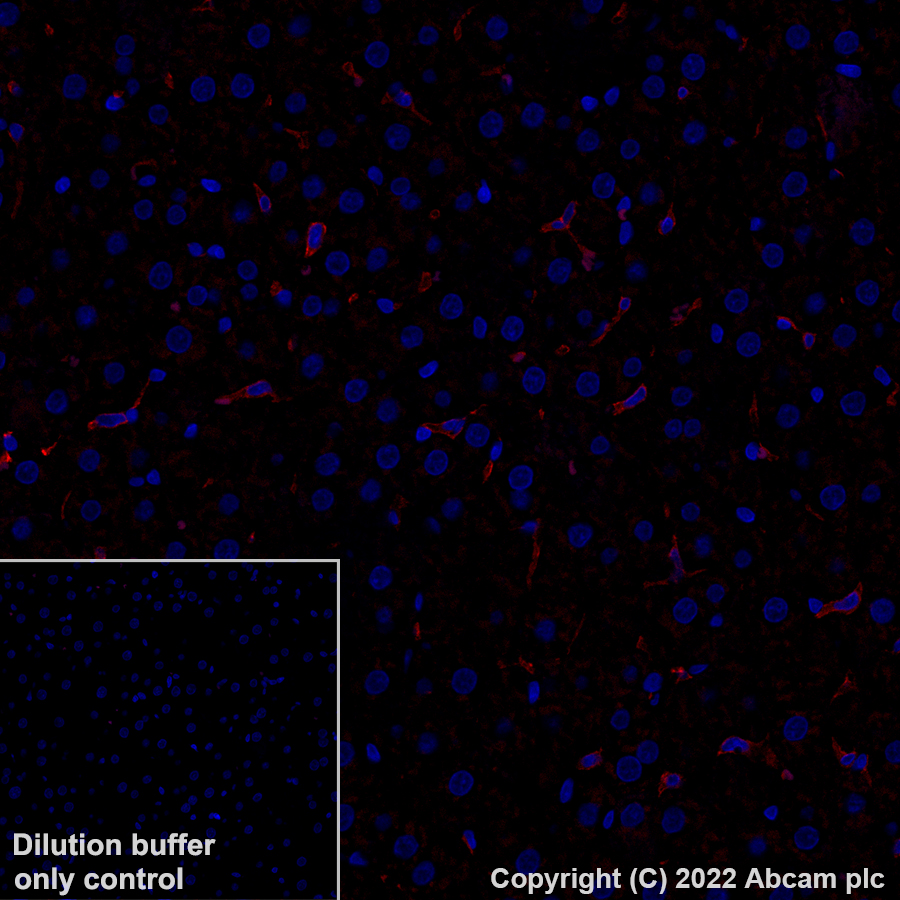

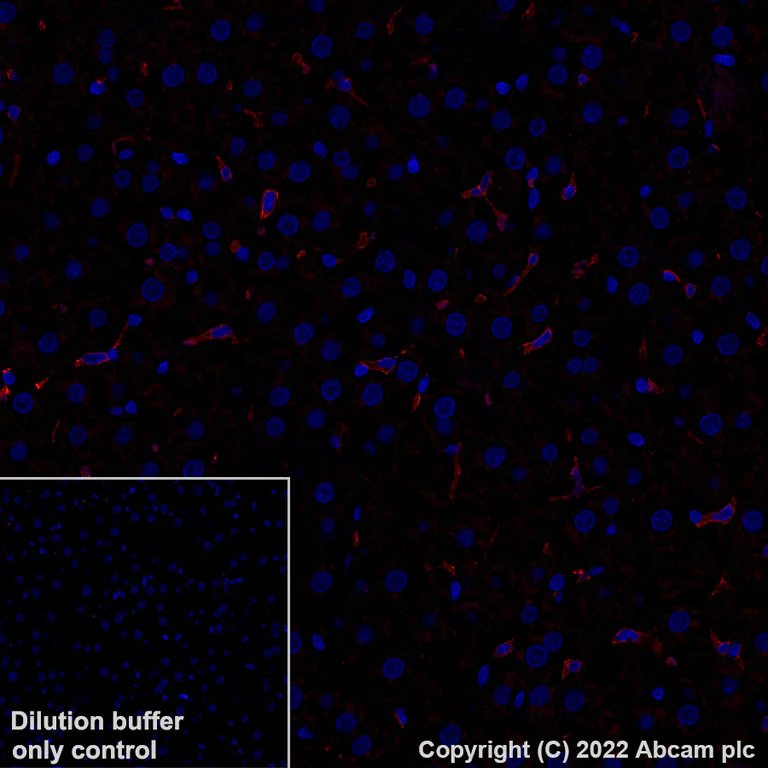

    Immunohistochemical analysis of paraffin-embedded Mouse liver tissue labeling F4/80 with ab307470 at 1/50 (10.0 μg/ml) dilution. Positive staining on Kupffer cells of mouse liver. The section was incubated with ab307470 for 60 mins at room temperature (shown in red). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount®. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

    Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 40 mins.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-F4/80 antibody [EPR26545-166] (ab307470), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-F4/80 antibody [EPR26545-166] (ab307470)

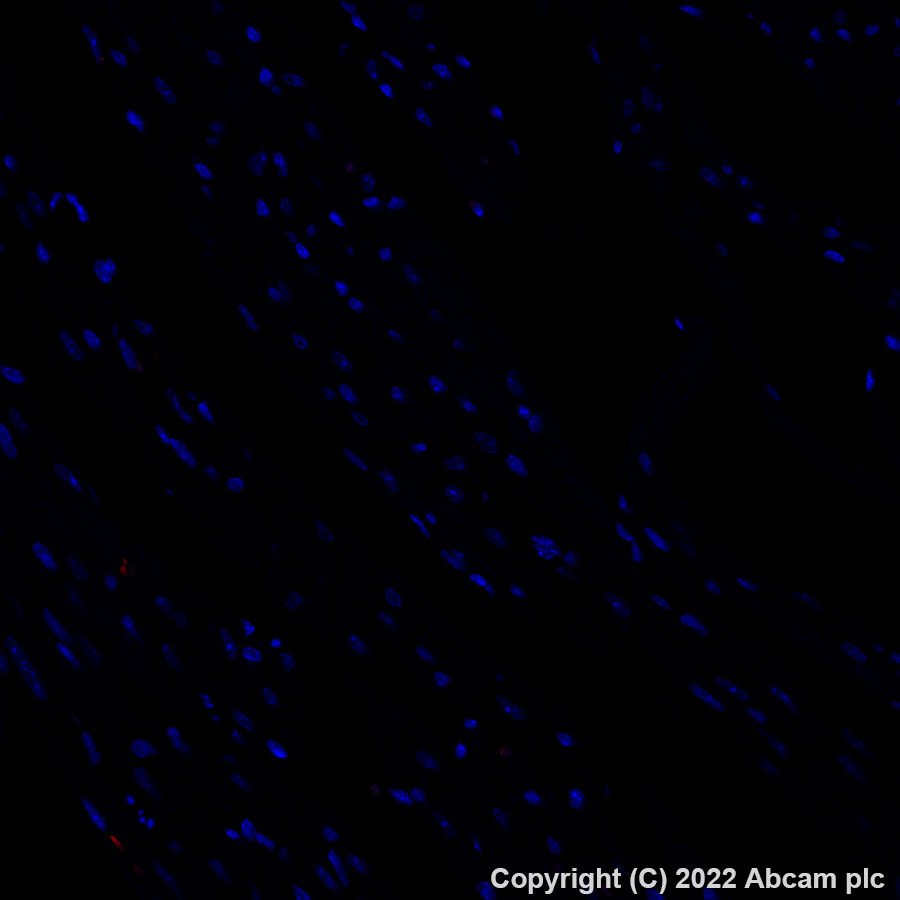

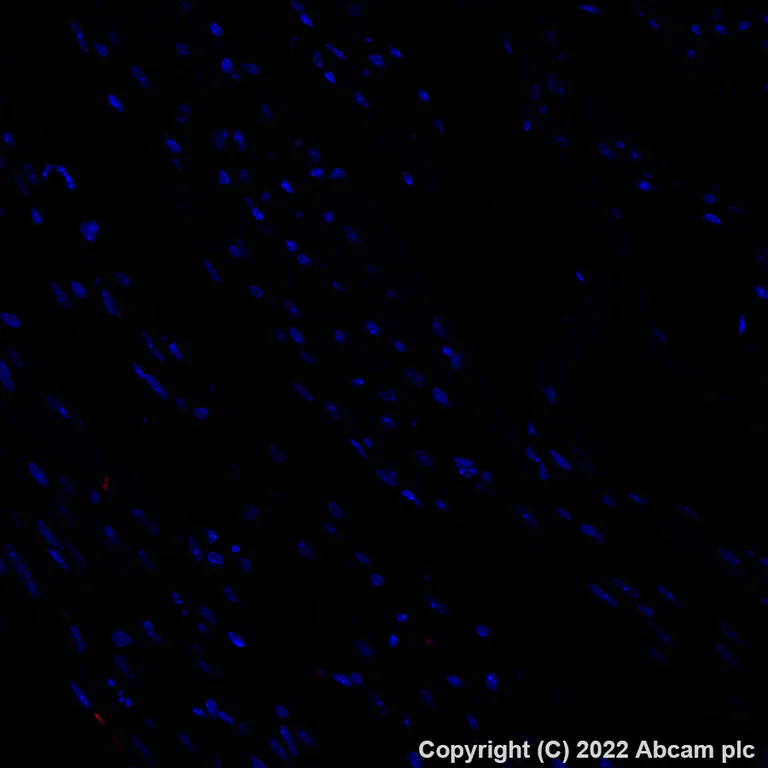

    Immunohistochemical analysis of paraffin-embedded Mouse cardiac muscle tissue labeling F4/80 with ab307470 at 1/50 (10.0 μg/ml) dilution.

    Negative control: no staining on mouse cardiac muscle. The section was incubated with ab307470 for 60 mins at room temperature (shown in red). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount®. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

    Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 40 mins.

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
