Rabbit Recombinant Monoclonal GAP43 antibody - conjugated to Alexa Fluor® 647. Suitable for ICC/IF, Flow Cyt (Intra) and reacts with Human samples.

Be the first to review this product! Submit a review

Images

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-GAP43 antibody [EP890Y] - Neuronal Marker (AB196540), expandable thumbnail
  • Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-GAP43 antibody [EP890Y] - Neuronal Marker (AB196540), expandable thumbnail

Key facts

Isotype
IgG
Host species
Rabbit
Conjugation
Alexa Fluor® 647
Excitation/Emission
Ex: 650nm, Em: 665nm
Storage buffer

pH: 7.4
Preservative: 0.02% Sodium azide
Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
ICC/IFFlow Cyt (Intra)
Human
Tested
Tested
Mouse
Predicted
Predicted
Rat
Predicted
Predicted

Tested
Tested

Species
Human
Dilution info
1/100
Notes

This product gave a positive signal in U87MG cells fixed with 4% formaldehyde (10 min) and 100% methanol (5 min)

Predicted
Predicted

Species
Mouse, Rat
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
1/50
Notes

ab199093 - Rabbit monoclonal IgG (Alexa Fluor®; 647), is suitable for use as an isotype control with this antibody.

Predicted
Predicted

Species
Mouse, Rat
Dilution info
-
Notes

-

Associated Products

Select an associated product type

6 products for Alternative Product

4 products for Alternative Version

Target data

Function

This protein is associated with nerve growth. It is a major component of the motile 'growth cones' that form the tips of elongating axons. Plays a role in axonal and dendritic filopodia induction.

Alternative names

Neuromodulin, Axonal membrane protein GAP-43, Growth-associated protein 43, Neural phosphoprotein B-50, pp46, GAP43

Recommended products

Rabbit Recombinant Monoclonal GAP43 antibody - conjugated to Alexa Fluor® 647. Suitable for ICC/IF, Flow Cyt (Intra) and reacts with Human samples.

Key facts

Isotype
IgG
Conjugation
Alexa Fluor® 647
Excitation/Emission
Ex: 650nm, Em: 665nm
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EP890Y
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle, Store in the dark

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

GAP43 commonly called Growth Associated Protein 43 or neuronal marker is a protein with a molecular weight of approximately 25-50 kDa. Researchers identify it by various names including GAP-43 GAP43 anticuerpo or GAP43 neuronal marker. This protein exhibits a specific presence in the nervous system especially in axons of neurons. It has significant expression during neural development and regeneration indicating its role in growth and repair.

Biological function summary

GAP43 plays an important role in neurite outgrowth and synaptic plasticity. It functions as an important mediator of signal transduction in neurons. GAP43 does not act alone but integrates into a network of signaling pathways that guide axonal elongation and branching. It works closely with cytoskeletal elements influencing the structural dynamics needed for effective neuronal response and adaptation.

Pathways

GAP43 is vital in the regulation of the protein kinase C pathway and the cAMP pathway both essential for neuronal growth and differentiation. It closely interacts with proteins such as calmodulin which binds to GAP43 and impacts its function in those pathways. These interactions highlight its role in the modulation of neuronal growth and synaptic plasticity making it essential for neurons' response to environmental signals.

Associated diseases and disorders

GAP43 associates with neurodegenerative diseases and cognitive disorders particularly Alzheimer's disease and schizophrenia. Changes in GAP43 expression levels correlate with the severity and progression of these conditions. Additionally GAP43 connects to other proteins implicated in such diseases like tau in Alzheimer's suggesting a multifaceted involvement in disease mechanisms. This makes it a target of interest for therapeutic research as modulating GAP43 activity might alter disease progression.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

2 product images

  • Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-GAP43 antibody [EP890Y] - Neuronal Marker (ab196540), expandable thumbnail

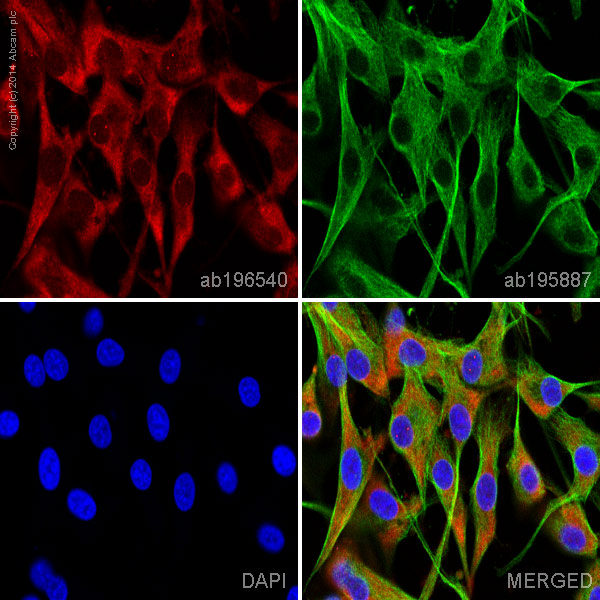

    Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-GAP43 antibody [EP890Y] - Neuronal Marker (ab196540)

    ab196540 staining GAP43 in U87MG cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab196540 at a 1/100 dilution (shown in red) and Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195887, Mouse monoclonal to alpha Tubulin (Alexa Fluor® 488), at a 1/250 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue).

    Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

    This product also gave a positive signal under the same testing conditions in U87MG cells fixed with 4% formaldehyde (10 min).

  • Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-GAP43 antibody [EP890Y] - Neuronal Marker (ab196540), expandable thumbnail

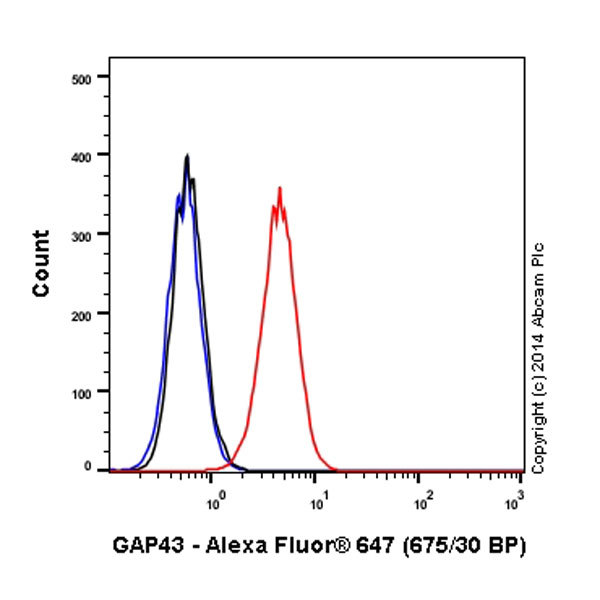

    Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-GAP43 antibody [EP890Y] - Neuronal Marker (ab196540)

    Overlay histogram showing U-87MG cells stained with ab196540 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab196540, 1/50 dilution) for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) Alexa Fluor® 647 used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control.

    Acquisition of >5,000 events were collected using a solid-state 25mW red diode laser (635 nm) and 675/30 bandpass filter.

    This antibody gave a positive signal in U-87MG fixed with 4% formaldehyde (10 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
