Alexa Fluor® 647 Anti-Heme Oxygenase 1 antibody [EPR18161-128]

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-Heme Oxygenase 1 antibody [EPR18161-128] (AB237268)

ab237268 staining Heme Oxygenase 1 in HeLa cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab237268 at 1/100 dilution (shown in red) and ab195887, Mouse monoclonal to alpha Tubulin (Alexa Fluor^® 488), at 1/250 dilution (shown in green). Nuclear DNA was labeled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-Heme Oxygenase 1 antibody [EPR18161-128] (AB237268)

Immunohistochemical analysis of paraffin-embedded Human skeletal muscle labeling Heme Oxygenase 1 with ab237268 at 1/100 dilution.

Negative control : : no staining on Human skeletal muscle.
The section was incubated with ab237268 for 60 mins at room temperature (shown in red). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount^®.
The immunostaining was performed on a Leica Biosystems BOND RX instrument.
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 40 mins.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-Heme Oxygenase 1 antibody [EPR18161-128] (AB237268)

Immunohistochemical analysis of paraffin-embedded Human liver tissue labeling Heme Oxygenase 1 with ab237268 at 1/100 dilution.

Positive staining on macrophage in human liver.
The section was incubated with ab237268 for 60 mins at room temperature (shown in red). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount^®.
The immunostaining was performed on a Leica Biosystems BOND RX instrument.
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 40 mins.

• Flow Cyt (Intra)

Unknown

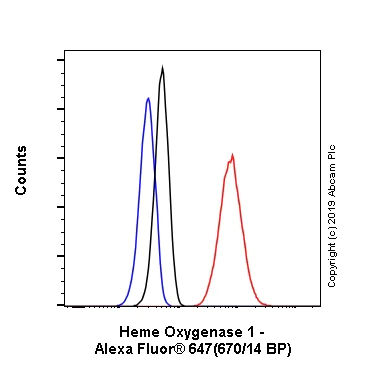

Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-Heme Oxygenase 1 antibody [EPR18161-128] (AB237268)

Overlay histogram showing NIH/3T3 cells stained with ab237268 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS / 10% normal Goat serum to block non-specific protein-protein interactions followed by the antibody (ab237268) (1x 10⁶ in 100μl at 0.4μg/ml (1/1250 dilution)) for 30 min at 22°C.

Isotype control antibody (black line) was Rabbit IgG (monoclonal) Alexa Fluor^® 647 (ab199093) used at the same concentration and conditions as the primary antibody. Unlabeled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 40 mW Red laser (640nm) and 670/14 bandpass filter.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-Heme Oxygenase 1 antibody [EPR18161-128] (AB237268)

Immunohistochemical analysis of paraffin-embedded rat liver tissue labeling Heme Oxygenase 1 with ab237268 at 1/100 dilution.

Positive staining on macrophage in rat liver.
The section was incubated with ab237268 for 60 mins at room temperature (shown in red). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount^®.
The immunostaining was performed on a Leica Biosystems BOND RX instrument.
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 40 mins.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-Heme Oxygenase 1 antibody [EPR18161-128] (AB237268)

Immunohistochemical analysis of paraffin-embedded mouse liver tissue labeling Heme Oxygenase 1 with ab237268 at 1/100 dilution.

Positive staining on macrophage in mouse liver.
The section was incubated with ab237268 for 60 mins at room temperature (shown in red). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount^®.
The immunostaining was performed on a Leica Biosystems BOND RX instrument.
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 40 mins.
