Rabbit Recombinant Monoclonal Hsp60 antibody - conjugated to Alexa Fluor® 647. Suitable for Flow Cyt (Intra), ICC/IF and reacts with Human samples.

Be the first to review this product! Submit a review

Images

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-Hsp60 antibody [EPR18245-93] - Mitochondrial Marker (AB303590), expandable thumbnail
  • Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-Hsp60 antibody [EPR18245-93] - Mitochondrial Marker (AB303590), expandable thumbnail

Key facts

Isotype
IgG
Host species
Rabbit
Conjugation
Alexa Fluor® 647
Excitation/Emission
Ex: 650nm, Em: 665nm
Storage buffer

pH: 7.4
Preservative: 0.02% Sodium azide
Constituents: 68% PBS, 30% Glycerol (glycerin, glycerine), 1% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
Flow Cyt (Intra)ICC/IF
Human
Tested
Tested

Tested
Tested

Species
Human
Dilution info
1/12500
Notes

-

Tested
Tested

Species
Human
Dilution info
0.04 µg/mL
Notes

-

Associated Products

Select an associated product type

2 products for Alternative Version

Target data

Function

Chaperonin implicated in mitochondrial protein import and macromolecular assembly. Together with Hsp10, facilitates the correct folding of imported proteins. May also prevent misfolding and promote the refolding and proper assembly of unfolded polypeptides generated under stress conditions in the mitochondrial matrix (PubMed:11422376, PubMed:1346131). The functional units of these chaperonins consist of heptameric rings of the large subunit Hsp60, which function as a back-to-back double ring. In a cyclic reaction, Hsp60 ring complexes bind one unfolded substrate protein per ring, followed by the binding of ATP and association with 2 heptameric rings of the co-chaperonin Hsp10. This leads to sequestration of the substrate protein in the inner cavity of Hsp60 where, for a certain period of time, it can fold undisturbed by other cell components. Synchronous hydrolysis of ATP in all Hsp60 subunits results in the dissociation of the chaperonin rings and the release of ADP and the folded substrate protein (Probable).

Alternative names

HSP60, HSPD1, 60 kDa chaperonin, Chaperonin 60, Heat shock protein 60, Heat shock protein family D member 1, HuCHA60, Mitochondrial matrix protein P1, P60 lymphocyte protein, CPN60, HSP-60, Hsp60

Recommended products

Rabbit Recombinant Monoclonal Hsp60 antibody - conjugated to Alexa Fluor® 647. Suitable for Flow Cyt (Intra), ICC/IF and reacts with Human samples.

Key facts

Isotype
IgG
Conjugation
Alexa Fluor® 647
Excitation/Emission
Ex: 650nm, Em: 665nm
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EPR18245-93
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle, Store in the dark

Notes

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

Hsp60 also known as HSPD1 and heat shock protein 60 is a significant chaperonin with a molecular weight of approximately 60 kDa. It resides predominantly in the mitochondria and functions to assist in the proper folding of proteins preventing their aggregation. Hsp60 is expressed mainly in cells with high metabolic activity. Its presence as a mitochondrial marker highlights its essential role in maintaining cellular homeostasis and function.

Biological function summary

The protein ensures mitochondrial protein stability by facilitating the refolding of misfolded proteins and cooperating with other chaperonins like Hsp10. Hsp60 participates in forming a complex with these proteins to create a conducive environment for protein folding. It plays a part in regulating mitochondrial homeostasis impacting cell survival and apoptosis processes.

Pathways

Hsp60 links to the ATP synthesis and apoptosis pathways showcasing its importance as a mitochondrial marker. It interacts with proteins like caspase-3 to modulate cell death mechanisms highlighting its influence beyond simple protein folding. In the ATP synthesis pathway it contributes indirectly to energy production by maintaining mitochondrial function.

Associated diseases and disorders

Hsp60 shows a connection to neurodegenerative diseases and cancer. Altered Hsp60 levels correlate with increased apoptosis in neurodegenerative conditions like Alzheimer's disease. Additionally in cancer interactions with proteins such as AKT suggest its potential role in cell proliferation and survival. Understanding its role could aid in the development of therapeutic interventions targeting mitochondrial dysfunction.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

2 product images

  • Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-Hsp60 antibody [EPR18245-93] - Mitochondrial Marker (ab303590), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-Hsp60 antibody [EPR18245-93] - Mitochondrial Marker (ab303590)

    Hsp60 Immunocytochemistry/ Immunofluorescence staining of HeLa cells using rabbit Anti-Hsp60 antibody

    ab303590 staining HSP60 in HeLa cells. The cells were fixed with 100% methanol (5 min at -20°C), permeabilized with 0.1% Triton x-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3 M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab303590 at 0.04 µg/ml (shown in red) and Alexa Fluor® 488 Anti-Tubulin antibody [YOL1/34] - Microtubule Marker ab195883 (Alexa Fluor®488 Anti-Tubulin antibody [YOL1/34]) at 5 µg/ml (shown in green). Nuclear DNA was labeled with DAPI (shown in blue). Image was acquired with a high-content analyzer (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

  • Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-Hsp60 antibody [EPR18245-93] - Mitochondrial Marker (ab303590), expandable thumbnail

    Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-Hsp60 antibody [EPR18245-93] - Mitochondrial Marker (ab303590)

    Hsp60 Flow Cytometry (Intracellular) staining of HeLa cells using rabbit Anti-Hsp60 antibody

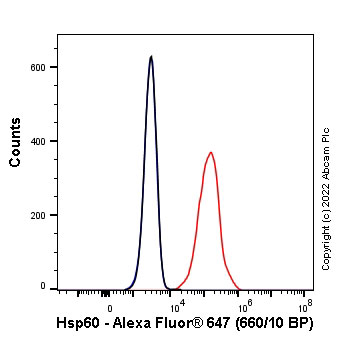

    Flow cytometry overlay histogram showing HeLa cells stained with ab303590 (red line). The cells were fixed with 80 % methanol (5 min) and then permeabilized with 0.1% PBS-Triton X-100 for 15 min. The cells were incubated in 1x PBS containing 10 % normal goat serum to block non-specific protein-protein interaction followed by the antibody (ab303590) (1x 106 in 100μl at 0.04μg/ml (1/12500)) for 30 min at 22°C.

    Isotype control antibody (black line) was Rabbit IgG (monoclonal) Alexa Fluor® 647 (Alexa Fluor® 647 Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab199093) used at the same concentration and conditions as the primary antibody. Unlabeled sample (blue line) was also used as a control.

    Acquisition of >5000 events were collected using a 40 mW Red laser (638 nm) and 660/10 bandpass filter.

    This antibody gave a positive signal in HeLa cells fixed with 4% formaldehyde (10 min) / permeabilized with 0.1% PBS-Triton X-100 for 15 min used under the same conditions.

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
