Alexa Fluor® 647 Anti-Indoleamine 2, 3-dioxygenase antibody [EPR20374]

4 product images

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-Indoleamine 2, 3-dioxygenase antibody [EPR20374] (ab281580)

  Immunohistochemistry analysis of paraffin-embedded human spleen tissue staining Indoleamine 2, 3-dioxygenase using ab281580 at a 1/50 diluiton (10.0 μg/ml).


  Positive staining on human spleen.

  The section was then incubated overnight at +4°C in TBS containing 0.025% (v/v) Triton X-100 and 1% (w/v) BSA with ab281580 at 1/50 dilution (shown in Red). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount®.
  Non-specific protein-protein interactions were then blocked in TBS containing 0.025% (v/v) Triton X-100, 0.3M (w/v) glycine and 1% (w/v) BSA for 1h at room temperature.
  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

  Heat mediated antigen retrieval using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0).

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-Indoleamine 2, 3-dioxygenase antibody [EPR20374] (ab281580)

  Immunocytochemistry analysis of 4% Paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa (human epithelial cell line from cervix adenocarcinoma) cells treated with human Interferon-γ (50 ng/ml) for 16 hours, labeling Indoleamine 2, 3-dioxygenase with ab281580 at 1/50 (10.0 μg/ml) dilution (Red).


  Confocal image showing cytoplasmic and nuclear staining in Interferon-γ treated HeLa cells.

  Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 dilution (Green). The nuclear counterstain was DAPI (Blue).

•

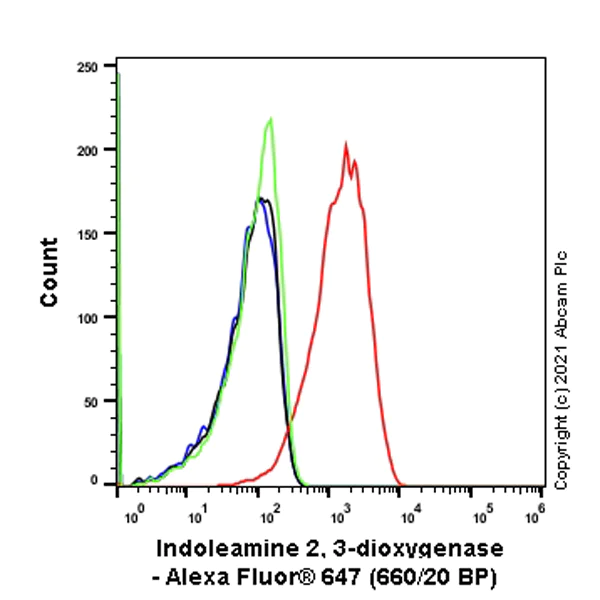

  Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-Indoleamine 2, 3-dioxygenase antibody [EPR20374] (ab281580)

  Flow Cytometry analysis of 4% paraformaldehyde-fixed, 90% methanol-permeabilized HeLa (human cervix adenocarcinoma epithelial cell) treated with 50ng/ml Human Interferon-γ for 16 hours (Red)/ Untreated control (Green) cells stained for Indoleamine 2, 3-dioxygenase using ab281580 at a 1/500 dilution (0.1μg) (red), compared to Rabbit monoclonal isotype control - Alexa Fluor® 647 (Black) isotype control and an unlabeled control (cells without incubation with primary antibody and secondary antibody) (Blue).


  The level of Indoleamine 2, 3-dioxygenase expression can be induced by IFN-γ treatment (PMID: 16368976).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-Indoleamine 2, 3-dioxygenase antibody [EPR20374] (ab281580)

  Immunohistochemistry analysis of paraffin-embedded human cervix carcinoma tissue staining Indoleamine 2, 3-dioxygenase using ab281580 at a 1/50 diluiton (10.0 μg/ml).


  Positive staining on human cervix carcinoma.

  The section was then incubated overnight at +4°C in TBS containing 0.025% (v/v) Triton X-100 and 1% (w/v) BSA with ab281580 at 1/50 dilution (shown in Red). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount®.
  Non-specific protein-protein interactions were then blocked in TBS containing 0.025% (v/v) Triton X-100, 0.3M (w/v) glycine and 1% (w/v) BSA for 1h at room temperature.
  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

  Heat mediated antigen retrieval using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0).
