AB196196

Alexa Fluor® 647 Anti-NQO1 antibody [EPR3309]

5

(1 Review)

|

(2 Publications)

Rabbit Recombinant Monoclonal NQO1 antibody - conjugated to Alexa Fluor® 647. Suitable for ICC/IF, Flow Cyt (Intra) and reacts with Human, Mouse, Rat samples. Cited in 2 publications.

View Alternative Names

DIA4, NMOR1, NQO1, NAD(P)H dehydrogenase [quinone] 1, Azoreductase, DT-diaphorase, Menadione reductase, NAD(P)H:quinone oxidoreductase 1, Phylloquinone reductase, Quinone reductase 1, DTD, QR1

2 Images
Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-NQO1 antibody [EPR3309] (AB196196)
  • ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-NQO1 antibody [EPR3309] (AB196196)

ab196196 staining NQO1 in A549 cells. The cells were fixed with 100% methanol (5 min), permeabilized in 0.1% Triton X-100 for 5 minutes and then blocked in 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab196196 at a working dilution of 1 in 100 (shown in red) and ab195887, Mouse monoclonal [DM1A] to alpha Tubulin (Alexa Fluor® 488, shown in green) at 2μg/ml overnight at +4°C. Nuclear DNA was labelled in blue with DAPI.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-NQO1 antibody [EPR3309] (AB196196)
  • Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-NQO1 antibody [EPR3309] (AB196196)

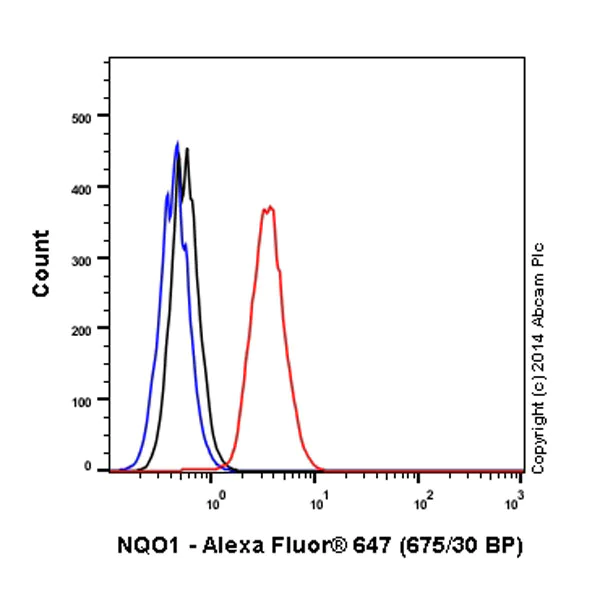

Overlay histogram showing A549 cells stained with ab196196 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab196196, 1/50 dilution) for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) Alexa Fluor® 647 used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control.

Acquisition of >5,000 events were collected using a solid-state 25mW red diode laser (635 nm) and 675/30 bandpass filter.

This antibody gave a positive signal in A549 fixed with 4% formaldehyde (10 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR3309

Isotype

IgG

Conjugation

Alexa Fluor® 647

Excitation/Emission

Ex: 650nm, Em: 665nm

Carrier free

No

Reacts with

Human, Human, Mouse, Rat

Applications

Flow Cyt (Intra), ICC/IF

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Alternative Products

Primary Antibodies

AB97385

Anti-NQO1 antibody

Immunocytochemistry/ Immunofluorescence - Anti-NQO1 antibody (AB97385)

  • 5
  • 2
Primary Antibodies

AB227520

Anti-NQO1 antibody

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NQO1 antibody (AB227520)

  • 0
  • 0
Primary Antibodies

AB2346

Anti-NQO1 antibody

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NQO1 antibody (AB2346)

  • 0
  • 0
Primary Antibodies

AB34173

Anti-NQO1 antibody

KO Validated

Immunocytochemistry - Anti-NQO1 antibody (AB34173)

  • 4
  • 9
Primary Antibodies

AB264434

Anti-NQO1 antibody [A180] - BSA and Azide free

BOND RX™ Validated|KO Validated

Flow Cytometry (Intracellular) - Anti-NQO1 antibody [A180] - BSA and Azide free (AB264434)

  • 0
  • 0
Primary Antibodies

AB213239

Anti-NQO1 antibody [EPR21230]

Recombinant|KO Validated

Western blot - Anti-NQO1 antibody [EPR21230] (AB213239)

  • 0
  • 0
Primary Antibodies

AB28947

Anti-NQO1 antibody [A180]

BOND RX™ Validated|KO Validated

Flow Cytometry (Intracellular) - Anti-NQO1 antibody [A180] (AB28947)

  • 4
  • 12
Primary Antibodies

AB196629

HRP Anti-NQO1 antibody [A180]

BOND RX™ Validated|KO Validated

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - HRP Anti-NQO1 antibody [A180] (AB196629)

  • 5
  • 2
Primary Antibodies

AB219769

Anti-NQO1 antibody - C-terminal

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NQO1 antibody - C-terminal (AB219769)

  • 0
  • 0

Complementary Products

Assay Kits

AB184867

NQO1 Activity Assay Kit

Functional Studies - NQO1 Activity Assay Kit (AB184867)

  • 0
  • 0
Primary Antibodies

AB189491

Anti-Heme Oxygenase 1 antibody [EPR18161-128]

20ul selling size|RabMAb|Recombinant|KO Validated

Flow Cytometry (Intracellular) - Anti-Heme Oxygenase 1 antibody [EPR18161-128] (AB189491)

  • 5
  • 2
Primary Antibodies

AB224942

Alexa Fluor® 647 Anti-p53 antibody [E26]

RabMAb|Recombinant|KO Validated

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-p53 antibody [E26] (AB224942)

  • 0
  • 1
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
Primary Antibodies

AB8227

Anti-beta Actin antibody - Loading Control

BOND RX™ Validated|Lab Essentials

Western blot - Anti-beta Actin antibody - Loading Control (AB8227)

  • 5
  • 104
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/100", "ICCIF-species-notes": "<p></p>", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/50", "FlowCytIntra-species-notes": "<p><a href='/en-us/products/primary-antibodies/alexa-fluor-647-rabbit-igg-monoclonal-epr25a-isotype-control-ab199093'>ab199093</a> - Rabbit monoclonal IgG (Alexa Fluor®; 647), is suitable for use as an isotype control with this antibody.</p>" }, "Mouse": { "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>", "FlowCytIntra-species-checked": "guaranteed", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "<p></p>" }, "Rat": { "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>", "FlowCytIntra-species-checked": "guaranteed", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "<p></p>" } } }
style
left-column

Product details

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.4 Preservative: 0.02% Sodium azide Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle|Store in the dark
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

NQO1 also known as NAD(P)H:quinone oxidoreductase 1 is a cytosolic enzyme involved in two-electron reduction processes. This protein plays a role in detoxification transforming quinones into less reactive and harmful hydroquinones. NQO1 has a molecular weight of approximately 31 kDa and is present in various tissues with high expression in the liver and lungs. Sometimes called DT-diaphorase it contributes to antioxidant protection within cells and assists in the stabilization of other proteins such as p53.
Biological function summary

NQO1 serves a protective function against oxidative stress by reducing quinones and preventing redox cycling that generates reactive oxygen species. Part of a critical network its function integrates with the cellular defense mechanism assisting in maintaining cellular homeostasis. NQO1 helps metabolize xenobiotics and is associated with phase II detoxification working alongside enzymes like glutathione S-transferases but is not part of a complex.

Pathways

NQO1 is an important component of the antioxidant defense pathway participating in the direct enzymatic reduction of quinones protecting cells from oxidative damage. It also interfaces with the KEAP1-NRF2 pathway where the NQO1 gene is regulated by the NRF2 transcription factor that upregulates its expression in response to oxidative stress. NQO1 interlinks with proteins such as p53 through pathways related to apoptotic regulation and cellular stress responses.

Mutations or altered expression of NQO1 have correlations with cancer development and progression notably in liver and lung cancers. This protein's stability influences cancer cell survival particularly under oxidative stress or chemotherapeutic treatments. NQO1 also exhibits links to Alzheimer's disease where its potential role in neuroprotection against oxidative damage draws investigation relating it to proteins like tau and amyloid-beta.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Flavin-containing quinone reductase that catalyzes two-electron reduction of quinones to hydroquinones using either NADH or NADPH as electron donors. In a ping-pong kinetic mechanism, the electrons are sequentially transferred from NAD(P)H to flavin cofactor and then from reduced flavin to the quinone, bypassing the formation of semiquinone and reactive oxygen species (By similarity) (PubMed : 8999809, PubMed : 9271353). Regulates cellular redox state primarily through quinone detoxification. Reduces components of plasma membrane redox system such as coenzyme Q and vitamin quinones, producing antioxidant hydroquinone forms. In the process may function as superoxide scavenger to prevent hydroquinone oxidation and facilitate excretion (PubMed : 15102952, PubMed : 8999809, PubMed : 9271353). Alternatively, can activate quinones and their derivatives by generating redox reactive hydroquinones with DNA cross-linking antitumor potential (PubMed : 8999809). Acts as a gatekeeper of the core 20S proteasome known to degrade proteins with unstructured regions. Upon oxidative stress, interacts with tumor suppressors TP53 and TP73 in a NADH-dependent way and inhibits their ubiquitin-independent degradation by the 20S proteasome (PubMed : 15687255, PubMed : 28291250).
See full target information NQO1
style
left-column

Publications (2)

Recent publications for all applications. Explore the full list and refine your search

Nature communications 15:6152 PubMed39034312

2024

Glutathione synthesis in the mouse liver supports lipid abundance through NRF2 repression.

Applications

Unspecified application

Species

Unspecified reactive species

Gloria Asantewaa,Emily T Tuttle,Nathan P Ward,Yun Pyo Kang,Yumi Kim,Madeline E Kavanagh,Nomeda Girnius,Ying Chen,Katherine Rodriguez,Fabio Hecht,Marco Zocchi,Leonid Smorodintsev-Schiller,TashJaé Q Scales,Kira Taylor,Fatemeh Alimohammadi,Renae P Duncan,Zachary R Sechrist,Diana Agostini-Vulaj,Xenia L Schafer,Hayley Chang,Zachary R Smith,Thomas N O'Connor,Sarah Whelan,Laura M Selfors,Jett Crowdis,G Kenneth Gray,Roderick T Bronson,Dirk Brenner,Alessandro Rufini,Robert T Dirksen,Aram F Hezel,Aaron R Huber,Joshua Munger,Benjamin F Cravatt,Vasilis Vasiliou,Calvin L Cole,Gina M DeNicola,Isaac S Harris

International journal of molecular sciences 23: PubMed35563257

2022

Oncolytic Herpes Simplex Virus Type 1 Induces Immunogenic Cell Death Resulting in Maturation of BDCA-1 Myeloid Dendritic Cells.

Applications

Unspecified application

Species

Unspecified reactive species

Philipp Kalus,Jolien De Munck,Sarah Vanbellingen,Laura Carreer,Thessa Laeremans,Katrijn Broos,Inès Dufait,Julia K Schwarze,Ivan Van Riet,Bart Neyns,Karine Breckpot,Joeri L Aerts
View all publications
style
left-column
style
left-column
style
right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
