Mouse Monoclonal PCNA antibody - conjugated to Alexa Fluor® 647. Suitable for Flow Cyt (Intra), ICC/IF and reacts with Human samples. Cited in 1 publication.

Be the first to review this product! Submit a review

Images

Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-PCNA antibody [PC10] (AB201674), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-PCNA antibody [PC10] (AB201674), expandable thumbnail

Publications

Key facts

Isotype

IgG2a

Host species

Mouse

Conjugation

Alexa Fluor® 647

Excitation/Emission

Ex: 650nm, Em: 665nm

Storage buffer

pH: 7.4
Preservative: 0.02% Sodium azide
Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA

Form

Liquid

Clonality

Monoclonal

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
Flow Cyt (Intra)ICC/IF
Human
Tested
Tested
Mouse
Predicted
Predicted
Rat
Predicted
Predicted
Catshark
Predicted
Predicted
Chicken
Predicted
Predicted
Cow
Predicted
Predicted
Dogfish
Predicted
Predicted
Drosophila melanogaster
Predicted
Predicted
Monkey
Predicted
Predicted
Pig
Predicted
Predicted
Pigeon
Predicted
Predicted
Thornback ray
Predicted
Predicted
Zebrafish
Predicted
Predicted

Tested
Tested

Species

Human

Dilution info

1/500

Notes

-

Predicted
Predicted

Species

Mouse, Rat, Chicken, Cow, Pigeon, Pig, Drosophila melanogaster, Monkey, Zebrafish, Thornback ray, Dogfish, Catshark

Dilution info

-

Notes

-

Tested
Tested

Species

Human

Dilution info

1/200

Notes

This product gave a positive signal in HeLa cells fixed with 4% formaldehyde (10 min) and 100% methanol (5 min).

Predicted
Predicted

Species

Mouse, Rat, Chicken, Cow, Pigeon, Pig, Drosophila melanogaster, Monkey, Zebrafish, Thornback ray, Dogfish, Catshark

Dilution info

-

Notes

-

Associated Products

Select an associated product type

3 products for Alternative Version

6 products for Alternative Product

Target data

Function

Auxiliary protein of DNA polymerase delta and epsilon, is involved in the control of eukaryotic DNA replication by increasing the polymerase's processibility during elongation of the leading strand (PubMed:35585232). Induces a robust stimulatory effect on the 3'-5' exonuclease and 3'-phosphodiesterase, but not apurinic-apyrimidinic (AP) endonuclease, APEX2 activities. Has to be loaded onto DNA in order to be able to stimulate APEX2. Plays a key role in DNA damage response (DDR) by being conveniently positioned at the replication fork to coordinate DNA replication with DNA repair and DNA damage tolerance pathways (PubMed:24939902). Acts as a loading platform to recruit DDR proteins that allow completion of DNA replication after DNA damage and promote postreplication repair: Monoubiquitinated PCNA leads to recruitment of translesion (TLS) polymerases, while 'Lys-63'-linked polyubiquitination of PCNA is involved in error-free pathway and employs recombination mechanisms to synthesize across the lesion (PubMed:24695737).

Alternative names

Proliferating cell nuclear antigen, PCNA, Cyclin, PCNA

Recommended products

Mouse Monoclonal PCNA antibody - conjugated to Alexa Fluor® 647. Suitable for Flow Cyt (Intra), ICC/IF and reacts with Human samples. Cited in 1 publication.

Key facts

Isotype

IgG2a

Conjugation

Alexa Fluor® 647

Excitation/Emission

Ex: 650nm, Em: 665nm

Form

Liquid

Clonality

Monoclonal

Clone number

PC10

Purification technique

Affinity purification

Light chain type

kappa

Concentration
Loading...

Storage

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle, Store in the dark

Notes

Abcam is leading the way to address reproducibility in scientific research with our highly validated recombinant monoclonal and recombinant multiclonal antibodies. Search & select one of Abcam's thousands of recombinant alternatives to eliminate batch-variability and unnecessary animal use.

If you do not find a host species to meet your needs, our catalogue and custom Chimeric range provides scientists the specificity of Abcam's RabMAbs in the species backbone of your choice. Remember to also review our range of edited cell lines, proteins and biochemicals relevant to your target that may help you further your research goals.

Abcam antibodies are extensively validated in a wide range of species and applications, so please check the reagent specifications meet your scientific needs before purchasing. If you have any questions or bespoke requirements, simply visit the Contact Us page to send us an inquiry or contact our Support Team ahead of purchase.

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

PCNA or Proliferating Cell Nuclear Antigen functions as a sliding clamp for DNA polymerases during DNA replication. This important role enables it to coordinate the orderly duplication of the genome by increasing the processivity of DNA polymerase δ. PCNA weighs approximately 29 kDa and forms a homotrimeric ring structure. It is expressed in the nucleus of cells often found abundantly in proliferating cells. Aside from its main name some people also refer to it as PC10.

Biological function summary

This protein serves a core function in cell cycle regulation and DNA repair. PCNA acts as a scaffold for the assembly of numerous proteins involved in DNA processing forming part of the replication fork complex. It interacts with cyclins and cyclin-dependent kinases (CDKs) linking DNA synthesis to cell cycle progression. Furthermore PCNA partners with proteins involved in DNA mismatch repair base excision repair and nucleotide excision repair.

Pathways

PCNA is integral in the DNA replication and repair pathways. It closely associates with the p21 protein which regulates the cell cycle by inhibiting cyclin-CDK complexes upon DNA damage. PCNA also plays a part in the ubiquitin-proteasome pathway where its modification by ubiquitin impacts how cells respond to DNA damage. This modification recruits specific proteins for DNA repair highlighting its central role in maintaining genomic stability.

Associated diseases and disorders

PCNA is linked to cancer and autoimmune diseases. Its overexpression is common in various cancers reflecting its role in cell proliferation and the cell cycle. PCNA antibodies are sometimes found in the serum of patients with systemic lupus erythematosus (SLE) a connection also related to alterations in the p21 protein pathway. The interaction between PCNA and disease-specific proteins emphasizes its importance in both cell proliferation and immune system disorders.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

2 product images

  • Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-PCNA antibody [PC10] (ab201674), expandable thumbnail

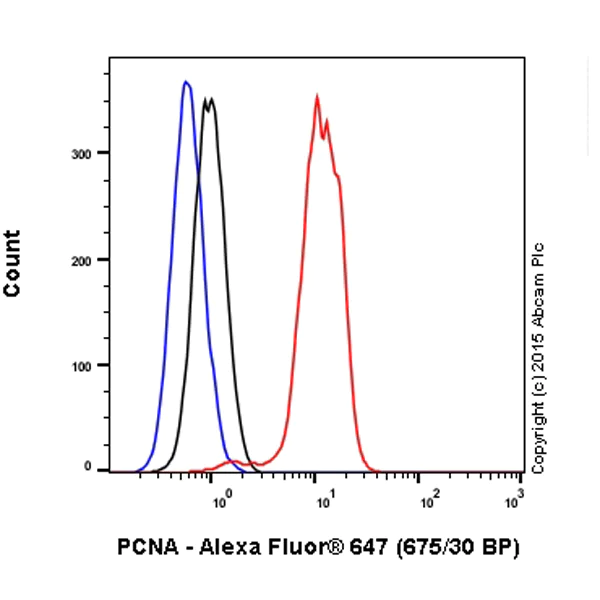

    Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-PCNA antibody [PC10] (ab201674)

    Overlay histogram showing HeLa cells stained with ab201674 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab201674, 1/500 dilution) for 30 min at 22°C. Isotype control antibody (black line) was mouse IgG2a (monoclonal) Alexa Fluor® 647 (ab176104) used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a solid-state 25mW red diode laser (635 nm) and 675/30 bandpass filter.

  • Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-PCNA antibody [PC10] (ab201674), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-PCNA antibody [PC10] (ab201674)

    ab201674 staining PCNA in HeLa cells. The cells were fixed with 100% methanol (5min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab201674 at 1/200 dilution (shown in red) and Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195887, Mouse monoclonal to alpha Tubulin (Alexa Fluor® 488), at 1/250 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue).
    Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
    This product also gave a positive signal under the same testing conditions in HeLa cells fixed with 4% formaldehyde (10 min).
