Alexa Fluor® 647 Anti-Peroxiredoxin 2/PRP antibody [EPR5154]

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-Peroxiredoxin 2/PRP antibody [EPR5154] (AB197041)

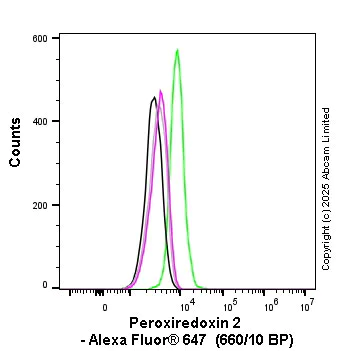

Flow cytometry overlay histogram showing wild-type HAP1 (green line) and PRDX2 knockout HAP1 stained with ab197041 (magenta line). The cells were fixed with 80% methanol (5 min) and then permeabilised with 0.1% PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS containing 10% normal goat serum to block non-specific protein-protein interaction followed by the antibody (ab197041) (1x 10⁶ in 100μl at 0.008 μg/ml (1/62500 dilution)) for 30min at 22°C.

Isotype control antibody was Alexa Fluor^® 647 Rabbit IgG, monoclonal [EPR25A] - Isotype Control in HAP1 WT cells (black line) and HAP1-PRDX2 KO cells (grey line), used at the same concentration and conditions as the primary antibody.

Acquisition of >5000 events were collected using a 40 mW Red laser (638nm) and 660/10 bandpass filter.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-Peroxiredoxin 2/PRP antibody [EPR5154] (AB197041)

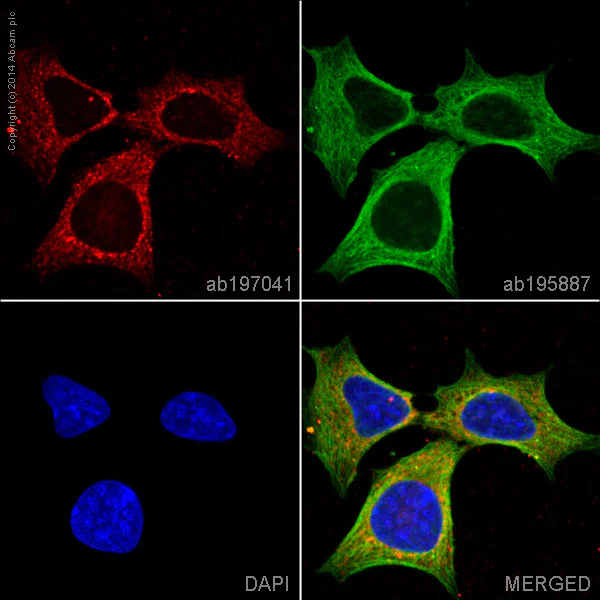

ab197041 staining Peroxiredoxin in Hek293 cells. The cells were fixed with 100% methanol (5 min), permeabilized in 0.1% Triton X-100 for 5 minutes and then blocked in 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab197041 at 1/100 dilution (shown in red) and ab195887, Mouse monoclonal [DM1A] to alpha Tubulin (Alexa Fluor® 488, shown in green) at 1/167 dilution, overnight at +4°C. Nuclear DNA was labelled in blue with DAPI. This product also gave a positive signal under the same testing conditions in Hek293 cells fixed with 4% formaldehyde (10 min).
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-Peroxiredoxin 2/PRP antibody [EPR5154] (AB197041)

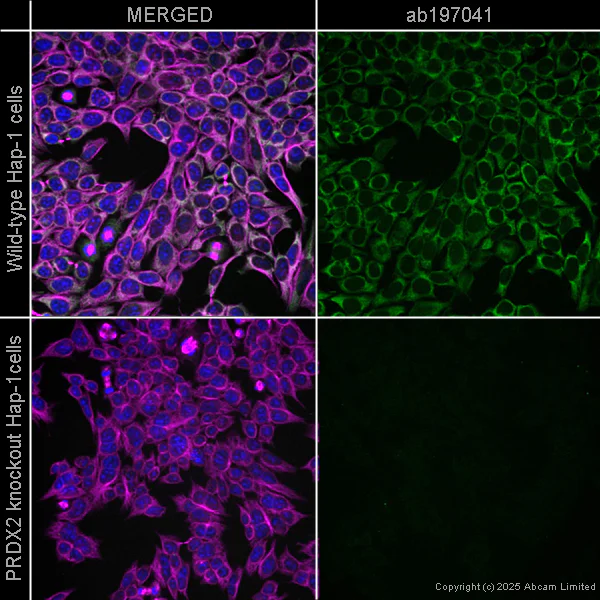

Immunofluorescent analysis of 100% methanol-fixed 0.1% Triton X-100 permeabilized Hap1 WT and Hap1-PRDX2 KO cells labelling Peroxiredoxin 2 with ab197041 (green) at 1 μg/ml. Cells were counterstained with ab195887 Anti-Tubulin (Alexa Fluor® 488) at 1 : 250 (2 μg/ml) (magenta). The nuclear counterstain was DAPI (Blue).
