Rabbit Recombinant Monoclonal TGN46 antibody - conjugated to Alexa Fluor® 647. Suitable for ICC/IF, Flow Cyt (Intra) and reacts with Human samples.

Be the first to review this product! Submit a review

Images

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-TGN46 antibody [EPR24770-16] - Golgi Marker (AB303462), expandable thumbnail
  • Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-TGN46 antibody [EPR24770-16] - Golgi Marker (AB303462), expandable thumbnail

Key facts

Isotype
IgG
Host species
Rabbit
Conjugation
Alexa Fluor® 647
Excitation/Emission
Ex: 650nm, Em: 665nm
Storage buffer

pH: 7.4
Preservative: 0.02% Sodium azide
Constituents: 68% PBS, 30% Glycerol (glycerin, glycerine), 1% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
ICC/IFFlow Cyt (Intra)
Human
Tested
Tested

Tested
Tested

Species
Human
Dilution info
1/250
Notes

-

Tested
Tested

Species
Human
Dilution info
1/500
Notes

-

Associated Products

Select an associated product type

3 products for Alternative Version

Target data

Function

May be involved in regulating membrane traffic to and from trans-Golgi network.

Alternative names

TGN46, TGN51, TGOLN2, Trans-Golgi network integral membrane protein 2, Trans-Golgi network glycoprotein 46, Trans-Golgi network glycoprotein 48, Trans-Golgi network glycoprotein 51, Trans-Golgi network protein 2, TGN38 homolog, hTGN46, hTGN48, hTGN51

Recommended products

Rabbit Recombinant Monoclonal TGN46 antibody - conjugated to Alexa Fluor® 647. Suitable for ICC/IF, Flow Cyt (Intra) and reacts with Human samples.

Key facts

Isotype
IgG
Conjugation
Alexa Fluor® 647
Excitation/Emission
Ex: 650nm, Em: 665nm
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EPR24770-16
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle, Store in the dark

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

TGN46 also known as trans-Golgi network protein 46 is an important membrane protein associated with the trans-Golgi network. The protein has a mass of approximately 46 kDa and plays a role in the sorting and trafficking of proteins to their proper destinations within the cell. TGN46 is widely expressed in various cell types and is commonly used as a Golgi marker in cell biology studies helping to identify Golgi apparatus in cells.

Biological function summary

The protein TGN46 functions in the sorting and transport mechanisms within the cell. It does not function as a part of a large macromolecular complex but it interacts with several other proteins to facilitate the movement of proteins from the Golgi to other sites within the cell. The protein also associates with trafficking components to ensure the correct delivery of proteins to the plasma membrane or lysosomes.

Pathways

The role of TGN46 involves participation in intracellular transport and protein trafficking pathways. It interacts with clathrin-coated vesicles and works closely with proteins such as gamma-adaptin and epsin which are important for vesicle formation and transport. These interactions highlight its involvement in protein secretion and membrane transport pathways which are essential for maintaining cellular homeostasis.

Associated diseases and disorders

TGN46 appears to have connections to neurodegenerative diseases and certain forms of cancer although the mechanisms are not fully understood. Alterations in TGN46 have been observed in Alzheimer's disease where it may intersect with proteins like amyloid precursor protein (APP) in protein misfolding and aggregation pathways. Additionally changes in TGN46 expression levels have been implicated in prostate cancer potentially due to its role in protein sorting and dysregulation of cellular trafficking processes.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

2 product images

  • Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-TGN46 antibody [EPR24770-16] - Golgi Marker (ab303462), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-TGN46 antibody [EPR24770-16] - Golgi Marker (ab303462)

    TGN46 Immunocytochemistry/ Immunofluorescence staining using rabbit Anti-TGN46 antibody

    Immunocytochemical analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HepG2 (human hepatocellular carcinoma epithelial cell) cells staining TGN46 using ab303462 at a 1/250 dilution (2.0 μg/ml) (Red). Counterstained with Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) at a 1/200 dilution (2.5 μg/ml) (Green). Nuclear counterstain is DAPI (Blue).
    Confocal image showing cytoplasmic staining in HepG2 cells.

  • Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-TGN46 antibody [EPR24770-16] - Golgi Marker (ab303462), expandable thumbnail

    Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-TGN46 antibody [EPR24770-16] - Golgi Marker (ab303462)

    TGN46 Flow Cytometry (Intracellular) staining using rabbit Anti-TGN46 antibody

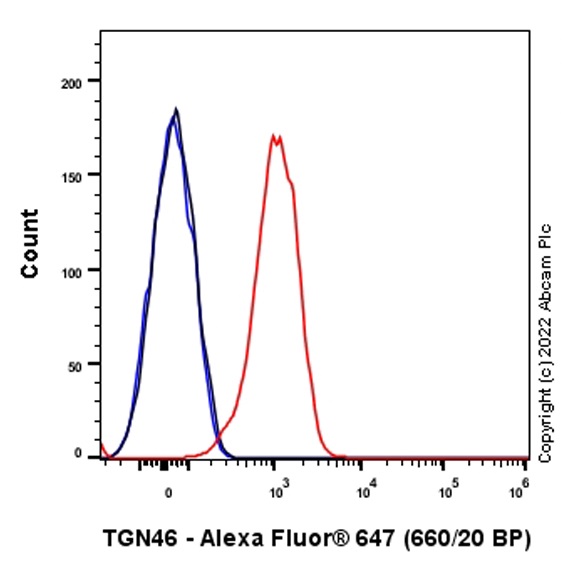

    Flow Cytometry (Intracellular) analysis of 4% paraformaldehyde-fixed, 90% methanol permeabilized HepG2 (human hepatocellular carcinoma epithelial cell) stained for TGN46 using ab303462 at a 1/500 dilution (0.1 μg) (Red) compared to Rabbit IgG monoclonal [EPR25A] - Isotype Control (Alexa Fluor® 647) (Alexa Fluor® 647 Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab199093) (Black) and cells without incubation with primary antibody and secondary antibody (Blue).
