Anti-alpha Tubulin antibody [DM1A] - Loading Control is a mouse monoclonal antibody that is used to detect alpha Tubulin in Flow cytometry (Intra), ICC/IF, IHC-P, Western blot. Suitable for Human, Mouse, Rat samples.
- Loading control antibody
- Cited in over 1,220 publications
pH: 7.4
Preservative: 0.02% Sodium azide
Constituents: PBS, 6.97% L-Arginine
IHC-P | Flow Cyt (Intra) | WB | ICC/IF | |
---|---|---|---|---|
Human | Tested | Tested | Tested | Tested |
Mouse | Expected | Expected | Tested | Tested |
Rat | Tested | Expected | Tested | Expected |
African green monkey | Predicted | Predicted | Predicted | Predicted |
Chicken | Predicted | Predicted | Predicted | Predicted |
Cow | Predicted | Predicted | Predicted | Predicted |
Dog | Predicted | Predicted | Predicted | Predicted |
Gerbil | Predicted | Predicted | Predicted | Predicted |
Guinea pig | Predicted | Predicted | Predicted | Predicted |
Hamster | Predicted | Predicted | Predicted | Predicted |
Pig | Predicted | Predicted | Predicted | Predicted |
Xenopus laevis | Predicted | Predicted | Predicted | Predicted |
Species | Dilution info | Notes |
---|---|---|
Species Rat | Dilution info 5 µg/mL | Notes Perform heat-mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol. |
Species Human | Dilution info 5 µg/mL | Notes Perform heat-mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol. |
Species | Dilution info | Notes |
---|---|---|
Species Mouse | Dilution info Use at an assay dependent concentration. | Notes - |
Species | Dilution info | Notes |
---|---|---|
Species Chicken, Guinea pig, Hamster, Cow, Dog, Pig, Xenopus laevis, Gerbil, African green monkey | Dilution info - | Notes - |
Species | Dilution info | Notes |
---|---|---|
Species Human | Dilution info 1 µg for 106 Cells | Notes ab170190 - Mouse monoclonal IgG1, is suitable for use as an isotype control with this antibody. |
Species | Dilution info | Notes |
---|---|---|
Species Rat, Mouse | Dilution info Use at an assay dependent concentration. | Notes - |
Species | Dilution info | Notes |
---|---|---|
Species Chicken, Guinea pig, Hamster, Cow, Dog, Pig, Xenopus laevis, Gerbil, African green monkey | Dilution info - | Notes - |
Species | Dilution info | Notes |
---|---|---|
Species Mouse | Dilution info 1/5000.00000 - 1/10000.00000 | Notes We recommend diluting ab7291 to 1:10000 and incubating overnight at 4°C. Works under both reducing and non-reducing conditions. We recommend using 3% BSA as the blocking agent, blocking with milk may cause a reduction in signal intensity. |
Species Rat | Dilution info 1/5000.00000 - 1/10000.00000 | Notes We recommend diluting ab7291 to 1:10000 and incubating overnight at 4°C. Works under both reducing and non-reducing conditions. We recommend using 3% BSA as the blocking agent, blocking with milk may cause a reduction in signal intensity. |
Species Human | Dilution info 1/5000.00000 - 1/10000.00000 | Notes We recommend diluting ab7291 to 1:10000 and incubating overnight at 4°C. Works under both reducing and non-reducing conditions. We recommend using 3% BSA as the blocking agent, blocking with milk may cause a reduction in signal intensity. |
Species | Dilution info | Notes |
---|---|---|
Species Chicken, Guinea pig, Hamster, Cow, Dog, Pig, Xenopus laevis, Gerbil, African green monkey | Dilution info - | Notes - |
Species | Dilution info | Notes |
---|---|---|
Species Mouse | Dilution info 0.50000-1.00000 µg/mL | Notes - |
Species Human | Dilution info 0.50000-1.00000 µg/mL | Notes - |
Species | Dilution info | Notes |
---|---|---|
Species Rat | Dilution info Use at an assay dependent concentration. | Notes - |
Species | Dilution info | Notes |
---|---|---|
Species Chicken, Guinea pig, Hamster, Cow, Dog, Pig, Xenopus laevis, Gerbil, African green monkey | Dilution info - | Notes - |
Select an associated product type
Tubulin is the major constituent of microtubules, a cylinder consisting of laterally associated linear protofilaments composed of alpha- and beta-tubulin heterodimers. Microtubules grow by the addition of GTP-tubulin dimers to the microtubule end, where a stabilizing cap forms. Below the cap, tubulin dimers are in GDP-bound state, owing to GTPase activity of alpha-tubulin.
Tubulin alpha-1A chain
Anti-alpha Tubulin antibody [DM1A] - Loading Control is a mouse monoclonal antibody that is used to detect alpha Tubulin in Flow cytometry (Intra), ICC/IF, IHC-P, Western blot. Suitable for Human, Mouse, Rat samples.
- Loading control antibody
- Cited in over 1,220 publications
pH: 7.4
Preservative: 0.02% Sodium azide
Constituents: PBS, 6.97% L-Arginine
Affinity-purified using protein G
Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) is a mouse monoclonal antibody and is validated for use in Flow Cyt (Intra), ICC/IF, IHC-P and WB.
Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) was first used in a scientific publication in 2005 and has been cited over 1224 times in peer reviewed journals. It's performance in Western blot in human, mouse and rat samples is trusted by the scientific community.
Abcam's high quality validation processes ensure Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) has high sensitivity and specificity.
Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) has 91 independent reviews from customers.
alpha Tubulin antibodies are often used as loading controls in Western Blot. Anti-alpha Tubulin antibody [DM1A] - Loading Control has been verified in Western Blot samples and detects a band at 51kDa Molecular weight.
Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) specifically detects alpha Tubulin (UniProt ID: P02552; Molecular weight: 51kDa) and is sold in 100 µg and 250 µg selling sizes.
Conjugation-ready, carrier free format available for antibody clone DM1A - Anti-alpha Tubulin antibody [DM1A] - BSA and Azide free ab264493.
Antibody clone DM1A is also available pre-conjugated to a variety of labels for your convenience - Alexa Fluor® 68, Alexa Fluor® 79, Alexa Fluor® 488, Alexa Fluor® 594, HRP, FITC (ab18493, Alexa Fluor® 790 Anti-alpha Tubulin antibody [DM1A] - Loading Control ab184577, Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195887, Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889, ab4742).
Alpha-Tubulin (α-Tubulin, TUBBA) is a fundamental protein that forms microtubules, essential components of the cytoskeleton in eukaryotic cells. Microtubules, composed of α- and β-tubulin heterodimers, play a crucial role in maintaining cell shape, enabling intracellular transport and facilitating cell division. Due to its ubiquitous presence and stability, α-Tubulin is commonly used as a loading control in western blotting (WB) and other protein quantification assays. Understanding α-Tubulin's functions and interactions is vital for studying cellular dynamics, mitosis and various physiological processes
Alpha tubulin also known as DM1A is an important component of the structural unit called microtubules. This protein weighs approximately 50 kDa and acts as a building block in the cytoskeleton. Alpha tubulin is expressed in various cell types across many organisms playing a fundamental role in maintaining cell shape and enabling intracellular transport. Researchers often acetylate alpha tubulin to study post-translational modifications and its effects on microtubule dynamics.
Alpha tubulin combines with beta tubulin to form the tubulin dimer which is the basic unit of microtubule polymerization. These dimers assemble into microtubule filaments integral in numerous cellular processes. As part of the cytoskeleton network alpha tubulin facilitates roles in mitosis and meiosis providing spindle structures necessary for chromosome separation. Its participation in cell signaling pathways is noteworthy as it interacts with motor proteins like kinesins and dyneins to aid cellular activities.
Alpha tubulin holds critical roles in microtubule-associated processes within the cytoskeleton and intracellular transport pathways. It interacts with the MAP (microtubule-associated protein) family which modulates microtubule stability and impacts cell division and trafficking. Moreover the microtubule pathway involves proteins like tau which bind to stabilize microtubules and are implicated in cellular dynamics and signaling.
Alpha tubulin is relevant in neurodegenerative diseases such as Alzheimer's disease and cancer. Aberrant modifications or mutations in alpha tubulin or associated proteins like tau can disrupt microtubule stability contributing to pathological conditions. In cancer altered expression of alpha tubulin affects cell division leading to tumor progression and chemoresistance. Researchers study alpha tubulin using techniques such as immunofluorescence with Alexa fluor 555 to understand its role in disease better.
We have tested this species and application combination and it works. It is covered by our product promise.
We have not tested this specific species and application combination in-house, but expect it will work. It is covered by our product promise.
This species and application combination has not been tested, but we predict it will work based on strong homology. However, this combination is not covered by our product promise.
We do not recommend this combination. It is not covered by our product promise.
We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.
In the unlikely event of one of our products not working as expected, you are covered by our product promise.
Full details and terms and conditions can be found here:
Terms & Conditions.
Merged signal (red and green). Green - ab7291 observed at 52 kDa. Red - loading control, Anti-GAPDH antibody [EPR16891] - Loading Control ab181602, observed at 38 kDa.
All samples were subjected to SDS-PAGE. The membrane was blocked with 3% NF Milk. ab7291 and Anti-GAPDH antibody [EPR16891] - Loading Control ab181602 (Rabbit anti GAPDH loading control) were incubated overnight at 4°C at 1/1,000 and 1/20,000 dilution respectively. Blots were developed with Goat anti-Mouse IgG H&L (IRDye® 800CW) preabsorbed Goat anti-Mouse IgG H&L (IRDye® 800CW) preadsorbed ab216772 and Goat anti-Rabbit IgG H&L (IRDye® 680RD) preabsorbed Goat Anti-Rabbit IgG H&L (IRDye® 680RD) preadsorbed ab216777 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

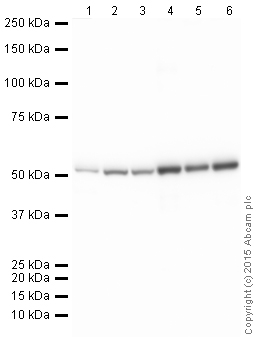

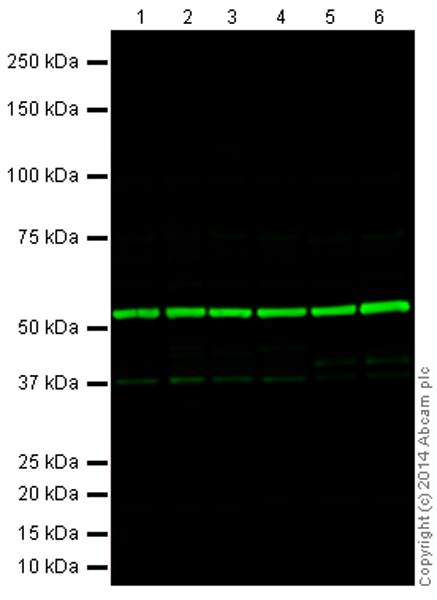

All lanes: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1/1000 dilution
Lane 1: HeLa cell lysate at 20 µg
Lane 2: PC12 cell lysate at 20 µg
Lane 3: SV40LT-SMC cell lysate at 20 µg
Lane 4: NIH/3T3 cell lysate at 20 µg
Lane 5: Rat liver tissue lysate at 20 µg
Lane 6: Rat heart tissue lysate at 20 µg
All lanes: Western blot - Goat anti-Mouse IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 800CW) preadsorbed ab216772) at 1/20000 dilution
Performed under reducing conditions.
Predicted band size: 50 kDa

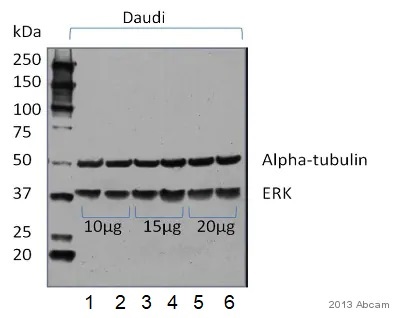

All lanes: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1/2500 dilution
Lanes 1 - 2: Daudi (Human Burkitt's lymphoma cell line) at 10 µg
Lanes 3 - 4: Daudi (Human Burkitt's lymphoma cell line) at 15 µg
Lanes 5 - 6: Daudi (Human Burkitt's lymphoma cell line) at 20 µg
All lanes: HRP conjugated monoclonal Goat Anti-Mouse IgG at 1/1000 dilution
Performed under reducing conditions.
Predicted band size: 50 kDa
Observed band size: 50 kDa
Exposure time: 1min

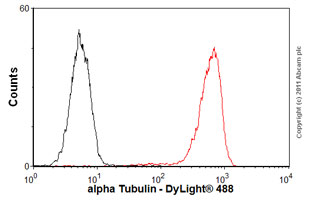

Overlay histogram showing HeLa cells stained with ab7291 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab7291, 1μg/1x106 cells) for 30 min at 22°C. The secondary antibody used was an anti-mouse DyLight® 488 (Goat Anti-Mouse IgG H&L (DyLight® 488) preadsorbed ab96879) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was mouse IgG1 [ICIGG1] (Mouse IgG1, Kappa Monoclonal [B11/6] - Isotype Control ab91353, 2μg/1x106 cells) used under the same conditions. Acquisition of >5,000 events was performed.

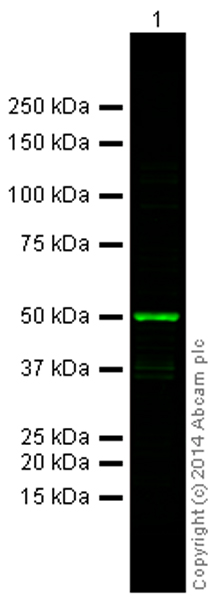

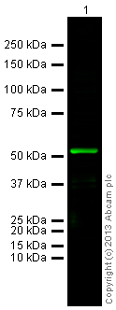

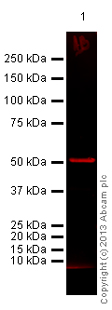

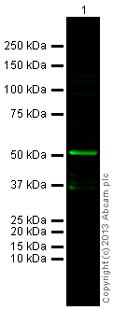

This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 5% Milk before being incubated with ab7291 overnight at 4°C. Antibody binding was detected using Goat Anti-Mouse IgG H&L (Alexa Fluor® 790) preadsorbed ab186695 at a 1:10,000 dilution for 1hr at room temperature and then imaged using the Licor Odyssey CLx.
All lanes: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1 µg/mL
All lanes: HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg
All lanes: Western blot - Goat Anti-Mouse IgG H&L (Alexa Fluor® 790) preadsorbed (Goat Anti-Mouse IgG H&L (Alexa Fluor® 790) preadsorbed ab186695) at 1/10000 dilution
Predicted band size: 36 kDa
Observed band size: 50 kDa
Alpha Tubulin Western blot staining using mouse Anti-alpha Tubulin antibody

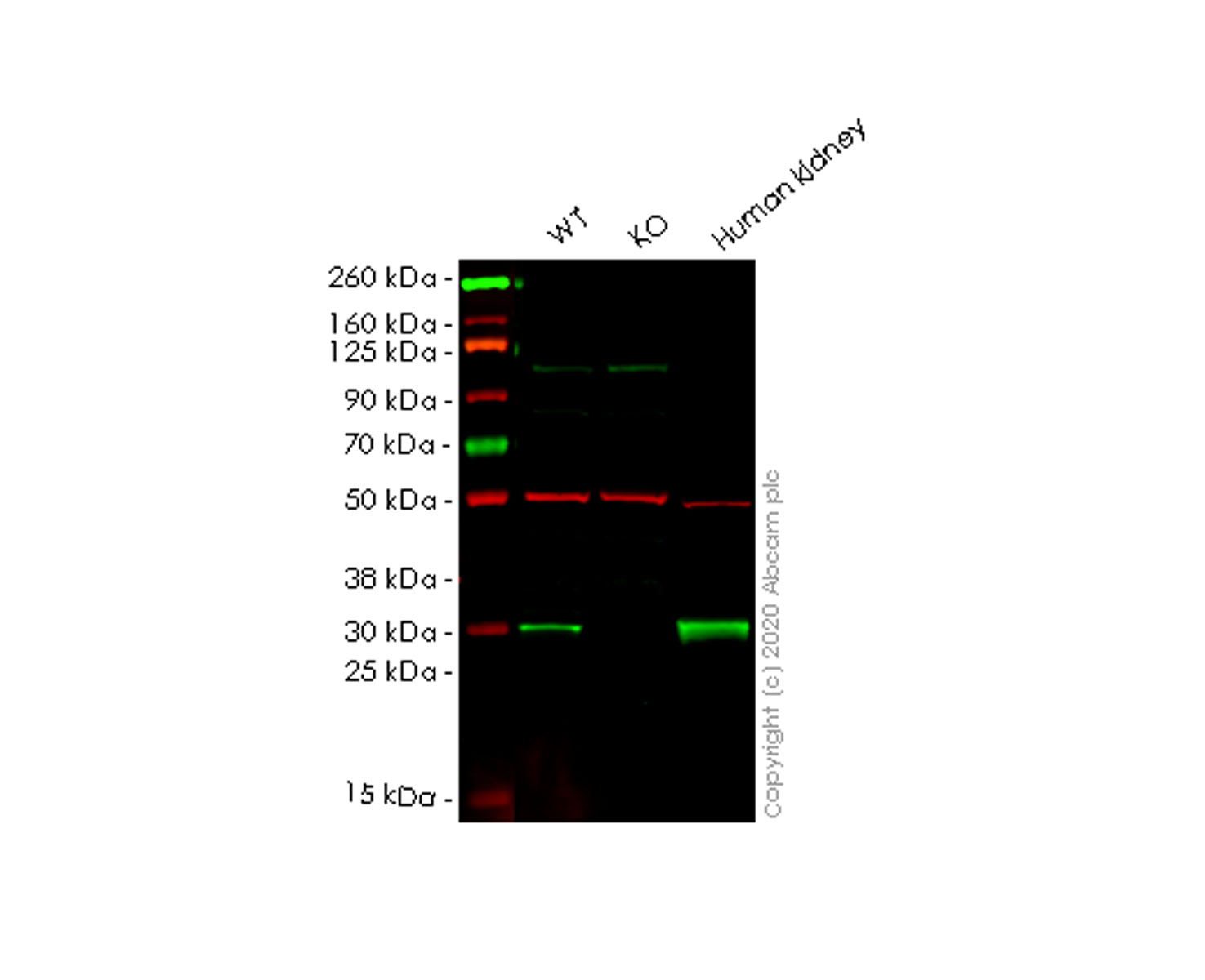

Lanes 1-3: Merged signal (red and green). Green - Anti-ketohexokinase antibody [EPR15847] ab197593 observed at 33 kDa. Red - loading control ab7291 observed at 50 kDa.
Anti-ketohexokinase antibody [EPR15847] ab197593 Anti-ketohexokinase antibody [EPR15847] was shown to specifically react with ketohexokinase in wild-type HEK293T cells. Loss of signal was observed when knockout cell line Human KHK (ketohexokinase) knockout HEK-293T cell line ab267292 (knockout cell lysate Human KHK (ketohexokinase) knockout HEK-293T cell lysate ab258017) was used. Wild-type and ketohexokinase knockout samples were subjected to SDS-PAGE. Anti-ketohexokinase antibody [EPR15847] ab197593 and Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) were incubated overnight at 4°C at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.
All lanes: Western blot - Anti-ketohexokinase antibody [EPR15847] (Anti-ketohexokinase antibody [EPR15847] ab197593) at 1/1000 dilution
Lane 1: Wild-type HEK293T cell lysate at 20 µg
Lane 2: KHK knockout HEK293T cell lysate at 20 µg
Lane 3: Human kidney tissue lysate at 20 µg
Lanes 1 - 3: Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) at 1/20000 dilution
Lanes 1 - 3: Western blot - Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) at 1/20000 dilution
Predicted band size: 33 kDa
Observed band size: 33 kDa

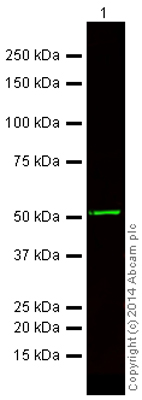

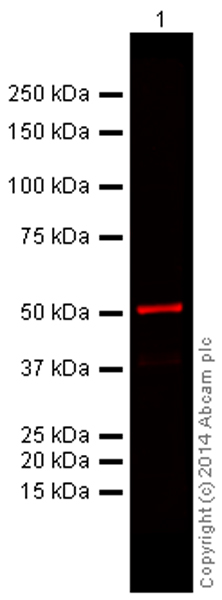

This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 5% Milk before being incubated with ab7291 overnight at 4°C. Antibody binding was detected using Goat Anti-Mouse IgG H&L (Alexa Fluor® 750) ab175740 at a 1:10,000 dilution for 1hr at room temperature and then imaged using the Licor Odyssey CLx.
All lanes: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1 µg/mL
All lanes: HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg
All lanes: Western blot - Goat Anti-Mouse IgG H&L (Alexa Fluor® 750) (Goat Anti-Mouse IgG H&L (Alexa Fluor® 750) ab175740) at 1/10000 dilution
Predicted band size: 36 kDa
Observed band size: 50 kDa

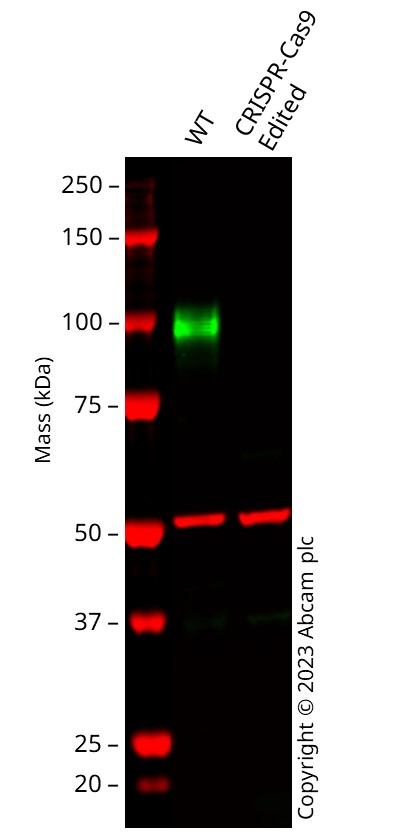

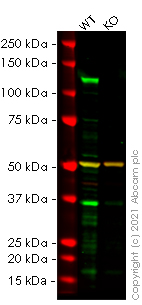

All lanes: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1/1000 dilution
Lane 1: Wild-type cell lysate
Lane 2: Western blot - Human ADAM17 knockout HCT116 cell line (Human ADAM17 knockout HCT116 cell line ab266873)
Lane 1: Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) at 1/20000 dilution
Lane 2: Western blot - Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) at 1/20000 dilution
Performed under reducing conditions.
Predicted band size: 93 kDa
Observed band size: 120 kDa

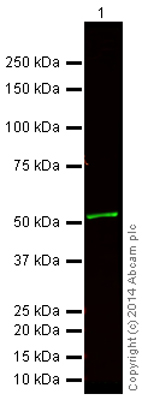

This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 5% Milk before being incubated with ab7291 overnight at 4°C. Antibody binding was detected using Goat Anti-Mouse IgG H&L (Alexa Fluor® 750) preadsorbed ab175741 at a 1:10,000 dilution for 1hr at room temperature and then imaged using the Licor Odyssey CLx.
All lanes: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1 µg/mL
All lanes: HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg
All lanes: Western blot - Goat Anti-Mouse IgG H&L (Alexa Fluor® 750) preadsorbed (Goat Anti-Mouse IgG H&L (Alexa Fluor® 750) preadsorbed ab175741) at 1/10000 dilution
Predicted band size: 36 kDa
Observed band size: 50 kDa
This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 5% Milk before being incubated with ab7291 overnight at 4°C. Antibody binding was detected using Goat Anti-Mouse IgG H&L (Alexa Fluor® 680) preadsorbed ab186694 at a 1:10,000 dilution for 1hr at room temperature and then imaged using the Licor Odyssey CLx.
All lanes: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1 µg/mL
All lanes: HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg
All lanes: Western blot - Goat Anti-Mouse IgG H&L (Alexa Fluor® 680) preadsorbed (Goat Anti-Mouse IgG H&L (Alexa Fluor® 680) preadsorbed ab186694) at 1/10000 dilution
Predicted band size: 36 kDa
Observed band size: 50 kDa
This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 5% Milk/0.1% TBST blocking buffer before being incubated with ab7291 overnight at 4°C. Antibody binding was detected using Goat Anti-Armenian hamster IgG H&L (Alexa Fluor® 750) ab175760 at a 1:10,000 dilution for 1hr at room temperature and then imaged using the Licor Odyssey CLx.
All lanes: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1 µg/mL
All lanes: HeLa Whole Cell Lysate at 10 µg
All lanes: Western blot - Goat Anti-Armenian hamster IgG H&L (Alexa Fluor® 750) (Goat Anti-Armenian hamster IgG H&L (Alexa Fluor® 750) ab175760) at 1/10000 dilution
Performed under reducing conditions.
This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 5% Milk before being incubated with ab7291 overnight at 4°C. Antibody binding was detected using Donkey Anti-Mouse IgG H&L (Alexa Fluor® 750) preadsorbed ab175739 at a 1:10,000 dilution for 1hr at room temperature and then imaged using the Licor Odyssey CLx.
All lanes: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1 µg/mL
All lanes: HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg
All lanes: Western blot - Donkey Anti-Mouse IgG H&L (Alexa Fluor® 750) preadsorbed (Donkey Anti-Mouse IgG H&L (Alexa Fluor® 750) preadsorbed ab175739) at 1/10000 dilution
Predicted band size: 36 kDa
Observed band size: 50 kDa
Alpha Tubulin Western blot staining using mouse Anti-alpha Tubulin antibody

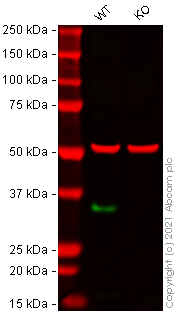

All lanes: Western blot - Anti-Histone H1.2 antibody (Anti-Histone H1.2 antibody ab17677) at 1/1000 dilution
Lane 1: Wild-type HeLa cell lysate at 20 µg
Lane 2: HIST1H1C knockout HeLa cell lysate at 20 µg
Lanes 1 - 2: Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) at 1/20000 dilution
Lanes 1 - 2: Western blot - Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) at 1/20000 dilution
Performed under reducing conditions.
Predicted band size: 21 kDa
Observed band size: 32 kDa, 50 kDa
This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 5% Milk before being incubated with ab7291 overnight at 4°C. Antibody binding was detected using Donkey F(ab')2 Anti-Mouse IgG H&L (Alexa Fluor® 750) ab175737 at a 1:10,000 dilution for 1hr at room temperature and then imaged using the Licor Odyssey CLx.
All lanes: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1 µg/mL
All lanes: HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg
All lanes: Western blot - Donkey F(ab')2 Anti-Mouse IgG H&L (Alexa Fluor® 750) (Donkey F(ab')2 Anti-Mouse IgG H&L (Alexa Fluor® 750) ab175737) at 1/10000 dilution
Predicted band size: 36 kDa
Observed band size: 50 kDa
Alpha Tubulin Western blot staining using mouse Anti-alpha Tubulin antibody
Anti-DDAH1 antibody [EPR13922] ab180599 was shown to react with DDAH1 in A431 wild-type cells in Western blot. Loss of signal was observed when DDAH1 knockout sample was used. A431 wild-type and DDAH1 knockout cell lysates were subjected to SDS-PAGE. Membranes were blocked in 3% Milk in TBS-T (0.1% Tween®) before incubation with Anti-DDAH1 antibody [EPR13922] ab180599 and ab7291 (Mouse anti-Alpha Tubulin [DM1A] overnight at 4°C at a 1 in 10000 dilution and a 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.
All lanes: Western blot - Anti-DDAH1 antibody [EPR13922] (Anti-DDAH1 antibody [EPR13922] ab180599) at 1/10000 dilution
Lane 1: Wild-type A431 cell lysate at 40 µg
Lane 2: DDAH1 knockout A431 cell lysate at 40 µg
Lane 3: HUVEC (Human umbilical vein endothelial cell line) whole cell lysate at 40 µg
Lane 4: HepG2 (Human liver hepatocellular carcinoma cell line) whole cell lysate at 40 µg
Lanes 1 - 4: Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) at 1/20000 dilution
Lanes 1 - 4: Western blot - Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) at 1/20000 dilution
Performed under reducing conditions.
Predicted band size: 31 kDa
Observed band size: 37 kDa, 55 kDa

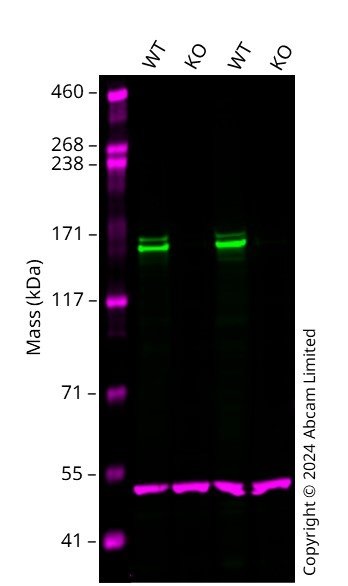

Lane 1: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1/1000 dilution
Lane 2: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1/20000 dilution
Lane 1: Western blot - Human ADAM17 knockout HeLa cell line (Human ADAM17 knockout HeLa cell line ab264911)
Lane 2: Western blot - Human ADAM17 knockout HeLa cell lysate (Human ADAM17 knockout HeLa cell lysate ab256829)
All lanes: Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) at 1/2000 dilution
Performed under reducing conditions.
Predicted band size: 93 kDa
Observed band size: 120 kDa

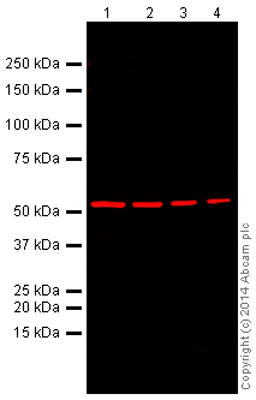

This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 5% Milk before being incubated with ab7291 overnight at 4°C. Antibody binding was detected using Donkey Anti-Mouse IgG H&L (Alexa Fluor® 680) ab175774 at a 1:10,000 dilution for 1hr at room temperature and then imaged using the Licor Odyssey CLx.
All lanes: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1 µg/mL
Lane 1: HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg
Lane 2: HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 5 µg
Lane 3: HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 2 µg
Lane 4: HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 1 µg
All lanes: Western blot - Donkey Anti-Mouse IgG H&L (Alexa Fluor® 680) (Donkey Anti-Mouse IgG H&L (Alexa Fluor® 680) ab175774) at 1/10000 dilution
Predicted band size: 36 kDa
Observed band size: 52 kDa
This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 5% Milk before being incubated with ab7291 overnight at 4°C. Antibody binding was detected using Goat Anti-Mouse IgG H&L (Alexa Fluor® 680) ab175775 at a 1:10,000 dilution for 1hr at room temperature and then imaged using the Licor Odyssey CLx.
All lanes: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1 µg/mL
All lanes: HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg
All lanes: Western blot - Goat Anti-Mouse IgG H&L (Alexa Fluor® 680) (Goat Anti-Mouse IgG H&L (Alexa Fluor® 680) ab175775) at 1/10000 dilution
Predicted band size: 36 kDa
Observed band size: 50 kDa
This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 5% Milk before being incubated with ab7291 overnight at 4°C. Antibody binding was detected using Donkey Anti-Mouse IgG H&L (Alexa Fluor® 680) preadsorbed ab186698 at a 1:10,000 dilution for 1hr at room temperature and then imaged using the Licor Odyssey CLx.
All lanes: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1 µg/mL
All lanes: HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg
All lanes: Western blot - Donkey Anti-Mouse IgG H&L (Alexa Fluor® 680) preadsorbed (Donkey Anti-Mouse IgG H&L (Alexa Fluor® 680) preadsorbed ab186698) at 1/10000 dilution

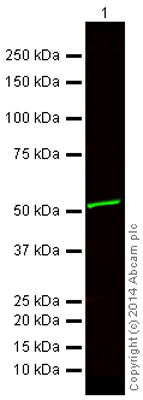

Predicted band size: 36 kDa
Observed band size: 50 kDa
This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 5% Milk before being incubated with ab7291 overnight at 4°C. Antibody binding was detected using Donkey Anti-Mouse IgG H&L (Alexa Fluor® 790) preadsorbed ab186699 at a 1:10,000 dilution for 1hr at room temperature and then imaged using the Licor Odyssey CLx.
All lanes: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1 µg/mL
All lanes: HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg

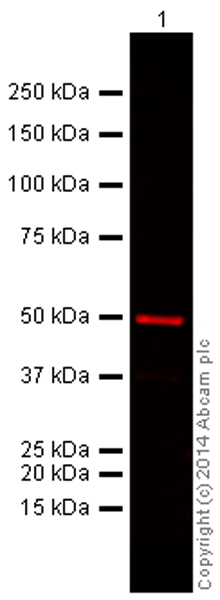

All lanes: Western blot - Donkey Anti-Mouse IgG H&L (Alexa Fluor® 790) preadsorbed (Donkey Anti-Mouse IgG H&L (Alexa Fluor® 790) preadsorbed ab186699) at 1/10000 dilution
Predicted band size: 36 kDa
Observed band size: 50 kDa
This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 5% milk blocking buffer before being incubated with ab7291 overnight at 4°C. Antibody binding was detected using Rabbit Anti-Sheep IgG H&L (Alexa Fluor® 750) ab175757 at a 1:10,000 dilution for 1hr at room temperature and then imaged using the Licor Odyssey CLx.
All lanes: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1 µg/mL
All lanes: HeLa Whole Cell Lysate at 10 µg
All lanes: Western blot - Rabbit Anti-Sheep IgG H&L (Alexa Fluor® 750) (Rabbit Anti-Sheep IgG H&L (Alexa Fluor® 750) ab175757) at 1/10000 dilution
Performed under reducing conditions.
This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 2% Bovine Serum Albumin before being incubated with ab7291 overnight at 4°C. Antibody binding was detected using an anti-mouse HRP (Goat Anti-Mouse IgG H&L (HRP) preadsorbed ab97040), and visualised using ECL development solution ECL Substrate Kit (High Sensitivity) ab133406.
All lanes: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1 µg/mL
Lane 1: HeLa (Human epithelial cell line from cervix adenocarcinoma cell line) whole cell lysate at 10 µg
Lane 2: NIH/3T3 (Mouse embryonic fibroblast cell line) whole cell lysate at 10 µg
Lane 3: PC12 (Rat adrenal gland pheochromocytoma cell line) whole cell lysate at 10 µg
All lanes: Western blot - Goat Anti-Mouse IgG H&L (HRP) preadsorbed (Goat Anti-Mouse IgG H&L (HRP) preadsorbed ab97040) at 1/50000 dilution
Developed using the ECL technique.
Performed under reducing conditions.
Predicted band size: 36 kDa, 50 kDa
Observed band size: 50 kDa
Exposure time: 150s
This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 5% Milk before being incubated with ab7291 overnight at 4°C. Antibody binding was detected using Donkey Anti-Mouse IgG H&L (Alexa Fluor® 790) ab175782 at a 1:10,000 dilution for 1hr at room temperature and then imaged using the Licor Odyssey CLx.
All lanes: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1 µg/mL
All lanes: HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg
All lanes: Western blot - Donkey Anti-Mouse IgG H&L (Alexa Fluor® 790) (Donkey Anti-Mouse IgG H&L (Alexa Fluor® 790) ab175782) at 1/10000 dilution
Predicted band size: 36 kDa
Observed band size: 50 kDa
This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 2% Bovine Serum Albumin before being incubated with ab7291 overnight at 4°C. Antibody binding was detected using Goat Anti-Mouse IgG H&L (HRP) ab205719, and visualised using ECL development solution ECL Substrate Kit (High Sensitivity) ab133406.
All lanes: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1 µg/mL
Lane 1: Liver (Human) Tissue Lysate at 10 µg
Lane 2: Liver (Mouse) Tissue Lysate at 10 µg
Lane 3: Liver (Rat) Tissue Lysate at 10 µg
Lane 4: HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg
Lane 5: NIH 3T3 (Mouse embryonic fibroblast cell line) Whole Cell Lysate at 10 µg
Lane 6: PC12 (Rat adrenal pheochromocytoma cell line) Whole Cell Lysate at 10 µg
All lanes: Western blot - Goat Anti-Mouse IgG H&L (HRP) (Goat Anti-Mouse IgG H&L (HRP) ab205719) at 1/5000 dilution
Developed using the ECL technique.
Performed under reducing conditions.
Predicted band size: 36 kDa
Observed band size: 52 kDa
Exposure time: 5s
This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 5% Milk before being incubated with ab7291 overnight at 4°C. Antibody binding was detected using Donkey Anti-Mouse IgG H&L (Alexa Fluor® 750) ab175738 at a 1:10,000 dilution for 1hr at room temperature and then imaged using the Licor Odyssey CLx.
All lanes: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1 µg/mL
All lanes: HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg
All lanes: Western blot - Donkey Anti-Mouse IgG H&L (Alexa Fluor® 750) (Donkey Anti-Mouse IgG H&L (Alexa Fluor® 750) ab175738) at 1/10000 dilution
Predicted band size: 33 kDa, 36 kDa, 42 kDa, 47 kDa, 61 kDa, 80 kDa
Observed band size: 100 kDa, 50 kDa, 60 kDa, 74 kDa
ab7291 staining alpha Tubulin in SV40LT-SMC cells. The cells were fixed with 4% formaldehyde (10 min), permeabilized in 0.1% Triton X-100 for 5 minutes and then blocked in 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab7291 at a working concentration of 0.5μg/ml and Alexa Fluor® 647 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker ab190573, Rabbit monoclonal [EP1332Y] to alpha Tubulin (Alexa Fluor® 647, shown in red) at 1/250 overnight at +4°C, followed by a further incubation at room temperature for 1h with an anti-mouse Alexa Fluor® 488 (Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117) at 2 μg/ml (shown in green). Nuclear DNA was labelled in blue with DAPI.
This product also gave a positive signal in 100% methanol (5 min) fixed SV40 cells under the same testing conditions.
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 2% Bovine Serum Albumin before being incubated with ab7291 overnight at 4°C. Antibody binding was detected using Goat Anti-Mouse IgG H&L (HRP) ab205719 (Left Image) and a competitor secondary (Right Image), and visualised using ECL development solution ECL Substrate Kit (High Sensitivity) ab133406.

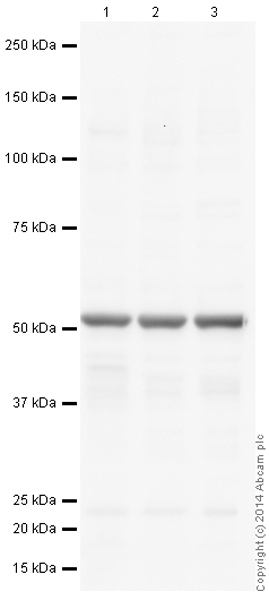

All lanes: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1 µg/mL
Lane 1: Liver (Human) Tissue Lysate at 10 µg
Lane 2: Liver (Mouse) Tissue Lysate at 10 µg
Lane 3: Liver (Rat) Tissue Lysate at 10 µg
All lanes: Goat Anti-Mouse IgG H&L (HRP) ab205719 (Left Image) at 1/5000 and a competitor secondary (Right Image) at 1/5000. Notice the decreased signal of the competitor product.
Performed under reducing conditions.
Predicted band size: 36 kDa
Observed band size: 52 kDa
Exposure time: 5s

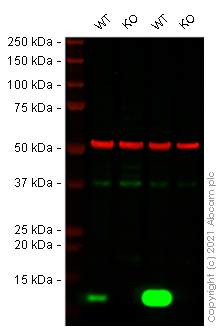

Western blot: Anti-beta 2 Microglobulin antibody [EP2978Y] staining at 1/5000 dilution, shown in green; Mouse anti-Alpha Tubulin [DM1A] (ab7291) loading control staining at 1/20000 dilution, shown in red. In Western blot, Anti-beta 2 Microglobulin antibody [EP2978Y] ab75853 was shown to bind specifically to beta 2 Microglobulin. A band was observed at 12 kDa in Wild-type A431 and HEK-293T cell lysates with no signal observed at this size in B2M (beta 2 Microglobulin) knockout A-431 cell line Human B2M (beta 2 Microglobulin) knockout A-431 cell line ab261893 (knockout cell lysate Human B2M (beta 2 Microglobulin) knockout A-431 cell lysate ab261702) or B2M knockout HEK-293T cell line Human B2M (beta 2 Microglobulin) knockout HEK-293T cell line ab266828 (knockout cell lysate Human B2M (beta 2 Microglobulin) knockout HEK-293T cell lysate ab256845). To generate this image, wild-type and B2M knockout A431 and HEK-293T cell lysates were analysed.
Nitrocellulose membranes were blocked in fluorescent western blot (TBS-based) blocking solution in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed in TBS-T, incubated with secondary antibodies Goat anti-Rabbit 800CW and Goat anti-Mouse 680RD at 1/20000 dilution for 1 h at room temperature, washed again then imaged.
All lanes: Western blot - Anti-beta 2 Microglobulin antibody [EP2978Y] (Anti-beta 2 Microglobulin antibody [EP2978Y] ab75853) at 1/5000 dilution
Lane 1: Wild-type HEK-293T cell lysate at 20 µg
Lane 2: B2M knockout HEK-293T cell lysate at 20 µg
Lane 2: Western blot - Human B2M (beta 2 Microglobulin) knockout HEK-293T cell line (Human B2M (beta 2 Microglobulin) knockout HEK-293T cell line ab266828)
Lane 2: Western blot - Human B2M (beta 2 Microglobulin) knockout HEK-293T cell lysate (Human B2M (beta 2 Microglobulin) knockout HEK-293T cell lysate ab256845)
Lane 3: Wild-type A431 cell lysate at 20 µg
Lane 4: B2M knockout A431 cell lysate at 20 µg
Lane 4: Western blot - Human B2M (beta 2 Microglobulin) knockout A-431 cell line (Human B2M (beta 2 Microglobulin) knockout A-431 cell line ab261893)
Lane 4: Western blot - Human B2M (beta 2 Microglobulin) knockout A-431 cell lysate (Human B2M (beta 2 Microglobulin) knockout A-431 cell lysate ab261702)
Performed under reducing conditions.
Predicted band size: 14 kDa
Observed band size: 12 kDa

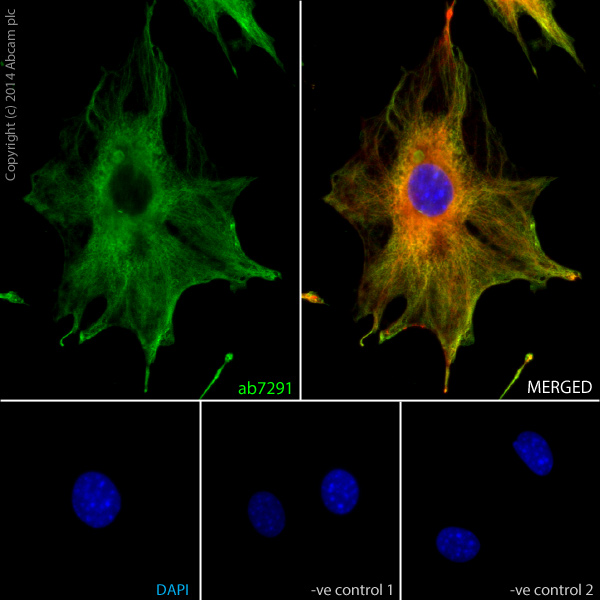

ab7291 staining alpha Tubulin in NIH3T3 cells. The cells were fixed with 100% methanol (5min) and then blocked in 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated with ab7291 at 1μl/ml and Anti-beta Tubulin antibody - Loading Control ab6046 at 1μg/ml overnight at +4°C, followed by a further incubation at room temperature for 1h with an anti-mouse Alexa Fluor® 488 (Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117) at 2 μg/ml (shown in green) and anti-rabbit Alexa Fluor® 594 (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) preadsorbed ab150088) at 2 μg/ml (shown in pseudo color red). Nuclear DNA was labelled in blue with DAPI.
Negative controls:
1 – Rabbit primary antibody and anti-mouse secondary antibody.
2 – Mouse primary antibody and anti-rabbit secondary antibody.
Controls 1 and 2 indicate that there is no unspecific reaction between primary and secondary antibodies used.
This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using Licor blocking buffer before being incubated with ab7291 overnight at 4°C. Antibody binding was detected using Anti-Mouse Alexa Fluor® 790 (Goat Anti-Mouse IgG H&L (Alexa Fluor® 790) ab175783) at a 1:10,000 dilution for 1hr at room temperature and then imaged using the Licor Odyssey CLx.
All lanes: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1/5000 dilution
Lane 1: HeLa (Human epithelial cell line from cervix adenocarcinoma) Whole Cell Lysate at 20 µg
Lane 2: HEK293 (Human epithelial cell line from embryonic kidney) Whole Cell Lysate at 20 µg
Lane 3: HepG2 (Human liver hepatocellular carcinoma cell line) Whole Cell Lysate at 20 µg
Lane 4: Caco 2 (Human colorectal adenocarcinoma cell line) Whole Cell Lysate at 20 µg
Lane 5: NIH 3T3 (Mouse embryonic fibroblast cell line) Whole Cell Lysate at 20 µg
Lane 6: PC12 (Rat adrenal gland pheochromocytoma cell line) Whole Cell Lysate at 20 µg
All lanes: Western blot - Goat Anti-Mouse IgG H&L (Alexa Fluor® 790) (Goat Anti-Mouse IgG H&L (Alexa Fluor® 790) ab175783) at 1/10000 dilution
Predicted band size: 36 kDa
IHC image of ab7291 staining alpha Tubulin in human colon formalin fixed paraffin embedded tissue sections*, performed on a Leica Bond. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab7291, 5ug/ml working concentration, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. No primary antibody was used in the secondary only control (shown on the inset).
For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.
*Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre

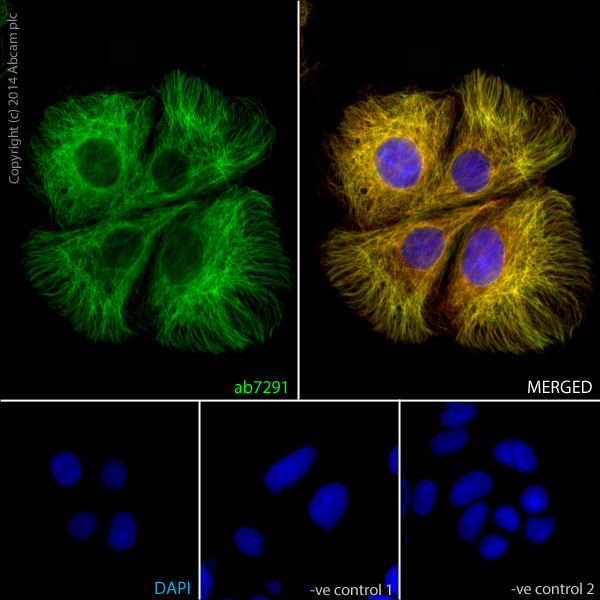

ab7291 staining alpha-Tubulin in Caco-2 cells. The cells were fixed with 100% methanol (5min) and then blocked in 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated with ab7291 at 1μg/ml and Anti-beta Tubulin antibody - Loading Control ab6046 at 1μg/ml overnight at +4°C, followed by a further incubation at room temperature for 1h with an anti-mouse Alexa Fluor® 488 (Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117) at 2 μg/ml (shown in green) and anti-rabbit Alexa Fluor® 594 (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) preadsorbed ab150088) at 2 μg/ml (shown in pseudo color red). Nuclear DNA was labelled in blue with DAPI.
Negative controls:
1 – Rabbit primary antibody and anti-mouse secondary antibody.
2 – Mouse primary antibody and anti-rabbit secondary antibody.
Controls 1 and 2 indicate that there is no unspecific reaction between primary and secondary antibodies used.
This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 5% Milk before being incubated with ab7291 overnight at 4°C. Antibody binding was detected using Goat Anti-Mouse IgG H&L (Alexa Fluor® 790) ab175783 at a 1:10,000 dilution for 1hr at room temperature and then imaged using the Licor Odyssey CLx.
All lanes: Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1 µg/mL
All lanes: HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg
All lanes: Western blot - Goat Anti-Mouse IgG H&L (Alexa Fluor® 790) (Goat Anti-Mouse IgG H&L (Alexa Fluor® 790) ab175783) at 1/10000 dilution
Predicted band size: 36 kDa
Observed band size: 50 kDa
Immunofluorescence staining of GABA Transporter 1 / GAT 1 using Anti-GABA Transporter 1 / GAT 1 antibody [EPR24202-20] ab259971 in primary hippocampal rat neurons/glia, (obtained from Neuromics, cat. no. PC35101), DIV14. The cells were fixed with 4% formaldehyde (10 min), permeabilized with 0.1% PBS-Tween for 5 mins and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h.
The cells were then incubated overnight at +4°C with Anti-GABA Transporter 1 / GAT 1 antibody [EPR24202-20] ab259971 at 1 μg/ml and ab7291, Mouse monoclonal [DM1A] to alpha Tubulin, at 1/1000 dilution. Cells were then incubated with Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green) and Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120, Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed at 1/1000 dilution (shown in red). Nuclear DNA was labelled with DAPI (shown in blue).
Images were acquired with the Perkin Elmer Operetta HCA and a maximum intensity projection of confocal sections is shown.
IHC image of ab7291 staining alpha Tubulin in rat colon formalin fixed paraffin embedded tissue sections, performed on a Leica Bond. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab7291, 0.5ug/ml working concentration, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. No primary antibody was used in the secondary only control (shown on the inset).
For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.
FABP4 (green) was detected using FABP4 primary antibody (Anti-FABP4 antibody [EPR3579] ab92501; diluted 1/1000). Alpha tubulin (red) was detected using the mouse monoclonal (ab7291) antibody. Cells were imaged by confocal microscopy, using z-stack for adipocyte-like cells.
Immunofluorescence staining of GABA Transporter 1 / GAT 1 using Anti-GABA Transporter 1 / GAT 1 antibody [EPR24202-20] ab259971 in primary hippocampal rat neurons/glia, (obtained from Neuromics, cat. no. PC35101), DIV14. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Tween for 5 mins and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h.
The cells were then incubated overnight at +4°C with Anti-GABA Transporter 1 / GAT 1 antibody [EPR24202-20] ab259971 at 5 μg/ml and ab7291, Mouse monoclonal [DM1A] to alpha Tubulin, at 1/1000 dilution. Cells were then incubated with Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green) and Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120, Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed at 1/1000 dilution (shown in red). Nuclear DNA was labelled with DAPI (shown in blue).
Images were acquired with the Perkin Elmer Operetta HCA and a maximum intensity projection of confocal sections is shown.
Immunofluorescent imaging of human cells (U2OS) with ab7291 reveals a delicate network of alpha-tubulin (green) located exclusively in the cytoplasm. The nucleus is stained blue.
IF was performed with a standard paraformaldehyde technique (fixed in PBS buffered PFH 4% for 5 minutes, permeabilised with 0.5% triton-PBS for 5 minutes, blocked with 5% milk / 0.2% tween for one hour. Primary antibody used at 1/200 in 5% milk / 0.2% TWEEN for one hour, secondary antibody Alexa 488 for 30 minutes. All blocking and incubation steps carried out at 37 degrees.

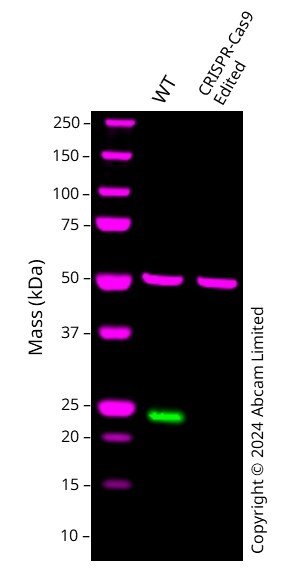

Western blot: Anti-MGMT antibody [EPR4397] (Anti-MGMT antibody [EPR4397] ab108630) staining at 1/1000 dilution, shown in green; Mouse anti-Alpha Tubulin [DM1A] (ab7291) loading control staining at 1/20000 dilution, shown in magenta. In Western blot, Anti-MGMT antibody [EPR4397] ab108630 was shown to bind specifically to MGMT. A band was observed at 22 kDa in wild-type HCT 116 cell lysates with no signal observed at this size in MGMT CRISPR-Cas9 edited cell line Human MGMT knockout HCT116 cell line ab286541. The band observed in the CRISPR-Cas9 edited lysate lane below 22 kDa is likely to represent a truncated form of MGMT. This has not been investigated further and the functional properties of the gene product have not been determined. To generate this image, wild-type and MGMT CRISPR-Cas9 edited HCT 116 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.
All lanes: Western blot - Anti-MGMT antibody [EPR4397] (Anti-MGMT antibody [EPR4397] ab108630) at 1/1000 dilution
Lane 1: Wild-type HCT 116 cell lysate at 20 µg
Lane 2: Western blot - Human MGMT knockout HCT116 cell line (Human MGMT knockout HCT116 cell line ab286541)
Lane 2: MGMT CRISPR-Cas9 edited HCT 116 cell lysate at 20 µg
Lanes 1 - 2: Goat anti-Rabbit IgG H&L 800CW at 1/20000 dilution
Lanes 1 - 2: Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution
Performed under reducing conditions.
Observed band size: 22 kDa
Western blot: Anti-FANCD2 antibody [EPR2302] (Anti-FANCD2 antibody [EPR2302] ab108928) staining at 1/1000 dilution, shown in green; Mouse anti-Alpha Tubulin [DM1A] (ab7291) loading control staining at 1/20000 dilution, shown in magenta. In Western blot, Anti-FANCD2 antibody [EPR2302] ab108928 was shown to bind specifically to FANCD2. A band was observed at 160 kDa in wild-type HCT 116 cell lysates with no signal observed at this size in FANCD2 knockout cell line. To generate this image, wild-type and FANCD2 knockout HCT 116 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.
All lanes: Western blot - Anti-FANCD2 antibody [EPR2302] (Anti-FANCD2 antibody [EPR2302] ab108928) at 1/1000 dilution
Lane 1: Wild-type HCT 116 cell lysate at 20 µg
Lane 2: Western blot - Human FANCD2 knockout HCT116 cell line (Human FANCD2 knockout HCT116 cell line ab286588)
Lane 2: FANCD2 knockout HCT 116 cell lysate at 20 µg
Lane 3: Wild-type HeLa ab255448 cell lysate at 20 µg
Lane 4: FANCD2 knockout HeLa Human FANCD2 knockout HeLa cell line ab261743 cell lysate at 20 µg
Lanes 1 - 4: Goat anti-Rabbit IgG H&L 800CW at 1/20000 dilution
Lanes 1 - 4: Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution
Performed under reducing conditions.
Observed band size: 160 kDa
Alpha Tubulin Immunocytochemistry/ Immunofluorescence staining of Mouse splenocyte using mouse Anti-alpha Tubulin antibody
Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized Mouse splenocyte cells labelling CD18 with Anti-CD18 antibody [EPR29884-566] ab324101 at 1/50 (10.18 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).
Confocal image showing cytoplasmic staining in a subset of mouse splenocytes (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

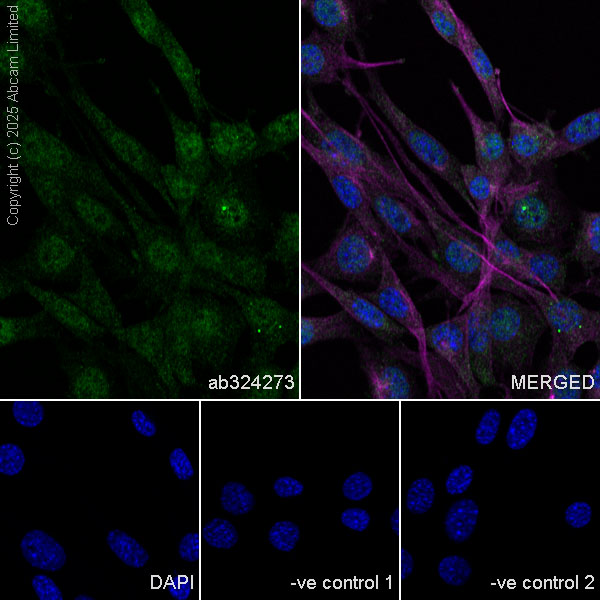

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

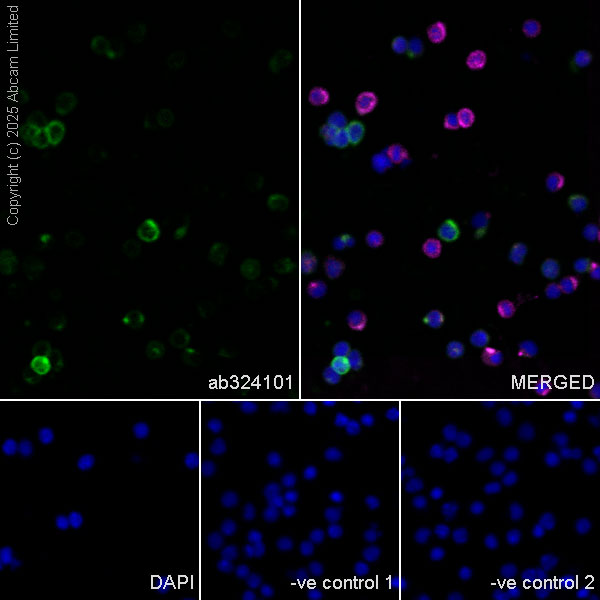

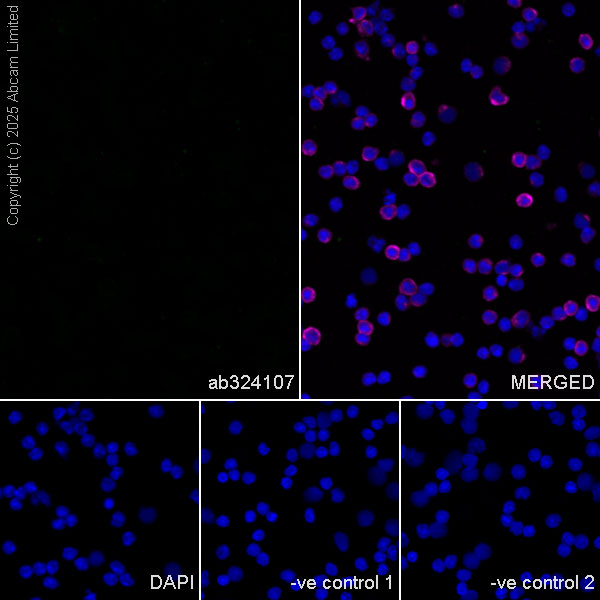

-ve control 1: Anti-CD18 antibody [EPR29884-566] ab324101 at 1/50 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) antibody at 1/1000 dilution.
-ve control 2: ab7291 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) antibody at 1/1000 dilution.

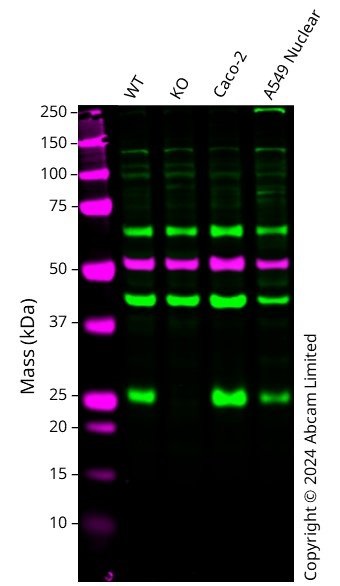

Western blot: Anti-PSPH antibody (Anti-PSPH antibody ab211418) staining at 1/1000 dilution, shown in green; Mouse anti-Alpha Tubulin [DM1A] (ab7291) loading control staining at 1/20000 dilution, shown in magenta. In Western blot, Anti-PSPH antibody ab211418 was shown to bind specifically to PSPH. A band was observed at 25 kDa in wild-type A549 cell lysates with no signal observed at this size in PSPH knockout cell line. To generate this image, wild-type and PSPH knockout A549 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.
All lanes: Western blot - Anti-PSPH antibody (Anti-PSPH antibody ab211418) at 1/1000 dilution
Lane 1: Wild-type A549 cell lysate at 20 µg
Lane 2: PSPH knockout A549 cell lysate at 20 µg
Lane 3: Caco-2 cell lysate at 20 µg
Lane 4: A549 Nuclear cell lysate at 20 µg
Lanes 1 - 4: Goat anti-Rabbit IgG H&L 800CW at 1/20000 dilution
Lanes 1 - 4: Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution
Performed under reducing conditions.
Observed band size: 25 kDa
Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
For licensing inquiries, please contact partnerships@abcam.com
