Anti-Amyloid Fibril antibody [mOC87] - Conformation-Specific

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Amyloid Fibril antibody [mOC87] - Conformation-Specific (AB201062)

IHC image of beta Amyloid staining in human Alzheimer hippocampus formalin fixed paraffin embedded tissue section* performed on a Leica Bond™ system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6 epitope retrieval solution 1) for 20 mins. The section was then incubated with ab201062 1μg/ml for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions primary antibody concentration and antibody incubation times.

*Tissue obtained from the Human Research Tissue Bank supported by the NIHR Cambridge Biomedical Research Centre

• IHC-FrFl

Collaborator

Immunohistochemistry - Free Floating - Anti-Amyloid Fibril antibody [mOC87] - Conformation-Specific (AB201062)

Immunohistochemical staining of human brain tissue from a patient with a diagnosis of Alzheimers disease male 81 years 5 hour post mortem index tangle stage 5 plaque stage B mini mental status exam score 12. Sections were cut using a vibratome. No antigen retrieval was performed. Free floating sections were stained using ab201062 at a dilution of 50 ng/mL. The secondary antibody used was a biotinylated goat anti-rabbit at a dilution of 1/225 which was blocked with normal goat serum. The sample was visualized using ABC solution (1 hour incubation) followed by 1-4 minutes of DAB. The sample was mounted and allowed to dry overnight followed by dehydration in increasingly concentrated ethanol solutions.

Image courtesy of Professor Charles Glabe, UC Irvine

• Dot

Supplier Data

Dot Blot - Anti-Amyloid Fibril antibody [mOC87] - Conformation-Specific (AB201062)

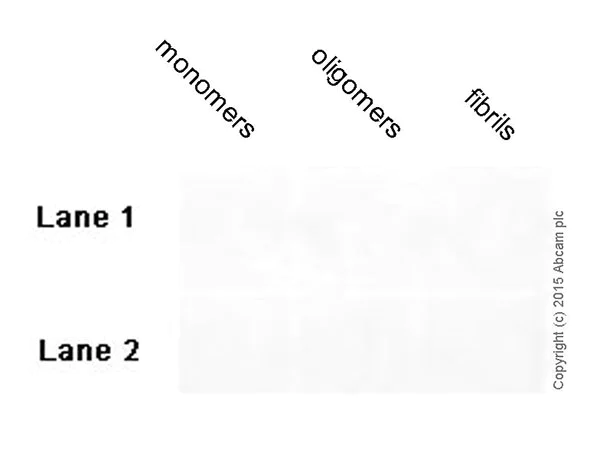

Negative control (secondary ab only) :

Lane 1 : beta Amyloid (Aβ) 1-40.
Lane 2 : beta Amyloid (Aβ) 1-42.
Goat Anti-Rabbit IgG (H+L) Peroxidase conjugated (ab97051) at 1/5000 dilution was used as secondary antibody.
Blocking and diluting buffer : 5% NFDM/TBST.
Exposure time : 30 seconds.

• Dot

Supplier Data

Dot Blot - Anti-Amyloid Fibril antibody [mOC87] - Conformation-Specific (AB201062)

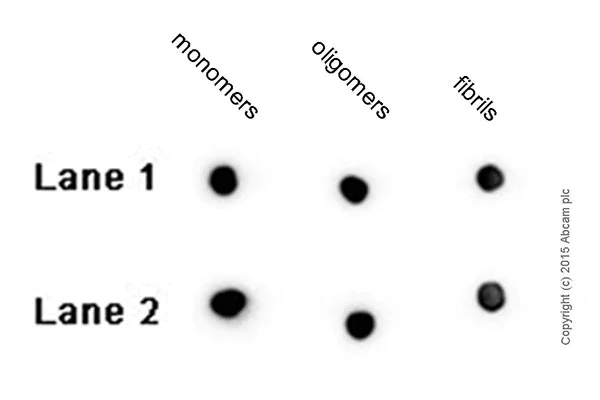

Dot blot analysis of beta Amyloid 1-42 labeled with ab201062 at 1/8000 dilution.
Lane 1 : beta Amyloid (Aβ) 1-40.
Lane 2 : beta Amyloid (Aβ) 1-42.
Goat Anti-Rabbit IgG (H+L) Peroxidase conjugated (ab97051) at 1/5000 dilution was used as secondary antibody.
Blocking and diluting buffer : 5% NFDM/TBST.
Exposure time : 30 seconds.

Antibody reactivity was assessed using a dot blot which is a non-quantitative method that maintains the native conformation of beta Amyloid. Beta Amyloid 1-40 and 1-42 peptides underwent the following aggregation conditions before being spotted onto a nitrocellulose membrane and detected using ab201062 :
Monomers : 0.3 mg of beta Amyloid peptide was dissolved in 30 μl 100 mM NaOH and incubated at room temperature for 10 minutes. It was then diluted with 970 μl of 1% SDS and boiled for five minutes.
Oligomers : 0.3 mg of beta Amyloid peptide was dissolved in 30 μl 100 mM NaOH and incubated at room temperature for 10 minutes. It was then diluted with 970 μl of 10 mM phosphate buffer pH 7.4 containing 0.02% sodium azide and incubated at room temperature for four days.
Fibrils : 0.3 mg of beta Amyloid peptide was dissolved in 1 ml 50% hexafluoroisopropanol (HFIP) with 0.02% sodium azide. It was then stirred constantly for nine days; the first seven with a cap on and the final two with the cap removed to allow evaporation of the HFIP. Fibrils were then sedimented at 20000 rpm in a microcentrifuge for 20 minutes and resuspended in 1 ml of PBS + 0.02% sodium azide.
