Anti-Annexin-6/ANXA6 antibody [EPR19517] - BSA and Azide free

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Annexin-6/ANXA6 antibody [EPR19517] - BSA and Azide free (AB240359)

Immunohistochemical analysis of paraffin-embedded Human tonsil tissue labeling Annexin-6/ANXA6 with ab201023 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Cytoplasm staining on lymphocytes of Human tonsil is observed.

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is ab97051 at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab201023).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Annexin-6/ANXA6 antibody [EPR19517] - BSA and Azide free (AB240359)

Immunohistochemical analysis of paraffin-embedded Human pancreas tissue labeling Annexin-6/ANXA6 with ab201023 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Membrane staining on Human pancreas islet is observed.

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is ab97051 at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab201023).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Annexin-6/ANXA6 antibody [EPR19517] - BSA and Azide free (AB240359)

Immunohistochemical analysis of paraffin-embedded Human stomach tissue labeling Annexin-6/ANXA6 with ab201023 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Cytoplasm staining on stromal cells of Human stomach is observed.

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is ab97051 at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab201023).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IP

Supplier Data

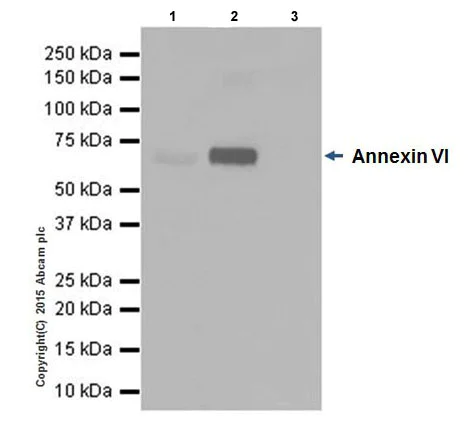

Immunoprecipitation - Anti-Annexin-6/ANXA6 antibody [EPR19517] - BSA and Azide free (AB240359)

Annexin-6/ANXA6 was immunoprecipitated from 1mg of Human fetal liver whole cell lysate with ab201023 at 1/40 dilution.

Western blot was performed from the immunoprecipitate using ab201023 at 1/1000 dilution.

VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10000 dilution.

Lane 1 : Human fetal liver whole cell lysate, 10μg (Input).

Lane 2 : ab201023 IP in Human fetal liver whole cell lysate.

Lane 3 : Rabbit IgG,monoclonal [EPR25A] - Isotype Control - (ab172730) instead of ab201023 in Human fetal liver whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 1 second.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab201023).

All lanes:

Immunoprecipitation - Anti-Annexin-6/ANXA6 antibody [EPR19517] (<a href='/en-us/products/primary-antibodies/annexin-6-anxa6-antibody-epr19517-ab201023'>ab201023</a>)

Predicted band size: 76 kDa

false

• WB

Lab

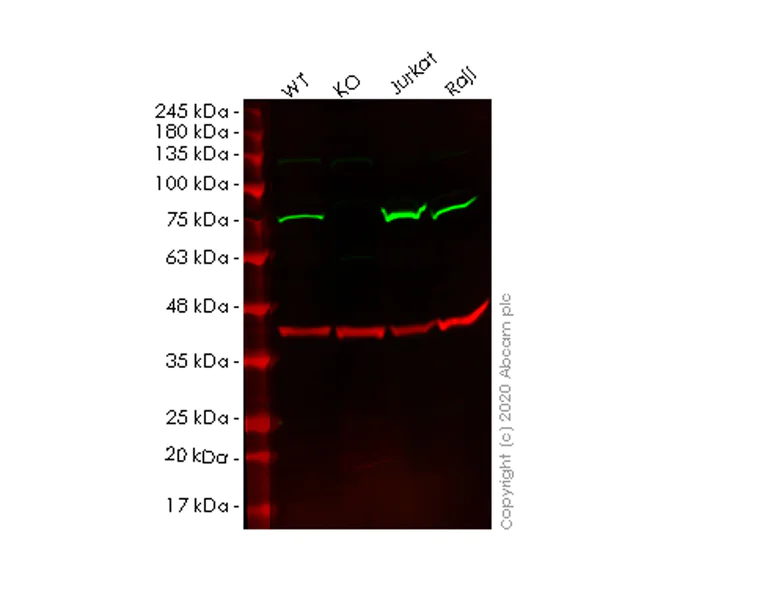

Western blot - Anti-Annexin-6/ANXA6 antibody [EPR19517] - BSA and Azide free (AB240359)

This data was developed using the same antibody clone in a different buffer formulation (ab201023).

Lanes 1-4 : Merged signal (red and green). Green - ab201023 observed at 75 kDa. Red - loading control ab8245 observed at 36 kDa.

ab201023 Anti-Annexin-6/ANXA6 antibody [EPR19536] was shown to specifically react with 6/ANXA6 in wild-type HeLa cells. Loss of signal was observed when knockout cell line ab265677 (knockout cell lysate ab257351) was used. Wild-type and 6/ANXA6 knockout samples were subjected to SDS-PAGE. ab201023 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) were incubated at room temperature for 2. 5 hours at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-Annexin-6/ANXA6 antibody [EPR19517] (<a href='/en-us/products/primary-antibodies/annexin-6-anxa6-antibody-epr19517-ab201023'>ab201023</a>) at 1/1000 dilution

Lane 1:

Wild-type HeLa cell lysate at 20 µg

Lane 2:

ANXA6 knockout HeLa cell lysate at 20 µg

Lane 2:

Western blot - Human ANXA6 (Annexin-6) knockout HeLa cell line (<a href='/en-us/products/cell-lines/human-anxa6-annexin-6-knockout-hela-cell-line-ab265677'>ab265677</a>)

Lane 3:

Jurkat cell lysate at 20 µg

Lane 4:

Raji cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-irdye-800cw-preadsorbed-ab216773'>ab216773</a>) at 1/10000 dilution

Predicted band size: 76 kDa

Observed band size: 75 kDa
