Anti-Annexin A1/ANXA1 antibody [EPR19342] - BSA and Azide free

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Annexin A1/ANXA1 antibody [EPR19342] - BSA and Azide free (AB222398)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized BxPC-3 (Human pancreas adenocarcinoma cell line) cells labeling Annexin A1 with ab214486 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green).

Confocal image showing membrane and weak cytoplasmic staining on BxPC-3 cell line.

The nuclear counterstain is DAPI (blue).

Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) (ab195889) at 1/200 dilution (red).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab214486).

Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Annexin A1/ANXA1 antibody [EPR19342] - BSA and Azide free (AB222398)

This IHC data was generated using the same anti-Annexin A1 antibody clone, EPR19342, in a different buffer formulation (cat# ab214486).

Immunohistochemical analysis of paraffin-embedded human tonsil tissue labeling Annexin A1 with ab214486 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Nuclear and cytoplasmic staining on human tonsil tissue is observed [PMID : 9720986].

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Annexin A1/ANXA1 antibody [EPR19342] - BSA and Azide free (AB222398)

Immunohistochemical analysis of paraffin-embedded human endometrial cancer tissue labeling Annexin A1 with ab214486 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Nuclear and cytoplasmic and weak membrane staining on human endometrial cancer tissue is observed.

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab214486).

Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Annexin A1/ANXA1 antibody [EPR19342] - BSA and Azide free (AB222398)

Immunohistochemical analysis of paraffin-embedded human breast tissue labeling Annexin A1 with ab214486 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Nuclear and cytoplasmic staining on human breast tissue is observed [PMID : 16949910].

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab214486).

Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Annexin A1/ANXA1 antibody [EPR19342] - BSA and Azide free (AB222398)

Immunohistochemical analysis of paraffin-embedded human bladder cancer tissue labeling Annexin A1 with ab214486 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Nuclear, cytoplasmic and membrane staining on human bladder cancer tissue is observed.

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab214486).

Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Annexin A1/ANXA1 antibody [EPR19342] - BSA and Azide free (AB222398)

Immunohistochemical analysis of paraffin-embedded mouse spleen tissue labeling Annexin A1 with ab214486 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Nuclear and cytoplasmic staining on mouse spleen tissue is observed [PMID : 9720986].

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab214486).

Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Annexin A1/ANXA1 antibody [EPR19342] - BSA and Azide free (AB222398)

Immunohistochemical analysis of paraffin-embedded rat lung tissue labeling Annexin A1 with ab214486 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Nuclear and cytoplasmic staining on rat lung tissue is observed [PMID : 15133855] [PMID : 9720986].

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab214486).

Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-Annexin A1/ANXA1 antibody [EPR19342] - BSA and Azide free (AB222398)

Clone EPR19342 (ab222398) has been successfully conjugated by Abcam. This image was generated using Anti-Annexin A1/ANXA1 antibody [EPR19342] (PE). Please refer to ab225512 for protocol details.

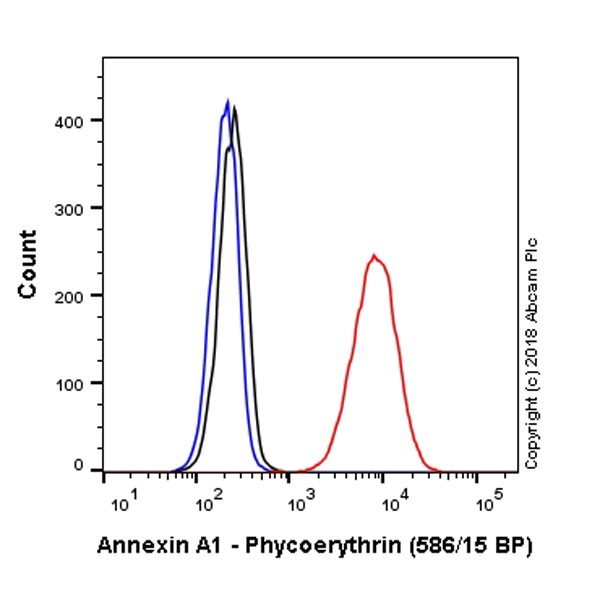

Overlay histogram showing NIH3T3 cells stained with ab225512 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS / 10% normal goat serum to block non-specific protein-protein interactions followed by the antibody (ab225512, 1/1000 dilution) for 30 min at 22°C.

Isotype control antibody (black line) was Rabbit IgG (monoclonal) Phycoerythrin (ab209478) used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control.

Acquisition of >5,000 events were collected using a 50 mW Yellow/Green laser (561nm) and 586/15 bandpass filter.

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Annexin A1/ANXA1 antibody [EPR19342] - BSA and Azide free (AB222398)

Clone EPR19342 (ab222398) has been successfully conjugated by Abcam. This image was generated using Anti-Annexin A1/ANXA1 antibody [EPR19342] (Alexa Fluor® 488). Please refer to ab225513 for protocol details.

ab225513 staining Annexin A1 in NIH3T3 cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab225513 at 1/100 dilution (shown in green) and ab195889, Mouse monoclonal to alpha Tubulin (Alexa Fluor^® 594), at 1/250 dilution (shown in red). Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

This product also gave a positive signal under the same testing conditions in NIH3T3 cells fixed with 4% formaldehyde (10 min).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-Annexin A1/ANXA1 antibody [EPR19342] - BSA and Azide free (AB222398)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized NIH/3T3 (Mouse embryonic fibroblast cell line) cells labeling Annexin A1 with ab214486 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green).

Confocal image showing membrane and cytoplasmic staining on NIH/3T3 cell line.

The nuclear counterstain is DAPI (blue).

Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) (ab195889) at 1/200 dilution (red).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab214486).

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-Annexin A1/ANXA1 antibody [EPR19342] - BSA and Azide free (AB222398)

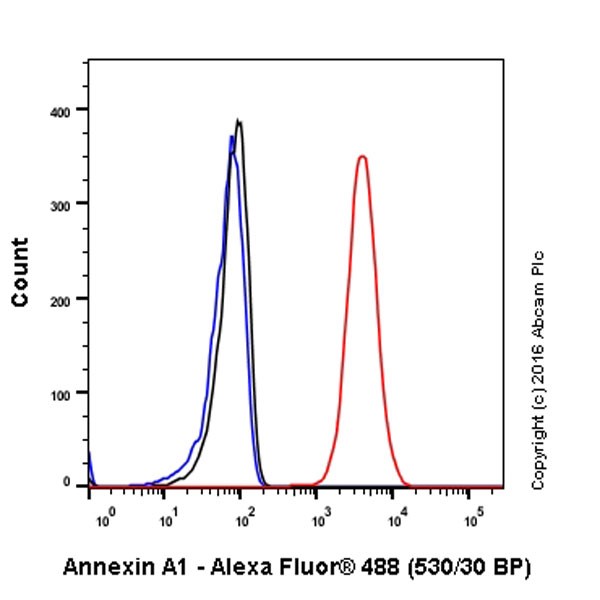

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed NIH/3T3 (Mouse embryonic fibroblast cell line) cells labeling Annexin A1 with ab214486 at 1/600 dilution (red) compared with Rabbit IgG, monoclonal [EPR25A] - Isotype Control (ab172730; black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody; blue). Goat anti rabbit IgG (Alexa Fluor^® 488) at 1/2000 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab214486).

• IP

Supplier Data

Immunoprecipitation - Anti-Annexin A1/ANXA1 antibody [EPR19342] - BSA and Azide free (AB222398)

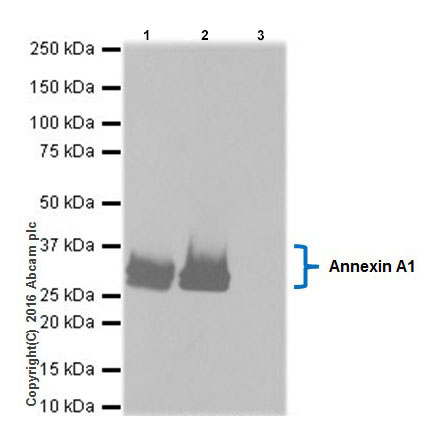

Annexin A1 was immunoprecipitated from 0.35 mg of K562 (Human chronic myelogenous leukemia cell line from bone marrow) whole cell lysate with ab214486 at 1/30 dilution.

Western blot was performed from the immunoprecipitate using ab214486 at 1/1000 dilution.

VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10000 dilution.

Lane 1 : K562 whole cell lysate 10μg (Input).

Lane 2 : ab214486 IP in K562 whole cell lysate.

Lane 3 : Rabbit IgG, monoclonal [EPR25A] - Isotype Control (ab172730) instead of ab214486 in K562 whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 1 second.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab214486).

All lanes:

Immunoprecipitation - Anti-Annexin A1/ANXA1 antibody [EPR19342] (<a href='/en-us/products/primary-antibodies/annexin-a1-anxa1-antibody-epr19342-ab214486'>ab214486</a>)

Predicted band size: 38 kDa

false

• WB

Lab

Western blot - Anti-Annexin A1/ANXA1 antibody [EPR19342] - BSA and Azide free (AB222398)

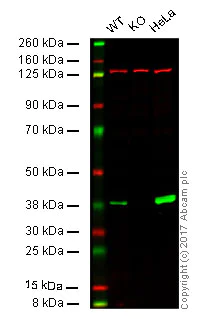

This WB data was generated using the same anti-Annexin A1 antibody clone, EPR19342, in a different buffer formulation (cat# ab214486).

Lane 1 : Wild type HAP1 whole cell lysate (20 μg)
Lane 2 : Annexin A1 knockout HAP1 whole cell lysate (20 μg)
Lane 3 : HeLa whole cell lysate (20 μg)

Lanes 1 - 3 : Merged signal (red and green). Green - ab214486 observed at 38 kDa. Red - loading control, ab18058, observed at 130 kDa.

ab214486 was shown to specifically react with Annexin A1 when Annexin A1 knockout samples were used. Wild-type and Annexin A1 knockout samples were subjected to SDS-PAGE. ab214486 and ab18058 (Mouse anti-Vinculin loading control) were incubated overnight at 4°C at 1/2000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed ab216776 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-Annexin A1/ANXA1 antibody [EPR19342] (<a href='/en-us/products/primary-antibodies/annexin-a1-anxa1-antibody-epr19342-ab214486'>ab214486</a>)

Predicted band size: 38 kDa

false
