AB197141

APC/Cy7® Anti-CD16 antibody [3G8]

Be the first to review this product! Submit a review

|

(1 Publication)

Mouse Monoclonal CD16a antibody - conjugated to APC/Cy7®. Suitable for Flow Cyt and reacts with Human samples. Cited in 1 publication. Immunogen corresponding to Cell preparation containing FCGR3A protein.

View Alternative Names

CD16a, CD16A, FCG3, FCGR3, IGFR3, FCGR3A, Low affinity immunoglobulin gamma Fc region receptor III-A, IgG Fc receptor III-A, CD16-II, CD16a antigen, Fc-gamma RIII-alpha, FcR-10, IgG Fc receptor III-2, Fc-gamma RIII, Fc-gamma RIIIa, FcRIII, FcRIIIa, FcgammaRIIIA

4 Images
Flow Cytometry - APC/Cy7® Anti-CD16 antibody [3G8] (AB197141)
  • Flow Cyt

Supplier Data

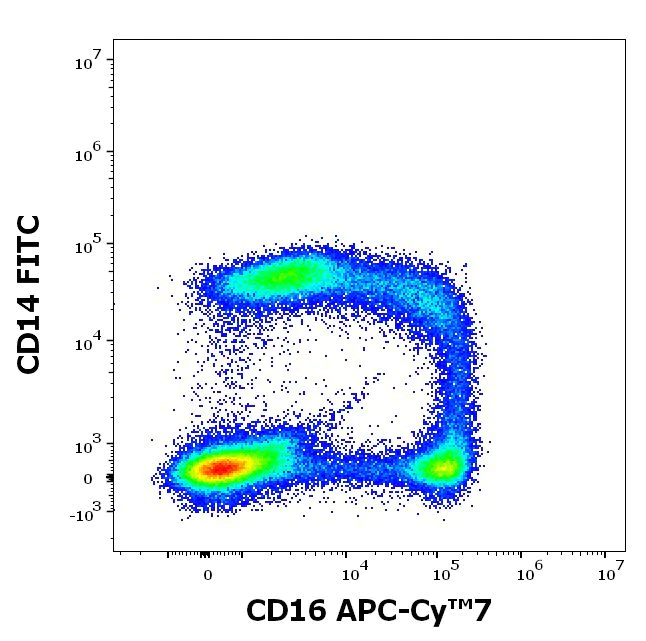

Flow Cytometry - APC/Cy7® Anti-CD16 antibody [3G8] (AB197141)

Analysis of the antibody staining profile was performed on blood leukocytes isolated from peripheral whole blood by bulk erythrocyte lysis.

ab197141 was used in concentration 8 µg/ml in stained stained blood sample (2 x 10^6 cells) and Mouse monoclonal anti-human CD14 FITC antibody (clone MEM-15) in concentration 7 µg/ml.

Flow Cytometry - APC/Cy7® Anti-CD16 antibody [3G8] (AB197141)
  • Flow Cyt

Supplier Data

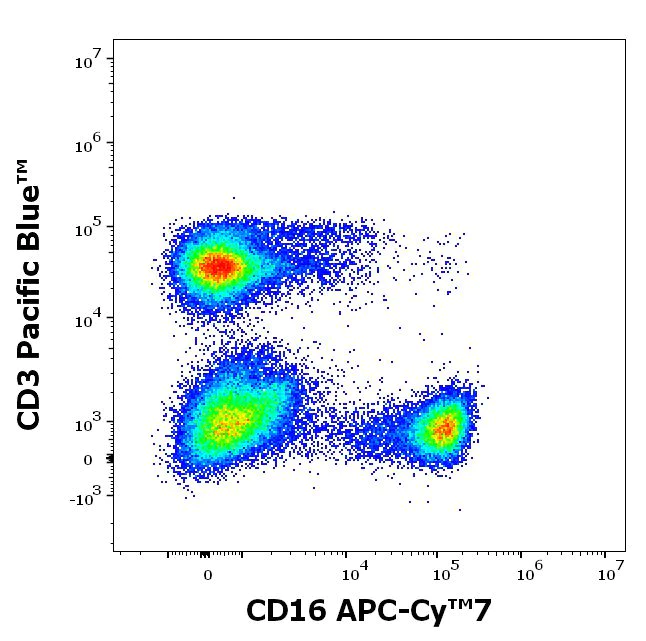

Flow Cytometry - APC/Cy7® Anti-CD16 antibody [3G8] (AB197141)

Analysis of the antibody staining profile was performed on blood leukocytes isolated from peripheral whole blood by bulk erythrocyte lysis.

ab197141 was used in concentration 8 µg/ml in stained stained blood sample (2 x 10^6 cells) and Mouse monoclonal anti-human CD3 Pacific Blue™ antibody (clone UCHT1) in concentration 9 µg/ml.

Flow Cytometry - APC/Cy7® Anti-CD16 antibody [3G8] (AB197141)
  • Flow Cyt

Supplier Data

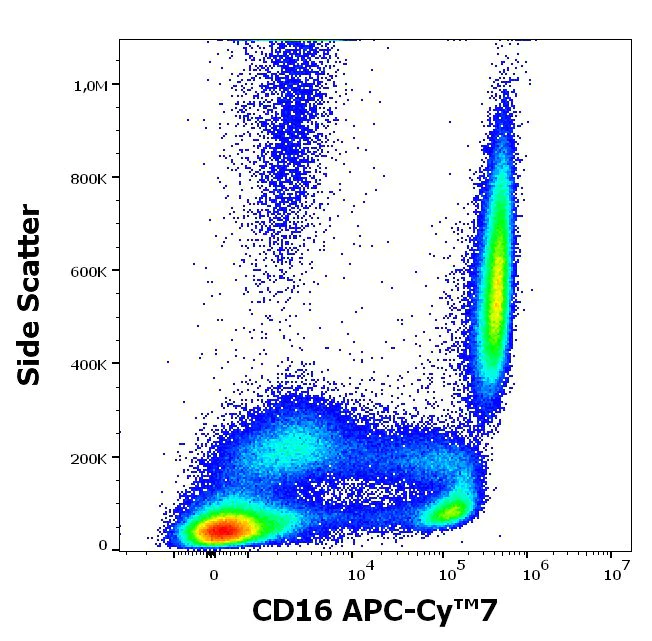

Flow Cytometry - APC/Cy7® Anti-CD16 antibody [3G8] (AB197141)

Analysis of the antibody staining profile was performed on blood leukocytes isolated from peripheral whole blood by bulk erythrocyte lysis.

ab197141 was used in concentration 8 µg/ml in stained blood sample (2 x 10^6 cells).

Flow Cytometry - APC/Cy7® Anti-CD16 antibody [3G8] (AB197141)
  • Flow Cyt

Supplier Data

Flow Cytometry - APC/Cy7® Anti-CD16 antibody [3G8] (AB197141)

Analysis of the antibody staining profile was performed on blood leukocytes isolated from peripheral whole blood by bulk erythrocyte lysis.

Suspension of blood leukocytes (2 x 10^6 cells) was added to the mixture of ab197141 (8 µg/ml in stained blood sample), backbone antibody conjugates and monocyte blocking buffer, vortexed and incubated for 20 min. Stained sample was fixed with 2 ml of 10× diluted lyse solution for 10 min. Finally, samples were centrifuged (670 g, 5 min.), supernatant removed and the cell pellet was resuspended in 200 µl of PBS for acquisition.

  • Carrier free

    Anti-CD16 antibody [3G8] - Low endotoxin, Azide free

  • 519 Alexa Fluor® 488

    Alexa Fluor® 488 Anti-CD16 antibody [3G8]

  • 665 Alexa Fluor® 647

    Alexa Fluor® 647 Anti-CD16 antibody [3G8]

  • Biotin

    Biotin Anti-CD16 antibody [3G8]

  • 519 FITC

    FITC Anti-CD16 antibody [3G8]

  • 578 PE

    PE Anti-CD16 antibody [3G8]

  • 778 PE/Cy7®

    PE/Cy7® Anti-CD16 antibody [3G8]

  • 675 PerCP

    PerCP Anti-CD16 antibody [3G8]

  • 695 PerCP/Cy5.5®

    PerCP/Cy5.5® Anti-CD16 antibody [3G8]

  • 450 violetFluor™ 450

    violetFluor™ 450 Anti-CD16 antibody [3G8]

Key facts

Host species

Mouse

Clonality

Monoclonal

Clone number

3G8

Isotype

IgG1

Conjugation

APC/Cy7®

Excitation/Emission

Ex: 650nm, Em: 785nm

Carrier free

No

Reacts with

Human

Applications

Flow Cyt

applications

Immunogen

Cell preparation containing FCGR3A protein. The exact immunogen used to generate this antibody is proprietary information.

P08637

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "FlowCyt-species-checked": "testedAndGuaranteed", "FlowCyt-species-dilution-info": "4 µL for 10^6 Cells", "FlowCyt-species-notes": "<p>Use 4 μl reagent / 100 μl of whole blood or 10^6 cells in a suspension.</p>" }, "Primates": { "FlowCyt-species-checked": "predicted", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "" } } }

Properties and storage information

Form
Liquid
Purification technique
Size-exclusion chromatography
Purification notes
Purified antibody is conjugated with tandem dye Allophycocyanin/Cy7 ® under optimum conditions. The conjugate is purified by size-exclusion chromatography and adjusted for direct use. No reconstitution is necessary.
Storage buffer
pH: 7.4 Preservative: 0.0975% Sodium azide Constituents: PBS, 0.2% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Store in the dark

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

CD16 also known as FCGR3A or CD16A protein is a low-affinity receptor for the Fc region of IgG. It weighs approximately 50-70 kDa and exists on the surface of several immune cells such as natural killer (NK) cells some populations of T cells and macrophages. The expression of CD16 mediates various cellular responses including antibody-dependent cellular cytotoxicity (ADCC) where it acts by engaging with immune complexes. Researchers often use anti-CD16 antibodies in flow cytometry to analyze the presence and quantity of CD16-expressing cells.
Biological function summary

This receptor plays a significant role in immune system regulation by contributing to the activation of immune effector cells. CD16 is not part of a larger complex but it operates in concert with CD3 proteins to trigger intracellular signaling pathways upon engagement with its ligand. Its function is important for the antibody-dependent clearance of infected or malignant cells from the body representing an essential linkage between innate and adaptive immunity.

Pathways

Signaling involving CD16 is integrated into the immune response mechanisms that include the Fc gamma receptor-mediated phagocytosis pathway. This pathway involves interactions with IgG antibodies and complements the activity of other Fc gamma receptors such as CD32 and CD64. Through these interactions CD16 enhances phagocytic activity and stimulates the secretion of cytokines and chemokines important for orchestrating an effective immune response.

CD16 plays an important role in conditions like autoimmune diseases and certain cancers. Its expression and function are important in the pathophysiology of systemic lupus erythematosus where an imbalance in immune complex clearance leads to tissue damage. In oncology CD16 aids in the immune system's recognition and elimination of tumor cells working alongside proteins such as CD3 in modulating the body's anti-tumor response. Understanding CD16's involvement in these diseases helps in developing therapeutic strategies that harness the immune system's power such as monoclonal antibody therapies targeting CD16.

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

Receptor for the invariable Fc fragment of immunoglobulin gamma (IgG). Optimally activated upon binding of clustered antigen-IgG complexes displayed on cell surfaces, triggers lysis of antibody-coated cells, a process known as antibody-dependent cellular cytotoxicity (ADCC). Does not bind free monomeric IgG, thus avoiding inappropriate effector cell activation in the absence of antigenic trigger (PubMed : 11711607, PubMed : 21768335, PubMed : 22023369, PubMed : 24412922, PubMed : 25786175, PubMed : 25816339, PubMed : 28652325, PubMed : 8609432, PubMed : 9242542). Mediates IgG effector functions on natural killer (NK) cells. Binds antigen-IgG complexes generated upon infection and triggers NK cell-dependent cytokine production and degranulation to limit viral load and propagation. Involved in the generation of memory-like adaptive NK cells capable to produce high amounts of IFNG and to efficiently eliminate virus-infected cells via ADCC (PubMed : 24412922, PubMed : 25786175). Regulates NK cell survival and proliferation, in particular by preventing NK cell progenitor apoptosis (PubMed : 29967280, PubMed : 9916693). Following the engagement of antigen-IgG complexes, triggers phosphorylation of immunoreceptor tyrosine-based activation motif (ITAM)-containing adapters with subsequent activation of phosphatidylinositol 3-kinase signaling and sustained elevation of intracellular calcium that ultimately drive NK cell activation. The ITAM-dependent signaling coupled to receptor phosphorylation by PKC mediates robust intracellular calcium flux that leads to production of pro-inflammatory cytokines, whereas in the absence of receptor phosphorylation it mainly activates phosphatidylinositol 3-kinase signaling leading to cell degranulation (PubMed : 1825220, PubMed : 23024279, PubMed : 2532305). Costimulates NK cells and trigger lysis of target cells independently of IgG binding (PubMed : 10318937, PubMed : 23006327). Mediates the antitumor activities of therapeutic antibodies. Upon ligation on monocytes triggers TNFA-dependent ADCC of IgG-coated tumor cells (PubMed : 27670158). Mediates enhanced opsonisation and ADCC in response to afucosylated IgGs (PubMed : 34485821, PubMed : 28566370).. (Microbial infection) Involved in Dengue virus pathogenesis via antibody-dependent enhancement (ADE) mechanism. Secondary infection with Dengue virus triggers elevated levels of afucosylated non-neutralizing IgG1s with reactivity to viral envelope/E protein. Viral antigen-IgG1 complexes bind with high affinity to FCGR3A, facilitating virus entry in myeloid cells and subsequent viral replication.
See full target information FCGR3A

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Science advances 8:eabo7792 PubMed36054348

2022

Genome-wide in vivo screen of circulating tumor cells identifies as a regulator of metastasis.

Applications

Unspecified application

Species

Unspecified reactive species

Fan Xia,Yuan Ma,Kangfu Chen,Bill Duong,Sharif Ahmed,Randy Atwal,David Philpott,Troy Ketela,Jennifer Pantea,Sichun Lin,Stephane Angers,Shana O Kelley
View all publications

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
