AB225341

APC Anti-TOMM20 antibody [EPR15581-54] - Mitochondrial Marker

RabMAb
Recombinant
Lab Essentials
What is this?

Be the first to review this product! Submit a review

(2 Publications)

Rabbit Recombinant Monoclonal TOMM20 antibody - conjugated to APC. Mitochondrion marker. Suitable for Flow Cyt (Intra) and reacts with Human samples. Cited in 2 publications.

View Alternative Names

KIAA0016, TOMM20, Mitochondrial import receptor subunit TOM20 homolog, Mitochondrial 20 kDa outer membrane protein, Outer mitochondrial membrane receptor Tom20

1 Images

Flow Cytometry (Intracellular) - APC Anti-TOMM20 antibody [EPR15581-54] - Mitochondrial Marker (AB225341)

Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - APC Anti-TOMM20 antibody [EPR15581-54] - Mitochondrial Marker (AB225341)

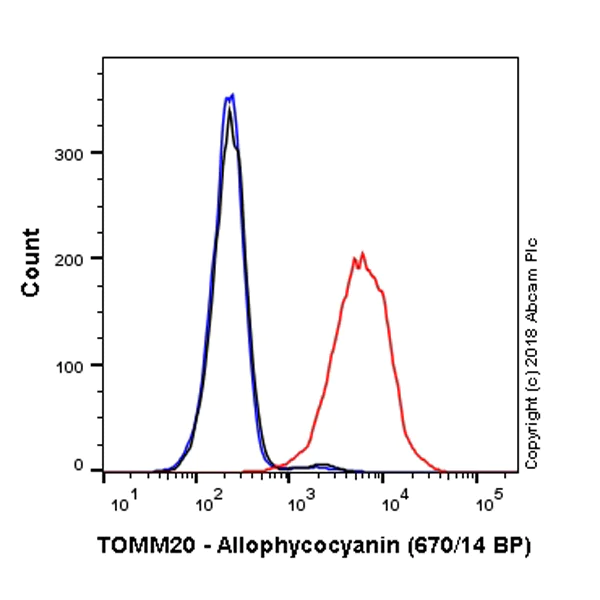

Overlay histogram showing HeLa cells stained with ab225341 (red line). The cells were fixed with 4% formaldehyde (10 min) and then permeabilized with 0.1% PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS / 10% normal goat serum to block non-specific protein-protein interactions followed by the antibody (ab225341, 1/5000 dilution) for 30 min at 22°C.

Isotype control antibody (black line) was Rabbit IgG (monoclonal) Allophycocyanin used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control.

Acquisition of >5,000 events were collected using a 40 mW Red laser (640nm) and 670/14 bandpass filter.

665 Alexa Fluor® 647

Alexa Fluor® 647 Anti-TOMM20 antibody [EPR15581-54] - Mitochondrial Marker
HRP

HRP Anti-TOMM20 antibody [EPR15581-54] - Mitochondrial Marker
578 PE

PE Anti-TOMM20 antibody [EPR15581-54] - Mitochondrial Marker
565 Alexa Fluor® 555

Alexa Fluor® 555 Anti-TOMM20 antibody [EPR15581-54] - Mitochondrial Marker
421 Alexa Fluor® 405

Alexa Fluor® 405 Anti-TOMM20 antibody [EPR15581-54] - Mitochondrial Marker
617 Alexa Fluor® 594

Alexa Fluor® 594 Anti-TOMM20 antibody [EPR15581-54] - Mitochondrial Marker
603 Alexa Fluor® 568

Alexa Fluor® 568 Anti-TOMM20 antibody [EPR15581-54] - Mitochondrial Marker
519 Alexa Fluor® 488

Alexa Fluor® 488 Anti-TOMM20 antibody [EPR15581-54] - Mitochondrial Marker
Unconjugated

Anti-TOMM20 antibody [EPR15581-54] - Mitochondrial Marker
Carrier free

Anti-TOMM20 antibody [EPR15581-54] - BSA and Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR15581-54

Isotype

IgG

Conjugation

APC

Excitation/Emission

Ex: 650nm, Em: 660nm

Carrier free

Reacts with

Human

Applications

Flow Cyt (Intra)

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/5000", "FlowCytIntra-species-notes": "<p>The cellular localisation of this product has been verified in ICC/IF.</p>" }, "Mouse": { "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "" }, "Rat": { "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "" } } }

style

left-column

Product details

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Protein A

Storage buffer

pH: 7.4 Preservative: 0.02% Sodium azide Constituents: PBS, 1% BSA

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Aliquoting information

Upon delivery aliquot

Storage information

Do Not Freeze|Store in the dark

style

left-column

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Central component of the receptor complex responsible for the recognition and translocation of cytosolically synthesized mitochondrial preproteins. Together with TOM22 functions as the transit peptide receptor at the surface of the mitochondrion outer membrane and facilitates the movement of preproteins into the TOM40 translocation pore (By similarity). Required for the translocation across the mitochondrial outer membrane of cytochrome P450 monooxygenases.

See full target information TOMM20

style

left-column

Publications (2)

Recent publications for all applications. Explore the full list and refine your search

Nature medicine 30:3196-3208 PubMed39304781

2024

High-throughput identification of repurposable neuroactive drugs with potent anti-glioblastoma activity.

Applications

Unspecified application

Species

Unspecified reactive species

Sohyon Lee,Tobias Weiss,Marcel Bühler,Julien Mena,Zuzanna Lottenbach,Rebekka Wegmann,Miaomiao Sun,Michel Bihl,Bartłomiej Augustynek,Sven P Baumann,Sandra Goetze,Audrey van Drogen,Patrick G A Pedrioli,David Penton,Yasmin Festl,Alicia Buck,Daniel Kirschenbaum,Anna M Zeitlberger,Marian C Neidert,Flavio Vasella,Elisabeth J Rushing,Bernd Wollscheid,Matthias A Hediger,Michael Weller,Berend Snijder

Cancers 15: PubMed37370835

2023

Enhancement of the Anticancer Ability of Natural Killer Cells through Allogeneic Mitochondrial Transfer.

Applications

Unspecified application

Species

Unspecified reactive species

Seong-Hoon Kim,Mi-Jin Kim,Mina Lim,Jihye Kim,Hyunmin Kim,Chang-Koo Yun,Yun-Joo Yoo,Youngjun Lee,Kyunghoon Min,Yong-Soo Choi

View all publications

style

left-column

style

left-column

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
