AB194

Anti-APE1 antibody [13B8E5C2]

4

(10 Reviews)

|

(50 Publications)

Mouse Monoclonal APE1 antibody. Suitable for WB, IHC-P and reacts with Human, Mouse samples. Cited in 50 publications. Immunogen corresponding to Native Full Length Protein corresponding to Human APEX1.

View Alternative Names

APE, APE1, APEX, APX, HAP1, REF1, APEX1, DNA repair nuclease/redox regulator APEX1, APEX nuclease, Apurinic-apyrimidinic endonuclease 1, DNA-(apurinic or apyrimidinic site) endonuclease, Redox factor-1, APEN, AP endonuclease 1, APE-1, REF-1

3 Images
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-APE1 antibody [13B8E5C2] (AB194)
  • IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-APE1 antibody [13B8E5C2] (AB194)

ab194 staining Human normal placenta. Staining is localized to the nucleus.
Left panel : with primary antibody at 1 ug/ml. Right panel : isotype control.
Sections were stained using an automated system DAKO Autostainer Plus , at room temperature. Sections were rehydrated and antigen retrieved with the Dako 3-in-1 AR buffer citrate pH 6.0 in a DAKO PT Link. Slides were peroxidase blocked in 3% H2O2 in methanol for 10 minutes. They were then blocked with Dako Protein block for 10 minutes (containing casein 0.25% in PBS), then incubated with primary antibody for 20 minutes, and detected with Dako Envision Flex amplification kit for 30 minutes. Colorimetric detection was completed with diaminobenzidine for 5 minutes. Slides were counterstained with Haematoxylin and coverslipped under DePeX. Please note that for manual staining we recommend to optimize the primary antibody concentration and incubation time (overnight incubation), and amplification may be required.

Western blot - Anti-APE1 antibody [13B8E5C2] (AB194)
  • WB

Lab

Western blot - Anti-APE1 antibody [13B8E5C2] (AB194)

Lanes 1 - 4 : Merged signal (red and green). Green - ab194 observed at 37 kDa. Red - loading control, ab52866 (Rabbit anti-alpha Tubulin antibody [EP1332Y]) observed at 55kDa.

ab194 was shown to react with APEX1 in HAP1 wild-type cells in Western blot. Loss of signal was observed when APEX1 knockout sample was used. HAP1 wild-type and APEX1 knockout cell lysates were subjected to SDS-PAGE. Membranes were blocked in 3% Milk in TBS-T (0.1% Tween®) before incubation with ab194 and ab52866 (Rabbit anti-alpha Tubulin antibody [EP1332Y]) overnight at 4°C at a 1 in 2000 dilution and a 1 in 20000 dilution respectively. Blots were developed with Goat anti-Mouse IgG H&L (IRDye® 800CW) preabsorbed (ab216772) and Goat anti-Rabbit IgG H&L (IRDye® 680RD) preabsorbed (ab216777) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-APE1 antibody [13B8E5C2] (ab194) at 1/2000 dilution

Lane 1:

Wild-type HAP1 whole cell lysate at 20 µg

Lane 2:

APEX1 knockout HAP1 whole cell lysate at 20 µg

Lane 3:

HepG2 whole cell lysate at 20 µg

Lane 4:

HEK293 whole cell lysate at 20 µg

Predicted band size: 35 kDa

Observed band size: 37 kDa

false

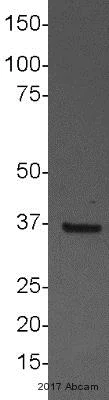

Western blot - Anti-APE1 antibody [13B8E5C2] (AB194)
  • WB

AbReview61803****

Western blot - Anti-APE1 antibody [13B8E5C2] (AB194)

All lanes:

Western blot - Anti-APE1 antibody [13B8E5C2] (ab194) at 1/2000 dilution

All lanes:

Human fibroblast at 30 µg

Secondary

All lanes:

ECL Mouse IgG,HRP - linked whole antibody (sheep) at 1/5000 dilution

Predicted band size: 35 kDa

true

Exposure time: 10s

This image is courtesy of an anonymous Abreview

Key facts

Host species

Mouse

Clonality

Monoclonal

Clone number

13B8E5C2

Isotype

IgG2b

Light chain type

unknown

Carrier free

No

Reacts with

Mouse, Human

Applications

WB, IHC-P

applications

Immunogen

Native Full Length Protein corresponding to Human APEX1.

P27695

Specificity

This antibody is specific to the human APE/ref-1 protein.

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/2000", "WB-species-notes": "<p></p>", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/5000", "IHCP-species-notes": "<p></p>" }, "Mouse": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/2000", "WB-species-notes": "<p></p>", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/5000", "IHCP-species-notes": "<p></p>" } } }

Product details

APE appears to form a unique link between the DNA base excision pathway, oxidative signalling, trancription regulation, cancer and cell-cycle control.

Properties and storage information

Form
Liquid
Purity
Tissue culture supernatant
Storage buffer
Preservative: 0.05% Sodium azide Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

APE1 also known as APEX1 or apurinic/apyrimidinic endonuclease 1 functions as an important DNA repair enzyme. It plays a pivotal role in the base excision repair (BER) pathway where it recognizes and processes apurinic/apyrimidinic sites in DNA. APE1 has a molecular mass of about 37 kDa. It is expressed primarily in the nucleus with detectable levels in the cytoplasm. The expression of APE1 spans across various tissue types indicating its essential role in maintaining genomic stability.
Biological function summary

APE1 enzymatically cleaves the phosphodiester bond at abasic sites creating a nick in the DNA backbone for further repair steps. This action prevents mutations and maintains DNA integrity. APE1 also functions as a redox factor regulating the transcriptional activity of several transcription factors. It is not part of a larger complex but interacts with various BER pathway proteins such as DNA polymerase beta and XRCC1. This interaction is important for the effective repair of damaged DNA and cellular response to oxidative stress.

Pathways

APE1 is integrated within the base excision repair and redox signaling pathways. These pathways are fundamental for repairing single-strand breaks and modulating the cellular oxidative stress response. APE1 coordinates closely with other proteins like PNKP and OGG1 in the BER pathway ensuring precise and effective DNA repair. Through its redox activity APE1 influences pathways involving NF-kB and AP-1 demonstrating its multifaceted roles in cellular processes.

Alterations in APE1 function associate with cancer progression and neurodegenerative diseases. Overexpression or mutations in APE1 correlate with increased tumor resistance to chemotherapy in several cancers including lung and ovarian cancer. APE1's interaction with proteins like p53 and HMGB1 connects it to the etiology and progression of these malignancies. Furthermore impaired APE1 activity links to neurodegenerative disorders such as Alzheimer's disease where DNA repair deficiency contributes to neuronal damage and cognitive decline.

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

Multifunctional protein that plays a central role in the cellular response to oxidative stress. The two major activities of APEX1 are DNA repair and redox regulation of transcriptional factors (PubMed : 11118054, PubMed : 11452037, PubMed : 15831793, PubMed : 18439621, PubMed : 18579163, PubMed : 21762700, PubMed : 24079850, PubMed : 8355688, PubMed : 9108029, PubMed : 9560228). Functions as an apurinic/apyrimidinic (AP) endodeoxyribonuclease in the base excision repair (BER) pathway of DNA lesions induced by oxidative and alkylating agents. Initiates repair of AP sites in DNA by catalyzing hydrolytic incision of the phosphodiester backbone immediately adjacent to the damage, generating a single-strand break with 5'-deoxyribose phosphate and 3'-hydroxyl ends. Also incises at AP sites in the DNA strand of DNA/RNA hybrids, single-stranded DNA regions of R-loop structures, and single-stranded RNA molecules (PubMed : 15380100, PubMed : 16617147, PubMed : 18439621, PubMed : 19123919, PubMed : 19188445, PubMed : 19934257, PubMed : 20699270, PubMed : 21762700, PubMed : 24079850, PubMed : 8932375, PubMed : 8995436, PubMed : 9804799). Operates at switch sites of immunoglobulin (Ig) constant regions where it mediates Ig isotype class switch recombination. Processes AP sites induced by successive action of AICDA and UNG. Generates staggered nicks in opposite DNA strands resulting in the formation of double-strand DNA breaks that are finally resolved via non-homologous end joining repair pathway (By similarity). Has 3'-5' exodeoxyribonuclease activity on mismatched deoxyribonucleotides at the 3' termini of nicked or gapped DNA molecules during short-patch BER (PubMed : 11832948, PubMed : 1719477). Possesses DNA 3' phosphodiesterase activity capable of removing lesions (such as phosphoglycolate and 8-oxoguanine) blocking the 3' side of DNA strand breaks (PubMed : 15831793, PubMed : 7516064). Also acts as an endoribonuclease involved in the control of single-stranded RNA metabolism. Plays a role in regulating MYC mRNA turnover by preferentially cleaving in between UA and CA dinucleotides of the MYC coding region determinant (CRD). In association with NMD1, plays a role in the rRNA quality control process during cell cycle progression (PubMed : 19188445, PubMed : 19401441, PubMed : 21762700). Acts as a loading factor for POLB onto non-incised AP sites in DNA and stimulates the 5'-terminal deoxyribose 5'-phosphate (dRp) excision activity of POLB (PubMed : 9207062). Exerts reversible nuclear redox activity to regulate DNA binding affinity and transcriptional activity of transcriptional factors by controlling the redox status of their DNA-binding domain, such as the FOS/JUN AP-1 complex after exposure to IR (PubMed : 10023679, PubMed : 11118054, PubMed : 11452037, PubMed : 18579163, PubMed : 8355688, PubMed : 9108029). Involved in calcium-dependent down-regulation of parathyroid hormone (PTH) expression by binding to negative calcium response elements (nCaREs). Together with HNRNPL or the dimer XRCC5/XRCC6, associates with nCaRE, acting as an activator of transcriptional repression (PubMed : 11809897, PubMed : 14633989, PubMed : 8621488). May also play a role in the epigenetic regulation of gene expression by participating in DNA demethylation (PubMed : 21496894). Stimulates the YBX1-mediated MDR1 promoter activity, when acetylated at Lys-6 and Lys-7, leading to drug resistance (PubMed : 18809583). Plays a role in protection from granzyme-mediated cellular repair leading to cell death (PubMed : 18179823). Binds DNA and RNA. Associates, together with YBX1, on the MDR1 promoter. Together with NPM1, associates with rRNA (PubMed : 19188445, PubMed : 19401441, PubMed : 20699270).
See full target information APEX1

Publications (50)

Recent publications for all applications. Explore the full list and refine your search

iScience 28:112275 PubMed40276763

2025

APE1 promotes lung adenocarcinoma through G4-mediated transcriptional reprogramming of urea cycle metabolism.

Applications

Unspecified application

Species

Unspecified reactive species

Yanhao Yu,Chaochao Cen,Zhenyu Shao,Chaohan Wang,Yiqin Wang,Zongjie Miao,Meiling Sun,Chao Wang,Qing Xu,Kaiwei Liang,Jiaxin Zhou,Dan Zhou,Hongbin Ji,Guoliang Xu,Yarui Du

International journal of laboratory hematology 47:276-287 PubMed39536468

2024

APEX1 Polymorphisms Affect Acute Myeloid Leukemia Risk, and Its Expression Is Involved in Cell Proliferation and Differentiation.

Applications

Unspecified application

Species

Unspecified reactive species

Nanami Gotoh,Tsukasa Oda,Yuya Kitamura,Natsuki Shiraishi,Runa Aoyagi,Ayane Omori,Kota Yanagisawa,Minami Iida,Yua Itoi,Hikaru Negishi,Ikuko Matsumura,Tetsuhiro Kasamatsu,Eiji Miyauchi,Nobuo Sasaki,Satoru Takada,Akihiko Yokohama,Hiroshi Handa,Hirokazu Murakami,Takayuki Saitoh

Frontiers in toxicology 5:1277047 PubMed38259729

2024

Astrocyte DNA damage and response upon acute exposure to ethanol and corticosterone.

Applications

Unspecified application

Species

Unspecified reactive species

Ana Laura Reyes-Ábalos,Magdalena Álvarez-Zabaleta,Silvia Olivera-Bravo,María Vittoria Di Tomaso

Nucleic acids research 51:e39 PubMed36861323

2023

Single-molecule analysis of DNA-binding proteins from nuclear extracts (SMADNE).

Applications

Unspecified application

Species

Unspecified reactive species

Matthew A Schaich,Brittani L Schnable,Namrata Kumar,Vera Roginskaya,Rachel C Jakielski,Roman Urban,Zhou Zhong,Neil M Kad,Bennett Van Houten

Cell cycle (Georgetown, Tex.) 21:2627-2634 PubMed35943146

2022

Apurinic/apyrimidinic endonuclease triggered doxorubicin-releasing DNA nanoprism for target therapy.

Applications

Unspecified application

Species

Unspecified reactive species

Meng Liang,Na Li,Fei Liu,Nan Zeng,Changyuan Yu,Shuo Li

Cell death discovery 7:113 PubMed34001856

2021

ROS induces NETosis by oxidizing DNA and initiating DNA repair.

Applications

Unspecified application

Species

Unspecified reactive species

Dhia Azzouz,Meraj A Khan,Nades Palaniyar

Annals of translational medicine 9:145 PubMed33569447

2021

Apurinic/apyrimidinic endonuclease 1/reduction-oxidation effector factor-1 (APE1) regulates the expression of NLR family pyrin domain containing 3 (NLRP3) inflammasome through modulating transcription factor NF-κB and promoting the secretion of inflammatory mediators in macrophages.

Applications

Unspecified application

Species

Unspecified reactive species

Zheng Tang,Ying Wang,Yue Wan,Yue Xie,Shujie Li,Dan Tao,Can Wang,Yong-Zhong Wu,Jiang-Dong Sui

Molecular cell 81:724-738.e9 PubMed33476576

2021

ER-directed TREX1 limits cGAS activation at micronuclei.

Applications

Unspecified application

Species

Unspecified reactive species

Lisa Mohr,Eléonore Toufektchan,Patrick von Morgen,Kevan Chu,Aakanksha Kapoor,John Maciejowski

PloS one 15:e0237759 PubMed33332350

2020

Site-specific targeting of a light activated dCas9-KillerRed fusion protein generates transient, localized regions of oxidative DNA damage.

Applications

Unspecified application

Species

Unspecified reactive species

Nealia C M House,Ramya Parasuram,Jacob V Layer,Brendan D Price

Free radical biology & medicine 158:60-73 PubMed32679368

2020

Arginine methylation of APE1 promotes its mitochondrial translocation to protect cells from oxidative damage.

Applications

Unspecified application

Species

Unspecified reactive species

Yilan Zhang,Qi Zhang,LuLu Li,Dan Mu,Ke Hua,Shusheng Ci,Lei Shen,Li Zheng,Binghui Shen,Zhigang Guo
