Anti-Aquaporin 5 antibody [RM1099] 20 ul size (ab315855)

Rabbit Recombinant Multiclonal Aquaporin 5 antibody. Suitable for WB, IP, ICC/IF, IHC-Fr, IHC-P and reacts with Human, Mouse, Rat samples.

Be the first to review this product! Submit a review

Images

Western blot - Anti-Aquaporin 5 antibody [RM1099] (AB315855), expandable thumbnail

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Multiclonal

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application

Product promiseTestedExpectedPredictedNot recommended

	WB	IP	ICC/IF	IHC-Fr	Flow Cyt	IHC-P
Human	Tested	Tested	Tested	Expected	Not recommended	Tested
Mouse	Tested	Tested	Not recommended	Tested	Not recommended	Tested
Rat	Tested	Tested	Not recommended	Tested	Not recommended	Tested

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/1000 - 1/5000	Notes -
Species Mouse	Dilution info 1/1000 - 1/5000	Notes -
Species Rat	Dilution info 1/1000 - 1/5000	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/30	Notes -
Species Mouse	Dilution info 1/30	Notes -
Species Rat	Dilution info 1/30	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/100	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Mouse, Rat	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/500	Notes -
Species Rat	Dilution info 1/500	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Human	Dilution info Use at an assay dependent concentration.	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human, Mouse, Rat	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/8000	Notes Perform heat-mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.
Species Mouse	Dilution info 1/8000	Notes Perform heat-mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.
Species Rat	Dilution info 1/8000	Notes Perform heat-mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

Associated Products

Select an associated product type

2 products for Alternative Version

1 product for Alternative Product

Target data

See full target information AQP5

Function

Aquaporins form homotetrameric transmembrane channels, with each monomer independently mediating water transport across the plasma membrane along its osmotic gradient (PubMed:18768791, PubMed:8621489). Plays an important role in fluid secretion in salivary glands (By similarity). Required for TRPV4 activation by hypotonicity. Together with TRPV4, controls regulatory volume decrease in salivary epithelial cells (PubMed:16571723). Seems to play a redundant role in water transport in the eye, lung and in sweat glands (By similarity).

Alternative names

Aquaporin-5, AQP-5, AQP5

Recommended products

Rabbit Recombinant Multiclonal Aquaporin 5 antibody. Suitable for WB, IP, ICC/IF, IHC-Fr, IHC-P and reacts with Human, Mouse, Rat samples.

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Multiclonal
Immunogens: The exact immunogen used to generate this antibody is proprietary information.
Clone number: RM1099
Purification technique: Affinity purification Protein A
Specificity: Unsuitable for mouse and rat ICC.
Concentration

Storage

Shipped at conditions: Blue Ice
Appropriate short-term storage duration: 1-2 weeks
Appropriate short-term storage conditions: +4°C
Appropriate long-term storage conditions: -20°C
Aliquoting information: Upon delivery aliquot
Storage information: Avoid freeze / thaw cycle

Notes

This product is a recombinant multiclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

The protein known as Aquaporin 5 often abbreviated as AQP5 is a member of the aquaporin family which are integral membrane proteins that function as channels for water. This particular protein facilitates water transport across cell membranes an action critical in maintaining fluid balance. Aquaporin 5 has a molecular mass of approximately 29 kDa. It is largely expressed in epithelial cells in various tissues including the salivary glands lacrimal glands and respiratory tissues. It is recognized by different names such as Aquaporin-5 and sometimes referenced in studies as Aquazol 5.

Biological function summary

Water transport and secretion processes heavily rely on the presence of Aquaporin 5. It is integral in the formation of tight junctions in epithelial cells enhancing cell permeability to water. Unlike some other aquaporins Aquaporin 5 operates independently and is not known to be part of a larger protein complex. Its presence influences the efficiency of fluid secretion affecting activities such as salivation and tear secretion. The capacity of AQP5 to control water movement tightly connects it to cellular hydration homeostasis.

Pathways

Aquaporin 5 is significantly involved in the regulation of water balance and osmotic equilibrium in epithelial tissues. Its role in fluid secretion pathways is interconnected with other proteins like Aquaporin 4 which share similar duties in the osmotic control of water. In the water transport pathways AQP5 coordinates with proteins like CFTR (Cystic Fibrosis Transmembrane Conductance Regulator) to manage fluid movement particularly in the respiratory passages and glands. The precise regulation of water flow by these pathways ensures that overall tissue hydration remains constant.

Associated diseases and disorders

Aquaporin 5 is directly associated with conditions such as Sjögren's syndrome and xerostomia (dry mouth syndrome). During Sjögren's syndrome malfunction of AQP5 can lead to impaired salivary and tear secretion contributing to the symptoms of dryness. Furthermore defects or polymorphisms in AQP5 have implications in respiratory diseases potentially affecting proteins like Aquaporin 3 which shares functional similarities. Understanding the role of AQP5 in these conditions enables further exploration into therapeutic targets and treatment methods.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

20 product images

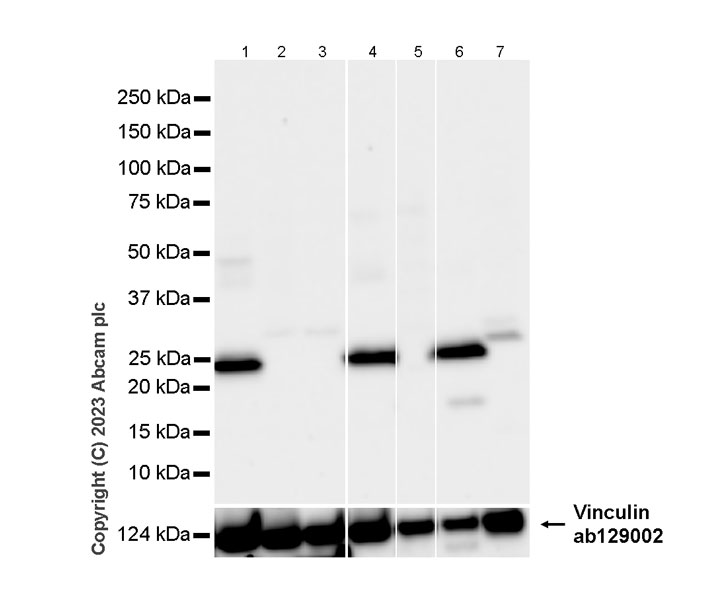

Western blot - Anti-Aquaporin 5 antibody [RM1099] (ab315855)
Samples are non-boiled as boiling may cause protein aggregation.
In Western blot, Anti-Vinculin antibody [EPR8185] (Anti-Vinculin antibody [EPR8185] ab129002) staining at 1/10000 dilution.
All lanes: Western blot - Anti-Aquaporin 5 antibody [RM1099] (ab315855) at 1/1000 dilution
Lane 1: Mouse lung tissue lysate at 20 µg with 5% NFDM/TBST
Lane 2: Mouse kidney tissue lysate at 20 µg with 5% NFDM/TBST
Lane 3: Mouse heart tissue lysate at 20 µg with 5% NFDM/TBST
Lane 4: Rat lung tissue lysate at 20 µg with 5% NFDM/TBST
Lane 5: Rat kidney tissue lysate at 20 µg with 5% NFDM/TBST
Lane 6: Rat salivary tissue lysate at 20 µg with 5% NFDM/TBST
Lane 7: Rat heart tissue lysate at 20 µg with 5% NFDM/TBST
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution
Observed band size: 24 kDa, 124 kDa
Exposure time: 15s

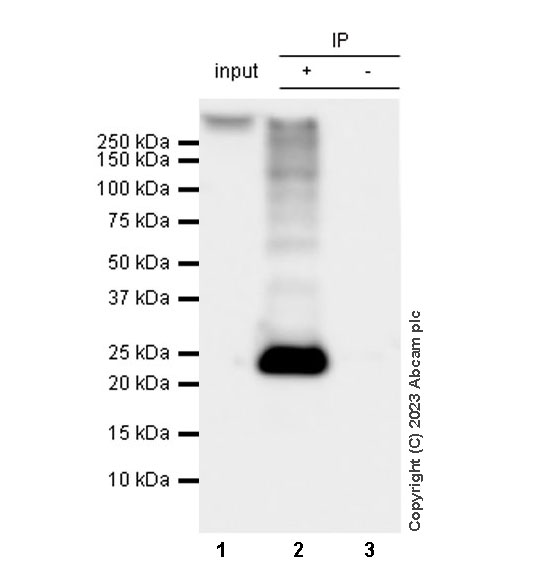

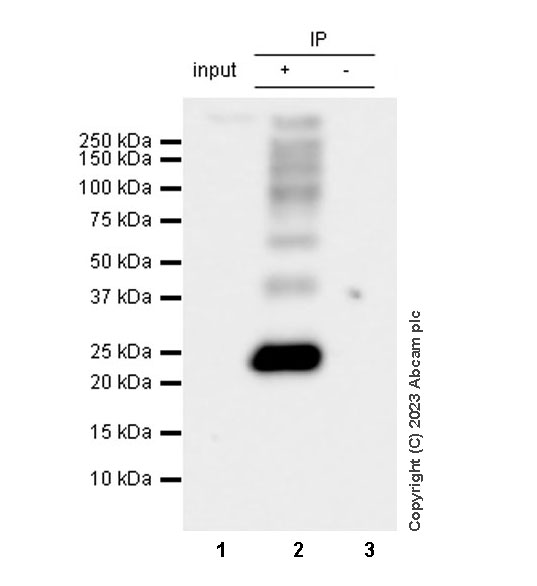

Immunoprecipitation - Anti-Aquaporin 5 antibody [RM1099] (ab315855)
Aquaporin 5 was immunoprecipitated from 0.35 mg Rat lung tissue lysate with ab315855 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab315855 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.
Lane 1: Rat lung tissue lysate

Lane 2: ab315855 IP in Rat lung tissue lysate

Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab315855 in rat lung tissue lysate
All lanes: Immunoprecipitation - Anti-Aquaporin 5 antibody [RM1099] (ab315855) at 1/30 dilution
All lanes: Rat lung tissue lysate
Secondary
All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/1000 dilution

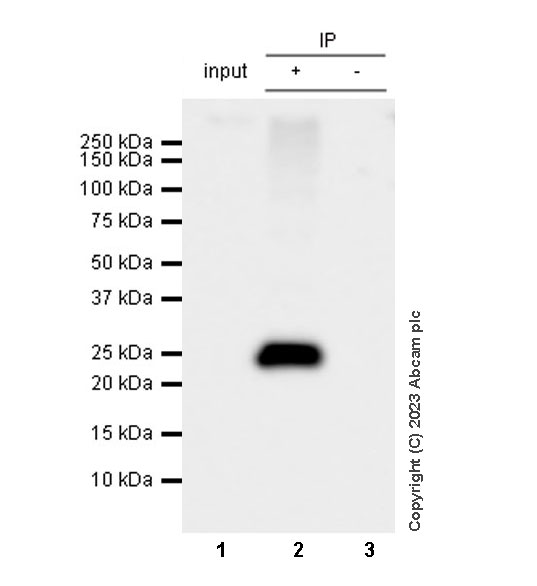

Immunoprecipitation - Anti-Aquaporin 5 antibody [RM1099] (ab315855)
Aquaporin 5 was immunoprecipitated from 0.35 mg Mouse lung tissue lysate with ab315855 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab315855 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.
Lane 1: Mouse lung tissue lysate

Lane 2: ab315855 IP in Mouse lung tissue lysate

Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab315855 in mouse lung tissue lysate
All lanes: Immunoprecipitation - Anti-Aquaporin 5 antibody [RM1099] (ab315855) at 1/30 dilution
All lanes: Mouse lung tissue lysate with 5% NFDM/TBST
Secondary
All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/1000 dilution
Exposure time: 24s
Immunoprecipitation - Anti-Aquaporin 5 antibody [RM1099] (ab315855)
Aquaporin 5 was immunoprecipitated from 0.35 mg KATO III (human stomach spherical) whole cell lysate with ab315855 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab315855 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.
Lane 1: KATO III (human stomach spherical) whole cell lysate

Lane 2: ab315855 IP in KATO III (human stomach spherical) whole cell lysate

Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab315855 in KATO III whole cell lysate lysate
All lanes: Immunoprecipitation - Anti-Aquaporin 5 antibody [RM1099] (ab315855) at 1/30 dilution
All lanes: KATO III (human stomach spherical) whole cell lysate with 5% NFDM/TBST
Secondary
All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/1000 dilution
Exposure time: 24s

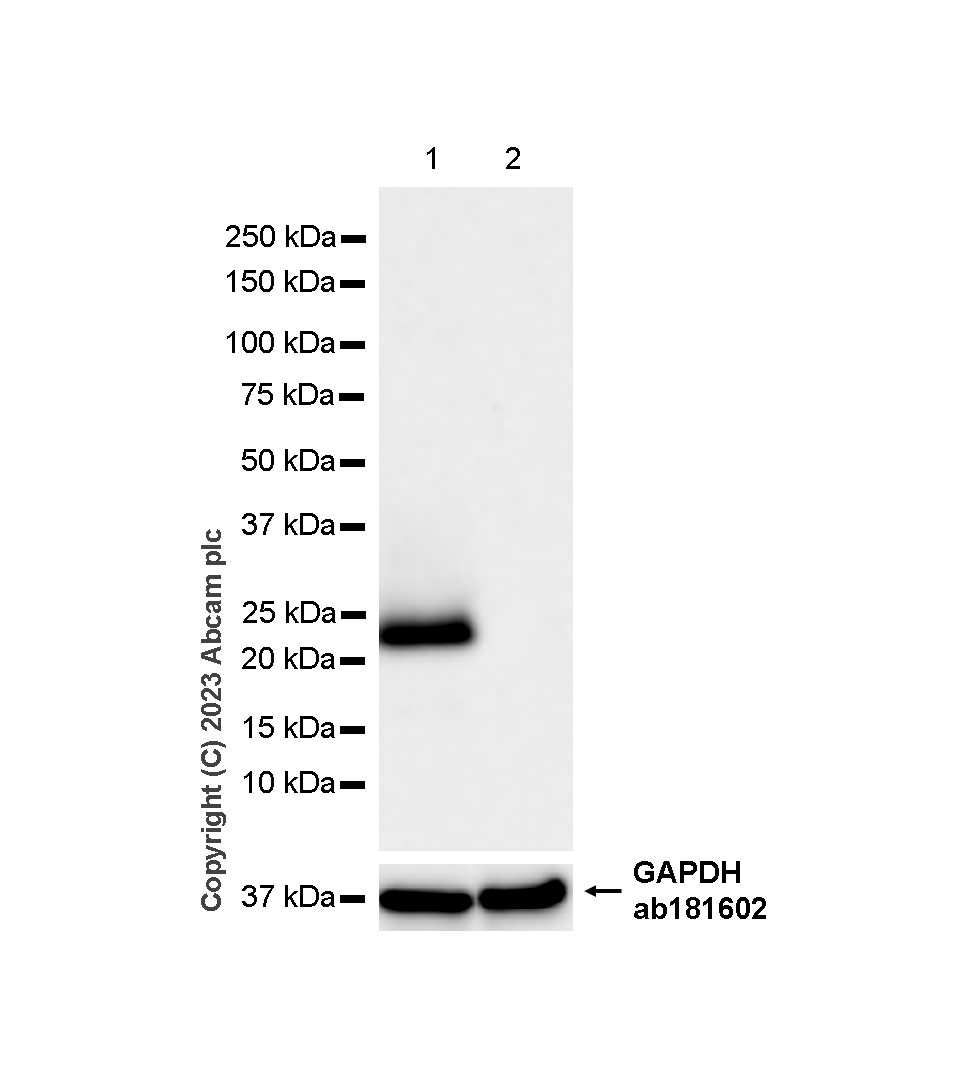

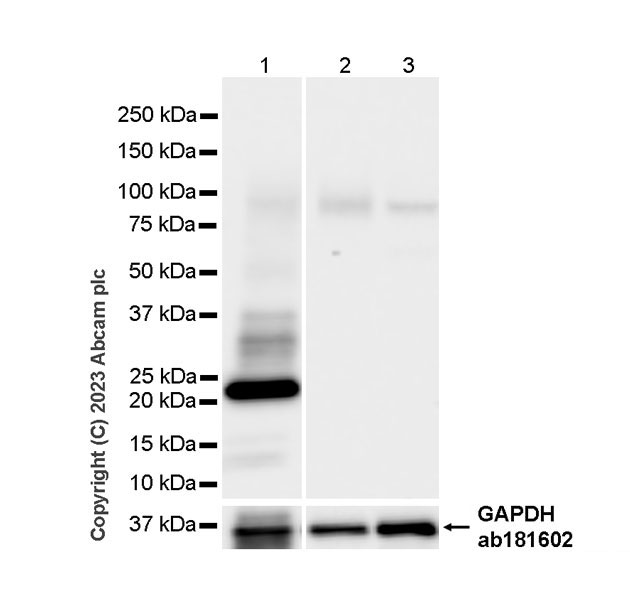

Western blot - Anti-Aquaporin 5 antibody [RM1099] (ab315855)
Samples are non-boiled as boiling may cause protein aggregation.
In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/200000 dilution.
All lanes: Western blot - Anti-Aquaporin 5 antibody [RM1099] (ab315855) at 1/5000 dilution
Lane 1: KATO III (human stomach spherical) whole cell lysate at 10 µg with 5% NFDM/TBST
Lane 2: K-562 (human chronic myelogenous leukemia lymphoblast) whole cell lysate at 20 µg with 5% NFDM/TBST
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution
Observed band size: 24 kDa, 36 kDa
Exposure time: 10s
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Aquaporin 5 antibody [RM1099] (ab315855)
Immunohistochemical analysis of paraffin-embedded Mouse lung tissue labeling Aquaporin 5 with ab315855 at 1/8000 (0.062 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Positive staining on mouse lung. The section was incubated with ab315855 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins

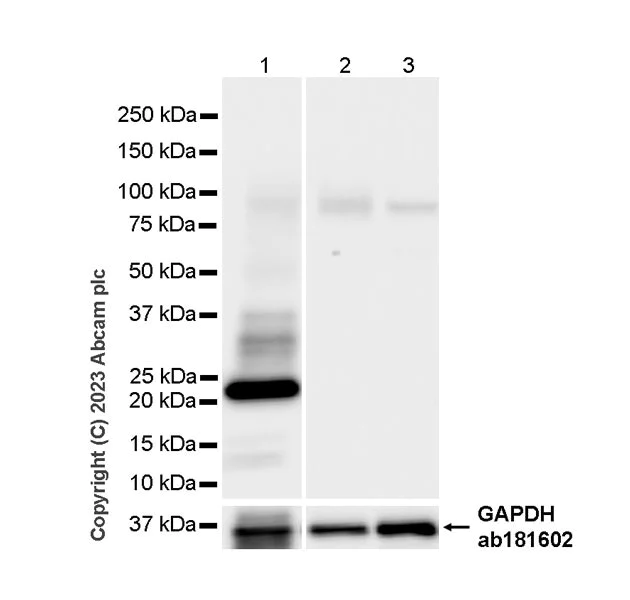

Western blot - Anti-Aquaporin 5 antibody [RM1099] (ab315855)
Samples are non-boiled as boiling may cause protein aggregation.
In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/200000 dilution.
All lanes: Western blot - Anti-Aquaporin 5 antibody [RM1099] (ab315855) at 1/1000 dilution
Lane 1: Human salivary grand tissue lysate at 20 µg with 5% NFDM/TBST
Lane 2: Human liver tissue lysate at 20 µg with 5% NFDM/TBST
Lane 3: Human skeletal muscle tissue lysate at 20 µg with 5% NFDM/TBST
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution
Observed band size: 24 kDa, 36 kDa
Exposure time: 15s
Immunohistochemistry (Frozen sections) - Anti-Aquaporin 5 antibody [RM1099] (ab315855)
Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Rat kidney (fresh frozen) tissue labeling Aquaporin 5 with ab315855 at 1/500 (0.984 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/mL dilution (Green).
Low expression: confocal image showing no staining on rat kidney (PMID: 9767520). The nuclear counterstain was DAPI (Blue). The section was incubated with ab315855 for 60 mins at room temperature. The section was then mounted using Fluoromount®.The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbedat 1/1000 2 ug/mL dilution.
Immunohistochemistry (Frozen sections) - Anti-Aquaporin 5 antibody [RM1099] (ab315855)
Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Mouse kidney (fresh frozen) tissue labeling Aquaporin 5 with ab315855 at 1/500 (0.984 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/mL dilution (Green).
Low expression: confocal image showing no staining on mouse kidney (PMID: 9767520). The nuclear counterstain was DAPI (Blue). The section was incubated with ab315855 for 60 mins at room temperature. The section was then mounted using Fluoromount®.The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbedat 1/1000 2 ug/mL dilution.
Immunohistochemistry (Frozen sections) - Anti-Aquaporin 5 antibody [RM1099] (ab315855)
Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Rat lung (fresh frozen) tissue labeling Aquaporin 5 with ab315855 at 1/500 (0.984 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/mL dilution (Green).
Confocal image showing positive staining on rat lung. The nuclear counterstain was DAPI (Blue). The section was incubated with ab315855 for 60 mins at room temperature. The section was then mounted using Fluoromount®.The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbedat 1/1000 2 ug/mL dilution.
Immunohistochemistry (Frozen sections) - Anti-Aquaporin 5 antibody [RM1099] (ab315855)
Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Mouse lung (fresh frozen) tissue labeling Aquaporin 5 with ab315855 at 1/500 (0.984 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/mL dilution (Green).
Confocal image showing positive staining on mouse lung. The nuclear counterstain was DAPI (Blue). The section was incubated with ab315855 for 60 mins at room temperature. The section was then mounted using Fluoromount®.The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbedat 1/1000 2 ug/mL dilution.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Aquaporin 5 antibody [RM1099] (ab315855)
Immunohistochemical analysis of paraffin-embedded Rat cardiac muscle tissue labeling Aquaporin 5 with ab315855 at 1/8000 (0.062 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Negative control: no staining on rat cardiac muscle. The section was incubated with ab315855 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Aquaporin 5 antibody [RM1099] (ab315855)
Immunohistochemical analysis of paraffin-embedded Mouse cardiac muscle tissue labeling Aquaporin 5 with ab315855 at 1/8000 (0.062 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Negative control: no staining on mouse cardiac muscle. The section was incubated with ab315855 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Aquaporin 5 antibody [RM1099] (ab315855)
Immunohistochemical analysis of paraffin-embedded Mouse skeletal muscle tissue labeling Aquaporin 5 with ab315855 at 1/8000 (0.062 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Negative control: no staining on mouse skeletal muscle. The section was incubated with ab315855 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Aquaporin 5 antibody [RM1099] (ab315855)
Immunohistochemical analysis of paraffin-embedded Human skeletal muscle tissue labeling Aquaporin 5 with ab315855 at 1/8000 (0.062 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Negative control: no staining on human skeletal muscle. The section was incubated with ab315855 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Aquaporin 5 antibody [RM1099] (ab315855)
Immunohistochemical analysis of paraffin-embedded Rat salivary gland tissue labeling Aquaporin 5 with ab315855 at 1/8000 (0.062 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Positive staining on rat salivary gland. The section was incubated with ab315855 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Aquaporin 5 antibody [RM1099] (ab315855)
Immunohistochemical analysis of paraffin-embedded Rat lung tissue labeling Aquaporin 5 with ab315855 at 1/8000 (0.062 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Positive staining on rat lung. The section was incubated with ab315855 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Aquaporin 5 antibody [RM1099] (ab315855)
Immunohistochemical analysis of paraffin-embedded Mouse salivary gland tissue labeling Aquaporin 5 with ab315855 at 1/8000 (0.062 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Positive staining on mouse salivary gland. The section was incubated with ab315855 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Aquaporin 5 antibody [RM1099] (ab315855)
Immunohistochemical analysis of paraffin-embedded Human salivary gland tissue labeling Aquaporin 5 with ab315855 at 1/8000 (0.062 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Positive staining on human salivary gland. The section was incubated with ab315855 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins
Immunocytochemistry/ Immunofluorescence - Anti-Aquaporin 5 antibody [RM1099] (ab315855)
Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized KATO III (human stomach spherical cell) cells labelling Aquaporin 5 with ab315855 at 1/100 (4.92 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2ug/ml dilution (Green).
Confocal image showing membranous and cytoplasmic staining in KATO III cell line.

Negative control: K-562.

Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).
Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/500 1ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue).
Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2ug/ml dilution.
