AB188642

Anti-ATG16L1 antibody

Be the first to review this product! Submit a review

|

(13 Publications)

Rabbit Polyclonal ATG16L1 antibody. Suitable for IHC-P, ELISA, WB, ICC/IF and reacts with Human, Mouse, Rat samples. Cited in 13 publications. Immunogen corresponding to Synthetic Peptide within Human ATG16L1.

View Alternative Names

APG16L, UNQ9393/PRO34307, ATG16L1, Autophagy-related protein 16-1, APG16-like 1

5 Images
Immunocytochemistry/ Immunofluorescence - Anti-ATG16L1 antibody (AB188642)
  • ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-ATG16L1 antibody (AB188642)

Immunocytochemical analysis of HeLa cells labeling ATG16L1 using ab188642 at 2 μg/ml.

Immunocytochemistry/ Immunofluorescence - Anti-ATG16L1 antibody (AB188642)
  • ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-ATG16L1 antibody (AB188642)

Immunocytochemical/ Immunofluorescence analysis of HeLa cells labeling ATG16L1 using ab188642 at 4 μg/ml.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATG16L1 antibody (AB188642)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATG16L1 antibody (AB188642)

Immunohistochemical analysis of formalin-fixed, paraffin-embedded Human uterus tissue sections labeling ATG16L1 using ab188642 at 5 μg/ml.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATG16L1 antibody (AB188642)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATG16L1 antibody (AB188642)

Immunohistochemical analysis of formalin-fixed, paraffin-embedded Human placenta tissue sections labeling ATG16L1 using ab188642 at 5 μg/ml.

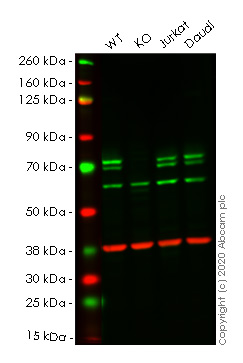

Western blot - Anti-ATG16L1 antibody (AB188642)
  • WB

Supplier Data

Western blot - Anti-ATG16L1 antibody (AB188642)

Lane 1:

Western blot - Anti-ATG16L1 antibody (ab188642) at 0.25 µg/mL

Lane 2:

Western blot - Anti-ATG16L1 antibody (ab188642) at 0.5 µg/mL

All lanes:

HeLa cell lysate

Predicted band size: 68 kDa,73 kDa

false

Key facts

Host species

Rabbit

Clonality

Polyclonal

Isotype

IgG

Carrier free

No

Reacts with

Human, Mouse, Rat

Applications

WB, ELISA, IHC-P, ICC/IF

applications

Immunogen

Synthetic Peptide within Human ATG16L1. The exact immunogen used to generate this antibody is proprietary information.

Q676U5

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "ELISA" : {"fullname" : "ELISA", "shortname":"ELISA"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "5 µg/mL", "IHCP-species-notes": "<p></p>", "ELISA-species-checked": "guaranteed", "ELISA-species-dilution-info": "", "ELISA-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "0.25-0.5 µg/mL", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "2-4 µg/mL", "ICCIF-species-notes": "<p></p>" }, "Mouse": { "IHCP-species-checked": "predicted", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "ELISA-species-checked": "guaranteed", "ELISA-species-dilution-info": "", "ELISA-species-notes": "<p></p>", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "", "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" }, "Rat": { "IHCP-species-checked": "predicted", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "ELISA-species-checked": "guaranteed", "ELISA-species-dilution-info": "", "ELISA-species-notes": "<p></p>", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "", "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" } } }

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Immunogen
Storage buffer
pH: 7.4 Preservative: 0.02% Sodium azide Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

ATG16L1 also known as Autophagy Related 16 Like 1 is a protein involved in the autophagy process. It functions as part of a complex that includes ATG12 and ATG5. The molecular weight of ATG16L1 is approximately 66 kDa. It is highly expressed in various tissues including the immune cells highlighting its involvement in essential cellular processes. The protein interacts with other autophagy-related proteins to facilitate the elongation and maturation of autophagosomes.
Biological function summary

ATG16L1 plays a role in mediating autophagy a vital cellular degradation process. It forms a complex with ATG5 and ATG12 necessary for the elongation of the autophagosome membrane. Apart from its role in autophagy ATG16L1 contributes to the regulation of innate immunity by influencing the secretion of inflammatory cytokines. Its presence is essential for maintaining cellular homeostasis and proper immune responses.

Pathways

ATG16L1 is important in pathways like autophagy and immunity. In the autophagy pathway it works alongside ATG5 and ATG12 to ensure the proper formation of autophagosomes which are structures that engulf and degrade unwanted cellular components. Furthermore in the immune response pathway it helps regulate inflammation by managing cytokine production and secretion showing interaction with proteins like NOD2.

ATG16L1 has connections with inflammatory bowel diseases particularly Crohn's disease and various cancers. Mutations in ATG16L1 can lead to impaired autophagy contributing to the development of Crohn's disease. In cancer dysregulation of autophagy involving ATG16L1 may affect tumor progression and response to therapy. The protein associates with NOD2 in Crohn's disease demonstrating that changes in their interaction can influence disease susceptibility and severity.

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

Plays an essential role in both canonical and non-canonical autophagy : interacts with ATG12-ATG5 to mediate the lipidation to ATG8 family proteins (MAP1LC3A, MAP1LC3B, MAP1LC3C, GABARAPL1, GABARAPL2 and GABARAP) (PubMed : 23376921, PubMed : 23392225, PubMed : 24553140, PubMed : 24954904, PubMed : 27273576, PubMed : 29317426, PubMed : 30778222, PubMed : 33909989). Acts as a molecular hub, coordinating autophagy pathways via distinct domains that support either canonical or non-canonical signaling (PubMed : 29317426, PubMed : 30778222). During canonical autophagy, interacts with ATG12-ATG5 to mediate the conjugation of phosphatidylethanolamine (PE) to ATG8 proteins, to produce a membrane-bound activated form of ATG8 (PubMed : 23376921, PubMed : 23392225, PubMed : 24553140, PubMed : 24954904, PubMed : 27273576). Thereby, controls the elongation of the nascent autophagosomal membrane (PubMed : 23376921, PubMed : 23392225, PubMed : 24553140, PubMed : 24954904, PubMed : 27273576). As part of the ATG8 conjugation system with ATG5 and ATG12, required for recruitment of LRRK2 to stressed lysosomes and induction of LRRK2 kinase activity in response to lysosomal stress (By similarity). Also involved in non-canonical autophagy, a parallel pathway involving conjugation of ATG8 proteins to single membranes at endolysosomal compartments, probably by catalyzing conjugation of phosphatidylserine (PS) to ATG8 (PubMed : 33909989). Non-canonical autophagy plays a key role in epithelial cells to limit lethal infection by influenza A (IAV) virus (By similarity). Regulates mitochondrial antiviral signaling (MAVS)-dependent type I interferon (IFN-I) production (PubMed : 22749352, PubMed : 25645662). Negatively regulates NOD1- and NOD2-driven inflammatory cytokine response (PubMed : 24238340). Instead, promotes an autophagy-dependent antibacterial pathway together with NOD1 or NOD2 (PubMed : 20637199). Plays a role in regulating morphology and function of Paneth cell (PubMed : 18849966).
See full target information ATG16L1

Publications (13)

Recent publications for all applications. Explore the full list and refine your search

Frontiers in oncology 15:1531420 PubMed40519291

2025

Metformin inhibits the proliferation of hepatocellular carcinoma cells through inducing ferroptosis analyzed by phosphoproteomics.

Applications

Unspecified application

Species

Unspecified reactive species

Jihan Sun,Xi Yu,Yuying Shan,Manyun Dai,Andrea Gaucherot,Caide Lu,Shuqi Mao

Investigative ophthalmology & visual science 65:12 PubMed39636725

2024

Atg5-Mediated Lipophagy Induces Ferroptosis in Corneal Epithelial Cells in Dry Eye Disease.

Applications

Unspecified application

Species

Unspecified reactive species

Xin Zuo,Hao Zeng,Xue Yang,Dalian He,Bowen Wang,Jin Yuan

Autophagy 20:1247-1269 PubMed38018843

2023

CARM1 drives mitophagy and autophagy flux during fasting-induced skeletal muscle atrophy.

Applications

Unspecified application

Species

Unspecified reactive species

Derek W Stouth,Tiffany L vanLieshout,Andrew I Mikhail,Sean Y Ng,Rozhin Raziee,Brittany A Edgett,Goutham Vasam,Erin K Webb,Kevin S Gilotra,Matthew Markou,Hannah C Pineda,Brianna G Bettencourt-Mora,Haleema Noor,Zachary Moll,Megan E Bittner,Brendon J Gurd,Keir J Menzies,Vladimir Ljubicic

Nature communications 14:7338 PubMed37957156

2023

Local membrane source gathering by p62 body drives autophagosome formation.

Applications

Unspecified application

Species

Unspecified reactive species

Xuezhao Feng,Daxiao Sun,Yanchang Li,Jinpei Zhang,Shiyu Liu,Dachuan Zhang,Jingxiang Zheng,Qing Xi,Haisha Liang,Wenkang Zhao,Ying Li,Mengbo Xu,Jiayu He,Tong Liu,Ayshamgul Hasim,Meisheng Ma,Ping Xu,Na Mi

Materials today. Bio 21:100700 PubMed37455821

2023

Size-dependent gold nanoparticles induce macrophage M2 polarization and promote intracellular clearance of to alleviate tissue infection.

Applications

Unspecified application

Species

Unspecified reactive species

Wang Peilin,Peng Ying,Wang Renyuan,Li Zhuoxuan,Yang Zhenwu,Zhao Mai,Song Jianguo,Zhang Hao,Yin Gang,Lin Lin,Lin Haodong

Frontiers in neurology 12:704550 PubMed34381417

2021

MicroRNA 223 Targeting ATG16L1 Affects Microglial Autophagy in the Kainic Acid Model of Temporal Lobe Epilepsy.

Applications

Unspecified application

Species

Unspecified reactive species

Zhuoyi He,Houminji Chen,Yongsheng Zhong,Qihang Yang,Xuemin Wang,Rongqing Chen,Yanwu Guo

Frontiers in immunology 11:610021 PubMed33505399

2021

MicroRNA-106a Inhibits Autophagy Process and Antimicrobial Responses by Targeting ULK1, ATG7, and ATG16L1 During Mycobacterial Infection.

Applications

Unspecified application

Species

Unspecified reactive species

Kunmei Liu,Dantong Hong,Fan Zhang,Xin Li,Meng He,Xuebo Han,Guolin Zhang,Guangxian Xu,Nicola J Stonehouse,Zhongjia Jiang,Weijun An,Le Guo

Science immunology 5: PubMed33310865

2020

Defects in and underlie HSV2 meningitis and reveal a critical role for autophagy in antiviral defense in humans.

Applications

Unspecified application

Species

Unspecified reactive species

Alon Schneider Hait,David Olagnier,Vanessa Sancho-Shimizu,Kristian Alsbjerg Skipper,Marie Helleberg,Simon Muller Larsen,Chiranjeevi Bodda,Liviu Ionut Moldovan,Fanghui Ren,Nanna-Sophie Brinck Andersen,Michelle M Thomsen,Mette Ratzer Freytag,Sathya Darmalinggam,Isobel Parkes,Darshana D Kadekar,Stine Hess Rahbek,Demi van der Horst,Lasse Sommer Kristensen,Kristina Eriksson,Jørgen Kjems,Serge Mostowy,Mette Christiansen,Jacob Giehm Mikkelsen,Christian Thomas Brandt,Søren R Paludan,Trine H Mogensen

Journal of Crohn's & colitis 15:647-664 PubMed33022049

2020

miR-130a-3p, a Preclinical Therapeutic Target for Crohn's Disease.

Applications

Unspecified application

Species

Unspecified reactive species

Jie Zhao,Honggang Wang,Jin Zhou,Jun Qian,Haojun Yang,Yan Zhou,Hao Ding,Yu Gong,Xiaoyang Qi,Yuwen Jiao,Pu Ying,Liming Tang,Ye Sun,Weiming Zhu

International journal of molecular medicine 46:83-96 PubMed32319531

2020

Emerging roles of let‑7d in attenuating pulmonary arterial hypertension via suppression of pulmonary artery endothelial cell autophagy and endothelin synthesis through ATG16L1 downregulation.

Applications

Unspecified application

Species

Unspecified reactive species

Minghui Ou,Xia Li,Shichao Cui,Shibo Zhao,Jie Tu
View all publications

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
