AB154843

Anti-ATG4B antibody [EPR6436(2)]

5

(2 Reviews)

|

(12 Publications)

Rabbit Recombinant Monoclonal ATG4B antibody. Suitable for WB, Flow Cyt (Intra) and reacts with Human, Mouse samples. Cited in 12 publications.

View Alternative Names

APG4B, AUTL1, KIAA0943, ATG4B, Cysteine protease ATG4B, AUT-like 1 cysteine endopeptidase, Autophagy-related cysteine endopeptidase 1, Autophagy-related protein 4 homolog B, Autophagin-1, HsAPG4B, hAPG4B

4 Images
Flow Cytometry (Intracellular) - Anti-ATG4B antibody [EPR6436(2)] (AB154843)
  • Flow Cyt (Intra)

Unknown

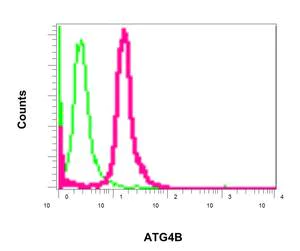

Flow Cytometry (Intracellular) - Anti-ATG4B antibody [EPR6436(2)] (AB154843)

Intracellular Flow Cytometry analysis of permeabilized Jurkat cells labeling ATG4B (red), using ab154843 at a 1/100 dilution, and negative control cells probed with a Rabbit IgG (green)

Western blot - Anti-ATG4B antibody [EPR6436(2)] (AB154843)
  • WB

Lab

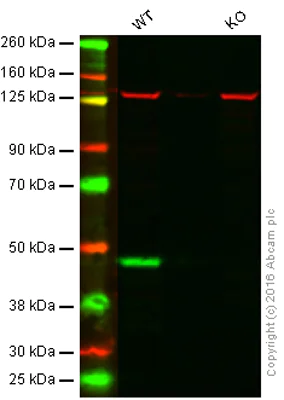

Western blot - Anti-ATG4B antibody [EPR6436(2)] (AB154843)

Lane 1 : Wild-type HAP1 cell lysate (20 μg)
Lane 2 : ATG4B knockout HAP1 cell lysate (20 μg)

Lanes 1 - 2 : Merged signal (red and green). Green - ab154843 observed at 47 kDa. Red - loading control, ab18058, observed at 130 kDa.

ab154843 was shown to specifically react with ATG4B when ATG4B knockout samples were used. Wild-type and ATG4B knockout samples were subjected to SDS-PAGE. ab154843 and ab18058 (loading control to Vinculin) were diluted at 1/1000 and 1/10000 respectively and incubated overnight at 4°C. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (ab216776) secondary antibodies at 1/10000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-ATG4B antibody [EPR6436(2)] (ab154843)

Predicted band size: 44 kDa

false

Western blot - Anti-ATG4B antibody [EPR6436(2)] (AB154843)
  • WB

Lab

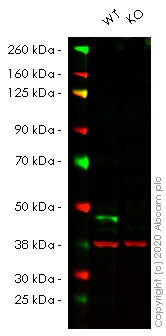

Western blot - Anti-ATG4B antibody [EPR6436(2)] (AB154843)

Lanes 1 - 2 : Merged signal (red and green). Green - ab154843 observed at 47 kDa. Red - loading control ab8245 (Mouse anti-GAPDH antibody [6C5]) observed at 37kDa.
ab154843 was shown to react with ATG4B in wild-type HeLa cells in Western blot with loss of signal observed in ATG4B knockout cell line ab260973 (ATG4B knockout cell lysate ab257364). Wild-type and ATG4B knockout HEK293T cell lysates were subjected to SDS-PAGE. Membranes were blocked in 3 % milk in TBS-T (0.1 % Tween®) before incubation with ab154843 and ab8245 (Mouse anti-GAPDH antibody [6C5]) overnight at 4 °C at a 1 in 1000 dilution and a 1 in 20000 dilution respectively. Blots were incubated with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 h at room temperature before imaging.

All lanes:

Western blot - Anti-ATG4B antibody [EPR6436(2)] (ab154843) at 1/1000 dilution

Lane 1:

Wild-type HeLa cell lysate at 20 µg

Lane 2:

ATG4B knockout HeLa cell lysate at 20 µg

Lane 2:

Western blot - Human ATG4B knockout HeLa cell line (<a href='/en-us/products/cell-lines/human-atg4b-knockout-hela-cell-line-ab265814'>ab265814</a>)

Predicted band size: 44 kDa

Observed band size: 47 kDa

false

Western blot - Anti-ATG4B antibody [EPR6436(2)] (AB154843)
  • WB

Unknown

Western blot - Anti-ATG4B antibody [EPR6436(2)] (AB154843)

All lanes:

Western blot - Anti-ATG4B antibody [EPR6436(2)] (ab154843) at 1/1000 dilution

Lane 1:

Ramos cell lysate at 10 µg

Lane 2:

293T cell lysate at 10 µg

Lane 3:

Jurkat cell lysate at 10 µg

Lane 4:

HeLa cell lysate at 10 µg

Predicted band size: 44 kDa

false

  • Carrier free

    Anti-ATG4B antibody [EPR6436(2)] - BSA and Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR6436(2)

Isotype

IgG

Carrier free

No

Reacts with

Mouse, Human

Applications

Flow Cyt (Intra), WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Alternative Products

Primary Antibodies

AB223364

Anti-ATG4B antibody

Immunocytochemistry/ Immunofluorescence - Anti-ATG4B antibody (AB223364)

  • 0
  • 0
Primary Antibodies

AB225882

Anti-ATG4B antibody

Immunoprecipitation - Anti-ATG4B antibody (AB225882)

  • 0
  • 0
Primary Antibodies

AB199537

Anti-ATG4B antibody [EPR16572]

RabMAb|Recombinant|KO Validated

Immunoprecipitation - Anti-ATG4B antibody [EPR16572] (AB199537)

  • 0
  • 0

Complementary Products

Primary Antibodies

AB192890

Anti-LC3B antibody [EPR18709] - Autophagosome Marker

BOND RX™ Validated|RabMAb|Recombinant|KO Validated|Lab Essentials|20ul selling size

Western blot - Anti-LC3B antibody [EPR18709] - Autophagosome Marker (AB192890)

  • 5
  • 19
Primary Antibodies

AB108327

Anti-APG5L/ATG5 antibody [EPR1755(2)]

20ul selling size|RabMAb|Recombinant|KO Validated|Trial Size

Immunocytochemistry/ Immunofluorescence - Anti-APG5L/ATG5 antibody [EPR1755(2)] (AB108327)

  • 4
  • 7
Multiplex Kits

AB228525

Autophagy Marker (APG5L/ATG5, ATG16L1, ATG4B, ATG9A, Beclin 1, LC3B) Antibody Sampler Panel

Recombinant

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Autophagy Marker (APG5L/ATG5, ATG16L1, ATG4B, ATG9A, Beclin 1, LC3B) Antibody Sampler Panel (AB228525)

  • 5
  • 1
Primary Antibodies

AB109012

Anti-SQSTM1 / p62 antibody [EPR4844] - Autophagosome Marker

KO Validated|RabMAb|Recombinant|Lab Essentials

Western blot - Anti-SQSTM1 / p62 antibody [EPR4844] - Autophagosome Marker (AB109012)

  • 5
  • 15
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000 - 1/10000", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/100 - 1/500", "FlowCytIntra-species-notes": "<p><a href='/en-us/products/primary-antibodies/rabbit-igg-monoclonal-epr25a-isotype-control-ab172730'>ab172730</a> - Rabbit monoclonal IgG, is suitable for use as an isotype control with this antibody.</p>" }, "Mouse": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "WB-species-checked": "guaranteed", "WB-species-dilution-info": "1/1000 - 1/10000", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>", "FlowCytIntra-species-checked": "guaranteed", "FlowCytIntra-species-dilution-info": "1/100 - 1/500", "FlowCytIntra-species-notes": "<p><a href='/en-us/products/primary-antibodies/rabbit-igg-monoclonal-epr25a-isotype-control-ab172730'>ab172730</a> - Rabbit monoclonal IgG, is suitable for use as an isotype control with this antibody.</p>" }, "Rat": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "" } } }
style
left-column

Product details

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

style
left-column

Properties and storage information

Form
Liquid
Purity
Tissue culture supernatant
Storage buffer
pH: 7.2 - 7.4 Preservative: 0.01% Sodium azide Constituents: PBS, 50% Tissue culture supernatant, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

ATG4B is a cysteine protease also known as autophagin-1 with a molecular mass of approximately 45 kDa. It is involved in the autophagy process by cleaving ATG8 family proteins. This protease facilitates the lipidation of LC3 an essential component of the autophagosome membrane. You find ATG4B expressed in various tissues especially in the brain liver and muscle where it plays important roles in cellular maintenance.
Biological function summary

ATG4B functions in the cellular autophagic machinery cleaving the C-terminal of ATG8 proteins. This processing is necessary for the conjugation to phosphatidylethanolamine and integration into autophagosomes. ATG4B is part of a larger autophagic complex that also includes other critical proteins like ATG7 and ATG3 helping prepare ATG8 proteins for autophagosome creation.

Pathways

ATG4B participates in the autophagy pathway by refining the cargo processing mechanism. It interacts with the mTOR signaling pathway which influences cell survival and growth based on nutrient availability. The ATG4B enzyme is closely related to ATG7 in the pathway as both contribute to the maturation of autophagosomes.

ATG4B has significant links to cancer and neurodegenerative disorders. In cancer ATG4B activity affects tumor survival since cancer cells exploit autophagy for growth under stress conditions. In neurodegenerative diseases like Alzheimer's alterations in ATG4B activity disrupt cellular homeostasis. This disruption connects to proteins like LC3 which are pivotal in neuron survival and function.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Cysteine protease that plays a key role in autophagy by mediating both proteolytic activation and delipidation of ATG8 family proteins (PubMed : 15169837, PubMed : 15187094, PubMed : 17347651, PubMed : 19322194, PubMed : 21177865, PubMed : 22302004, PubMed : 26378241, PubMed : 27527864, PubMed : 28633005, PubMed : 28821708, PubMed : 29232556, PubMed : 30076329, PubMed : 30443548, PubMed : 30661429). Required for canonical autophagy (macroautophagy), non-canonical autophagy as well as for mitophagy (PubMed : 33773106, PubMed : 33909989). The protease activity is required for proteolytic activation of ATG8 family proteins : cleaves the C-terminal amino acid of ATG8 proteins MAP1LC3A, MAP1LC3B, MAP1LC3C, GABARAPL1, GABARAPL2 and GABARAP, to reveal a C-terminal glycine (PubMed : 15169837, PubMed : 15187094, PubMed : 17347651, PubMed : 19322194, PubMed : 20818167, PubMed : 21177865, PubMed : 22302004, PubMed : 27527864, PubMed : 28287329, PubMed : 28633005, PubMed : 29458288, PubMed : 30661429). Exposure of the glycine at the C-terminus is essential for ATG8 proteins conjugation to phosphatidylethanolamine (PE) and insertion to membranes, which is necessary for autophagy (PubMed : 15169837, PubMed : 15187094, PubMed : 17347651, PubMed : 19322194, PubMed : 21177865, PubMed : 22302004). Protease activity is also required to counteract formation of high-molecular weight conjugates of ATG8 proteins (ATG8ylation) : acts as a deubiquitinating-like enzyme that removes ATG8 conjugated to other proteins, such as ATG3 (PubMed : 31315929, PubMed : 33773106). In addition to the protease activity, also mediates delipidation of ATG8 family proteins (PubMed : 15187094, PubMed : 19322194, PubMed : 28633005, PubMed : 29458288, PubMed : 32686895, PubMed : 33909989). Catalyzes delipidation of PE-conjugated forms of ATG8 proteins during macroautophagy (PubMed : 15187094, PubMed : 19322194, PubMed : 29458288, PubMed : 32686895, PubMed : 33909989). Also involved in non-canonical autophagy, a parallel pathway involving conjugation of ATG8 proteins to single membranes at endolysosomal compartments, by catalyzing delipidation of ATG8 proteins conjugated to phosphatidylserine (PS) (PubMed : 33909989). Compared to other members of the family (ATG4A, ATG4C or ATG4C), constitutes the major protein for proteolytic activation of ATG8 proteins, while it displays weaker delipidation activity than other ATG4 paralogs (PubMed : 29458288, PubMed : 30661429). Involved in phagophore growth during mitophagy independently of its protease activity and of ATG8 proteins : acts by regulating ATG9A trafficking to mitochondria and promoting phagophore-endoplasmic reticulum contacts during the lipid transfer phase of mitophagy (PubMed : 33773106).
