AB324915

Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free

Be the first to review this product! Submit a review

|

(0 Publication)

Rabbit Recombinant Monoclonal ATP-binding cassette sub-family A member 3 antibody. Carrier free. Suitable for IHC-P, WB, Dot, mIHC and reacts with Mouse, Recombinant fragment - Mouse samples.

View Alternative Names

Phospholipid-transporting ATPase ABCA3, ATP-binding cassette sub-family A member 3, Xenobiotic-transporting ATPase ABCA3, Abca3

11 Images
Multiplex immunohistochemistry - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free (AB324915)
  • mIHC

Lab

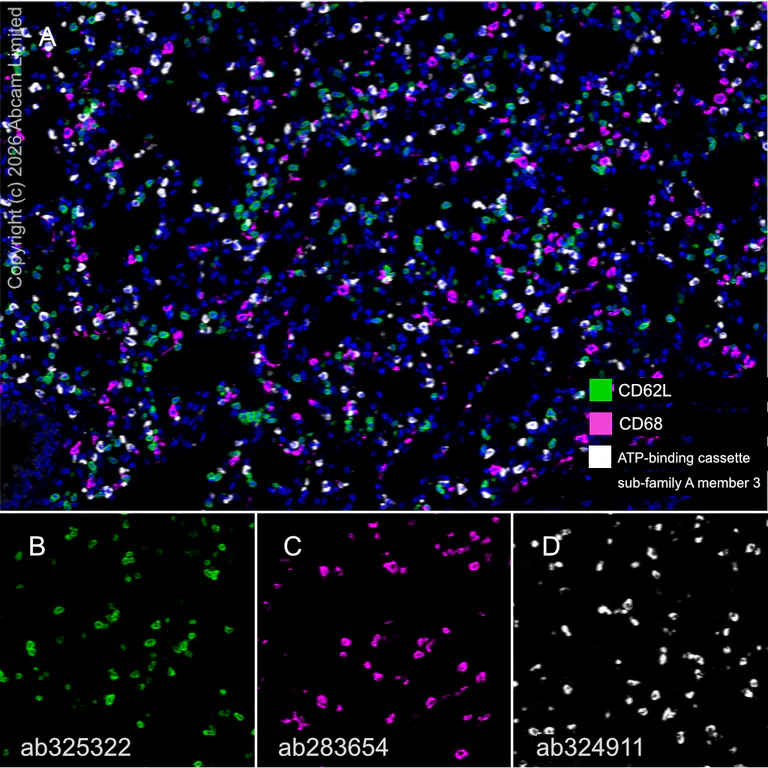

Multiplex immunohistochemistry - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free (AB324915)

This data was developed using ab324911, the same antibody clone in a different buffer formulation.

Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded mouse lung tissue staining CD62L with ab325322 at a 1/1000 (0.509 μg/ml) dilution, ab283654 anti-CD68 used at a 1/100 (4.43 μg/ml) dilution and ab324911 anti-ATP-binding cassette sub-family A member 3 used at a 1/2000 (0.253 μg/ml) dilution.

Panel A : anti-CD62L (green; Opal™520), anti-CD68 (magenta; Opal™690), anti-ATP-binding cassette sub-family A member 3 (gray; Opal™570) on mouse lung.

Panel B : anti-CD62L staining immune cells in mouse lung.

Panel C : anti-CD68 staining macrophages in mouse lung.

Panel D : anti-ATP-binding cassette sub-family A member 3 staining type Ⅱ pneumocytes in mouse lung.

Nuclear DNA was labeled with DAPI (shown in blue).

The section was incubated in three rounds of staining : in the order of ab325322, ab283654 and ab324911 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

Multiplex immunohistochemistry - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free (AB324915)
  • mIHC

Lab

Multiplex immunohistochemistry - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free (AB324915)

This data was developed using ab324911, the same antibody clone in a different buffer formulation.

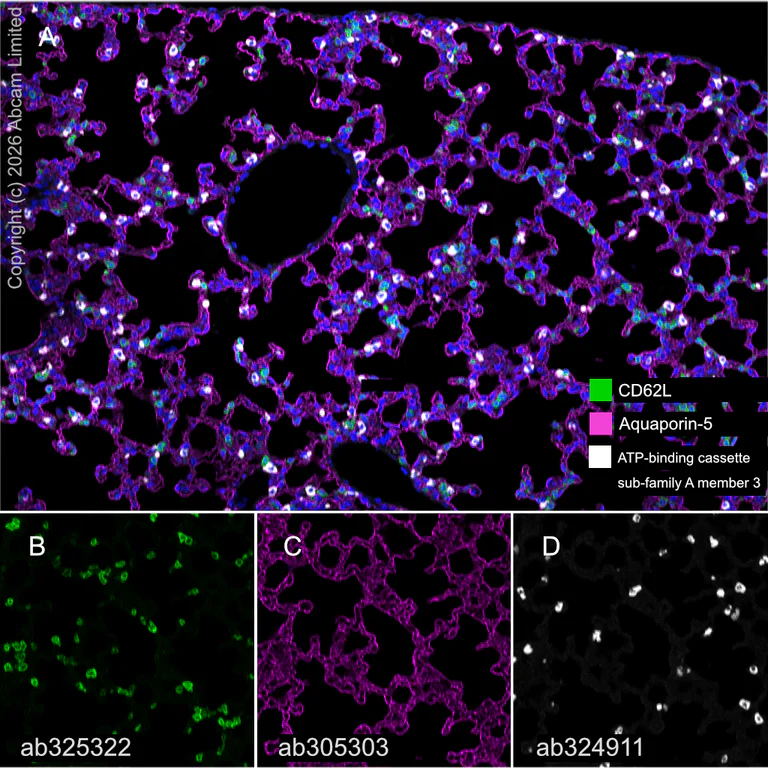

Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded mouse lung tissue staining CD62L with ab325322 at a 1/1000 (0.509 μg/ml) dilution, ab305303 anti-Aquaporin-5 used at a 1/2000 (0.25 μg/ml) dilution and ab324911 anti-ATP-binding cassette sub-family A member 3 used at a 1/2000 (0.253 μg/ml) dilution.

Panel A : anti-CD62L (green; Opal™520), anti-Aquaporin-5 (magenta; Opal™690), anti-ATP-binding cassette sub-family A member 3 (gray; Opal™570) on mouse lung.

Panel B : anti-CD62L staining immune cells in mouse lung.

Panel C : anti-Aquaporin-5 staining type Ⅰ pneumocytes in mouse lung.

Panel D : anti-ATP-binding cassette sub-family A member 3 staining type Ⅱ pneumocytes in mouse lung.

Nuclear DNA was labeled with DAPI (shown in blue).

The section was incubated in three rounds of staining : in the order of ab325322, ab305303 and ab324911 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free (AB324915)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free (AB324915)

This data was developed using ab324911, the same antibody clone in a different buffer formulation.

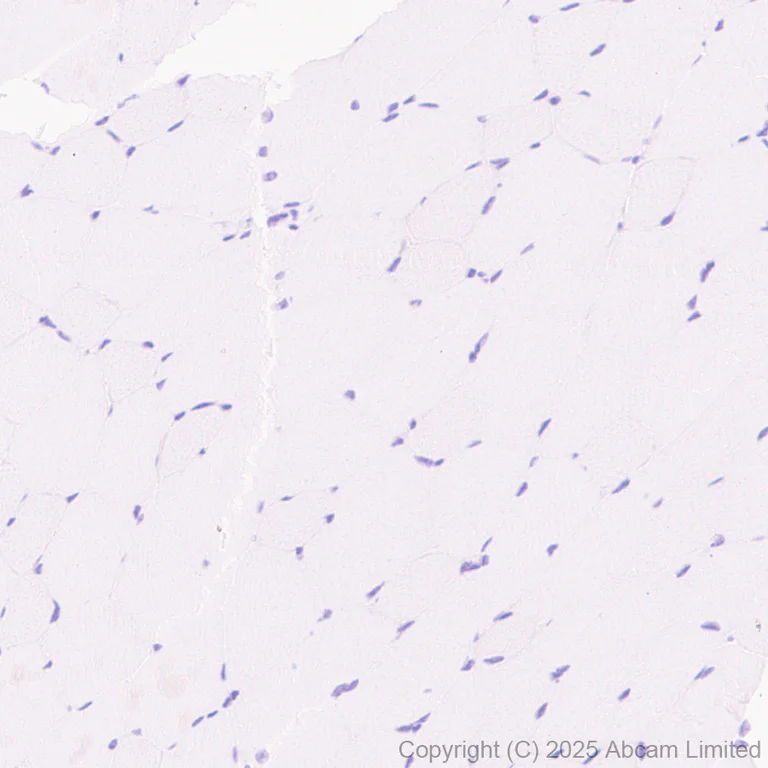

Immunohistochemical analysis of paraffin-embedded Mouse skeletal muscle tissue labeling ATP-binding cassette sub-family A member 3 with ab324911 at 1/2000 (0.253 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Low expression tissue : No staining on mouse skeletal muscle (PMID : 17142808).
The primary antibody was incubated for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free (AB324915)
  • IHC-P

Supplier Data

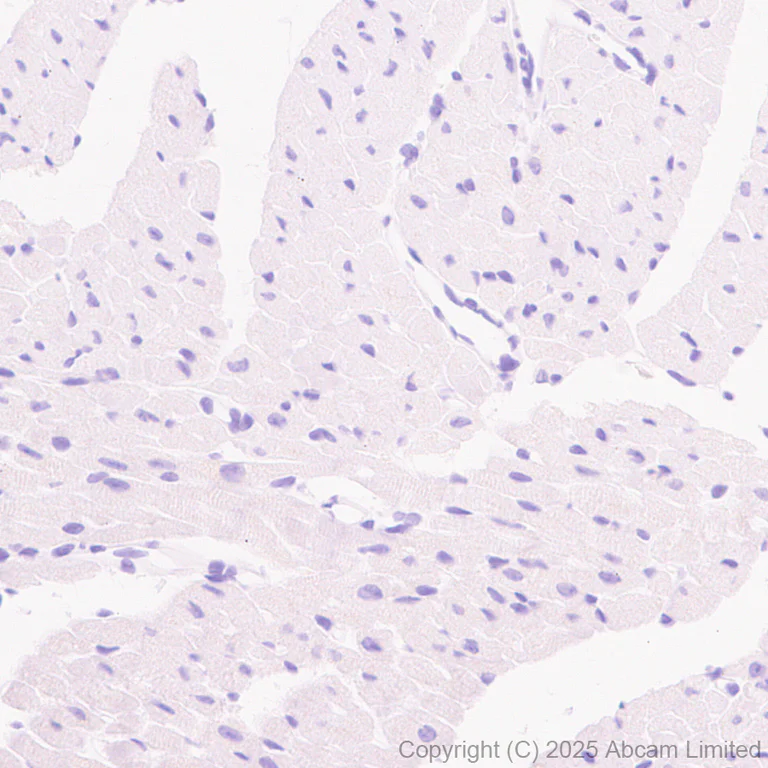

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free (AB324915)

This data was developed using ab324911, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Mouse cardiac muscle tissue labeling ATP-binding cassette sub-family A member 3 with ab324911 at 1/2000 (0.253 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Low expression tissue : No staining on mouse cardiac muscle (PMID : 17142808).
The primary antibody was incubated for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free (AB324915)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free (AB324915)

This data was developed using ab324911, the same antibody clone in a different buffer formulation.

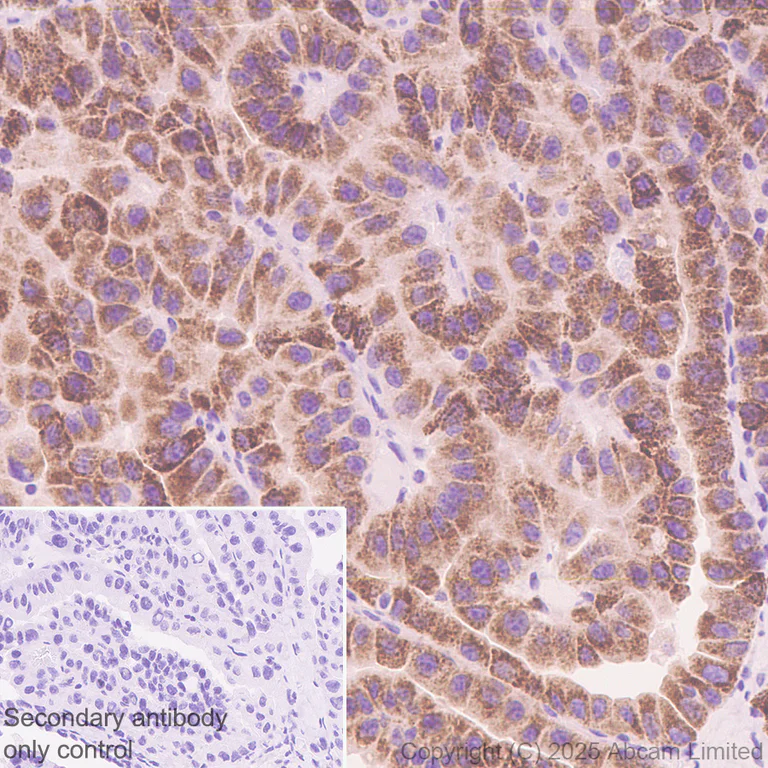

Immunohistochemical analysis of paraffin-embedded Mouse lung adenocarcinoma tissue labeling ATP-binding cassette sub-family A member 3 with ab324911 at 1/2000 (0.253 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on mouse lung adenocarcinoma.
The primary antibody was incubated for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free (AB324915)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free (AB324915)

This data was developed using ab324911, the same antibody clone in a different buffer formulation.

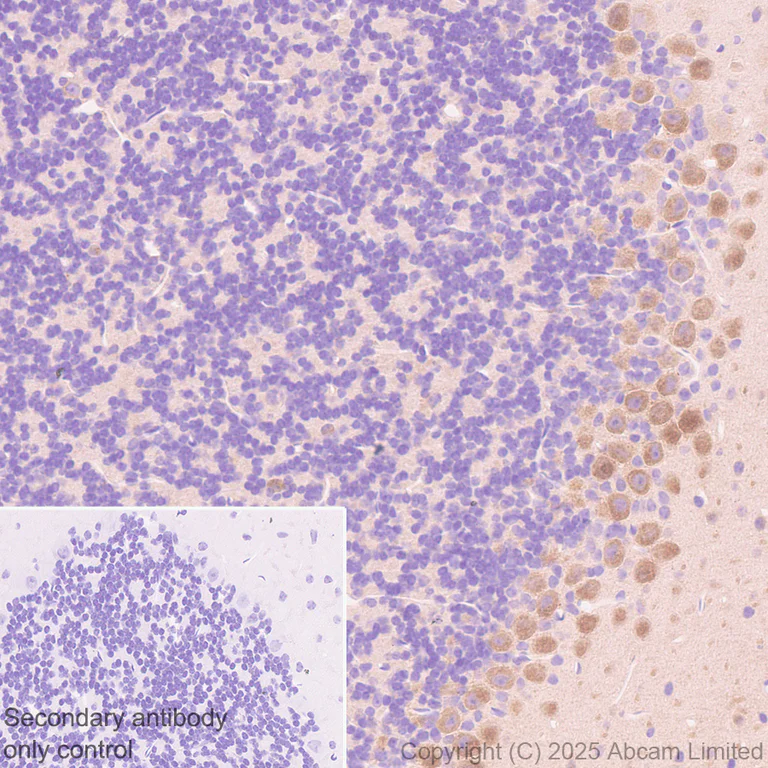

Immunohistochemical analysis of paraffin-embedded Mouse cerebellum tissue labeling ATP-binding cassette sub-family A member 3 with ab324911 at 1/2000 (0.253 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on Purkinje cells in mouse cerebellum.
The primary antibody was incubated for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free (AB324915)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free (AB324915)

This data was developed using ab324911, the same antibody clone in a different buffer formulation.

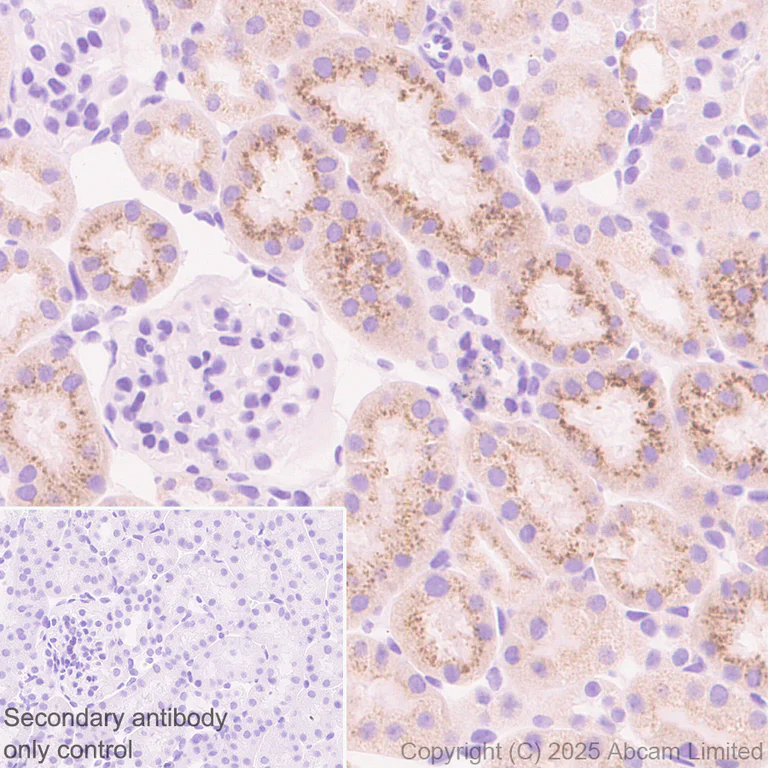

Immunohistochemical analysis of paraffin-embedded Mouse kidney tissue labeling ATP-binding cassette sub-family A member 3 with ab324911 at 1/2000 (0.253 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on mouse kidney tubules.
The primary antibody was incubated for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free (AB324915)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free (AB324915)

This data was developed using ab324911, the same antibody clone in a different buffer formulation.

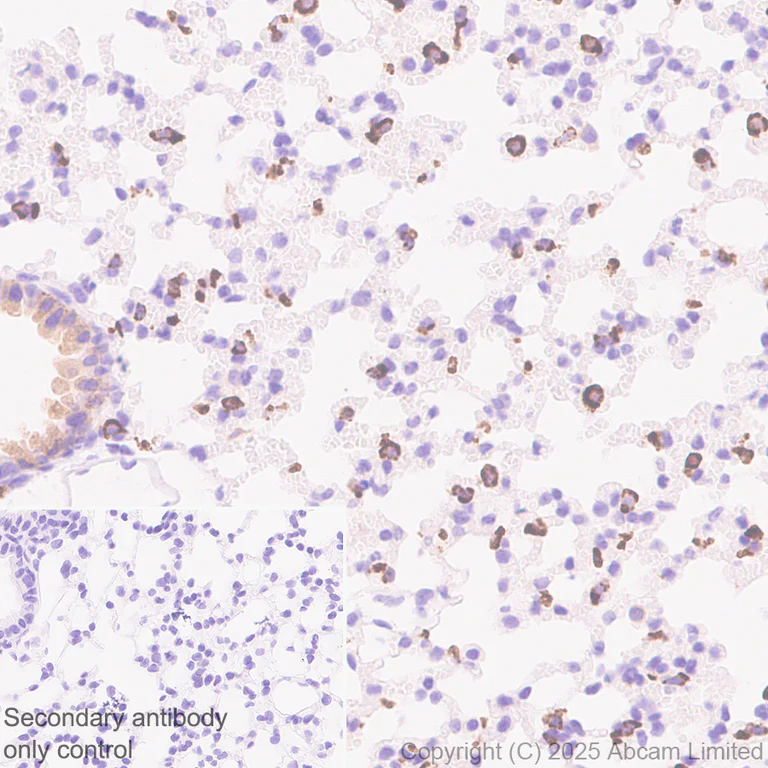

Immunohistochemical analysis of paraffin-embedded Mouse lung tissue labeling ATP-binding cassette sub-family A member 3 with ab324911 at 1/2000 (0.253 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on typeⅡ pneumocytes in mouse lung.
The primary antibody was incubated for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

Multiplex immunohistochemistry - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free (AB324915)
  • mIHC

Supplier Data

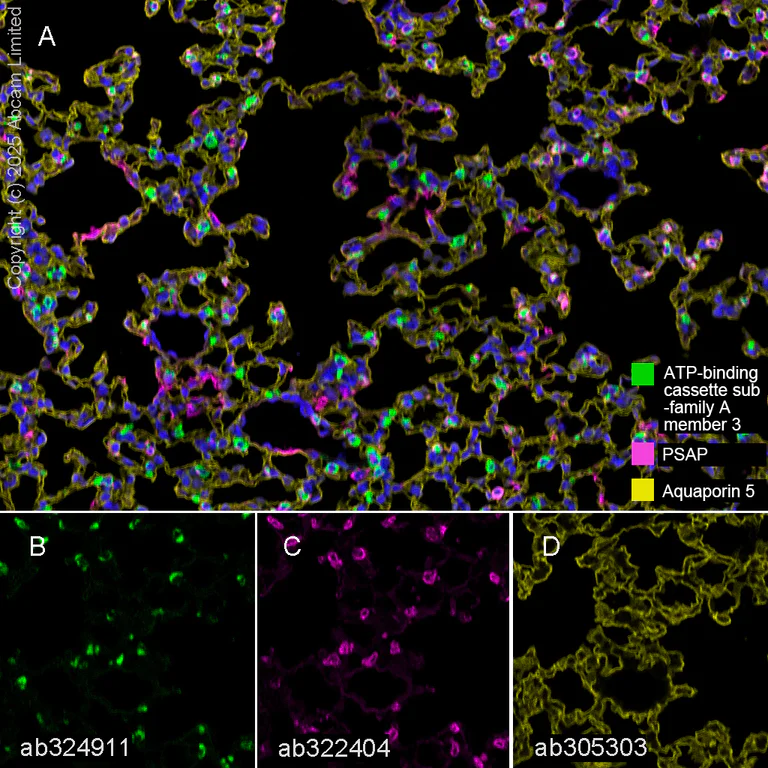

Multiplex immunohistochemistry - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free (AB324915)

This data was developed using ab324911, the same antibody clone in a different buffer formulation.

Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded mouse lung tissue staining ATP-binding cassette sub-family A member 3 with ab324911 at a 1 : 2000 (0.253 ug/ml) dilution, ab322404 anti-PSAP used at 1 : 5000 (0.092 ug/ml) dilution and ab305303 anti-Aquaporin-5 used at a 1 : 2000 (0.265 ug/ml) dilution.

Panel A : merged staining of anti-ATP-binding cassette sub-family A member 3 (green; Opal™690), anti-PSAP (magenta; Opal™520) and anti-Aquaporin-5 (yellow; Opal™570) on mouse lung.
Panel B : anti-ATP-binding cassette sub-family A member 3 staining typeⅡ pneumocytes in mouse lung.
Panel C : ant-PSAP staining typeⅡ pneumocytes in mouse lung.
Panel D : ant-Aquaporin-5 staining typeⅠ pneumocytes in mouse lung.
Nuclear DNA was labeled with DAPI (shown in blue).

The section was incubated in three rounds of staining : in the order of ab324911, ab322404 and ab305303 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

Nuclear counter stain with DAPI.

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

Western blot - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free (AB324915)
  • WB

Supplier Data

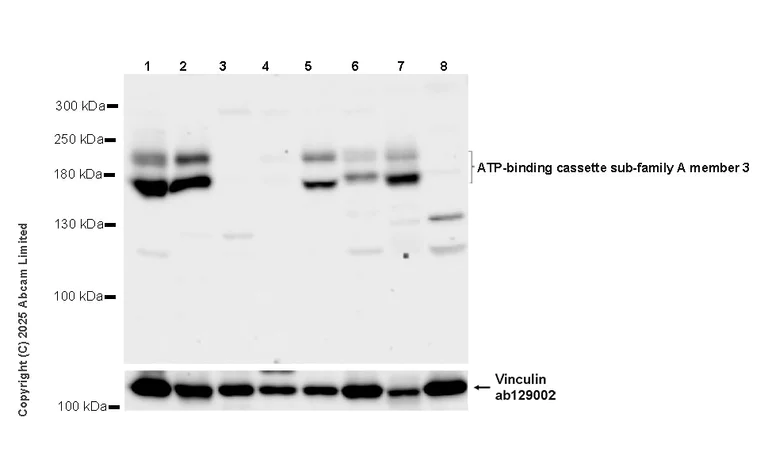

Western blot - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free (AB324915)

This data was developed using ab324911, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Low expression : heart, skeletal muscle (PMID : 17142808), C2C12.

The molecular weight observed is consistent with what have been described in literatures (PMID : 17142808; PMID : 20863830).

Samples are non-boiled as boiling may cause protein aggregation.

The identity of the lower MW bands below 150 kDa are unknown.

In Western blot, Anti-Vinculin antibody [EPR8185] (ab129002) staining at 1/10000 dilution.

All lanes:

Western blot - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] (<a href='/en-us/products/primary-antibodies/atp-binding-cassette-sub-family-a-member-3-antibody-epr29622-109-ab324911'>ab324911</a>) at 1/1000 dilution

Lane 1:

Mouse lung tissue lysate at 20 µg

Lane 2:

Mouse kidney tissue lysate at 20 µg

Lane 3:

Mouse heart tissue lysate at 20 µg

Lane 4:

Mouse skeletal muscle tissue lysate at 20 µg

Lane 5:

Mouse liver tissue lysate at 20 µg

Lane 6:

Mouse spleen tissue lysate at 20 µg

Lane 6:

Hepa1-6 (mouse hepatoma epithelial cell) whole cell lysate at 20 µg

Lane 8:

C2C12 (mouse myoblast) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 150 kDa,190 kDa,124 kDa

false

Exposure time: 37s

Dot Blot - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free (AB324915)
  • Dot

Supplier Data

Dot Blot - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] - BSA and Azide free (AB324915)

This data was developed using ab324911, the same antibody clone in a different buffer formulation.

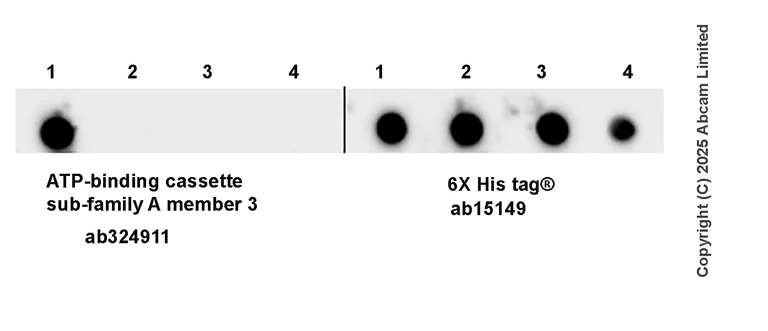

Dot blot analysis of ATP-binding cassette sub-family A member 3 using ab324911 at 1 : 1000 (0.505 ug/ml) followed by a Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (ab97051) at 1 : 100,000 dilution.

Lane1 : His-tagged mouse ATP-binding cassette sub-family A member 3 recombinant protein 100 ng
Lane2 : His-tagged mouse Phospholipid-transporting ATPase ABCA17 recombinant protein 100 ng
Lane3 : His-tagged mouse Phospholipid-transporting ATPase ABCA4 recombinant protein 200 ng
Lane4 : His-tagged mouse Phospholipid-transporting ATPase ABCA2 recombinant protein 500 ng

Exposure time : 26 seconds.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

In Dot Blot, Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) staining at 1/5000 dilution.

All lanes:

Dot Blot - Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109] (<a href='/en-us/products/primary-antibodies/atp-binding-cassette-sub-family-a-member-3-antibody-epr29622-109-ab324911'>ab324911</a>) at 1/1000 dilution

Secondary

All lanes:

Dot Blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

false

  • Unconjugated

    Anti-ATP-binding cassette sub-family A member 3 antibody [EPR29622-109]

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR29622-109

Isotype

IgG

Carrier free

Yes

Reacts with

Mouse

Applications

WB, IHC-P, mIHC, Dot

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "Dot" : {"fullname" : "Dot Blot", "shortname":"Dot"}, "mIHC" : {"fullname" : "Multiplex immunohistochemistry", "shortname":"mIHC"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Mouse": { "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p> Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "Dot-species-checked": "guaranteed", "Dot-species-dilution-info": "", "Dot-species-notes": "", "mIHC-species-checked": "testedAndGuaranteed", "mIHC-species-dilution-info": "", "mIHC-species-notes": "<p></p>" }, "Recombinant fragment - Mouse": { "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "", "Dot-species-checked": "testedAndGuaranteed", "Dot-species-dilution-info": "", "Dot-species-notes": "<p></p>", "mIHC-species-checked": "notRecommended", "mIHC-species-dilution-info": "", "mIHC-species-notes": "" } } }
style
left-column

Product details

ab324915 is the carrier free version of ab324911.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
style
left-column
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Catalyzes the ATP-dependent transport of phospholipids such as phosphatidylcholine and phosphoglycerol from the cytoplasm into the lumen side of lamellar bodies, in turn participates in the lamellar bodies biogenesis and homeostasis of pulmonary surfactant (PubMed : 17142808, PubMed : 17267394, PubMed : 17540762, PubMed : 17577581, PubMed : 20190032, PubMed : 28034695). Transports preferentially phosphatidylcholine containing short acyl chains (PubMed : 17142808). In addition plays a role as an efflux transporter of miltefosine across macrophage membranes and free cholesterol (FC) through intralumenal vesicles by removing FC from the cell as a component of surfactant and protects cells from free cholesterol toxicity (By similarity).
See full target information Abca3
style
left-column
style
left-column
style
right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
