AB217054

Anti-ATP5F1 antibody

Name: Anti-ATP5F1 antibody (ab217054) | Abcam
Brand: Abcam Limited
SKU: AB217054
Price: 520 USD
Availability: InStock

Be the first to review this product! Submit a review

(1 Publication)

Rabbit Polyclonal ATP5F1 antibody. Suitable for IP, WB and reacts with Human, Mouse samples. Cited in 1 publication. Immunogen corresponding to Synthetic Peptide within Human ATP5PB aa 1-100.

View Alternative Names

ATP5F1, ATP5PB, ATP synthase peripheral stalk-membrane subunit b, ATP synthase proton-transporting mitochondrial F(0) complex subunit B1, ATP synthase subunit b, ATPase subunit b

2 Images

Supplier Data

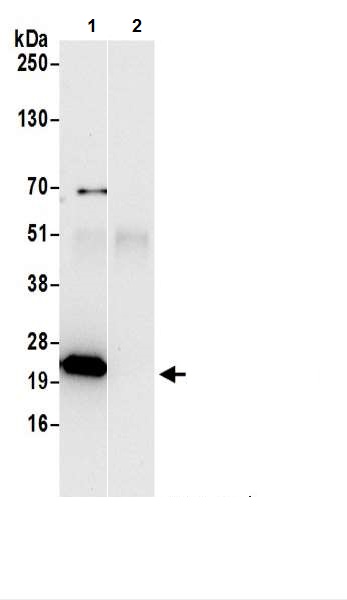

Immunoprecipitation - Anti-ATP5F1 antibody (AB217054)

Immunoprecipitation analysis of 293T cell lysate (in NETN buffer, 0.5 or 1.0 mg per IP reaction; 20% of IP loaded) labeling ATP5F1 using ab217054 at 6 μg per reaction (lane 1). A Control IgG was used in lane 2. For blotting immunoprecipitated ATP5F1, ab217054 was used at 1 μg/ml. Detection : Chemiluminescence with an exposure time of 10 seconds.

All lanes:

Immunoprecipitation - Anti-ATP5F1 antibody (ab217054)

Predicted band size: 29 kDa

false

Supplier Data

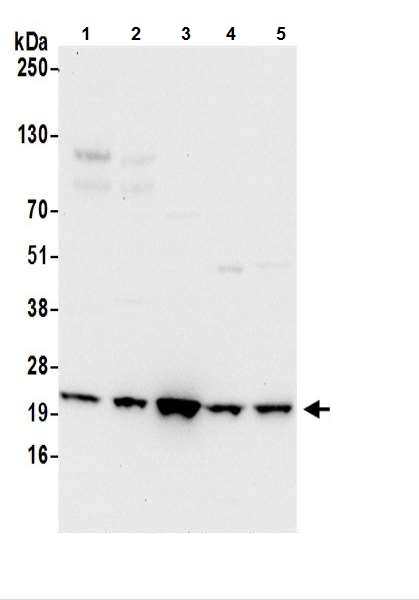

Western blot - Anti-ATP5F1 antibody (AB217054)

Cells prepared using NETN lysis buffer.

All lanes:

Western blot - Anti-ATP5F1 antibody (ab217054) at 0.1 µg/mL

Lane 1:

HeLa cell lysate at 50 µg

Lane 2:

293T cell lysate at 50 µg

Lane 3:

Jurkat cell lysate at 50 µg

Lane 4:

TCMK1 cell lysate at 50 µg

Lane 5:

NIH 3T3 cell lysate at 50 µg

Predicted band size: 29 kDa

true

Exposure time: 10s

Key facts

Host species

Rabbit

Clonality

Polyclonal

Isotype

IgG

Carrier free

Reacts with

Mouse, Human

Applications

WB, IP

applications

Immunogen

Synthetic Peptide within Human ATP5PB aa 1-100. The exact immunogen used to generate this antibody is proprietary information.

P24539

style

left-column

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "2-10 µg/mg of lysate", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/2000 - 1/10000", "WB-species-notes": "" }, "Mouse": { "IP-species-checked": "guaranteed", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/2000 - 1/10000", "WB-species-notes": "" }, "Orangutan": { "IP-species-checked": "predicted", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" } } }

style

left-column

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Immunogen

Purification notes

ab217054 was affinity purified using an epitope specific to ATP5F1 immobilized on solid support.

Storage buffer

pH: 7 - 8 Preservative: 0.09% Sodium azide Constituents: 99% Tris citrate/phosphate

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

ATP5F1 also known as ATP synthase F(0) complex subunit B1 is a protein found in the inner mitochondrial membrane. It is a component of the ATP synthase enzyme an important player in energy production with a molecular weight around 55 kDa. ATP5F1 is expressed abundantly in energy-demanding tissues such as the heart liver and skeletal muscle. This protein plays an important mechanical role in synthesizing adenosine triphosphate (ATP) by catalyzing the combination of adenosine diphosphate (ADP) and inorganic phosphate.

Biological function summary

ATP5F1 serves as an important part of the ATP synthase complex which consists of various subunits forming the F1 and Fo regions. This complex carries out the final step of oxidative phosphorylation in the mitochondria by using the proton gradient across the mitochondrial membrane to drive ATP production. As a critical process in cellular respiration ATP generation influences numerous cellular functions including muscle contraction nerve impulse propagation and synthesis of biomolecules.

Pathways

ATP5F1 operates within the oxidative phosphorylation and electron transport chain pathways. These pathways are important for maintaining the cell's energy balance. ATP5F1 works closely with other proteins such as ATP synthase Fo subunits aiding in proton translocation and ensuring efficient ATP synthesis. Disruptions in these pathways can have significant effects on cellular metabolism and energy homeostasis.

ATP5F1 is linked to mitochondrial dysfunctions such as mitochondrial myopathy and Leigh syndrome. These conditions result from impaired oxidative phosphorylation leading to insufficient ATP production. ATP5F1 interacts with the NADH dehydrogenase complex and mutations can affect their functionality contributing to these disorders. Understanding ATP5F1's role helps researchers explore therapeutic strategies aimed at managing these mitochondrial diseases.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Subunit b, of the mitochondrial membrane ATP synthase complex (F(1)F(0) ATP synthase or Complex V) that produces ATP from ADP in the presence of a proton gradient across the membrane which is generated by electron transport complexes of the respiratory chain (PubMed : 37244256). ATP synthase complex consist of a soluble F(1) head domain - the catalytic core - and a membrane F(1) domain - the membrane proton channel (PubMed : 37244256). These two domains are linked by a central stalk rotating inside the F(1) region and a stationary peripheral stalk (PubMed : 37244256). During catalysis, ATP synthesis in the catalytic domain of F(1) is coupled via a rotary mechanism of the central stalk subunits to proton translocation (Probable). In vivo, can only synthesize ATP although its ATP hydrolase activity can be activated artificially in vitro (By similarity). Part of the complex F(0) domain (PubMed : 37244256). Part of the complex F(0) domain and the peripheric stalk, which acts as a stator to hold the catalytic alpha(3)beta(3) subcomplex and subunit a/ATP6 static relative to the rotary elements (By similarity).

See full target information ATP5PB

style

left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Human cell 36:812-821 PubMed36629984

2023

SPOCK2 and SPRED1 function downstream of EZH2 to impede the malignant progression of lung adenocarcinoma in vitro and in vivo.

Applications

Unspecified application

Species

Unspecified reactive species

Yang Liu,Xiaoxi Fan,Changrui Jiang,Shun Xu

View all publications
