AB321810

Anti-ATP6V0D2 antibody [EPR29173-521] - BSA and Azide free

Be the first to review this product! Submit a review

|

(0 Publication)

Rabbit Recombinant Monoclonal ATP6V0D2 antibody. Carrier free. Suitable for WB, IHC-P and reacts with Recombinant fragment - Human, Human, Mouse samples.

View Alternative Names

V-type proton ATPase subunit d 2, V-ATPase subunit d 2, Vacuolar proton pump subunit d 2, ATP6V0D2

9 Images
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP6V0D2 antibody [EPR29173-521] - BSA and Azide free (AB321810)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP6V0D2 antibody [EPR29173-521] - BSA and Azide free (AB321810)

This data was developed using ab321809, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human liver tissue labeling ATP6V0D2 with ab321809 at 1/1000 (0.505 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Low expression tissue : no staining on human liver. The section was incubated with ab321809 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP6V0D2 antibody [EPR29173-521] - BSA and Azide free (AB321810)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP6V0D2 antibody [EPR29173-521] - BSA and Azide free (AB321810)

This data was developed using ab321809, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human cardiac muscle tissue labeling ATP6V0D2 with ab321809 at 1/1000 (0.505 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Low expression tissue : no staining on human cardiac muscle. The section was incubated with ab321809 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP6V0D2 antibody [EPR29173-521] - BSA and Azide free (AB321810)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP6V0D2 antibody [EPR29173-521] - BSA and Azide free (AB321810)

This data was developed using ab321809, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human kidney tissue labeling ATP6V0D2 with ab321809 at 1/1000 (0.505 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on tubules of human kidney. The section was incubated with ab321809 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP6V0D2 antibody [EPR29173-521] - BSA and Azide free (AB321810)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP6V0D2 antibody [EPR29173-521] - BSA and Azide free (AB321810)

This data was developed using ab321809, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Mouse cardiac muscle tissue labeling ATP6V0D2 with ab321809 at 1/1000 (0.505 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Low expression tissue : no staining on mouse cardiac muscle. The section was incubated with ab321809 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP6V0D2 antibody [EPR29173-521] - BSA and Azide free (AB321810)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP6V0D2 antibody [EPR29173-521] - BSA and Azide free (AB321810)

This data was developed using ab321809, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Mouse kidney tissue labeling ATP6V0D2 with ab321809 at 1/1000 (0.505 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on tubules of mouse kidney. The section was incubated with ab321809 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP6V0D2 antibody [EPR29173-521] - BSA and Azide free (AB321810)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP6V0D2 antibody [EPR29173-521] - BSA and Azide free (AB321810)

This data was developed using ab321809, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Mouse spleen tissue labeling ATP6V0D2 with ab321809 at 1/1000 (0.505 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Low expression tissue : no staining on mouse spleen. The section was incubated with ab321809 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

Western blot - Anti-ATP6V0D2 antibody [EPR29173-521] - BSA and Azide free (AB321810)
  • WB

Supplier Data

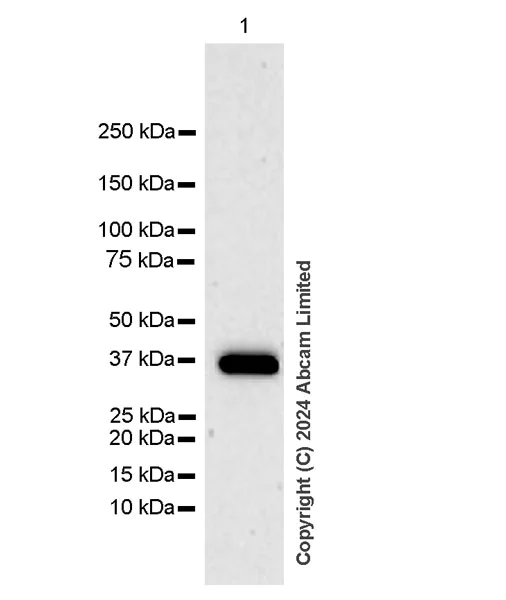

Western blot - Anti-ATP6V0D2 antibody [EPR29173-521] - BSA and Azide free (AB321810)

This data was developed using ab321809, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

All lanes:

Western blot - Anti-ATP6V0D2 antibody [EPR29173-521] (<a href='/en-us/products/primary-antibodies/atp6v0d2-antibody-epr29173-521-ab321809'>ab321809</a>) at 1/1000 dilution

All lanes:

SK-MEL-28 (human malignant melanoma cell) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 40 kDa

false

Exposure time: 180s

Western blot - Anti-ATP6V0D2 antibody [EPR29173-521] - BSA and Azide free (AB321810)
  • WB

Supplier Data

Western blot - Anti-ATP6V0D2 antibody [EPR29173-521] - BSA and Azide free (AB321810)

This data was developed using ab321809, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Low expression : lung, skeletal muscle, spleen (PMID : 12963731)

Negative control : liver (PMID : 12963731)

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

All lanes:

Western blot - Anti-ATP6V0D2 antibody [EPR29173-521] (<a href='/en-us/products/primary-antibodies/atp6v0d2-antibody-epr29173-521-ab321809'>ab321809</a>) at 1/1000 dilution

Lane 1:

Human kidney tissue lysate at 40 µg

Lane 2:

Human liver tissue lysate at 40 µg

Lane 3:

Human lung tissue lysate at 40 µg

Lane 4:

Mouse kidney tissue lysate at 40 µg

Lane 5:

Mouse skeletal muscle tissue lysate at 40 µg

Lane 6:

Mouse spleen tissue lysate at 40 µg

Lane 7:

Mouse lung tissue lysate at 40 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Observed band size: 40 kDa,36 kDa

false

Exposure time: 37s

Western blot - Anti-ATP6V0D2 antibody [EPR29173-521] - BSA and Azide free (AB321810)
  • WB

Supplier Data

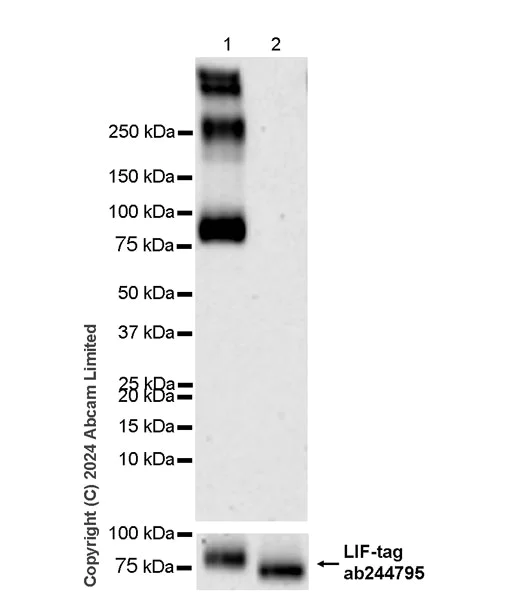

Western blot - Anti-ATP6V0D2 antibody [EPR29173-521] - BSA and Azide free (AB321810)

This data was developed using ab321809, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

This antibody doesn't cross-react with Human ATP6V0D1.

The bands observed at higher mw could be detection of glycosylated forms of the overexpressed protein.

In Western blot, Anti-LIF antibody [EPR21713-25] - BSA and Azide free staining at Capture dilution.

All lanes:

Western blot - Anti-ATP6V0D2 antibody [EPR29173-521] (<a href='/en-us/products/primary-antibodies/atp6v0d2-antibody-epr29173-521-ab321809'>ab321809</a>) at 1/1000 dilution

Lane 1:

LIF/His-tagged human ATP6V0D2 protein fragment at 10 ng

Lane 2:

LIF/His-tagged human ATP6V0D1 protein fragment at 10 ng

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 80 kDa

false

Exposure time: 180s

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR29173-521

Isotype

IgG

Carrier free

Yes

Reacts with

Human, Mouse

Applications

IHC-P, WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p> Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>" }, "Mouse": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p> Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" }, "Recombinant fragment - Human": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" } } }
style
left-column

Product details

ab321810 is the carrier-free version of ab321809.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

ATP6V0D2 also known as V-type proton ATPase subunit d 2 is a subunit of the V-ATPase complex. It has a mass of approximately 38 kDa. This protein is expressed in various tissues with significant expression noted in bone and white adipose tissue. Mechanically ATP6V0D2 contributes to the acidification of intracellular compartments. It functions as part of the proton pump machinery facilitating the transfer of protons across membranes which is essential for processes like endocytosis and intracellular trafficking.
Biological function summary

ATP6V0D2 plays a significant role in bone resorption and adipogenesis. It is a component of the larger V-ATPase complex important for creating acidic environments required for enzyme activity particularly in osteoclasts. This acidity enables the breakdown of bone matrix which is a fundamental part of bone remodeling. Additionally ATP6V0D2 influences fat cell differentiation by modulating the function of cytosolic components within the complex.

Pathways

ATP6V0D2 functions as an integral part of the bone remodeling and lysosomal degradation pathways. In the bone remodeling pathway the protein works closely with other proton pump components like ATP6V0A3 to regulate osteoclast activity. In lysosomal degradation it aids in maintaining the acidity essential for lysosomal enzyme activity. Both pathways are connected through ATP6V0D2's regulation of intracellular pH and ion homeostasis.

ATP6V0D2 has associations with osteoporosis and obesity. In osteoporosis deficient or dysfunctional ATP6V0D2 activity can impair osteoclast function leading to altered bone resorption and skeletal fragility. In the context of obesity this protein influences adipocyte differentiation and function. ATP6V0D2's role in these disorders connects it to other proteins like RANKL in bone metabolism and PPARγ in adipogenesis linking it beyond just its structural function within proton pumps.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Subunit of the V0 complex of vacuolar(H+)-ATPase (V-ATPase), a multisubunit enzyme composed of a peripheral complex (V1) that hydrolyzes ATP and a membrane integral complex (V0) that translocates protons. V-ATPase is responsible for acidifying and maintaining the pH of intracellular compartments and in some cell types, is targeted to the plasma membrane, where it is responsible for acidifying the extracellular environment (By similarity). May play a role in coupling of proton transport and ATP hydrolysis (By similarity). Regulator of osteoclast fusion and bone formation (By similarity).
See full target information ATP6V0D2
