Name: Anti-ATP6V1A antibody [EPR19270]
SKU: ab199326
Rating: 4 (2 reviews)

Anti-ATP6V1A antibody [EPR19270] (ab199326) is a rabbit monoclonal antibody that is used to detect ATP6V1A in Western Blot, Flow Cytometry (Intra), Flow Cytometry, IP, IHC-P, ICC/IF. Suitable for Human, Mouse, Rat samples.

- Using biophysical QC, antibody identity is confirmed at a molecular level for unrivalled batch-batch consistency

-Over 10 publications

Images

Western blot - Anti-ATP6V1A antibody [EPR19270] (AB199326), expandable thumbnail

Publications

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Monoclonal

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application

Product promiseTestedExpectedPredictedNot recommended

	IP	WB	ICC/IF	Flow Cyt (Intra)	IHC-P
Human	Tested	Tested	Tested	Tested	Tested
Mouse	Tested	Tested	Tested	Expected	Tested
Rat	Expected	Tested	Expected	Expected	Tested

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/40	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Human	Dilution info 1/40	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Expected
Expected

Species	Dilution info	Notes
Species Rat	Dilution info Use at an assay dependent concentration.	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/2000	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Rat	Dilution info 1/2000	Notes -
Species Human	Dilution info 1/2000	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/250	Notes -
Species Human	Dilution info 1/250	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Rat	Dilution info Use at an assay dependent concentration.	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/120	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Mouse, Rat	Dilution info Use at an assay dependent concentration.	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/1000	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Rat	Dilution info 1/1000	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Human	Dilution info 1/1000	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Associated Products

Select an associated product type

4 products for Alternative Product

Target data

See full target information ATP6V1A

Function

Catalytic subunit of the V1 complex of vacuolar(H+)-ATPase (V-ATPase), a multisubunit enzyme composed of a peripheral complex (V1) that hydrolyzes ATP and a membrane integral complex (V0) that translocates protons (PubMed:8463241). V-ATPase is responsible for acidifying and maintaining the pH of intracellular compartments and in some cell types, is targeted to the plasma membrane, where it is responsible for acidifying the extracellular environment (PubMed:32001091). In aerobic conditions, involved in intracellular iron homeostasis, thus triggering the activity of Fe(2+) prolyl hydroxylase (PHD) enzymes, and leading to HIF1A hydroxylation and subsequent proteasomal degradation (PubMed:28296633). May play a role in neurite development and synaptic connectivity (PubMed:29668857). (Microbial infection) Plays an important role in virion uncoating during Rabies virus replication after membrane fusion. Specifically, participates in the dissociation of incoming viral matrix M proteins uncoating through direct interaction.

Alternative names

ATP6A1, ATP6V1A1, VPP2, ATP6V1A, V-type proton ATPase catalytic subunit A, V-ATPase subunit A, V-ATPase 69 kDa subunit, Vacuolar ATPase isoform VA68, Vacuolar proton pump subunit alpha

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Monoclonal
Immunogen: The exact immunogen used to generate this antibody is proprietary information.
Clone number: EPR19270
Purification technique: Affinity purification Protein A
Concentration

Storage

Shipped at conditions: Blue Ice
Appropriate short-term storage duration: 1-2 weeks
Appropriate short-term storage conditions: +4°C
Appropriate long-term storage conditions: -20°C
Aliquoting information: Upon delivery aliquot
Storage information: Avoid freeze / thaw cycle

Notes

What is this antibody validated in?

Anti-ATP6V1A antibody [EPR19270] (ab199326) is a rabbit recombinant monoclonal antibody and is validated for use in Western Blot (WB), Flow Cytometry (Intra), Flow Cytometry (Flow Cyt), Immunoprecipitation (IP), Immunohistochemistry (IHC-P), Immunocytochemistry/immunofluorescence (ICC/IF), in Human, Mouse, Rat samples.

What is the molecular weight of ATP6V1A?

Anti-ATP6V1A [EPR19270] (ab199326) specifically detects a band for ATP6V1A (UniProt: P38606) at a molecular weight of 68kDa.

Recommended positive controls

WB: Human fetal heart, fetal liver and fetal kidney lysates; HeLa, K562, HEK-293, C6, PC-12 and NIH/3T3 whole cell lysates; Mouse brain and kidney lysates; Rat brain and kidney lysates.IHC-P: Human kidney, Human thyroid cancer, mouse kidney and rat stomach tissues.ICC/IF: HeLa and NIH/3T3 cells.Flow Cyt (intra): HeLa cells.IP: HeLa and NIH/3T3 whole cell lysates.

Trusted by the scientific community

Anti-ATP6V1A [EPR19270] (ab199326) was first used in a scientific publication in 2015 and has been cited over 10 times in peer-reviewed journals.

Trial sizes available!

Test your antibody or perform pre-screening before committing to a larger quantity. Sold in 10µl. Discover our selection of trial-size antibodies.Other related products

We have a range of other formats of antibody clone [EPR19270] also available for your convenience:
ab199326, Carrier free - ab251267

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

ATP6V1A also known as V-ATPase subunit A is a component of the V1 domain of the vacuolar ATPase (V-ATPase) which is a large enzyme responsible for acidifying intracellular compartments. This protein has a mass of approximately 70 kDa and operates in cellular processes by hydrolyzing ATP to drive protons across membranes. ATP6V1A displays significant expression in several cell types including neurons epithelial cells and osteoclasts. The protein enables V-ATPase functionality important for maintaining the pH balance inside cells and organelles facilitating various physiological processes.

Biological function summary

ATP6V1A is an integral part of the V1 domain of the V-ATPase complex a multi-subunit assembly critical for the acidification of intracellular organelles such as lysosomes endosomes and the Golgi apparatus. This activity supports processes like protein degradation receptor-mediated endocytosis and membrane trafficking. The V-ATPase containing ATP6V1A uses energy from ATP hydrolysis to pump protons which is essential for cellular homeostasis and ion transport.

Pathways

ATP6V1A plays an important role in the endocytosis and autophagy pathways. These pathways depend on the acidification of intracellular compartments enabling processes such as the breakdown and recycling of cellular components. ATP6V1A is related to proteins like V-ATPase subunit c (ATP6V1C) and other subunits that form the V-ATPase enzyme. These protein interactions allow the modulation and execution of cellular transport and hormone regulation pathways.

Associated diseases and disorders

Mutations or dysregulation of ATP6V1A have been linked to renal tubular acidosis and osteoporosis where improper acidification impacts bone resorption and kidney function. The protein connections include its interaction with other V-ATPase subunits like ATP6V0A3 which can also result in osteopetrosis when defective. Such conditions demonstrate how ATP6V1A's role in acidification processes is important for normal physiological function and how its dysfunction leads to disease.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

12 product images

Western blot - Anti-ATP6V1A antibody [EPR19270] (ab199326)
Blocking/Dilution buffer: 5% NFDM/TBST.
Exposure time: Lane 1: 3 minutes; Lane 2 and 3: 8 seconds.
All lanes: Western blot - Anti-ATP6V1A antibody [EPR19270] (ab199326) at 1/2000 dilution
Lane 1: Human fetal heart lysate at 10 µg
Lane 2: Human fetal liver lysate at 10 µg
Lane 3: Human fetal kidney lysate at 10 µg
Secondary
All lanes: Goat Anti-Rabbit IgG Peroxidase Conjugate, specific to the non-reduced form of IgG at 1/10000 dilution
Predicted band size: 68 kDa
Observed band size: 68 kDa
Western blot - Anti-ATP6V1A antibody [EPR19270] (ab199326)
Blocking/Dilution buffer: 5% NFDM/TBST.
All lanes: Western blot - Anti-ATP6V1A antibody [EPR19270] (ab199326) at 1/2000 dilution
Lane 1: HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 20 µg
Lane 2: K562 (Human chronic myelogenous leukemia cell line from bone marrow) whole cell lysate at 20 µg
Lane 3: HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution
Predicted band size: 68 kDa
Observed band size: 68 kDa
Exposure time: 8s
Western blot - Anti-ATP6V1A antibody [EPR19270] (ab199326)
Blocking/Dilution buffer: 5% NFDM/TBST.
Exposure time: Lane 1 and 2: 4 seconds; Lane 3 and 4: 1 second; Lane 5,6 and 7: 4 seconds.
All lanes: Western blot - Anti-ATP6V1A antibody [EPR19270] (ab199326) at 1/2000 dilution
Lane 1: Mouse brain lysate at 10 µg
Lane 2: Mouse kidney lysate at 10 µg
Lane 3: Rat brain lysate at 10 µg
Lane 4: Rat kidney lysate at 10 µg
Lane 5: C6 (Rat glial tumor cell line) whole cell lysate at 10 µg
Lane 6: PC-12 (Rat adrenal gland pheochromocytoma cell line) whole cell lysate at 10 µg
Lane 7: NIH/3T3 (Mouse embryo fibroblast cell line) whole cell lysate at 10 µg
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution
Predicted band size: 68 kDa
Observed band size: 68 kDa
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP6V1A antibody [EPR19270] (ab199326)
Immunohistochemical analysis of paraffin-embedded Human kidney tissue labeling ATP6V1A with ab199326 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.
Cytoplasm staining on kidney tubules of the normal Human kidney is observed.
Counter stained with Hematoxylin.
Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.
Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP6V1A antibody [EPR19270] (ab199326)
Immunohistochemical analysis of paraffin-embedded Human thyroid cancer tissue labeling ATP6V1A with ab199326 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.
Cytoplasm staining on tumor cells of the Human thyroid cancer is observed.
Counter stained with Hematoxylin.
Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.
Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP6V1A antibody [EPR19270] (ab199326)
Immunohistochemical analysis of paraffin-embedded mouse kidney tissue labeling ATP6V1A with ab199326 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.
Cytoplasm staining on kidney tubules of the mouse kidney is observed.
Counter stained with Hematoxylin.
Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.
Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATP6V1A antibody [EPR19270] (ab199326)
Immunohistochemical analysis of paraffin-embedded rat stomach tissue labeling ATP6V1A with ab199326 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.
Cytoplasm staining on rat stomach tissue is observed.
Counter stained with Hematoxylin.
Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.
Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Immunoprecipitation - Anti-ATP6V1A antibody [EPR19270] (ab199326)
ATP6V1A was immunoprecipitated from 1mg of HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate with ab199326 at 1/40 dilution.
Western blot was performed from the immunoprecipitate using ab199326 at 1/1000 dilution.
VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366), was used for detection at 1/10000 dilution.
Lane 1: HeLa whole cell lysate 10μg (Input).
Lane 2: ab199326 IP in HeLa whole cell lysate.
Lane 3: Rabbit IgG,monoclonal [EPR19270] - Isotype Control (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab199326 in HeLa whole cell lysate.
Blocking and dilution buffer and concentration: 5% NFDM/TBST.
Exposure time: 5 seconds.
All lanes: Immunoprecipitation - Anti-ATP6V1A antibody [EPR19270] (ab199326)
Predicted band size: 68 kDa
Immunocytochemistry/ Immunofluorescence - Anti-ATP6V1A antibody [EPR19270] (ab199326)
Immunofluorescent analysis of 100% methanol-fixed, 0.1% Triton X-100 permeabilized HeLa (Human epithelial cell line from cervix adenocarcinoma) cells labeling ATP6V1A with ab199326 at 1/250 dilution, followed by Goat Anti-Rabbit IgG (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/1000 dilution (green).
Confocal image showing cytoplasmic staining on HeLa cell line.
The nuclear counterstain is DAPI (blue).
Tubulin is detected with Anti-alpha Tubulin antibody [EPR19270]- Loading Control (Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291) at 1/1000 dilution and Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed (Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120) at 1/1000 dilution (red).
The negative controls are as follows:-
-ve control 1: ab199326 at 1/250 dilution followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120 at 1/1000 dilution.
-ve control 2: Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 at 1/1000 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 at 1/1000 dilution.
Immunoprecipitation - Anti-ATP6V1A antibody [EPR19270] (ab199326)
ATP6V1A was immunoprecipitated from 1mg of NIH/3T3 (Mouse embryonic fibroblast cell line) whole cell lysate with ab199326 at 1/40 dilution.
Western blot was performed from the immunoprecipitate using ab199326 at 1/1000 dilution.
VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366), was used for detection at 1/10000 dilution.
Lane 1: NIH/3T3 whole cell lysate 10μg (Input).
Lane 2: ab199326 IP in NIH/3T3 whole cell lysate.
Lane 3: Rabbit IgG,monoclonal [EPR19270] - Isotype Control (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab199326 in NIH/3T3 whole cell lysate.
Blocking and dilution buffer and concentration: 5% NFDM/TBST.
Exposure time: 5 seconds.
All lanes: Immunoprecipitation - Anti-ATP6V1A antibody [EPR19270] (ab199326)
Predicted band size: 56 kDa, 68 kDa
Immunocytochemistry/ Immunofluorescence - Anti-ATP6V1A antibody [EPR19270] (ab199326)
Immunofluorescent analysis of 100% methanol-fixed, 0.1% Triton X-100 permeabilized NIH/3T3 (Mouse embryonic fibroblast cell line) cells labeling ATP6V1A with ab199326 at 1/250 dilution, followed by Goat Anti-Rabbit IgG (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/1000 dilution (green).
Confocal image showing cytoplasmic staining on NIH/3T3 cell line.
The nuclear counterstain is DAPI (blue).
Tubulin is detected with Anti-alpha Tubulin antibody [EPR19270] - Loading Control (Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291) at 1/1000 dilution and Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed (Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120) at 1/1000 dilution (red).
The negative controls are as follows:-
-ve control 1: ab199326 at 1/250 dilution followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120 at 1/1000 dilution.
-ve control 2: Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 at 1/1000 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 at 1/1000 dilution.

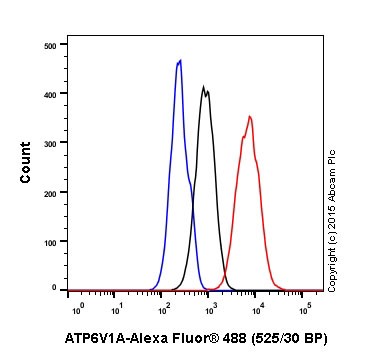

Flow Cytometry (Intracellular) - Anti-ATP6V1A antibody [EPR19270] (ab199326)
Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed HeLa (Human epithelial cell line from cervix adenocarcinoma) cells labeling ATP6V1A with ab199326 at 1/120 dilution (red) compared with a Rabbit IgG,monoclonal -Isotype Control (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730; black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody; blue). Goat anti rabbit IgG (FITC) at 1/500 dilution was used as the secondary antibody.
