AB289890

Anti-ATPB antibody [10/ATP] - Mitochondrial Marker

Recombinant
What is this?

Be the first to review this product! Submit a review

(0 Publication)

Mouse Recombinant Monoclonal ATPB antibody. Suitable for ICC/IF, WB and reacts with Mouse, Rat, Human samples.

View Alternative Names

ATP5B, ATPMB, ATPSB, ATP5F1B, ATP synthase F1 subunit beta

4 Images

Immunocytochemistry/ Immunofluorescence - Anti-ATPB antibody [10/ATP] - Mitochondrial Marker (AB289890)

ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-ATPB antibody [10/ATP] - Mitochondrial Marker (AB289890)

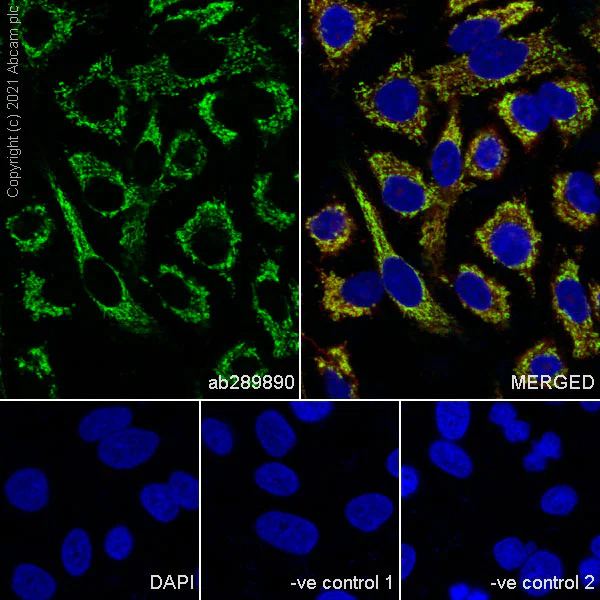

Immunofluorescent analysis of 100% methanol-fixed, 0.1% Triton X-100 permeabilized A549（human lung carcinoma epithelial cell line) cells labeling ATPB with ab289890 at 1/100 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150117) secondary antibody at 1/1000 dilution (green). Confocal image showing mitochondria staining in A549 cell line. The nuclear counter stain is DAPI (blue).

ab186735 Anti-TOMM20 Rabbit monoclonal antibody - Mitochondrial Marker was used at 1/500 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor^® 594) (ab150080) secondary antibody at 1/500 dilution (red).

The negative controls are as follows :
-ve control 1 : ab289890 at 1/100 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor^® 594) (ab150080) secondary antibody at 1/500 dilution.
-ve control 2 : ab186735 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150117) secondary antibody at 1/1000 dilution.

ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-ATPB antibody [10/ATP] - Mitochondrial Marker (AB289890)

Immunofluorescent analysis of 80% methanol-fixed, 0.1% Triton X-100 permeabilized PC-12 (rat adrenal gland pheochromocytoma cell line) cells labeling ATPB with ab289890 at 1/100 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150117) secondary antibody at 1/1000 dilution (green). Confocal image showing mitochondria staining in RAW PC-12 cell line. The nuclear counter stain is DAPI (blue).

ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-ATPB antibody [10/ATP] - Mitochondrial Marker (AB289890)

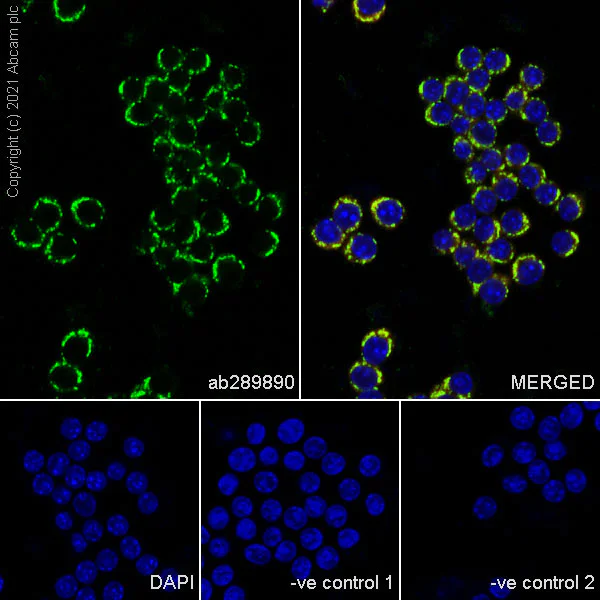

Immunofluorescent analysis of 100% methanol-fixed, 0.1% Triton X-100 permeabilized RAW 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage cell line) cells labeling ATPB with ab289890 at 1/100 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150117) secondary antibody at 1/1000 dilution (green). Confocal image showing mitochondrial staining in RAW 264.7 cell line. The nuclear counter stain is DAPI (blue).

Supplier Data

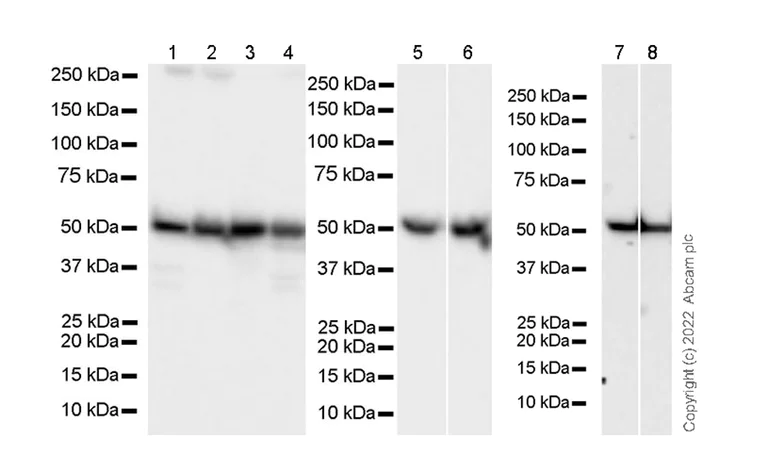

Western blot - Anti-ATPB antibody [10/ATP] - Mitochondrial Marker (AB289890)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Eposure times :

Lanes 1-6 : 6 seconds
Lanes 7-8 : 114 seconds

All lanes:

Western blot - Anti-ATPB antibody [10/ATP] - Mitochondrial Marker (ab289890) at 1/1000 dilution

Lane 1:

Jurkat (human T cell leukemia T lymphocyte), whole cell lysate at 10 µg

Lane 2:

HeLa (human cervix adenocarcinoma epithelial cell), whole cell lysate at 10 µg

Lane 3:

A549 (human lung carcinoma epithelial cell), whole cell lysate at 10 µg

Lane 4:

MCF7 (human breast adenocarcinoma epithelial cell), whole cell lysate at 10 µg

Lane 5:

RAW264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage), whole cell lysate at 10 µg

Lane 6:

NIH/3T3 (mouse embryonic fibroblast), whole cell lysate at 10 µg

Lane 7:

C6 (rat glial tumor glial cell), whole cell lysate at 10 µg

Lane 8:

PC-12 (rat adrenal gland pheochromocytoma), whole cell lysate at 10 µg

Secondary

All lanes:

Peroxidase-Conjugated Goat anti-Mouse IgG (H+L) at 1/100000 dilution

Predicted band size: 56 kDa

Observed band size: 52 kDa

false

Carrier free

Anti-ATPB antibody [10/ATP] - BSA and Azide free

Key facts

Host species

Mouse

Clonality

Monoclonal

Clone number

10/ATP

Isotype

IgG1

Carrier free

Reacts with

Human, Mouse, Rat

Applications

WB, ICC/IF

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/100", "ICCIF-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "" }, "Mouse": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/100", "ICCIF-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "" }, "Rat": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/100", "ICCIF-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "" } } }

style

left-column

Product details

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Protein A

Storage buffer

pH: 7.2 - 7.4 Preservative: 0.01% Sodium azide Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

ATPB also known as ATP synthase subunit beta is an essential protein component of the ATP synthase complex. It has an approximate mass of 52 kDa and is primarily expressed in the mitochondria. The protein's role is to catalyze the production of adenosine triphosphate (ATP) from adenosine diphosphate (ADP) and inorganic phosphate utilizing the proton gradient across the inner mitochondrial membrane. This process is central to the cellular energy production often referred to as oxidative phosphorylation. ATPB is frequently used as a mitochondrial marker in research making it an important target for antibodies such as those conjugated with Alexa Fluor 647 for immunofluorescence applications.

Biological function summary

ATPB functions as part of the mitochondrial ATP synthase complex which is also known as complex V of the electron transport chain. This complex is important for maintaining cellular energy homeostasis through ATP production. ATPB contributes to the catalytic activity necessary for ATP synthesis therefore supporting various cellular processes that require energy input such as muscle contraction and active transport. The protein also plays a role in coupling the proton motive force to ATP synthesis a function critical for mitochondrial efficiency and metabolic health.

Pathways

ATPB involves itself significantly in the oxidative phosphorylation and glycolysis pathways. It partners with other proteins in the ATP synthase complex such as ATP synthase subunit alpha (ATP5A1) to effectuate the conversion of energy. In the broader scope of energy metabolism ATPB integrates with glycolysis where glycolytic end-products feed into oxidative phosphorylation sustaining the cell’s energy currency. Both pathways are important for cells especially in tissues with high energy demands like the heart and skeletal muscles.

ATPB has been implicated in mitochondrial dysfunction-related diseases such as mitochondrial myopathy and Leigh syndrome. These conditions often result from mutations or defects in components of the electron transport chain leading to impaired ATP production. ATPB’s close connection to ATP5A1 and other complex V proteins highlights its involvement in these disorders. Understanding ATPB's role and function helps in disease mechanism elucidation and potentially offers targets for therapeutic interventions in mitochondrial-related diseases.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Catalytic subunit beta, of the mitochondrial membrane ATP synthase complex (F(1)F(0) ATP synthase or Complex V) that produces ATP from ADP in the presence of a proton gradient across the membrane which is generated by electron transport complexes of the respiratory chain (Probable) (PubMed : 37244256). ATP synthase complex consist of a soluble F(1) head domain - the catalytic core - and a membrane F(1) domain - the membrane proton channel (PubMed : 37244256). These two domains are linked by a central stalk rotating inside the F(1) region and a stationary peripheral stalk (PubMed : 37244256). During catalysis, ATP synthesis in the catalytic domain of F(1) is coupled via a rotary mechanism of the central stalk subunits to proton translocation (Probable). In vivo, can only synthesize ATP although its ATP hydrolase activity can be activated artificially in vitro (By similarity). With the subunit alpha (ATP5F1A), forms the catalytic core in the F(1) domain (PubMed : 37244256).

See full target information ATP5F1B

style

left-column

style

left-column

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
