AB249615

Anti-ATPB antibody [EPR11990] - BSA and Azide free

Be the first to review this product! Submit a review

|

(0 Publication)

Rabbit Recombinant Monoclonal ATPB antibody. Carrier free. Suitable for IHC-P, ICC/IF, IP, WB and reacts with Human samples.

View Alternative Names

ATP5B, ATPMB, ATPSB, ATP5F1B, ATP synthase F1 subunit beta

8 Images
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATPB antibody [EPR11990] - BSA and Azide free (AB249615)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATPB antibody [EPR11990] - BSA and Azide free (AB249615)

This data was developed using ab170947, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human heart tissue labeling ATPB with ab170947 at 1/100 dilution.

Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATPB antibody [EPR11990] - BSA and Azide free (AB249615)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATPB antibody [EPR11990] - BSA and Azide free (AB249615)

This data was developed using ab170947, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human liver tissue labeling ATPB with ab170947 at 1/100 dilution.

Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATPB antibody [EPR11990] - BSA and Azide free (AB249615)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATPB antibody [EPR11990] - BSA and Azide free (AB249615)

This data was developed using ab170947, the same antibody clone in a different buffer formulation.

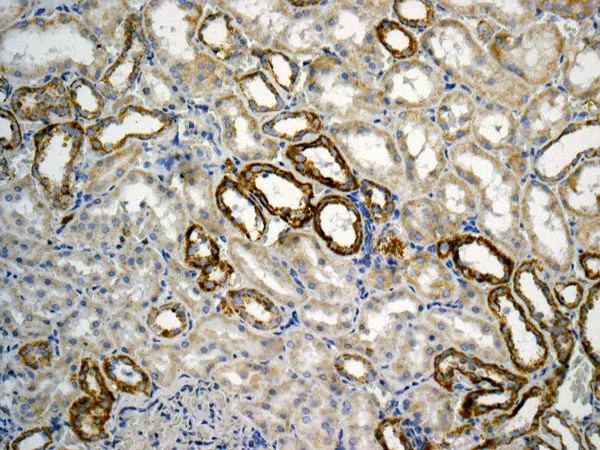

ab170947 showing +ve staining in Human normal kidney tissue.

Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

Immunocytochemistry/ Immunofluorescence - Anti-ATPB antibody [EPR11990] - BSA and Azide free (AB249615)
  • ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-ATPB antibody [EPR11990] - BSA and Azide free (AB249615)

This data was developed using ab170947, the same antibody clone in a different buffer formulation.

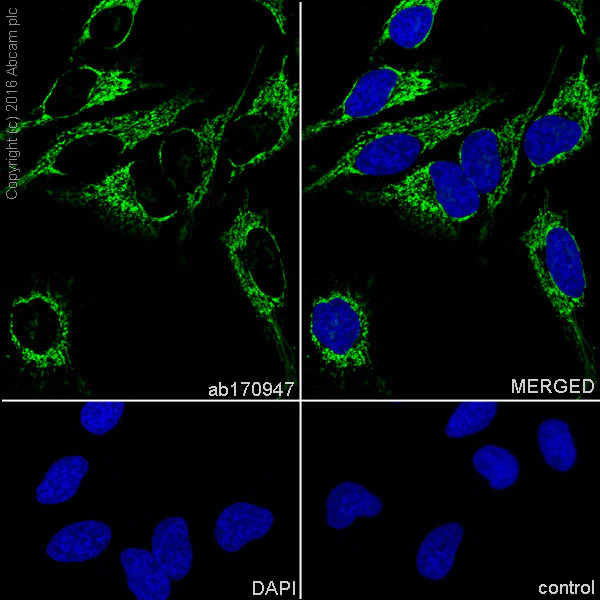

Immunocytochemistry/Immunofluorescence analysis of HeLa (Human epithelial cell line from cervix adenocarcinoma) labeling ATPB with purified ab170947 at 1/500 dilution. Cells were fixed with 100% methanol. ab150077 Goat anti rabbit IgG (Alexa Fluor® 488) at 1/1000 was used as the secondary antibody. Nuclei were counterstained with DAPI. PBS was used instead of the primary antibody as the negative control.

Immunocytochemistry/ Immunofluorescence - Anti-ATPB antibody [EPR11990] - BSA and Azide free (AB249615)
  • ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-ATPB antibody [EPR11990] - BSA and Azide free (AB249615)

This data was developed using ab170947, the same antibody clone in a different buffer formulation.

Immunofluorescent analysis of HeLa cells labeling ATPB using ab170947 at 1/50 dilution (green). DAPI nuclear staining (blue).

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATPB antibody [EPR11990] - BSA and Azide free (AB249615)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ATPB antibody [EPR11990] - BSA and Azide free (AB249615)

This data was developed using ab170947, the same antibody clone in a different buffer formulation.

ab170947 showing +ve staining in Human normal uterus tissue.

Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

Immunoprecipitation - Anti-ATPB antibody [EPR11990] - BSA and Azide free (AB249615)
  • IP

Supplier Data

Immunoprecipitation - Anti-ATPB antibody [EPR11990] - BSA and Azide free (AB249615)

This data was developed using ab170947, the same antibody clone in a different buffer formulation.

All lanes:

Immunoprecipitation - Anti-ATPB antibody [EPR11990] - Mitochondrial Marker (<a href='/en-us/products/primary-antibodies/atpb-antibody-epr11990-mitochondrial-marker-ab170947'>ab170947</a>) at 1/10 dilution

All lanes:

HepG2 cell lysate

Secondary

All lanes:

HRP-conjugated anti-rabbit IgG preferentially detecting the non-reduced form of rabbit IgG.

Predicted band size: 22 kDa,56 kDa

false

Western blot - Anti-ATPB antibody [EPR11990] - BSA and Azide free (AB249615)
  • WB

Supplier Data

Western blot - Anti-ATPB antibody [EPR11990] - BSA and Azide free (AB249615)

This data was developed using ab170947, the same antibody clone in a different buffer formulation.

All lanes:

Western blot - Anti-ATPB antibody [EPR11990] - Mitochondrial Marker (<a href='/en-us/products/primary-antibodies/atpb-antibody-epr11990-mitochondrial-marker-ab170947'>ab170947</a>) at 1/10000 dilution

Lane 1:

HepG2 cell lysate at 10 µg

Lane 2:

293T cell lysate at 10 µg

Lane 3:

HeLa cell lysate at 10 µg

Lane 4:

HT29 cell lysate at 10 µg

Predicted band size: 56 kDa

false

  • Unconjugated

    Anti-ATPB antibody [EPR11990] - Mitochondrial Marker

  • 519 Alexa Fluor® 488

    Alexa Fluor® 488 Anti-ATPB antibody [EPR11990] - Mitochondrial Marker

  • 665 Alexa Fluor® 647

    Alexa Fluor® 647 Anti-ATPB antibody [EPR11990] - Mitochondrial Marker

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR11990

Isotype

IgG

Carrier free

Yes

Reacts with

Human

Applications

WB, IP, ICC/IF, IHC-P

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Complementary Products

Assay Kits

AB109714

ATP synthase Activity Assay Kit (Colorimetric)

Functional Studies - ATP synthase Activity Assay Kit (Colorimetric) (AB109714)

  • 5
  • 1
Primary Antibodies

AB14705

Anti-MTCO1 antibody [1D6E1A8]

BOND RX™ Validated|Recombinant

Western blot - Anti-MTCO1 antibody [1D6E1A8] (AB14705)

  • 5
  • 44
Primary Antibodies

AB14734

Anti-VDAC1/Porin + VDAC3 antibody [20B12AF2] - Mitochondrial Loading Control

Lab Essentials|KO Validated

Western blot - Anti-VDAC1/Porin + VDAC3 antibody [20B12AF2] - Mitochondrial Loading Control (AB14734)

  • 5
  • 52
Primary Antibodies

AB14715

Anti-SDHA antibody [2E3GC12FB2AE2]

KO Validated

Western blot - Anti-SDHA antibody [2E3GC12FB2AE2] (AB14715)

  • 5
  • 25
Primary Antibodies

AB14748

Anti-ATP5A antibody [15H4C4] - Mitochondrial Marker

BOND RX™ Validated|Lab Essentials

Western blot - Anti-ATP5A antibody [15H4C4] - Mitochondrial Marker (AB14748)

  • 5
  • 27
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p>Antigen retrieval is recommended.</p>", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>", "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>" }, "Mouse": { "IHCP-species-checked": "predicted", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IP-species-checked": "predicted", "IP-species-dilution-info": "", "IP-species-notes": "", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Rat": { "IHCP-species-checked": "predicted", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IP-species-checked": "predicted", "IP-species-dilution-info": "", "IP-species-notes": "", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" } } }
style
left-column

Product details

ab249615 is the carrier-free version of ab170947.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification
Storage buffer
pH: 7.2 - 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Do Not Freeze
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

ATPB also known as ATP synthase subunit beta is an essential protein component of the ATP synthase complex. It has an approximate mass of 52 kDa and is primarily expressed in the mitochondria. The protein's role is to catalyze the production of adenosine triphosphate (ATP) from adenosine diphosphate (ADP) and inorganic phosphate utilizing the proton gradient across the inner mitochondrial membrane. This process is central to the cellular energy production often referred to as oxidative phosphorylation. ATPB is frequently used as a mitochondrial marker in research making it an important target for antibodies such as those conjugated with Alexa Fluor 647 for immunofluorescence applications.
Biological function summary

ATPB functions as part of the mitochondrial ATP synthase complex which is also known as complex V of the electron transport chain. This complex is important for maintaining cellular energy homeostasis through ATP production. ATPB contributes to the catalytic activity necessary for ATP synthesis therefore supporting various cellular processes that require energy input such as muscle contraction and active transport. The protein also plays a role in coupling the proton motive force to ATP synthesis a function critical for mitochondrial efficiency and metabolic health.

Pathways

ATPB involves itself significantly in the oxidative phosphorylation and glycolysis pathways. It partners with other proteins in the ATP synthase complex such as ATP synthase subunit alpha (ATP5A1) to effectuate the conversion of energy. In the broader scope of energy metabolism ATPB integrates with glycolysis where glycolytic end-products feed into oxidative phosphorylation sustaining the cell’s energy currency. Both pathways are important for cells especially in tissues with high energy demands like the heart and skeletal muscles.

ATPB has been implicated in mitochondrial dysfunction-related diseases such as mitochondrial myopathy and Leigh syndrome. These conditions often result from mutations or defects in components of the electron transport chain leading to impaired ATP production. ATPB’s close connection to ATP5A1 and other complex V proteins highlights its involvement in these disorders. Understanding ATPB's role and function helps in disease mechanism elucidation and potentially offers targets for therapeutic interventions in mitochondrial-related diseases.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Catalytic subunit beta, of the mitochondrial membrane ATP synthase complex (F(1)F(0) ATP synthase or Complex V) that produces ATP from ADP in the presence of a proton gradient across the membrane which is generated by electron transport complexes of the respiratory chain (Probable) (PubMed : 37244256). ATP synthase complex consist of a soluble F(1) head domain - the catalytic core - and a membrane F(1) domain - the membrane proton channel (PubMed : 37244256). These two domains are linked by a central stalk rotating inside the F(1) region and a stationary peripheral stalk (PubMed : 37244256). During catalysis, ATP synthesis in the catalytic domain of F(1) is coupled via a rotary mechanism of the central stalk subunits to proton translocation (Probable). In vivo, can only synthesize ATP although its ATP hydrolase activity can be activated artificially in vitro (By similarity). With the subunit alpha (ATP5F1A), forms the catalytic core in the F(1) domain (PubMed : 37244256).
See full target information ATP5F1B
style
left-column
style
left-column
style
right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
