Anti-Bcl10 antibody [EP606Y] - BSA and Azide free

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Bcl10 antibody [EP606Y] - BSA and Azide free (AB189219)

Clone EP606Y (ab189219) has been successfully conjugated by Abcam. This image was generated using Anti-Bcl10 antibody [EP606Y] (Alexa Fluor® 488). Please refer to ab200318 for protocol details.

ab200318 staining Bcl-10 in HeLa cells. The cells were fixed with 100% methanol (5min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab200318 at 1/200 dilution (shown in green) and ab195889, Mouse monoclonal to alpha Tubulin (Alexa Fluor^® 594), at 2µg/ml (shown in red). Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Bcl10 antibody [EP606Y] - BSA and Azide free (AB189219)

Immunohistochemical staining of paraffin embedded human lung carcinoma tissue with purified ab33905 at a working dilution of 1/50. The secondary antibody used is ab97051, a goat anti-rabbit IgG (H&L) at a dilution of 1/500. The sample is counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab33905).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-Bcl10 antibody [EP606Y] - BSA and Azide free (AB189219)

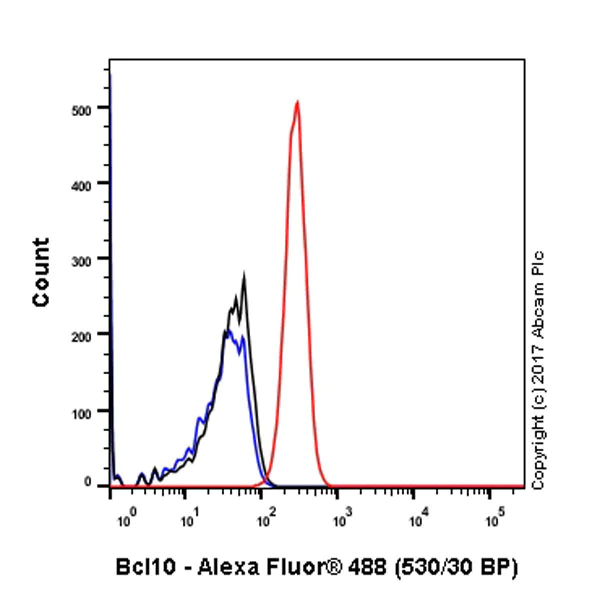

Intracellular Flow Cytometry analysis of Raji (human Burkitt's lymphoma) cells labeling Bcl10 (red) with ab33905 at a 1/200 dilution. Cells were fixed with 4% paraformaldehyde and permeabilized with 90% methanol. A goat anti-rabbit IgG (Alexa Fluorr^® 488) (ab150077) was used as the secondary antibody at a 1/2000 dilution. Black - Rabbit monoclonal IgG (ab172730). Blue (unlabeled control) - Cells without incubation with primary and secondary antibodies.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab33905).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Bcl10 antibody [EP606Y] - BSA and Azide free (AB189219)

Immunofluorescence staining of Raji cells with purified ab33905 at a working dilution of 1/100, counter-stained with DAPI. The secondary antibody was Alexa Fluor^® 488 goat anti-rabbit (ab150077), used at a dilution of 1/1000. ab7291, a mouse anti-tubulin antibody (1/1000), was used to stain tubulin along with ab150120 (Alexa Fluor^® 594 goat anti-mouse, 1/1000), shown in the top right hand panel. The cells were fixed in 4 % PFA and permeabilized using 0.1% Triton X 100. The negative controls are shown in bottom middle and right hand panels - for negative control 1, purified ab33905 was used at a dilution of 1/500 followed by an Alexa Fluor^® 594 goat anti-mouse antibody (ab150120) at a dilution of 1/500. For negative control 2, ab7291 (mouse anti-tubulin) was used at a dilution of 1/500 followed by an Alexa Fluor^® 488 goat anti-rabbit antibody (ab150077) at a dilution of 1/400.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab33905).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Bcl10 antibody [EP606Y] - BSA and Azide free (AB189219)

Unpurified ab33905, at a 1/100 dilution, staining human hepatocellular carcinoma by Immunohistochemistry, Paraffin embedded tissue.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab33905).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Bcl10 antibody [EP606Y] - BSA and Azide free (AB189219)

Unpurified ab33905, staining HeLa cells by Immunofluorescent.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab33905).

• IP

Unknown

Immunoprecipitation - Anti-Bcl10 antibody [EP606Y] - BSA and Azide free (AB189219)

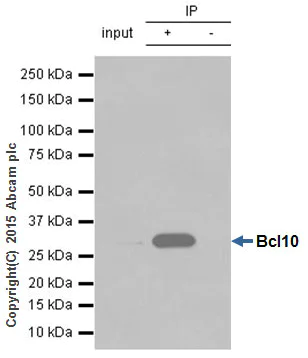

ab33905 (purified) at 1/20 immunoprecipitating Bcl10 in 10 μg Ramos cell lysate (Lanes 1 and 2, observed at 32 kDa). Lane 3 - Rabbit monoclonal IgG (ab172730). For western blotting, VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10,000 dilution. Blocking buffer and concentration : 5% NFDM/TBST Dilution buffer and concentration : 5% NFDM/TBST

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab33905).

All lanes:

Immunoprecipitation - Anti-Bcl10 antibody [EP606Y] (<a href='/en-us/products/primary-antibodies/bcl10-antibody-ep606y-ab33905'>ab33905</a>)

Predicted band size: 26 kDa

false

• WB

Lab

Western blot - Anti-Bcl10 antibody [EP606Y] - BSA and Azide free (AB189219)

This data was developed using the same antibody clone in a different buffer formulation (ab33905).

Lanes 1-4 : Merged signal (red and green). Green - ab33905 observed at 32 kDa. Red - loading control, ab7291 observed at 52 kDa.

ab33905 Anti-Bcl10 antibody [EP606Y] was shown to specifically react with Bcl10 in wild-type HeLa cells. Loss of signal was observed when knockout cell line ab261797 (knockout cell lysate ab257144) was used. Wild-type and Bcl10 knockout samples were subjected to SDS-PAGE. ab33905 and Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) were incubated overnight at 4°C at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preadsorbed (ab216776) secondary antibodies at 1 in 10000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-Bcl10 antibody [EP606Y] (<a href='/en-us/products/primary-antibodies/bcl10-antibody-ep606y-ab33905'>ab33905</a>) at 1/1000 dilution

Lane 1:

Wild-type HeLa cell lysate at 20 µg

Lane 2:

BCL10 knockout HeLa cell lysate at 20 µg

Lane 3:

Ramos cell lysate at 20 µg

Lane 4:

A549 cell lysate at 20 µg

Predicted band size: 26 kDa

Observed band size: 32 kDa

false
