Knockout Tested Rabbit Recombinant Monoclonal Beta Arrestin 2 antibody. Suitable for WB, IP, Flow Cyt (Intra) and reacts with Human, Recombinant full length protein - Human samples.

Be the first to review this product! Submit a review

Images

Western blot - Anti-Beta Arrestin 2 antibody [EPR25410-70] (AB314213), expandable thumbnail
  • Flow Cytometry (Intracellular) - Anti-Beta Arrestin 2 antibody [EPR25410-70] (AB314213), expandable thumbnail
  • Immunoprecipitation - Anti-Beta Arrestin 2 antibody [EPR25410-70] (AB314213), expandable thumbnail
  • Western blot - Anti-Beta Arrestin 2 antibody [EPR25410-70] (AB314213), expandable thumbnail
  • Western blot - Anti-Beta Arrestin 2 antibody [EPR25410-70] (AB314213), expandable thumbnail

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
WBIPFlow Cyt (Intra)ICC/IFIHC-P
Human
Tested
Tested
Tested
Not recommended
Not recommended
Mouse
Not recommended
Not recommended
Not recommended
Not recommended
Not recommended
Rat
Not recommended
Not recommended
Not recommended
Not recommended
Not recommended
Recombinant full length protein - Human
Tested
Not recommended
Not recommended
Not recommended
Not recommended

Tested
Tested

Species
Human
Dilution info
1/1000
Notes

-

Species
Recombinant full length protein - Human
Dilution info
1/1000
Notes

-

Not recommended
Not recommended

Species
Mouse, Rat
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
1/30
Notes

-

Not recommended
Not recommended

Species
Mouse, Rat, Recombinant full length protein - Human
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
1/5000
Notes

-

Not recommended
Not recommended

Species
Mouse, Rat, Recombinant full length protein - Human
Dilution info
-
Notes

-

Not recommended
Not recommended

Species
Human, Mouse, Rat, Recombinant full length protein - Human
Dilution info
-
Notes

-

Not recommended
Not recommended

Species
Human, Mouse, Rat, Recombinant full length protein - Human
Dilution info
-
Notes

-

Associated Products

Select an associated product type

1 product for Alternative Version

Target data

Function

Functions in regulating agonist-mediated G-protein coupled receptor (GPCR) signaling by mediating both receptor desensitization and resensitization processes. During homologous desensitization, beta-arrestins bind to the GPRK-phosphorylated receptor and sterically preclude its coupling to the cognate G-protein; the binding appears to require additional receptor determinants exposed only in the active receptor conformation. The beta-arrestins target many receptors for internalization by acting as endocytic adapters (CLASPs, clathrin-associated sorting proteins) and recruiting the GPRCs to the adapter protein 2 complex 2 (AP-2) in clathrin-coated pits (CCPs). However, the extent of beta-arrestin involvement appears to vary significantly depending on the receptor, agonist and cell type. Internalized arrestin-receptor complexes traffic to intracellular endosomes, where they remain uncoupled from G-proteins. Two different modes of arrestin-mediated internalization occur. Class A receptors, like ADRB2, OPRM1, ENDRA, D1AR and ADRA1B dissociate from beta-arrestin at or near the plasma membrane and undergo rapid recycling. Class B receptors, like AVPR2, AGTR1, NTSR1, TRHR and TACR1 internalize as a complex with arrestin and traffic with it to endosomal vesicles, presumably as desensitized receptors, for extended periods of time. Receptor resensitization then requires that receptor-bound arrestin is removed so that the receptor can be dephosphorylated and returned to the plasma membrane. Mediates endocytosis of CCR7 following ligation of CCL19 but not CCL21. Involved in internalization of P2RY1, P2RY4, P2RY6 and P2RY11 and ATP-stimulated internalization of P2RY2. Involved in phosphorylation-dependent internalization of OPRD1 and subsequent recycling or degradation. Involved in ubiquitination of IGF1R. Beta-arrestins function as multivalent adapter proteins that can switch the GPCR from a G-protein signaling mode that transmits short-lived signals from the plasma membrane via small molecule second messengers and ion channels to a beta-arrestin signaling mode that transmits a distinct set of signals that are initiated as the receptor internalizes and transits the intracellular compartment. Acts as a signaling scaffold for MAPK pathways such as MAPK1/3 (ERK1/2) and MAPK10 (JNK3). ERK1/2 and JNK3 activated by the beta-arrestin scaffold are largely excluded from the nucleus and confined to cytoplasmic locations such as endocytic vesicles, also called beta-arrestin signalosomes. Acts as a signaling scaffold for the AKT1 pathway. GPCRs for which the beta-arrestin-mediated signaling relies on both ARRB1 and ARRB2 (codependent regulation) include ADRB2, F2RL1 and PTH1R. For some GPCRs the beta-arrestin-mediated signaling relies on either ARRB1 or ARRB2 and is inhibited by the other respective beta-arrestin form (reciprocal regulation). Increases ERK1/2 signaling in AGTR1- and AVPR2-mediated activation (reciprocal regulation). Involved in CCR7-mediated ERK1/2 signaling involving ligand CCL19. Is involved in type-1A angiotensin II receptor/AGTR1-mediated ERK activity. Is involved in type-1A angiotensin II receptor/AGTR1-mediated MAPK10 activity. Is involved in dopamine-stimulated AKT1 activity in the striatum by disrupting the association of AKT1 with its negative regulator PP2A. Involved in AGTR1-mediated chemotaxis. Appears to function as signaling scaffold involved in regulation of MIP-1-beta-stimulated CCR5-dependent chemotaxis. Involved in attenuation of NF-kappa-B-dependent transcription in response to GPCR or cytokine stimulation by interacting with and stabilizing CHUK. Suppresses UV-induced NF-kappa-B-dependent activation by interacting with CHUK. The function is promoted by stimulation of ADRB2 and dephosphorylation of ARRB2. Involved in p53/TP53-mediated apoptosis by regulating MDM2 and reducing the MDM2-mediated degradation of p53/TP53. May serve as nuclear messenger for GPCRs. Upon stimulation of OR1D2, may be involved in regulation of gene expression during the early processes of fertilization. Also involved in regulation of receptors other than GPCRs. Involved in endocytosis of TGFBR2 and TGFBR3 and down-regulates TGF-beta signaling such as NF-kappa-B activation. Involved in endocytosis of low-density lipoprotein receptor/LDLR. Involved in endocytosis of smoothened homolog/Smo, which also requires GRK2. Involved in endocytosis of SLC9A5. Involved in endocytosis of ENG and subsequent TGF-beta-mediated ERK activation and migration of epithelial cells. Involved in Toll-like receptor and IL-1 receptor signaling through the interaction with TRAF6 which prevents TRAF6 autoubiquitination and oligomerization required for activation of NF-kappa-B and JUN (PubMed:26839314). Involved in insulin resistance by acting as insulin-induced signaling scaffold for SRC, AKT1 and INSR. Involved in regulation of inhibitory signaling of natural killer cells by recruiting PTPN6 and PTPN11 to KIR2DL1. Involved in IL8-mediated granule release in neutrophils. Involved in the internalization of the atypical chemokine receptor ACKR3. Acts as an adapter protein coupling FFAR4 receptor to specific downstream signaling pathways, as well as mediating receptor endocytosis (PubMed:22282525, PubMed:23809162). During the activation step of NLRP3 inflammasome, directly associates with NLRP3 leading to inhibition of pro-inflammatory cytokine release and inhibition of inflammation (PubMed:23809162).

Alternative names

Recommended products

Knockout Tested Rabbit Recombinant Monoclonal Beta Arrestin 2 antibody. Suitable for WB, IP, Flow Cyt (Intra) and reacts with Human, Recombinant full length protein - Human samples.

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EPR25410-70
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

Beta-arrestin 2 also known as arrb2 or b-arrestin mechanically functions to regulate G protein-coupled receptor (GPCR) signaling. This protein has a molecular mass of approximately 47 kDa and is ubiquitously expressed across various tissues including the brain lungs and heart. Beta-arrestin 2 works by binding to phosphorylated GPCRs facilitating receptor desensitization and endocytosis which stops the receptor's signaling activity and mediates receptor internalization.

Biological function summary

Beta-arrestin 2 plays an important role in mediating signal transduction pathways beyond GPCR desensitization including those involved in cell communication and cellular response regulation. Beta-arrestin 2 interacts with multiple signaling proteins to form complexes that facilitate signaling pathways notably influencing MAPK (Mitogen-Activated Protein Kinase) pathways. It provides a scaffold for downstream signaling molecules affecting cell signaling outcomes.

Pathways

Beta-arrestin 2 significantly participates in two important biological pathways: the MAPK pathway and the Wnt signaling pathway. Through these pathways beta-arrestin 2 interacts with signaling proteins such as ERK1/2 (Extracellular signal-Regulated Kinases) and dishevelled proteins. These interactions highlight beta-arrestin 2's ability to modulate signal strength and duration contributing to diverse cellular responses.

Associated diseases and disorders

Beta-arrestin 2 is implicated in conditions like heart failure and certain cancers. The aberrant regulation of beta-arrestin 2-related pathways can lead to uncontrolled cell proliferation or inadequate heart responses. Additionally beta-arrestin 2 is connected to proteins like GPCR kinases in the context of heart failure and MAPK proteins within oncogenic processes underlining its potential as a therapeutic target.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

5 product images

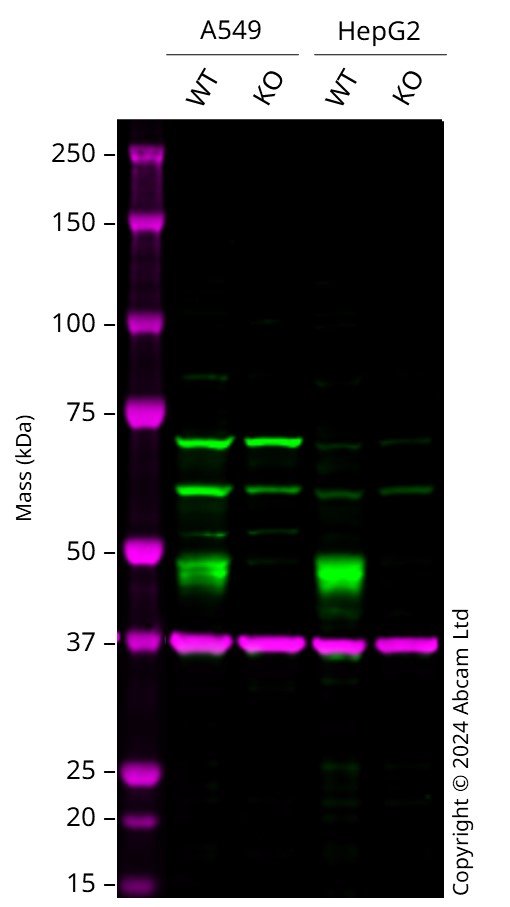

  • Western blot - Anti-Beta Arrestin 2 antibody [EPR25410-70] (ab314213), expandable thumbnail

    Western blot - Anti-Beta Arrestin 2 antibody [EPR25410-70] (ab314213)

    Western blot: Anti-ARRB2 antibody [EPR25410-70] (ab314213) staining at 1/1000 dilution, shown in green; Mouse anti-GAPDH antibody [6C5] (Anti-GAPDH antibody [6C5] - Loading Control ab8245) loading control staining at 1/20000 dilution, shown in magenta. In Western blot, ab314213 was shown to bind specifically to ARRB2. A band was observed at 45 kDa in wild-type A549 cell lysates with no signal observed at this size in ARRB2 knockout cell line. To generate this image, wild-type and ARRB2 knockout A549 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.

    All lanes: Western blot - Anti-Beta Arrestin 2 antibody [EPR25410-70] (ab314213) at 1/1000 dilution

    Lane 1: Wild-type A549 cell lysate at 20 µg

    Lane 2: ARRB2 knockout A549 cell lysate at 20 µg

    Lane 2: Western blot - Human ARRB2 (Beta Arrestin 2) knockout A549 cell line (Human ARRB2 (Beta Arrestin 2) knockout A549 cell line ab277840)

    Lane 3: Wild-type HepG2 Human ARRB2 (Beta Arrestin 2) knockout Hep G2 cell line ab262320 cell lysate at 20 µg

    Lane 4: ARRB2 knockout HepG2 Human ARRB2 (Beta Arrestin 2) knockout Hep G2 cell line ab262320 cell lysate at 20 µg

    Secondary

    All lanes: Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution

    Performed under reducing conditions.

    Observed band size: 45 kDa

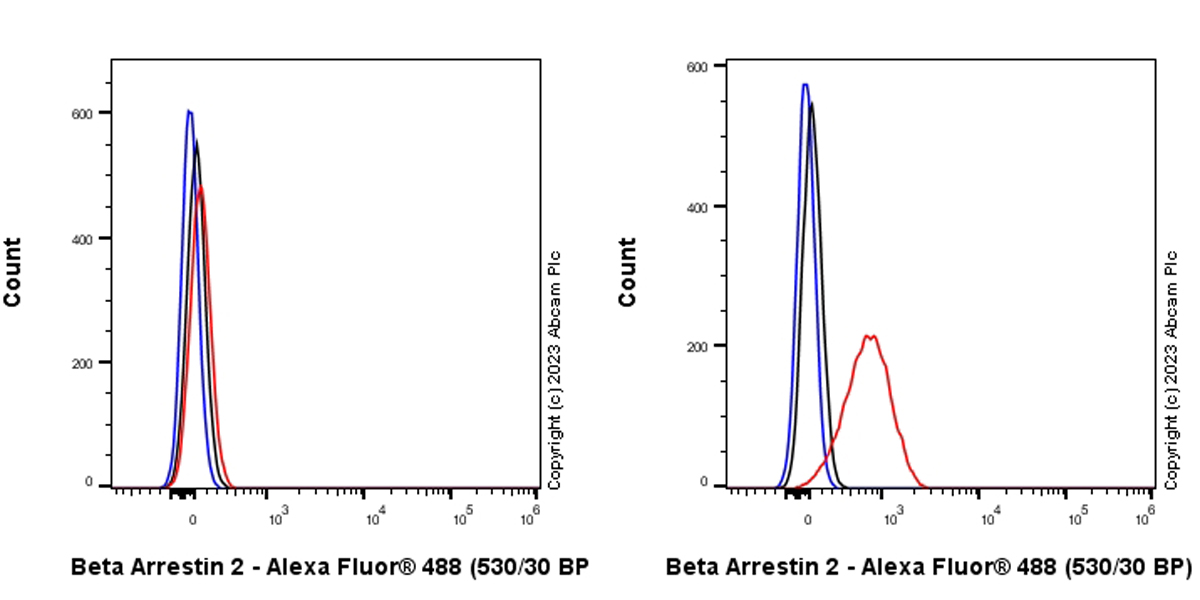

  • Flow Cytometry (Intracellular) - Anti-Beta Arrestin 2 antibody [EPR25410-70] (ab314213), expandable thumbnail

    Flow Cytometry (Intracellular) - Anti-Beta Arrestin 2 antibody [EPR25410-70] (ab314213)

    Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized ARRB2 KO HEK293T (ARRB2 knockout human embryonic kidney epithelial cell) / Parental HEK293T cells labelling Beta Arrestin 2 with ab314213 at 1/5000 dilution (0.01 ug)/Red (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/5000 dilution was used as the secondary antibody.

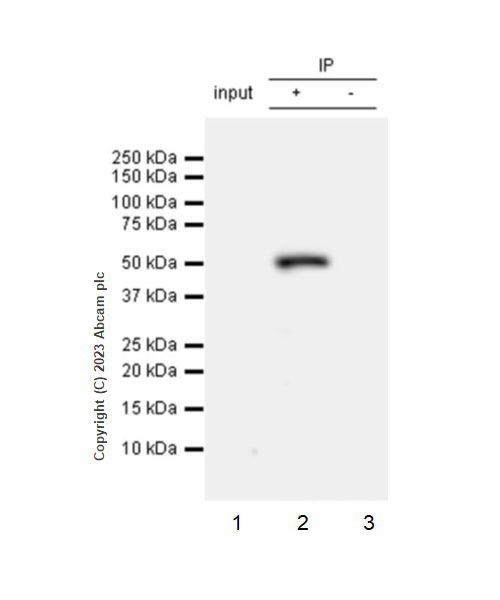

  • Immunoprecipitation - Anti-Beta Arrestin 2 antibody [EPR25410-70] (ab314213), expandable thumbnail

    Immunoprecipitation - Anti-Beta Arrestin 2 antibody [EPR25410-70] (ab314213)

    Beta Arrestin 2 was immunoprecipitated from 0.35 mg HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate with ab314213 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab314213 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.
    Lane 1: HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate
    Lane 2: ab314213 IP in HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate
    Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab314213 in HeLa whole cell lysate
    Blocking and dilution buffer and concentration: 5% NFDM/TBST.
    Exposure time: 10 seconds

    All lanes: Immunoprecipitation - Anti-Beta Arrestin 2 antibody [EPR25410-70] (ab314213) at 1/30 dilution

    All lanes: HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate

    Secondary

    All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/5000 dilution

    Exposure time: 10s

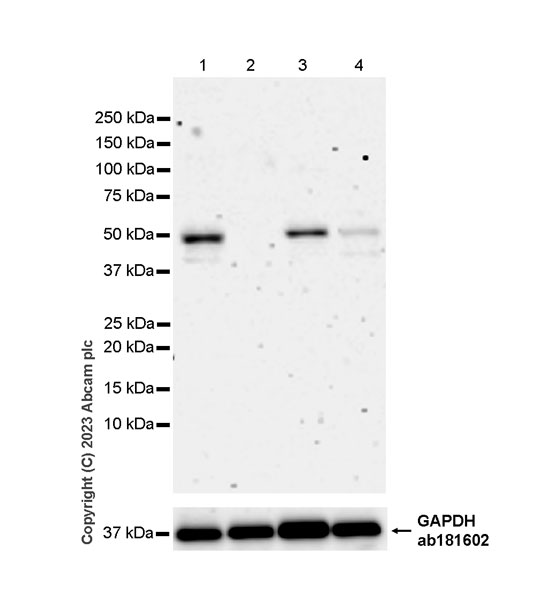

  • Western blot - Anti-Beta Arrestin 2 antibody [EPR25410-70] (ab314213), expandable thumbnail

    Western blot - Anti-Beta Arrestin 2 antibody [EPR25410-70] (ab314213)

    Blocking and diluting buffer and concentration: 5% NFDM/TBST
    In Western blot, ab314213 was shown to bind specifically to Beta Arrestin 2. A band was observed at 50 kDa and 37kDa in wild-type 293T cell lysates whereas loss of signal was observed in the ARRB2 knockout cell line Human ARRB2 (Beta Arrestin 2) knockout HEK-293T cell line ab266116 (knockout cell lysate Human ARRB2 (Beta Arrestin 2) knockout HEK-293T cell lysate ab257282).
    In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/200000 dilution.
    Exposure time: 180 seconds

    All lanes: Western blot - Anti-Beta Arrestin 2 antibody [EPR25410-70] (ab314213) at 1/1000 dilution

    Lane 1: Wild-type HEK293T (human embryonic kidney epithelial cell) whole cell lysate at 20 µg

    Lane 2: Western blot - Human ARRB2 (Beta Arrestin 2) knockout HEK-293T cell lysate (Human ARRB2 (Beta Arrestin 2) knockout HEK-293T cell lysate ab257282) at 20 µg

    Lane 3: HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate at 20 µg

    Lane 4: HepG2 (human hepatocellar carcinoma epithelial cell) whole cell lysate at 20 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

    Observed band size: 37,50 kDa

    Exposure time: 180s

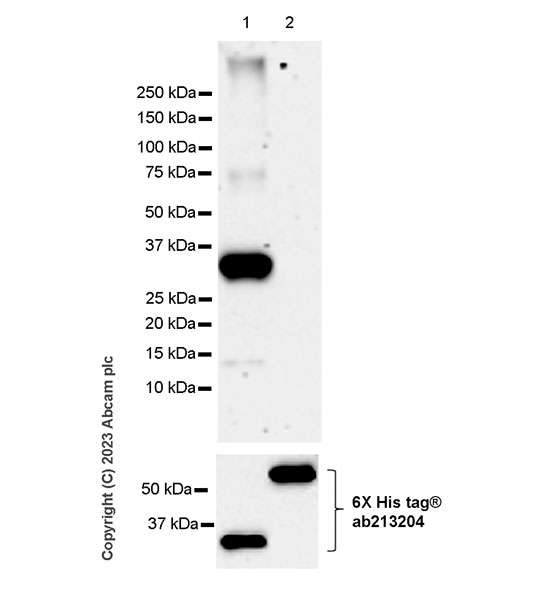

  • Western blot - Anti-Beta Arrestin 2 antibody [EPR25410-70] (ab314213), expandable thumbnail

    Western blot - Anti-Beta Arrestin 2 antibody [EPR25410-70] (ab314213)

    Blocking and diluting buffer and concentration: 5% NFDM/TBST
    This antibody does not cross-react with human ARRB1.
    In Western blot, Anti-6X His tag® antibody [EPR20547] - ChIP Grade (Anti-6X His tag® antibody [EPR20547] - ChIP Grade ab213204) staining at 1/5000 dilution
    Exposure time: 180 seconds

    All lanes: Western blot - Anti-Beta Arrestin 2 antibody [EPR25410-70] (ab314213) at 1/1000 dilution

    Lane 1: His-tagged human ARRB2 recombinant fragment at 10 ng

    Lane 2: His-tagged human fl-length ARRB1 recombinant protein at 10 ng

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

    Observed band size: 27 kDa

    Exposure time: 180s
