Anti-beta Catenin antibody [5H10]

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta Catenin antibody [5H10] (AB231305)

IHC image of beta Catenin staining in a section of formalin-fixed paraffin-embedded normal human colon adenocarcinoma* performed on a Leica BOND^TM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20mins. The section was then incubated with ab231305, 1ug/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

*Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta Catenin antibody [5H10] (AB231305)

IHC image of Beta Catenin staining in a section of formalin-fixed paraffin-embedded Rat Large Intestine performed on a Leica BOND™ system using the standard Frotocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20mins. The section was then incubated with ab231305, 1ug/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody.

• WB

Lab

Western blot - Anti-beta Catenin antibody [5H10] (AB231305)

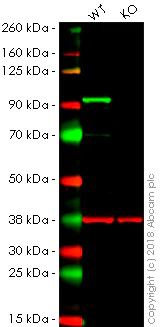

ab231305 was shown to specifically react with CTNNB1 (β-catenin) in wild type HAP1 cells. No band was observed when CTNNB1 (β-catenin) knockout samples were used. Wild-type and CTNNB1 (β-catenin) knockout samples were subjected to SDS-PAGE. ab231305 and ab181602 (Rabbit anti GAPDH loading control) were incubated overnight at 4°C at 1ug/ml and 1/10000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (ab216776) secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-beta Catenin antibody [5H10] (ab231305)

Lane 1:

HAP1 whole cell lysate at 20 µg

Lane 2:

HAP1 CTNNB1 knockout whole cell lysate at 20 µg

Predicted band size: 85 kDa

Observed band size: 95 kDa
