Anti-beta I Tubulin antibody [EPR16778] - BSA and Azide free

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta I Tubulin antibody [EPR16778] - BSA and Azide free (AB250104)

This data was developed using ab179511, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human tonsil tissue labeling beta I Tubulin with ab179511 at 1/500 followed by prediluted HRP Polymer for Rabbit/Mouse IgG. Cytoplasm staining on germinal center lymphocytes of Human tonsil is observed. Counter stained with Hematoxylin.

Negative control : Using PBS instead of primary ab, secondary ab is prediluted HRP Polymer for Rabbit/Mouse IgG.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• Flow Cyt (Intra)

Supplier Data

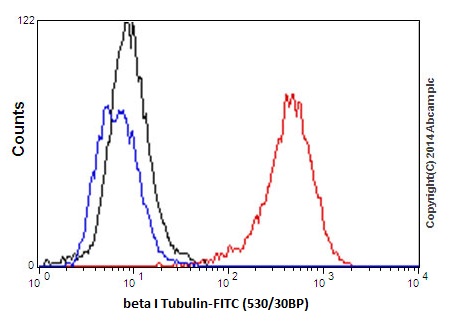

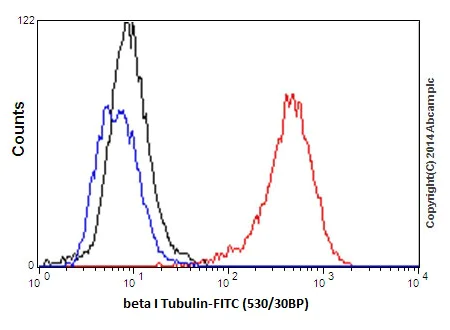

Flow Cytometry (Intracellular) - Anti-beta I Tubulin antibody [EPR16778] - BSA and Azide free (AB250104)

This data was developed using ab179511, the same antibody clone in a different buffer formulation.

Intracellular flow cytometric analysis of 2% paraformaldehyde-fixed K562 (Human chronic myelogenous leukemia cells from bone marrow) cells labeling beta I Tubulin with ab179511 at 1/80 dilution (red) compared with a rabbit monoclonal IgG isotype control (black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody; blue). Goat anti rabbit IgG (FITC) at 1/150 dilution was used as the secondary antibody.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-beta I Tubulin antibody [EPR16778] - BSA and Azide free (AB250104)

This data was developed using ab179511, the same antibody clone in a different buffer formulation.

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized K562 (Human chronic myelogenous leukemia cells from bone marrow) cells labeling beta I Tubulin with ab179511 at 1/500 dilution followed by AlexaFluor®488 Goat anti-Rabbit secondary antibody (ab150077) at 1/400 dilution (green). Cytoplasm and nuclear staining on K562 cell line is observed. The nuclear counter stain is DAPI (blue). Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/500 dilution and ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution (red).
The negative controls are as follows;
1. ab179511 at 1/500 dilution followed by ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution.
2. ab7291 (anti-Tubulin mouse mAb) at 1/500 dilution followed by ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/400 dilution.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta I Tubulin antibody [EPR16778] - BSA and Azide free (AB250104)

This data was developed using ab179511, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Rat spleen tissue labeling beta I Tubulin with ab179511 at 1/500 followed by prediluted HRP Polymer for Rabbit/Mouse IgG. Cytoplasm staining on follicular center lymphocytes of Rat spleen tissue is observed. Counter stained with Hematoxylin.

Negative control : Using PBS instead of primary ab, secondary ab is prediluted HRP Polymer for Rabbit/Mouse IgG.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta I Tubulin antibody [EPR16778] - BSA and Azide free (AB250104)

This data was developed using ab179511, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Mouse cerebral cortex tissue labeling beta I Tubulin with ab179511 at 1/500 followed by prediluted HRP Polymer for Rabbit/Mouse IgG. Cytoplasm staining on neuron cells of Mouse cerebral cortex tissue is observed. Counter stained with Hematoxylin.

Negative control : Using PBS instead of primary ab, secondary ab is prediluted HRP Polymer for Rabbit/Mouse IgG.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• WB

Supplier Data

Western blot - Anti-beta I Tubulin antibody [EPR16778] - BSA and Azide free (AB250104)

This data was developed using ab179511, the same antibody clone in a different buffer formulation.

Blocking and dilution buffer : 5% NFDM/TBST.

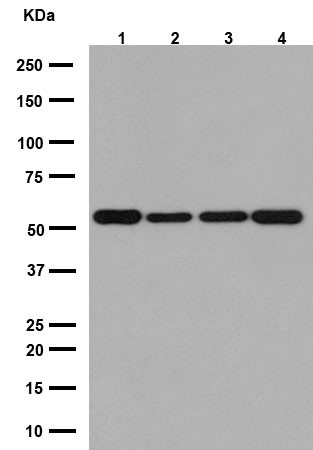

All lanes:

Western blot - Anti-beta I Tubulin antibody [EPR16778] (<a href='/en-us/products/primary-antibodies/beta-i-tubulin-antibody-epr16778-ab179511'>ab179511</a>) at 1/20000 dilution

Lane 1:

K562 (Human chronic myelogenous leukemia cells from bone marrow) whole cell lysates at 20 µg

Lane 2:

Jurkat (Human T cell leukemia cells from peripheral blood) whole cell lysates at 20 µg

Lane 3:

HeLa (Human epithelial cells from cervix adenocarcinoma) whole cell lysates at 20 µg

Lane 4:

293T (Human epithelial cells from embryonic kidney) whole cell lysates at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L),Peroxidase conjugated at 1/1000 dilution

Predicted band size: 50 kDa

Observed band size: 50 kDa

false

• WB

Supplier Data

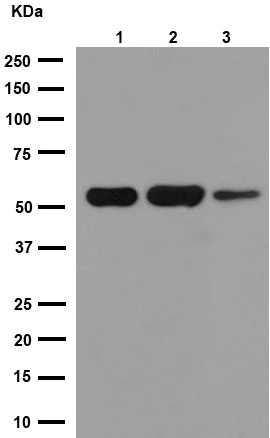

Western blot - Anti-beta I Tubulin antibody [EPR16778] - BSA and Azide free (AB250104)

This data was developed using ab179511, the same antibody clone in a different buffer formulation.

Blocking and dilution buffer : 5% NFDM/TBST.

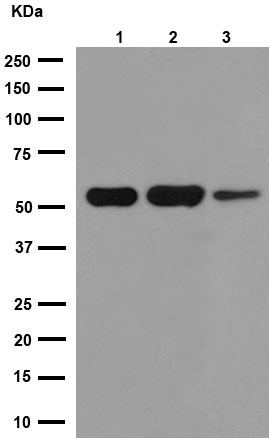

All lanes:

Western blot - Anti-beta I Tubulin antibody [EPR16778] (<a href='/en-us/products/primary-antibodies/beta-i-tubulin-antibody-epr16778-ab179511'>ab179511</a>) at 1/2000 dilution

Lane 1:

Human fetal brain lysate at 10 µg

Lane 2:

Human fetal heart lysate at 10 µg

Lane 3:

Human fetal kidney lysate at 10 µg

Secondary

All lanes:

Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG at 1/1000 dilution

Predicted band size: 50 kDa

Observed band size: 50 kDa

false

• WB

Supplier Data

Western blot - Anti-beta I Tubulin antibody [EPR16778] - BSA and Azide free (AB250104)

This data was developed using ab179511, the same antibody clone in a different buffer formulation.

Blocking and dilution buffer : 5% NFDM/TBST.

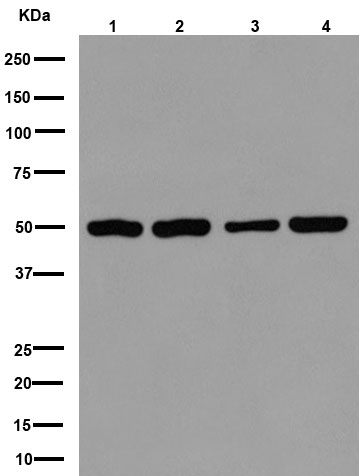

All lanes:

Western blot - Anti-beta I Tubulin antibody [EPR16778] (<a href='/en-us/products/primary-antibodies/beta-i-tubulin-antibody-epr16778-ab179511'>ab179511</a>) at 1/2000 dilution

Lane 1:

C6 (Rat glial tumor cells) whole cell lysates at 20 µg

Lane 2:

RAW 264.7 (Mouse macrophage cells transformed with Abelson murine leukemia virus) whole cell lysates at 20 µg

Lane 3:

PC-12 (Rat adrenal gland pheochromocytoma) whole cell lysates at 20 µg

Lane 4:

NIH/3T3 (Mouse embyro fibroblast cells) whole cell lysates at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L),Peroxidase conjugated antibody at 1/1000 dilution

Predicted band size: 50 kDa

Observed band size: 50 kDa

false

• WB

Supplier Data

Western blot - Anti-beta I Tubulin antibody [EPR16778] - BSA and Azide free (AB250104)

This data was developed using ab179511, the same antibody clone in a different buffer formulation.

Blocking and dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-beta I Tubulin antibody [EPR16778] (<a href='/en-us/products/primary-antibodies/beta-i-tubulin-antibody-epr16778-ab179511'>ab179511</a>) at 1/2000 dilution

Lane 1:

Mouse brain lysate at 10 µg

Lane 2:

Rat brain lysate at 10 µg

Lane 3:

Rat spleen lysate at 10 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L),Peroxidase conjugated antibody at 1/1000 dilution

Predicted band size: 50 kDa

Observed band size: 50 kDa

false

• WB

Supplier Data

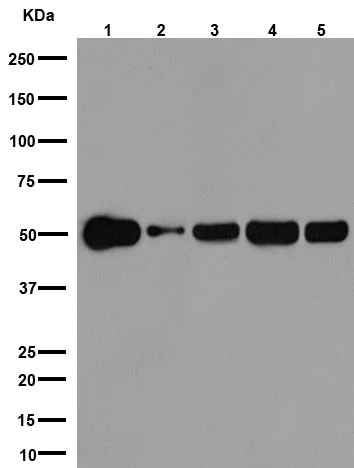

Western blot - Anti-beta I Tubulin antibody [EPR16778] - BSA and Azide free (AB250104)

This data was developed using ab179511, the same antibody clone in a different buffer formulation.

Blocking and dilution buffer : 5% NFDM/TBST.

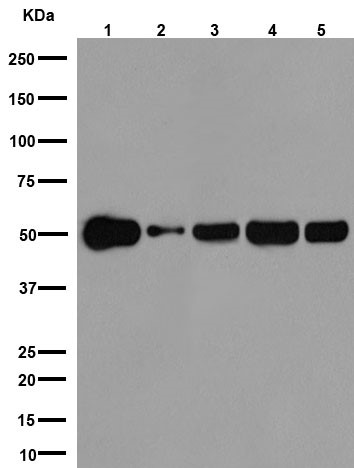

All lanes:

Western blot - Anti-beta I Tubulin antibody [EPR16778] (<a href='/en-us/products/primary-antibodies/beta-i-tubulin-antibody-epr16778-ab179511'>ab179511</a>) at 1/1000 dilution

Lane 1:

UMNSAH/DF-1 (Transformed chicken embyronic fibroblast cells) whole cell lysates at 20 µg

Lane 2:

BHK (Hamster kidney fibroblast cells) whole cell lysates at 20 µg

Lane 3:

MDCK (Canine kidney cell line) whole cell lysates at 20 µg

Lane 4:

MDBK (Bovine kidney cell line) whole cell lysates at 20 µg

Lane 5:

COS-1 (African green monkey kidney fibroblast-like cell line) whole cell lysates at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L),Peroxidase conjugated antibody at 1/1000 dilution

Predicted band size: 50 kDa

Observed band size: 50 kDa

false
