Anti-beta III Tubulin antibody [2G10] - BSA and Azide free

7 product images

•

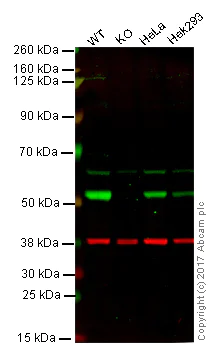

  Western blot - Anti-beta III Tubulin antibody [2G10] - BSA and Azide free (ab264097)

  Lane 1: Wild-type HAP1 whole cell lysate (20 μg)
  Lane 2: Beta III Tubulin knockout HAP1 whole cell lysate (20 μg)
  Lane 3: HeLa whole cell lysate (20 μg)
  Lane 4: Hek293 whole cell lysate (20 μg)


  Lanes 1 - 4: Merged signal (red and green). Green - Anti-beta III Tubulin antibody [2G10] - Neuronal Marker ab78078 observed at 50 kDa. Red - loading control, Anti-GAPDH antibody [EPR16891] - Loading Control ab181602, observed at 37 kDa.

  Anti-beta III Tubulin antibody [2G10] - Neuronal Marker ab78078 was shown to specifically react with beta III Tubulin in wild-type HAP1 cells as signal was lost in beta III Tubulin knockout cells. Wild-type and beta III Tubulin knockout samples were subjected to SDS-PAGE. Anti-beta III Tubulin antibody [2G10] - Neuronal Marker ab78078 and Anti-GAPDH antibody [EPR16891] - Loading Control ab181602 (Rabbit anti-GAPDH loading control) were incubated overnight at 4°C at 10 μg/ml and 1/20000 dilution respectively. Blots were developed with Goat anti-Mouse IgG H&L (IRDye^® 800CW) preabsorbed Goat anti-Mouse IgG H&L (IRDye® 800CW) preadsorbed ab216772 and Goat anti-Rabbit IgG H&L (IRDye^® 680RD) preabsorbed Goat Anti-Rabbit IgG H&L (IRDye® 680RD) preadsorbed ab216777 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

  This data was developed using the same antibody clone in a different formulation containing PBS and Azide (Anti-beta III Tubulin antibody [2G10] - Neuronal Marker ab78078).

  All lanes: Western blot - Anti-beta III Tubulin antibody [2G10] - Neuronal Marker (Anti-beta III Tubulin antibody [2G10] - Neuronal Marker ab78078) at 1/20000 dilution

  Lane 1: Wild-type HAP1 whole cell lysate at 20 µg

  Lane 2: Beta III Tubulin knockout HAP1 whole cell lysate at 20 µg

  Lane 3: HeLa whole cell lysate at 20 µg

  Lane 4: HEK-293 whole cell lysate at 20 µg

  Predicted band size: 50 kDa

•

  Immunocytochemistry/ Immunofluorescence - Anti-beta III Tubulin antibody [2G10] - BSA and Azide free (ab264097)

  This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (Anti-beta III Tubulin antibody [2G10] - Neuronal Marker ab78078)

  Anti-beta III Tubulin antibody [2G10] - Neuronal Marker ab78078 staining beta III Tubulin in NGF-differentiated PC12 cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-beta III Tubulin antibody [2G10] - Neuronal Marker ab78078 at 1µg/ml and Anti-beta Tubulin antibody - Loading Control ab6046, Rabbit polyclonal to beta Tubulin - Loading Control. Cells were then incubated with Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117, Goat polyclonal Secondary Antibody to Mouse IgG H&L (Alexa Fluor^® 488) preadsorbed at 1/1000 dilution (shown in green) and Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) ab150080, Goat polyclonal Secondary Antibody to Rabbit IgG - H&L (Alexa Fluor^® 594) at 1/1000 dilution (shown in pseudocolour red). Nuclear DNA was labelled with DAPI (shown in blue).

  Image was acquired with a confocal microscope (Leica-Microsystems TCS SP8) and a single confocal section is shown.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta III Tubulin antibody [2G10] - BSA and Azide free (ab264097)

  IHC image of Anti-beta III Tubulin antibody [2G10] - Neuronal Marker ab78078 staining beta III Tubulin in Human cerebellum formalin fixed paraffin embedded tissue sections, performed on a Leica Bond. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0 epitope retrieval solution 1) for 20 mins. The section was then incubated with Anti-beta III Tubulin antibody [2G10] - Neuronal Marker ab78078, 0.5μg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. No primary antibody was used in the secondary only control (shown on the inset).
  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.


  This data was developed using the same antibody clone in a different formulation containing PBS and Azide (Anti-beta III Tubulin antibody [2G10] - Neuronal Marker ab78078).

•

  Flow Cytometry (Intracellular) - Anti-beta III Tubulin antibody [2G10] - BSA and Azide free (ab264097)

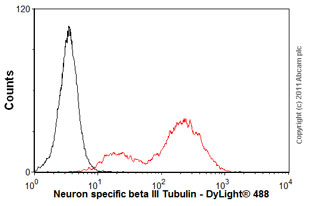

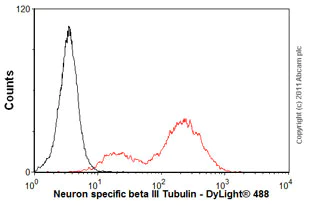

  Overlay histogram showing SH-SY5Y stained with Anti-beta III Tubulin antibody [2G10] - Neuronal Marker ab78078 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (Anti-beta III Tubulin antibody [2G10] - Neuronal Marker ab78078, 1μg/1x10⁶ cells) for 30 min at 22°C. The secondary antibody used was DyLight® 488 goat anti-mouse IgG (H+L) (Goat Anti-Mouse IgG H&L (DyLight® 488) preadsorbed ab96879) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was mouse IgG1 [ICIGG1](Mouse IgG1, Kappa Monoclonal [B11/6] - Isotype Control ab91353, 2μg/1x10⁶ cells) used under the same conditions. Acquisition of >5,000 events was performed. This antibody gave a positive signal in SH-SY5Y cells fixed with 80% methanol/permeabilized in 0.1% PBS-Tween used under the same conditions.


  This data was developed using the same antibody clone in a different formulation containing PBS and Azide (Anti-beta III Tubulin antibody [2G10] - Neuronal Marker ab78078).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta III Tubulin antibody [2G10] - BSA and Azide free (ab264097)

  IHC image of Anti-beta III Tubulin antibody [2G10] - Neuronal Marker ab78078 staining beta III Tubulin in rat cerebellum formalin fixed paraffin embedded tissue sections, performed on a Leica Bond. The section was pre-treated using heat mediated antigen retrieval with EDTA/Tris (epitope retrieval solution 2) for 20 mins. The section was then incubated with Anti-beta III Tubulin antibody [2G10] - Neuronal Marker ab78078, 0.5μg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. No primary antibody was used in the secondary only control (shown on the inset).
  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.


  This data was developed using the same antibody clone in a different formulation containing PBS and Azide (Anti-beta III Tubulin antibody [2G10] - Neuronal Marker ab78078).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta III Tubulin antibody [2G10] - BSA and Azide free (ab264097)

  IHC image of Anti-beta III Tubulin antibody [2G10] - Neuronal Marker ab78078 staining in mouse brain formalin fixed paraffin embedded tissue section, performed on a Leica Bond^TM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with Anti-beta III Tubulin antibody [2G10] - Neuronal Marker ab78078, 1μg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.

  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.


  This data was developed using the same antibody clone in a different formulation containing PBS and Azide (Anti-beta III Tubulin antibody [2G10] - Neuronal Marker ab78078).

•

  Immunocytochemistry/ Immunofluorescence - Anti-beta III Tubulin antibody [2G10] - BSA and Azide free (ab264097)

  Anti-beta III Tubulin antibody [2G10] - Neuronal Marker ab78078 staining beta III Tubulin in primary rat neurons/glia, DIV14 (prepared from E18 rat hippocampal brain area, obtained from Transnetyx Tissue by BrainBits, LLC, cat.no. SDHEP) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Tween for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-beta III Tubulin antibody [2G10] - Neuronal Marker ab78078 at 1µg/ml and Anti-beta Tubulin antibody - Loading Control ab6046, Rabbit polyclonal to beta Tubulin - Loading Control. Cells were then incubated with Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117, Goat polyclonal Secondary Antibody to Mouse IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green) and Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) ab150080, Goat polyclonal Secondary Antibody to Rabbit IgG - H&L (Alexa Fluor® 594) at 1/1000 dilution (shown in pseudocolour red). Nuclear DNA was labelled with DAPI (shown in blue).
  Also suitable in cells fixed with 4% paraformaldehyde (10 min).
  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.
