Anti-beta III Tubulin antibody [EPR1568Y] - Neuronal Marker

10 product images

•

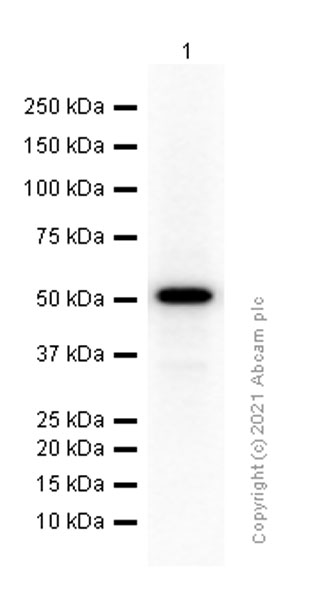

  Western blot - Anti-beta III Tubulin antibody [EPR1568Y] - Neuronal Marker (ab68193)

  Beta III Tubulin Western blot staining of HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate using rabbit Anti-beta III Tubulin antibody

  All lanes: Western blot - Anti-beta III Tubulin antibody [EPR1568Y] - Neuronal Marker (ab68193) at 1/50000 dilution

  All lanes: HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate at 15 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

  Predicted band size: 50 kDa

  Observed band size: 50 kDa

•

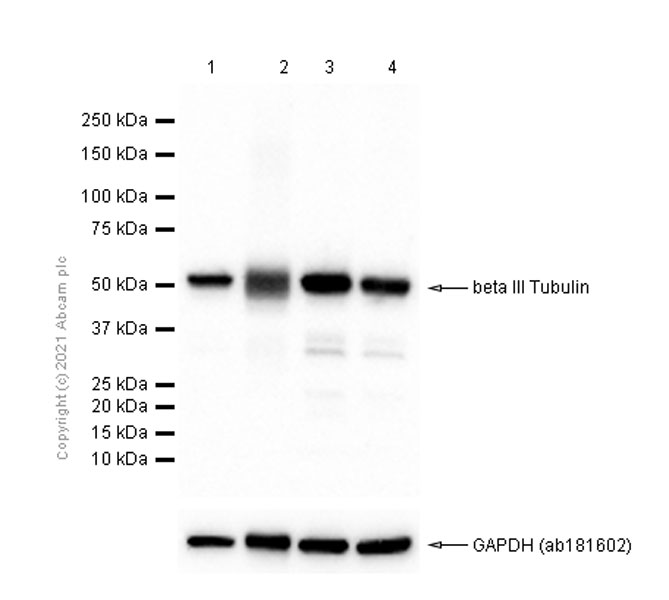

  Western blot - Anti-beta III Tubulin antibody [EPR1568Y] - Neuronal Marker (ab68193)

  Beta III Tubulin Western blot staining using rabbit Anti-beta III Tubulin antibody

  All lanes: Western blot - Anti-beta III Tubulin antibody [EPR1568Y] - Neuronal Marker (ab68193) at 1/50000 dilution

  Lane 1: SH-SY5Y (Human neuroblastoma epithelial cell) whole cell lysate at 20 µg

  Lane 2: Human cerebellum lysate at 20 µg

  Lane 3: Mouse brain lysate at 20 µg

  Lane 4: Rat brain lysate at 20 µg

  Secondary

  All lanes: Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

  Predicted band size: 50 kDa

  Observed band size: 50 kDa

•

  Flow Cytometry (Intracellular) - Anti-beta III Tubulin antibody [EPR1568Y] (ab68193)

  Flow Cytometry analysis of HeLa (Human cervix adenocarcinoma epithelial cell) cells labelling beta III Tubulin with Purified ab68193 at 1:20 dilution (10 µg/ml) (Red). Cells were fixed with 4% Paraformaldehyde and permeabilised with 90% Methanol. A Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody was used at 1:2000. Isotype control - Rabbit monoclonal IgG (Black). Unlabelled control - Cell without incubation with primary antibody and secondary antibody (Blue).

•

  Immunocytochemistry/ Immunofluorescence - Anti-beta III Tubulin antibody [EPR1568Y] (ab68193)

  Immunocytochemistry analysis of Neuro-2a(Mouse neuroblastoma neuroblast) cells labeling beta III Tubulin with Purified ab68193 at 1:50 dilution (2.2 µg/ml). Cells were fixed in 100% Methanol and permeabilized with 0.1% tritonX-100. Cells were counterstained with Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) 1:200 (2.5 µg/ml). Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody at 1:1000 (2 µg/ml) dilution. DAPI (blue) was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta III Tubulin antibody [EPR1568Y] (ab68193)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of rat testis tissue sections labeling beta III Tubulin with Purified ab68193 at 1:8000 dilution (0.014 µg/mL). Heat mediated antigen retrieval was performed using Heat mediated antigen retrieval with Citrate buffer (pH 6.0, epitope retrieval solution 1) for 20 mins. Tissue was counterstained with Hematoxylin. Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101) secondary antibody was used. PBS instead of the primary antibody was used as the negative control.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta III Tubulin antibody [EPR1568Y] (ab68193)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of mouse testis tissue sections labeling beta III Tubulin with Purified ab68193 at 1:8000 dilution (0.014 µg/mL). Heat mediated antigen retrieval was performed using Heat mediated antigen retrieval with Citrate buffer (pH 6.0, epitope retrieval solution 1) for 20 mins. Tissue was counterstained with Hematoxylin. Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101) secondary antibody was used. PBS instead of the primary antibody was used as the negative control.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta III Tubulin antibody [EPR1568Y] (ab68193)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human tonsil tissue sections labeling beta III Tubulin with Purified ab68193 at 1:8000 dilution (0.014 µg/mL). Heat mediated antigen retrieval was performed using Heat mediated antigen retrieval with Citrate buffer (pH 6.0, epitope retrieval solution 1) for 20 mins. Tissue was counterstained with Hematoxylin. Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101) secondary antibody was used. PBS instead of the primary antibody was used as the negative control.

•

  Immunocytochemistry/ Immunofluorescence - Anti-beta III Tubulin antibody [EPR1568Y] (ab68193)

  ab68193 staining beta III Tubulin in wild-type HAP1 cells (top panel) and TUBB3 knockout HAP1 cells (bottom panel). The cells were fixed with 100% methanol (5min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab68193 at 1μg/ml concentration and Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291, a mouse anti-tubulin antibody, at 1μg/ml overnight at +4°C. This is followed by a further incubation at room temperature for 1h with a goat anti-rabbit IgG Alexa Fluor® 488 (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 2μg/ml (shown in green) and a goat anti-mouse IgG Alexa Fluor® 647 (Goat Anti-Mouse IgG H&L (Alexa Fluor® 647) preadsorbed ab150119) at 2μg/ml (shown in red). Nuclear DNA was labelled in blue with DAPI.


  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

•

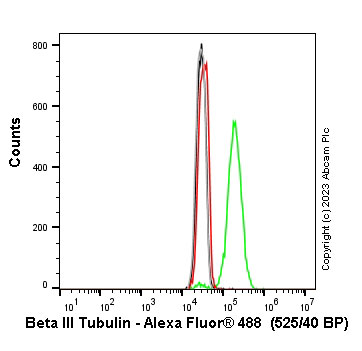

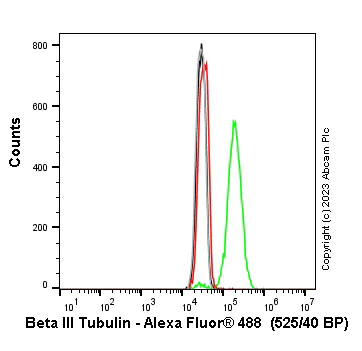

  Flow Cytometry (Intracellular) - Anti-beta III Tubulin antibody [EPR1568Y] (ab68193)

  Flow cytometry overlay histogram showing wild-type HeLa (green line) and TUBB3 knockout HeLa stained with ab68193 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilised with 0.1% PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS containing 10% normal goat serum to block non-specific protein-protein interaction followed by the antibody (ab68193) (1x 106 in 100μl at 0.04 μg/ml (1/49250)) for 30min at 22°C.

  The secondary antibody Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed was incubated at 1/4000 for 30min at 22°C

  Isotype control antibody Recombinant Rabbit IgG, monoclonal [EPR25A] - Isotype Control was used at the same concentration and conditions as the primary antibody (wild-type HeLa - black line, TUBB3 knockout HeLa - grey line). Unlabelled sample was also used as a control (this line is not shown for the purpose of simplicity).

  Acquisition of >5000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter.

•

  Image collected and cropped by CiteAb under a CC-BY license from the publication

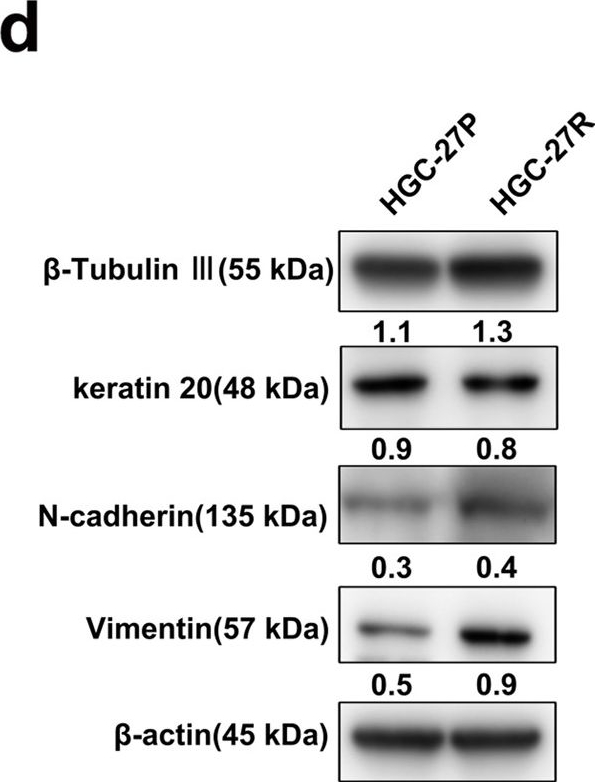

  Western blot - Anti-beta III Tubulin antibody [EPR1568Y] - Neuronal Marker (ab68193)

  Beta III Tubulin Western blot staining using rabbit Anti-beta III Tubulin antibody

  beta III Tubulin western blot using anti-beta III Tubulin antibody [EPR1568Y] ab68193. Publication image and figure legend from Chen, D., Lin, X., et al., 2018, Cell Death Dis, PubMed 29374144.




  ab68193 was used in this publication in western blot. This may not be the same as the application(s) guaranteed by Abcam. For a full list of applications guaranteed by Abcam for ab68193 please see the product overview.

  Altered morphology, microtubular disorders, and EMT in PTX-resistant GC cells.a Cell viability of HGC-27P and HGC-27R cells after exposure to PTX for 48 h. b Representative morphology of parental and PTX-resistant GC cells. Original magnification: ×200. c Microtubules at metaphase visualized with immunofluorescence after an exposure to PTX for 12 h. β-Tubulin III stained for microtubules and DAPI stained for nuclei (green and blue, respectively). Scale bar, 5 μm. d β-Tubulin III and EMT protein expression measured using western blot. e Invasion and migration capacity of HGC-27P and HGC-27R cells measured by Transwell assay with/without Matrigel. Data expressed as mean ± S.D. of three independent experiments. *p < 0.05
