Anti-beta III Tubulin antibody [TU-20] - Neuronal Marker

13 product images

•

  Immunocytochemistry/ Immunofluorescence - Anti-beta III Tubulin antibody [TU-20] - Neuronal Marker (ab7751)

  ab7751 staining beta III Tubulin in Neuro-2a (Mouse neuroblastoma cell line) cells.


  The cells were fixed with 100% methanol (5min) and then blocked in 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated with ab7751 at 1/1000 and Anti-beta Tubulin antibody - Loading Control ab6046 at 1μg/ml overnight at +4°C, followed by a further incubation at room temperature for 1h with an AlexaFluor^®488 Goat anti-Mouse secondary (Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117) at 2 μg/ml (shown in green) and AlexaFluor^®594 Goat anti-Rabbit secondary (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) preadsorbed ab150088) at 2 μg/ml (shown in pseudo color red). Nuclear DNA was labeled in blue with DAPI.
  Negative controls: 1– Rabbit primary and anti-mouse secondary antibody; 2 – Mouse primary antibody and anti-rabbit secondary antibody. Controls 1 and 2 indicate that there is no unspecific reaction between primary and secondary antibodies used.

•

  Ganz et al PLoS One. 2014 Jun 19;9(6):e100445. doi: 10.1371/journal.pone.0100445. eCollection 2014. Fig 1. Reproduced under the Creative Commons license http://creativecommons.org/licenses/by/4.0/

  Immunocytochemistry - Anti-beta III Tubulin antibody [TU-20] - Neuronal Marker (ab7751)

  Naive hOMSC express constitutively neuronal and dopaminergic markers.

  Immunofluorescence of neuronal (A–C) and dopaminergic (D–F) markers in naïve hOMSC, scale bars 100 μM.

  Cells obtained from two donors (24 and 35 years old) were fixed in 4% PFA-PBS and pre-incubated for 60 min in blocking solution (5% goat serum, 1% BSA, 0.05% Triton-X in PBS). Primary antibodies were diluted in the blocking solution and applied overnight at 4°C. The following primary antibodies were used, β-III-Tubulin (1∶200, ab7751, abcam), Map2 (1∶200), synapsin (1∶200), tyrosine hydroxylase (1∶200), Lmx1A (1∶200), Pitx3 (1∶200) and Nurr1 (1∶200).

  Primary antibodies were detected with fluorescent-labeled secondary antibodies Alexa^®488 and 568 (1∶500,) for 1 h at room temperature. Nuclear DNA was stained using 4,6-diamino-2-phenylindole (DAPI) (1∶1000).

•

  Immunocytochemistry/ Immunofluorescence - Anti-beta III Tubulin antibody [TU-20] - Neuronal Marker (ab7751)

  Immunocytochemistry staining of mouse Neuro2a cells (neuroblast/neuronal and amoeboid stem cells) using 3μg/ml ab7751 (green), nuclear counterstaining with DAPI (blue).

•

  Immunocytochemistry/ Immunofluorescence - Anti-beta III Tubulin antibody [TU-20] - Neuronal Marker (ab7751)

  Immunocytochemistry staining of mouse P-19 cells (embryonal carcinoma).


  A: Microtubules stained with neuron-specific ab7751 in red.

  B: Merged image of co-staining with ab7751 and anti-beta-tubulin.

•

  Sun et al PLoS One. 2017 Jun 7;12(6):e0179047. doi: 10.1371/journal.pone.0179047. eCollection 2017. Fig 5. Reproduced under the Creative Commons license http://creativecommons.org/licenses/by/4.0/

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta III Tubulin antibody [TU-20] - Neuronal Marker (ab7751)

  Kif2a is involved in the differentiation of NSCs/NPCs.

  (Panel A) Mouse embryos were electroporated with indicated plasmids (scramble shRNA, Kif2a shRNA1 or Kif2a shRNA1+Kif2a^Res) at E13.5, and analyzed at E15.5. GFP (green) represents cells expressing the indicated plasmids; TU20 (ab7751, red) represents immature neurons. Scale bars = 50 μm.

•

  Gonzales et al PLoS One. 2018 Mar 27;13(3):e0194581. doi: 10.1371/journal.pone.0194581. eCollection 2018. Fig 1. Reproduced under the Creative Commons license http://creativecommons.org/licenses/by/4.0/

  Immunocytochemistry/ Immunofluorescence - Anti-beta III Tubulin antibody [TU-20] - Neuronal Marker (ab7751)

  Confirmation of differentiation of iPSCs into cortical neuronal cultures.

  Images taken from clones C2 (trisomic) and C3 -D21 (disomic) 40 days after initiation of the differentiation protocol. Fixed cells on chamber slides were probed with antibodies against the marker proteins listed in the left column. Neuronal marker Beta III tubulin is red (ab7751); DAPI is blue; and Ctip2, TBR1, SLC17A7 (vGLUT1) and GRIK2 are green. Size bar = 20 μ.

•

  Western blot - Anti-beta III Tubulin antibody [TU-20] - Neuronal Marker (ab7751)

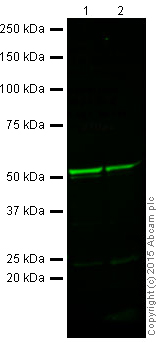

  This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using LI-COR^® blocking buffer before being incubated with ab7751 overnight at 4°C. Antibody binding was detected using the IRDye^® 800CW Goat Anti-Mouse secondary at a 1:10,000 dilution for 1hr at room temperature and then imaged using the Odyssey^® CLx Imaging System.

  All lanes: Western blot - Anti-beta III Tubulin antibody [TU-20] - Neuronal Marker (ab7751) at 1 µg/mL

  Lane 1: Human brain tissue lysate at 20 µg

  Lane 2: Human spinal cord tissue lysate at 20 µg

  Secondary

  All lanes: IRDye® 800CW Goat Anti-Mouse at 1/10000 dilution

  Performed under reducing conditions.

  Predicted band size: 50 kDa

  Observed band size: 51 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta III Tubulin antibody [TU-20] - Neuronal Marker (ab7751)

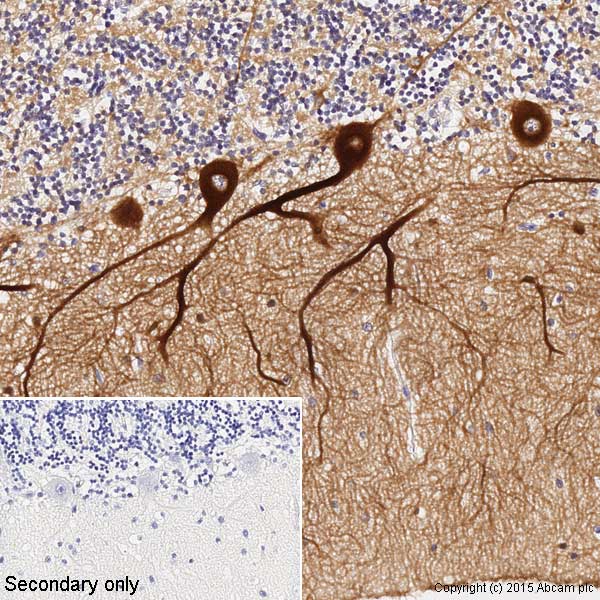

  IHC image of ab7751 staining beta III Tubulin in human cerebellum formalin fixed paraffin embedded tissue sections, performed on a Leica Bond.


  The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab7751, 5μg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with hematoxylin and mounted with DPX. No primary antibody was used in the secondary only control (shown on the inset).
  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.



•

  This image is courtesy of an anonymous customer review

  Immunocytochemistry/ Immunofluorescence - Anti-beta III Tubulin antibody [TU-20] - Neuronal Marker (ab7751)

  ab7751 staining beta III Tubulin in induced neurons derived from human pluripotent cells by ICC (Immunocytochemistry).


  Cells were fixed with paraformaldehyde, permeabilized with 0.25% Triton X-100 in PBS and blocked with 1% BSA for 30 minutes at 22°C. Samples were incubated with primary antibody (1/500) for 16 hours at 4°C. An Alexa Fluor^® 594-conjugated Donkey anti-mouse IgG polyclonal (1/1000) was used as the secondary antibody.

•

  Flow Cytometry (Intracellular) - Anti-beta III Tubulin antibody [TU-20] - Neuronal Marker (ab7751)

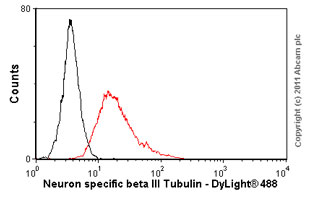

  Overlay histogram showing SH-SY5Y (Human neuroblastoma cell line from bone marrow) cells stained with ab7751 (red line).


  The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab7751, 1/50 dilution) for 30 min at 22°C. The secondary antibody used was DyLight^® 488 goat anti-mouse IgG (H+L) (Goat Anti-Mouse IgG H&L (DyLight® 488) preadsorbed ab96879) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was mouse IgG1 [ICIGG1] (Mouse IgG1, Kappa Monoclonal [B11/6] - Isotype Control ab91353, 2μg/1x10⁶ cells) used under the same conditions. Acquisition of >5,000 events was performed.

  This antibody gave a positive signal in SH-SY5Y cells fixed with 80% methanol (5 min)/permeabilized in 0.1% PBS-Tween used under the same conditions.

•

  This image is courtesy of a customer review submitted by Carl Hobbs, King's College London, United Kingdom

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta III Tubulin antibody [TU-20] - Neuronal Marker (ab7751)

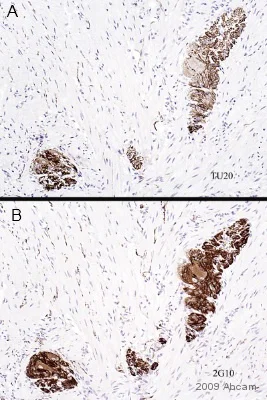

  ab7751 staining neuron specific beta III Tubulin in human colon tissue sections by Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections).


  Tissue underwent formaldehyde fixation before heat mediated antigen retrieval in citric acid pH 6 and then blocking with 1% BSA was performed for 10 minutes at RT. The primary antibody was used at dilution at 1/200 and incubated with sample in TBS/BSA/azide for 2 hours. A biotin conjugated goat polyclonal to mouse IgG was used at dilution at 1/200 as secondary antibody. Images A and B represent staining of the clone TU20 and 2G10 respectively in ganglia of Auerbach's plexus.

•

  This image is courtesy of a customer review submitted by Carl Hobbs, King's College London, United Kingdom

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta III Tubulin antibody [TU-20] - Neuronal Marker (ab7751)

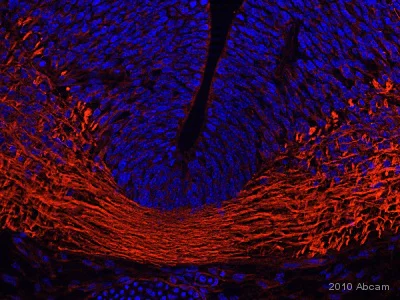

  Immunohistochemistical detection of neuron specific beta III Tubulin using antibody (ab7751) on whole mouse e12 embryo (formaldehyde fixed/frozen sections).


  Permeabilization: No. Blocking step: 1% BSA for 10 mins @ rt°C. Primary Antibody Dilution 1/200; Incubation time 2 hours in TBS/BSA/azide. Secondary antibody: anti Mouse IgG Conjugated to Alexa Fluor^® 594 (1/1000).

  Floorplate region of developing cervical spinal cord (I have not studied this particular region).

•

  Photo courtesy of QBMCellScience

  Immunocytochemistry/ Immunofluorescence - Anti-beta III Tubulin antibody [TU-20] - Neuronal Marker (ab7751)

  ab7751 immunostaining (1/500) neuronal processes in primary mouse cortical culture.
