Rabbit Recombinant Monoclonal TBB4A antibody. Suitable for WB, ICC/IF, Flow Cyt (Intra), IHC-P and reacts with Mouse, Human, Rat samples. Cited in 10 publications.

Be the first to review this product! Submit a review

Images

Western blot - Anti-beta IV Tubulin antibody [EPR16775] (AB179504), expandable thumbnail
  • Western blot - Anti-beta IV Tubulin antibody [EPR16775] (AB179504), expandable thumbnail
  • Western blot - Anti-beta IV Tubulin antibody [EPR16775] (AB179504), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Anti-beta IV Tubulin antibody [EPR16775] (AB179504), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta IV Tubulin antibody [EPR16775] (AB179504), expandable thumbnail

Publications

Key facts

Isotype

IgG

Host species

Rabbit

Storage buffer

Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form

Liquid

Clonality

Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
WBICC/IFFlow Cyt (Intra)IHC-P
Human
Tested
Tested
Tested
Tested
Mouse
Tested
Expected
Expected
Tested
Rat
Expected
Expected
Expected
Tested

Tested
Tested

Species

Mouse

Dilution info

1/5000

Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species

Human

Dilution info

1/5000

Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Expected
Expected

Species

Rat

Dilution info

Use at an assay dependent concentration.

Notes

-

Tested
Tested

Species

Human

Dilution info

1/100

Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Expected
Expected

Species

Mouse, Rat

Dilution info

Use at an assay dependent concentration.

Notes

-

Tested
Tested

Species

Human

Dilution info

1/20

Notes

-

Expected
Expected

Species

Mouse, Rat

Dilution info

Use at an assay dependent concentration.

Notes

-

Tested
Tested

Species

Mouse

Dilution info

1/250

Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species

Rat

Dilution info

1/250

Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species

Human

Dilution info

1/250

Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Associated Products

Select an associated product type

7 products for Alternative Product

Target data

Function

Tubulin is the major constituent of microtubules, a cylinder consisting of laterally associated linear protofilaments composed of alpha- and beta-tubulin heterodimers. Microtubules grow by the addition of GTP-tubulin dimers to the microtubule end, where a stabilizing cap forms. Below the cap, tubulin dimers are in GDP-bound state, owing to GTPase activity of alpha-tubulin.

Alternative names

Recommended products

Rabbit Recombinant Monoclonal TBB4A antibody. Suitable for WB, ICC/IF, Flow Cyt (Intra), IHC-P and reacts with Mouse, Human, Rat samples. Cited in 10 publications.

Key facts

Isotype

IgG

Form

Liquid

Clonality

Monoclonal

Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number

EPR16775

Purification technique

Affinity purification Protein A

Concentration
Loading...

Storage

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

Beta IV Tubulin also known as TUBB4 is an important component of the microtubule structure within cells. It has a molecular mass of approximately 50 kDa. This protein is a critical part of the cytoskeleton and is expressed in a variety of tissues including neuronal tissues. Beta IV Tubulin plays a role in forming dynamic structures that aid in maintaining cell shape facilitating intracellular transport and enabling cell division. Researchers often use beta tubulin staining techniques to observe microtubules in cells which is important for understanding cellular processes.

Biological function summary

Beta IV Tubulin contributes significantly to the stability and function of microtubule networks. It is a member of the tubulin family and often forms tubulin heterodimers which are building blocks of microtubules. These microtubules are essential for many cellular activities such as mitosis and transport of organelles. Beta IV Tubulin is integral to the microtubule-based cellular processes and its functions are critical for neuronal development and function because it is a part of the complex cytoskeletal framework.

Pathways

Beta IV Tubulin is deeply involved in cellular processes such as the MAP kinase pathway and cell cycle regulation. These pathways are pivotal in transmitting signals that regulate cellular processes including growth and differentiation. The protein interacts with other tubulin isotypes and motor proteins like dynein and kinesin contributing to intracellular transport and chromosomal segregation during cell division. These interactions highlight its importance in maintaining proper cellular responses and functions.

Associated diseases and disorders

Mutations or dysregulation of beta IV Tubulin are associated with neurological conditions like dystonia and Charcot-Marie-Tooth disease. These disorders underline the importance of beta IV Tubulin in neuronal health and development. The protein’s interaction with other tubulins and motor proteins also relates it to neurodegenerative diseases where cytoskeletal integrity and function are often compromised. Understanding these interactions helps unravel the pathogenic mechanisms of these diseases and can guide therapeutic strategies.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

8 product images

  • Western blot - Anti-beta IV Tubulin antibody [EPR16775] (ab179504), expandable thumbnail

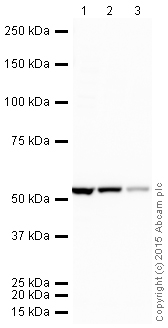

    Western blot - Anti-beta IV Tubulin antibody [EPR16775] (ab179504)

    Blocking/dilution buffer: 5% NFDM/TBST.

    All lanes: Western blot - Anti-beta IV Tubulin antibody [EPR16775] (ab179504) at 1/5000 dilution

    Lane 1: Human fetal brain lysates at 20 µg

    Lane 2: Human cerebellum lysates at 20 µg

    Lane 3: Human fetal kidney lysates at 20 µg

    Secondary

    All lanes: Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated antibody at 1/1000 dilution

    Predicted band size: 50 kDa

    Observed band size: 50 kDa

  • Western blot - Anti-beta IV Tubulin antibody [EPR16775] (ab179504), expandable thumbnail

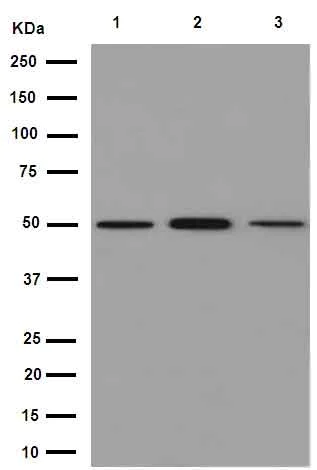

    Western blot - Anti-beta IV Tubulin antibody [EPR16775] (ab179504)

    Blocking/dilution buffer: 5% NFDM/TBST.

    All lanes: Western blot - Anti-beta IV Tubulin antibody [EPR16775] (ab179504) at 1/5000 dilution

    Lane 1: HeLa (Human epithelial cells from cervix adenocarcinoma) whole cell lysates at 10 µg

    Lane 2: Jurkat (Human T cell leukemia cells from peripheral blood) whole cell lysates at 10 µg

    Lane 3: Neuro-2a (Mouse neuroblastoma cells) whole cell lysates at 10 µg

    Secondary

    All lanes: Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated antibody at 1/1000 dilution

    Predicted band size: 50 kDa

    Observed band size: 50 kDa

  • Western blot - Anti-beta IV Tubulin antibody [EPR16775] (ab179504), expandable thumbnail

    Western blot - Anti-beta IV Tubulin antibody [EPR16775] (ab179504)

    Blocking/dilution buffer: 5% NFDM/TBST.

    All lanes: Western blot - Anti-beta IV Tubulin antibody [EPR16775] (ab179504) at 1/5000 dilution

    Lane 1: Mouse brain lysates at 10 µg

    Lane 2: Mouse heart lysates at 10 µg

    Lane 3: Mouse kidney lysates at 10 µg

    Lane 4: Mouse spleen lysates at 10 µg

    Lane 5: Rat brain lysates at 10 µg

    Lane 6: Rat heart lysates at 10 µg

    Lane 7: Rat kidney lysates at 10 µg

    Lane 8: Rat spleen lysates at 10 µg

    Lane 9: C6 (Rat glial tumor cells) whole cell lysates at 10 µg

    Lane 10: RAW 264.7 (Mouse macrophage cells transformed with Abelson murine leukemia virus) whole cell lysates at 10 µg

    Lane 11: PC-12 (Rat adrenal gland pheochromocytoma) whole cell lysates at 10 µg

    Lane 12: NIH/3T3 (Mouse embyro fibroblast cells) whole cell lysates at 10 µg

    Secondary

    All lanes: Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated antibody at 1/1000 dilution

    Predicted band size: 50 kDa

    Observed band size: 50 kDa

  • Immunocytochemistry/ Immunofluorescence - Anti-beta IV Tubulin antibody [EPR16775] (ab179504), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-beta IV Tubulin antibody [EPR16775] (ab179504)

    Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% tritonX-100 permeabilized HeLa (Human epithelial cells from cervix adenocarcinoma) cells labeling beta IV Tubulin with ab179504 at 1/100 dilution followed by Goat anti rabbit IgG (Alexa Fluor® 488) secondary antibody (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/200 dilution (green). Cytoplasm staining is observed.

    Tubulin is detected with Mouse anti-Tubulin antibody (Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291) at 1/500 dilution and Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/400 dilution (red). The nuclear counter stain is DAPI (blue).

    The negative controls:-

    -ve control 1 - ab179504 at 1/100 dilution followed by Goat anti mouse IgG (Alexa Fluor®594) at 1/400 dilution.
    -ve control 2 - Mouse anti-Tubulin antibody (Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291) at 1/500 dilution followed by Goat anti rabbit IgG (Alexa Fluor®488) at 1/200 dilution.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta IV Tubulin antibody [EPR16775] (ab179504), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta IV Tubulin antibody [EPR16775] (ab179504)

    Immunohistochemical analysis of paraffin-embedded Human cerebral cortex issue labeling beta IV Tubulin with ab179504 at 1/250 dilution, followed by prediluted HRP Polymer for Rabbit/Mouse IgG. Counter stained with Hematoxylin. Cytoplasm staining is observed on neurons of cerebral cortex.

    Negative control used PBS instead of ab179504, followed by prediluted HRP Polymer for Rabbit/Mouse IgG.

    Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta IV Tubulin antibody [EPR16775] (ab179504), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta IV Tubulin antibody [EPR16775] (ab179504)

    Immunohistochemical analysis of paraffin embedded Mouse hippocampus tissue labeling beta IV Tubulin with ab179504 at 1/250 dilution, followed by prediluted HRP Polymer for Rabbit/Mouse IgG. Counter stained with Hematoxylin. Cytoplasm staining is observed on neurons of mouse hippocampus.

    Negative control used PBS instead of ab179504, followed by prediluted HRP Polymer for Rabbit/Mouse IgG.

    Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta IV Tubulin antibody [EPR16775] (ab179504), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta IV Tubulin antibody [EPR16775] (ab179504)

    Immunohistochemical analysis of paraffin-embedded Rat thalamus tissue labeling beta IV Tubulin with ab179504 at 1/250 dilution, followed by prediluted HRP Polymer for Rabbit/Mouse IgG. Counter stained with Hematoxylin. Cytoplasm staining is observed on neurons of rat thalamus.

    Negative control used PBS instead of ab179504, followed by prediluted HRP Polymer for Rabbit/Mouse IgG.

    Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

  • Flow Cytometry (Intracellular) - Anti-beta IV Tubulin antibody [EPR16775] (ab179504), expandable thumbnail

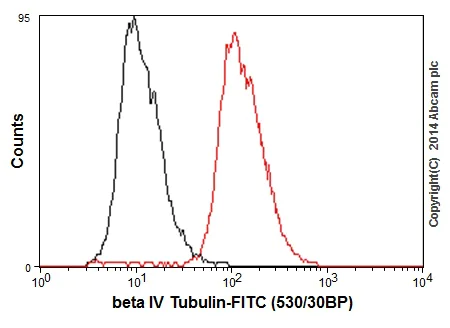

    Flow Cytometry (Intracellular) - Anti-beta IV Tubulin antibody [EPR16775] (ab179504)

    Intracellular Flow Cytometry analysis of 2% paraformaldehyde fixed Jurkat (Human T cell leukemia cells from peripheral blood) cells labeling beta IV Tubulinwith ab179504 at 1/20 dilution (red line). Secondary antibody used is a goat anti rabbit IgG (FITC) at 1/150 dilution. The isotype control is rabbit monoclonal IgG (black line).
