Anti-beta Sarcoglycan antibody [EPR28175-77] - BSA and Azide free

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta Sarcoglycan antibody [EPR28175-77] - BSA and Azide free (AB315387)

This data was developed using ab315386, the same antibody clone in a different buffer formulation.

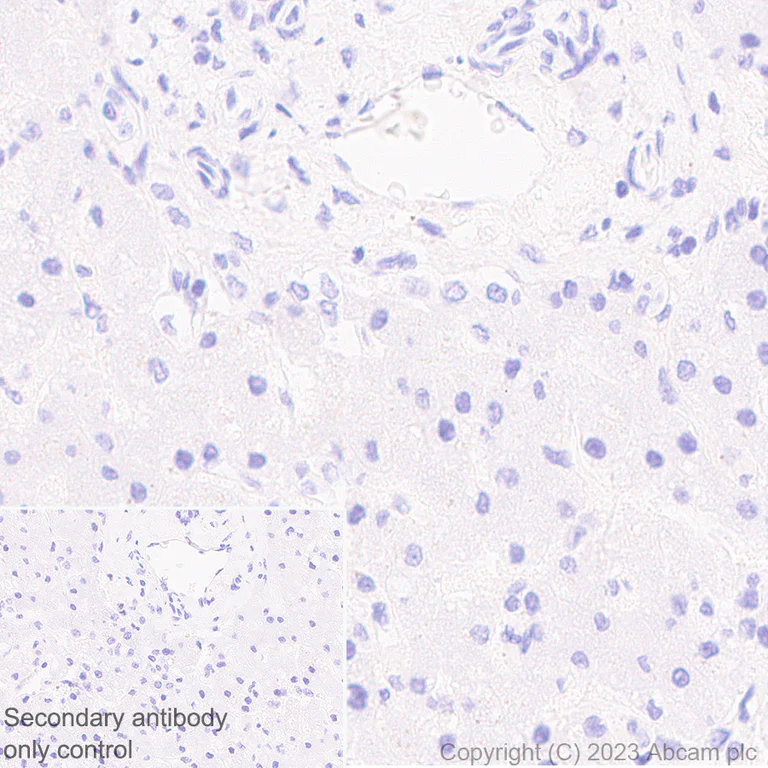

Immunohistochemical analysis of paraffin-embedded Human liver tissue labeling beta Sarcoglycan with ab315386 at 1/2000 (0.259 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Negative control : no staining on human liver. The section was incubated with ab315386 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta Sarcoglycan antibody [EPR28175-77] - BSA and Azide free (AB315387)

This data was developed using ab315386, the same antibody clone in a different buffer formulation.

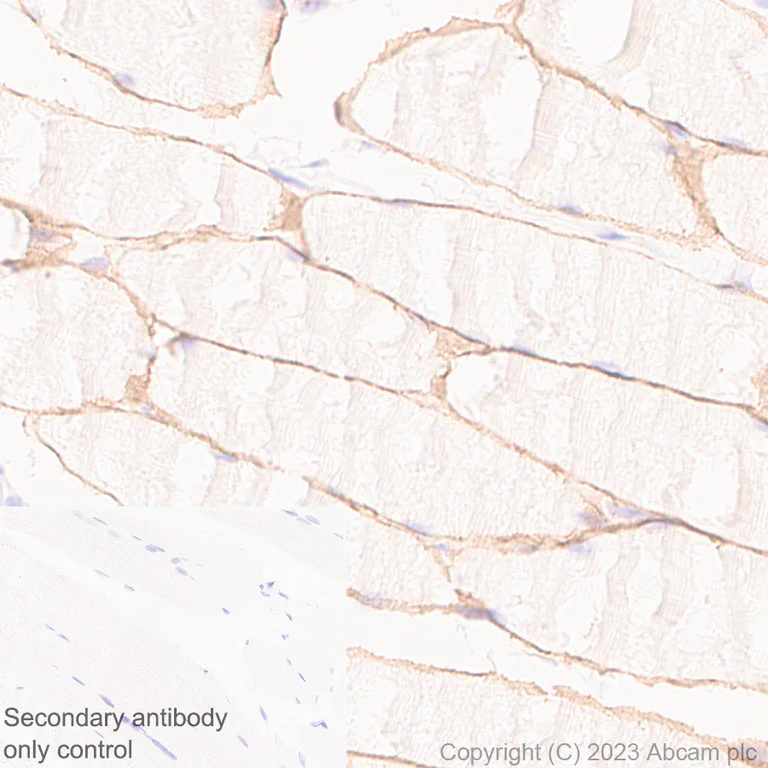

Immunohistochemical analysis of paraffin-embedded Human skeletal muscle tissue labeling beta Sarcoglycan with ab315386 at 1/2000 (0.259 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on human skeletal muscle (PMID : 20350330; PMID : 28219397). The section was incubated with ab315386 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta Sarcoglycan antibody [EPR28175-77] - BSA and Azide free (AB315387)

This data was developed using ab315386, the same antibody clone in a different buffer formulation.

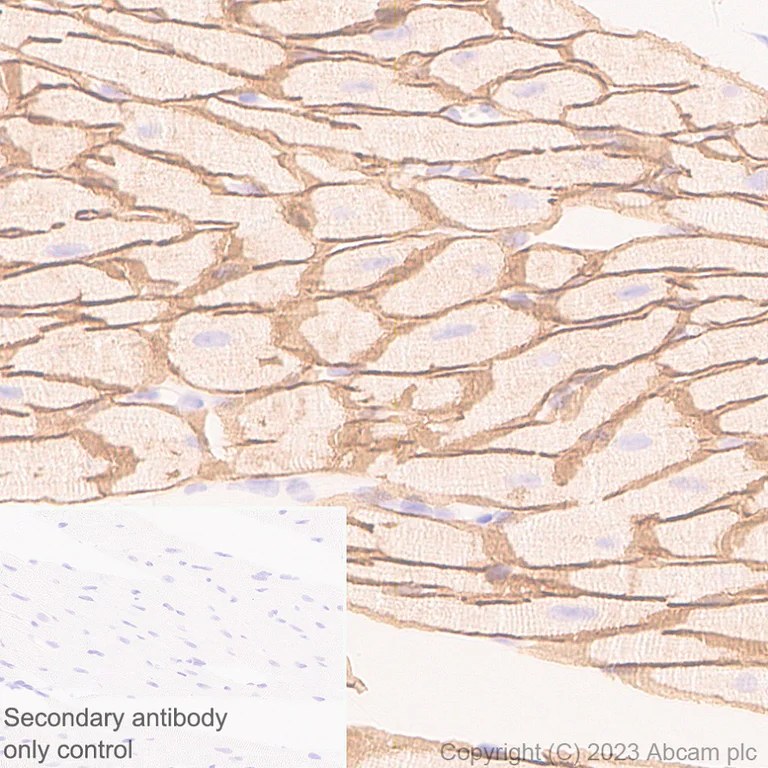

Immunohistochemical analysis of paraffin-embedded Human cardiac muscle tissue labeling beta Sarcoglycan with ab315386 at 1/2000 (0.259 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on human cardiac muscle. The section was incubated with ab315386 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• IP

Supplier Data

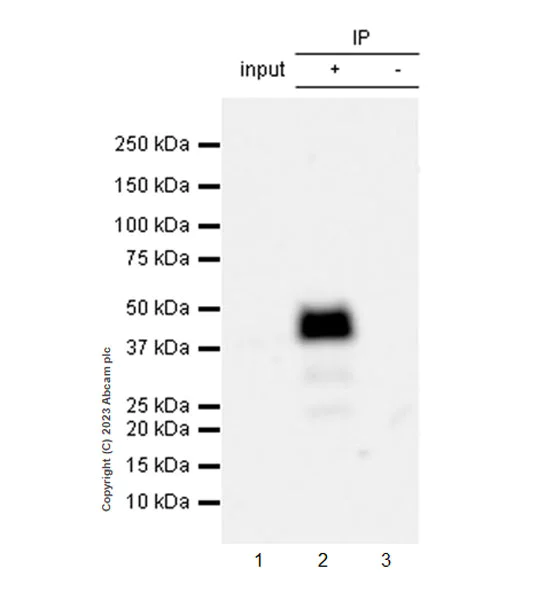

Immunoprecipitation - Anti-beta Sarcoglycan antibody [EPR28175-77] - BSA and Azide free (AB315387)

This data was developed using ab315386, the same antibody clone in a different buffer formulation.

beta Sarcoglycan was immunoprecipitated from 0.35 mg Human skeletal muscle tissue lysate with ab315386 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab315386 at 1/1000 dilution.

VeriBlot for IP secondary antibody(HRP)(ab131366) was used at 1/5000 dilution.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

All lanes:

Immunoprecipitation - Anti-beta Sarcoglycan antibody [EPR28175-77] (<a href='/en-us/products/primary-antibodies/beta-sarcoglycan-antibody-epr28175-77-ab315386'>ab315386</a>) at 1/1000 dilution

Lane 1:

Human skeletal muscle tissue lysate

Lane 2:

<a href='/en-us/products/primary-antibodies/beta-sarcoglycan-antibody-epr28175-77-ab315386'>ab315386</a> at 1/30 IP in Human skeletal muscle tissue lysate

Lane 3:

Rabbit monoclonal IgG (<a href='/en-us/products/primary-antibodies/rabbit-igg-monoclonal-epr25a-isotype-control-ab172730'>ab172730</a>) instead of <a href='/en-us/products/primary-antibodies/beta-sarcoglycan-antibody-epr28175-77-ab315386'>ab315386</a> in human skeletal muscle tissue lysate

Secondary

All lanes:

Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (<a href='/en-us/products/reagents/veriblot-for-ip-detection-reagent-hrp-ab131366'>ab131366</a>) at 1/5000 dilution

false

Exposure time: 6s

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta Sarcoglycan antibody [EPR28175-77] - BSA and Azide free (AB315387)

This data was developed using ab315386, the same antibody clone in a different buffer formulation.

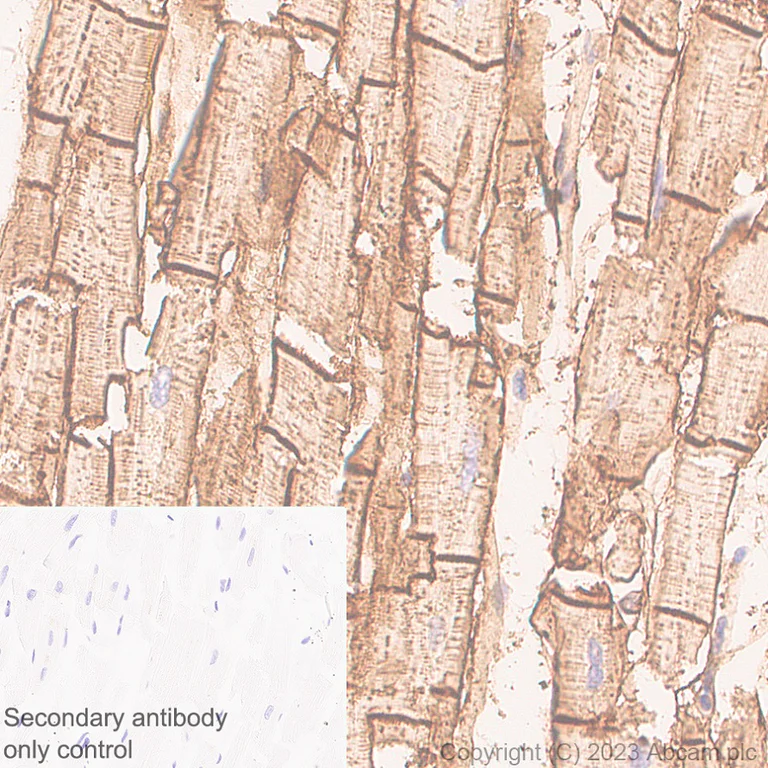

Immunohistochemical analysis of paraffin-embedded Rat cardiac muscle tissue labeling beta Sarcoglycan with ab315386 at 1/2000 (0.259 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on rat cardiac muscle. The section was incubated with ab315386 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta Sarcoglycan antibody [EPR28175-77] - BSA and Azide free (AB315387)

This data was developed using ab315386, the same antibody clone in a different buffer formulation.

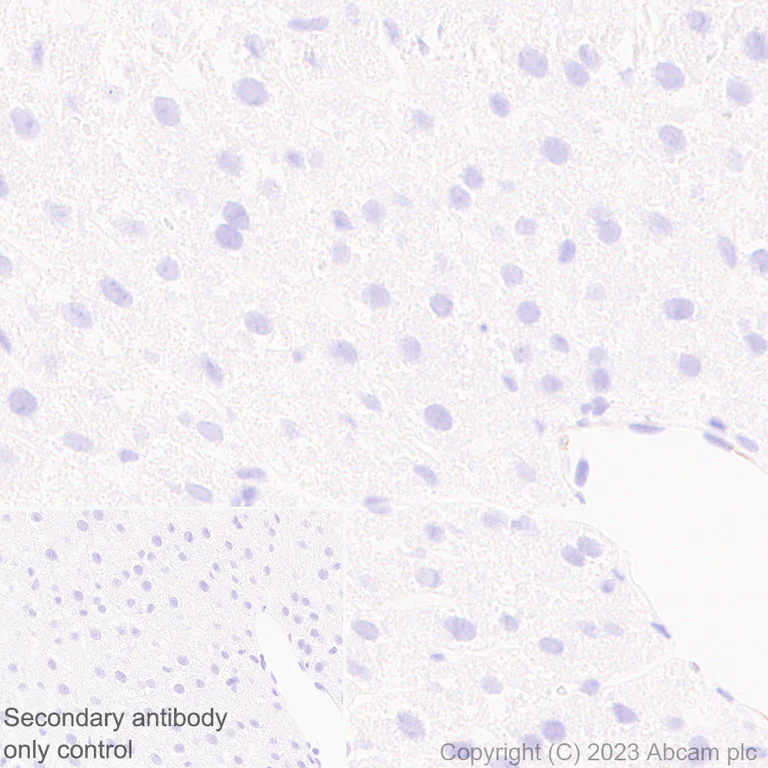

Immunohistochemical analysis of paraffin-embedded Rat liver tissue labeling beta Sarcoglycan with ab315386 at 1/2000 (0.259 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Negative control : no staining on rat liver. The section was incubated with ab315386 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta Sarcoglycan antibody [EPR28175-77] - BSA and Azide free (AB315387)

This data was developed using ab315386, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Mouse liver tissue labeling beta Sarcoglycan with ab315386 at 1/2000 (0.259 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Negative control : no staining on mouse liver (PMID : 28284983). The section was incubated with ab315386 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta Sarcoglycan antibody [EPR28175-77] - BSA and Azide free (AB315387)

This data was developed using ab315386, the same antibody clone in a different buffer formulation.

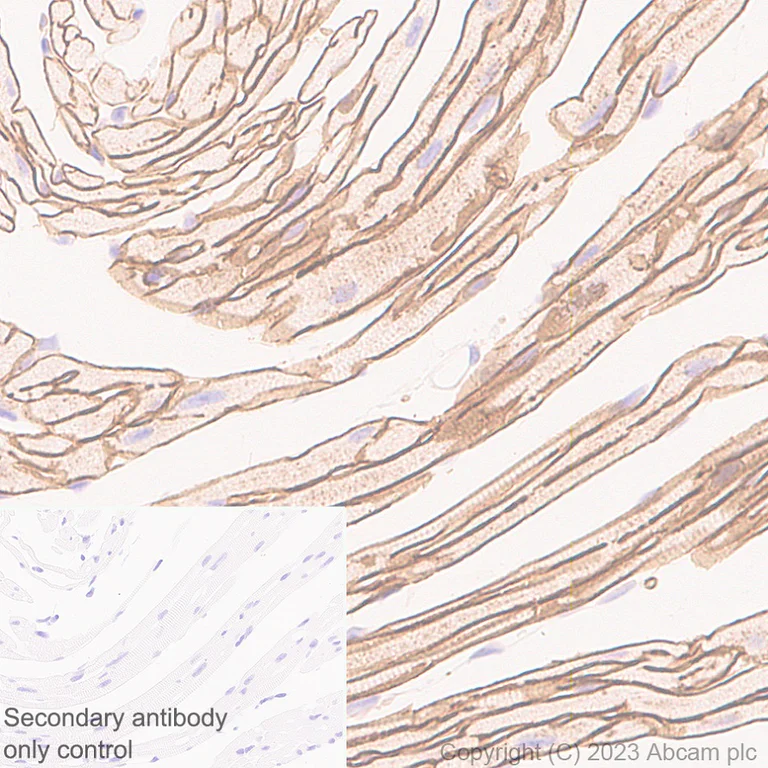

Immunohistochemical analysis of paraffin-embedded Mouse cardiac muscle tissue labeling beta Sarcoglycan with ab315386 at 1/2000 (0.259 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on mouse cardiac muscle (PMID : 33397205). The section was incubated with ab315386 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta Sarcoglycan antibody [EPR28175-77] - BSA and Azide free (AB315387)

This data was developed using ab315386, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Rat skeletal muscle tissue labeling beta Sarcoglycan with ab315386 at 1/2000 (0.259 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on rat skeletal muscle (PMID : 27535350). The section was incubated with ab315386 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta Sarcoglycan antibody [EPR28175-77] - BSA and Azide free (AB315387)

This data was developed using ab315386, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Mouse skeletal muscle tissue labeling beta Sarcoglycan with ab315386 at 1/2000 (0.259 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on mouse skeletal muscle (PMID : 10678176). The section was incubated with ab315386 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• WB

Supplier Data

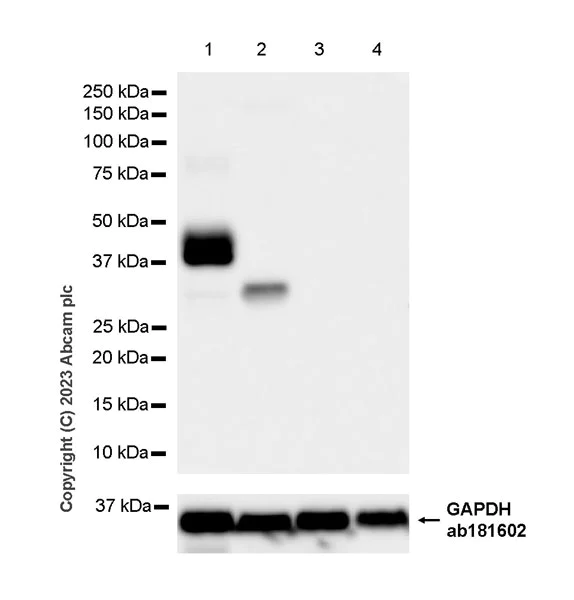

Western blot - Anti-beta Sarcoglycan antibody [EPR28175-77] - BSA and Azide free (AB315387)

This data was developed using ab315386, the same antibody clone in a different buffer formulation.

Low expression : liver, bone marrow, pancreas.

The identity of the lower MW band at approximately 32 kDa is unknown.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

All lanes:

Western blot - Anti-beta Sarcoglycan antibody [EPR28175-77] (<a href='/en-us/products/primary-antibodies/beta-sarcoglycan-antibody-epr28175-77-ab315386'>ab315386</a>) at 1/1000 dilution

Lane 1:

Human skeletal muscle tissue lysate at 20 µg

Lane 2:

Human liver tissue lysate at 20 µg

Lane 3:

Human bone marrow tissue lysate at 20 µg

Lane 4:

Human pancreas tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/2000 dilution

Observed band size: 40 kDa,36 kDa

false

Exposure time: 8s

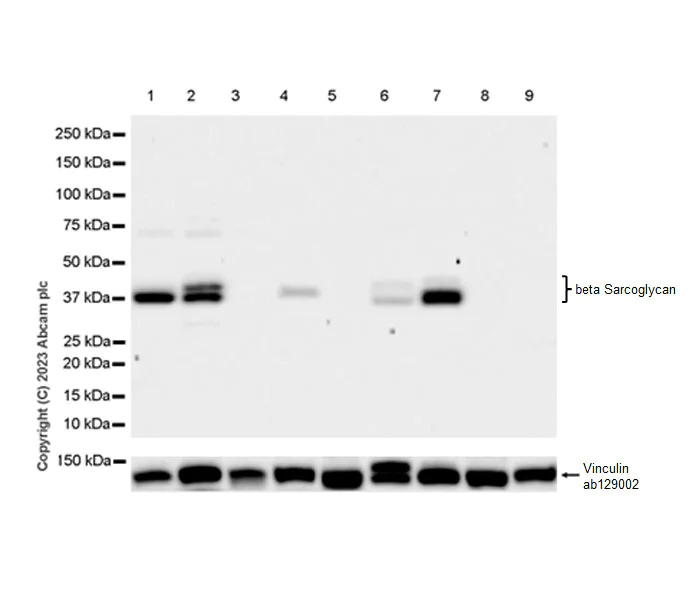

• WB

Supplier Data

Western blot - Anti-beta Sarcoglycan antibody [EPR28175-77] - BSA and Azide free (AB315387)

This data was developed using ab315386, the same antibody clone in a different buffer formulation.

Low expression : liver, bone marrow, pancreas.

The molecular weight observed is consistent with what has been described in the literature (PMID : 10678176).

In Western blot, Anti-Vinculin antibody [EPR8185] (ab129002) staining at 1/10000 dilution.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

All lanes:

Western blot - Anti-beta Sarcoglycan antibody [EPR28175-77] (<a href='/en-us/products/primary-antibodies/beta-sarcoglycan-antibody-epr28175-77-ab315386'>ab315386</a>) at 1/1000 dilution

Lane 1:

Mouse skeletal muscle tissue lysate at 20 µg

Lane 2:

Mouse heart tissue lysate at 20 µg

Lane 3:

Mouse bone marrow tissue lysate at 20 µg

Lane 4:

Mouse liver tissue lysate at 20 µg

Lane 5:

Mouse pancreas tissue lysate at 20 µg

Lane 6:

Rat skeletal muscle tissue lysate at 20 µg

Lane 7:

Rat heart tissue lysate at 20 µg

Lane 8:

Rat liver tissue lysate at 20 µg

Lane 9:

Rat pancreas tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 40 kDa,37 kDa,124 kDa

false

Exposure time: 26s
