Anti-beta Synuclein antibody [EP1537Y]

8 product images

•

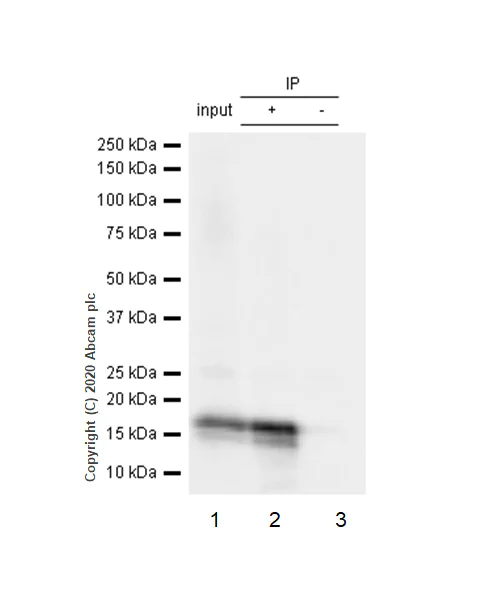

  Immunoprecipitation - Anti-beta Synuclein antibody [EP1537Y] (ab76111)

  Purified ab76111 at 1/20 dilution (0.6 µg) immunoprecipitating beta Synuclein in Human brain lysate.
  Lane 1 (input): Human brain lysate 10 µg
  Lane 2 (+): ab76111 + Human brain lysate.
  Lane 3 (-): Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab76111 in Human brain lysate.
  VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) (1/1000 dilution) was used for Western blotting.
  Blocking Buffer and concentration: 5% NFDM/TBST.
  Diluting buffer and concentration: 5% NFDM/TBST.
  Observed band size: 18 kDa

  All lanes: Immunoprecipitation - Anti-beta Synuclein antibody [EP1537Y] (ab76111)

  Predicted band size: 14 kDa

•

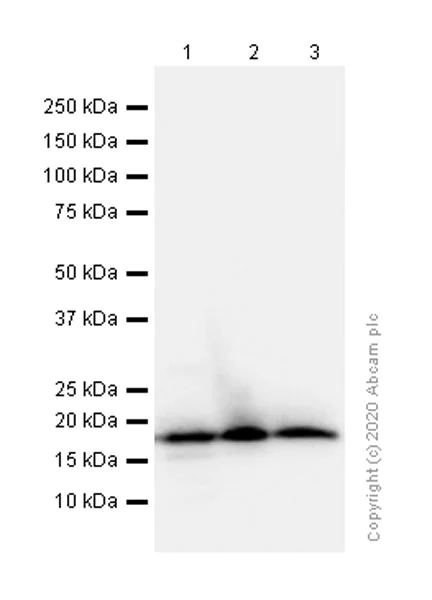

  Western blot - Anti-beta Synuclein antibody [EP1537Y] (ab76111)

  All lanes: Western blot - Anti-beta Synuclein antibody [EP1537Y] (ab76111) at 1/10000 dilution

  Lane 1: Human brain lysate at 20 µg

  Lane 2: Mouse brain lysate at 20 µg

  Lane 3: Rat brain lysate at 20 µg

  Secondary

  All lanes: Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

  Predicted band size: 14 kDa

  Observed band size: 18 kDa

•

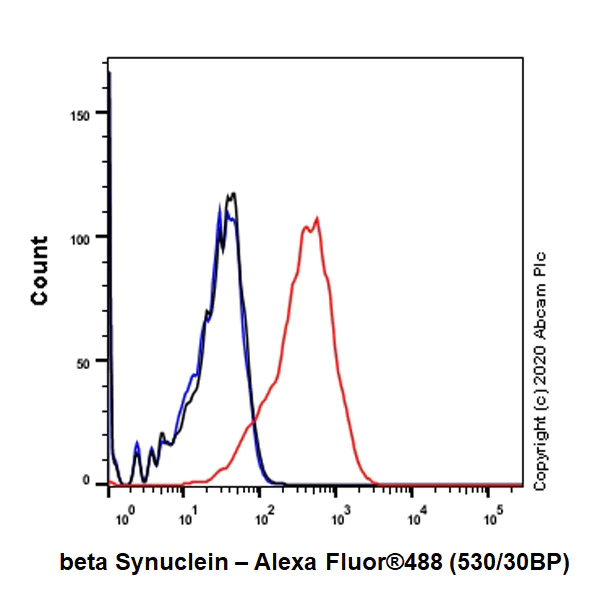

  Flow Cytometry (Intracellular) - Anti-beta Synuclein antibody [EP1537Y] (ab76111)

  Intracellular Flow Cytometry analysis of PC-12 (Rat adrenal gland pheochromocytoma) cells labeling beta Synuclein with purified ab76111 at 1/100 dilution (10μg/mL) (Red). Cells were fixed with 4% Paraformaldehyde and permeabilised with 90% Methanol. A Goat anti rabbit IgG (Alexa Fluorr^® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody was used at 1/2000. Isotype control - Rabbit monoclonal IgG (Black). Unlabeled control - Cell without incubation with primary antibody and secondary antibody (Blue).


•

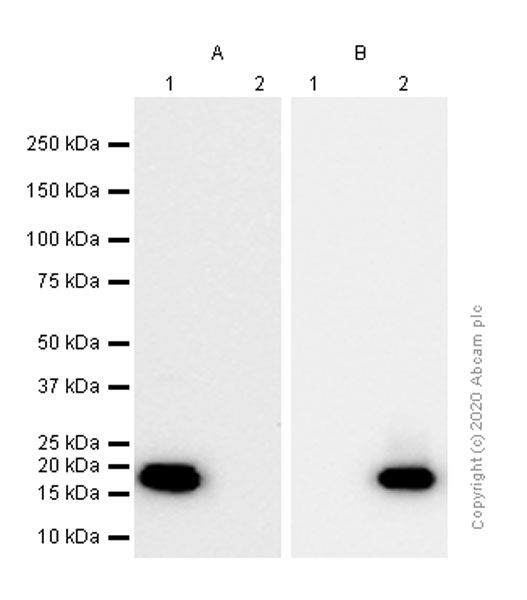

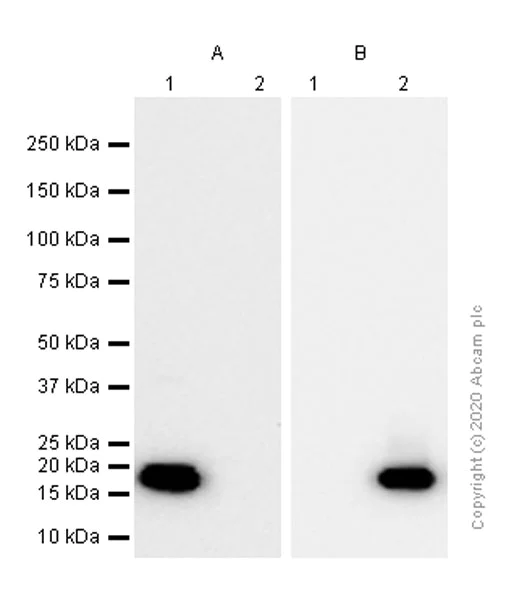

  Western blot - Anti-beta Synuclein antibody [EP1537Y] (ab76111)

  A: Anti-beta Synuclein antibody [EP1537Y] (ab76111)


  B: Anti-Alpha-synuclein antibody [MJFR1] (Anti-Alpha-synuclein antibody [MJFR1] ab138501)

  All lanes: Western blot - Anti-beta Synuclein antibody [EP1537Y] (ab76111) at 1/10000 dilution

  Lane 1: His-Tagged human beta Synuclein (aa 1 to 134) recombinant protein at 0.015 µg

  Lane 2: His-Tagged alpha synuclein (aa 1 to 140) recombinant protein at 0.015 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

  Predicted band size: 14 kDa

  Observed band size: 18 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta Synuclein antibody [EP1537Y] (ab76111)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human cerebrum tissue sections labeling beta Synuclein with purified ab76111 at 1/50 dilution (2.4 µg/mL). Perform heat mediated antigen retrieval using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0). ImmunoHistoProbe one step HRP Polymer (ready to use) was used as the secondary antibody. Negative control: PBS instead of the primary antibody. Hematoxylin was used as a counterstain.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta Synuclein antibody [EP1537Y] (ab76111)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of mouse cerebrum tissue sections labeling beta Synuclein with purified ab76111 at 1/50 dilution (2.4 µg/mL). Perform heat mediated antigen retrieval using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0). ImmunoHistoProbe one step HRP Polymer (ready to use) was used as the secondary antibody. Negative control: PBS instead of the primary antibody. Hematoxylin was used as a counterstain.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-beta Synuclein antibody [EP1537Y] (ab76111)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of rat cerebrum tissue sections labeling beta Synuclein with purified ab76111 at 1/50 dilution (2.4 µg/mL). Perform heat mediated antigen retrieval using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0). ImmunoHistoProbe one step HRP Polymer (ready to use) was used as the secondary antibody. Negative control: PBS instead of the primary antibody. Hematoxylin was used as a counterstain.

•

  Immunocytochemistry/ Immunofluorescence - Anti-beta Synuclein antibody [EP1537Y] (ab76111)

  Immunocytochemistry/ Immunofluorescence analysis of PC-12 (Rat adrenal gland pheochromocytoma) cells labeling beta Synuclein with purified ab76111 at 1/50 dilution (2.4 μg/mL). Cells were fixed in 4% Paraformaldehyde and permeabilized with 0.1% TritonX-100. Cells were counterstained with Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) 1/200 (2.5 μg/mL). Goat anti rabbit IgG (Alexa Fluor^® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody at 1/1000 (2 μg/mL) dilution. DAPI (blue) was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.
