Anti-Bmi1 antibody [BMI1/2823] - BSA and Azide free

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-Bmi1 antibody [BMI1/2823] - BSA and Azide free (AB269688)

PFA-fixed HeLa (human epithelial cell line from cervix adenocarcinoma) cells labeling Bmi1 using ab269678 at 2 μg/ml in ICC/IF. The secondary antibody is a Goat anti-mouse IgG-CF488 conjugate (Green). The membrane is stained with Phalloidin (Red).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA and Sodium Azide (ab269678).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Bmi1 antibody [BMI1/2823] - BSA and Azide free (AB269688)

Formalin-fixed, paraffin-embedded human colon carcinoma tissue stained for Bmi1 using ab269678 at 2 μg/ml in immunohistochemical analysis.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA and Sodium Azide (ab269678).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Bmi1 antibody [BMI1/2823] - BSA and Azide free (AB269688)

Formalin-fixed, paraffin-embedded human prostate carcinoma tissue stained for Bmi1 using ab269678 at 2 μg/ml in immunohistochemical analysis.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA and Sodium Azide (ab269678).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Bmi1 antibody [BMI1/2823] - BSA and Azide free (AB269688)

Formalin-fixed, paraffin-embedded human breast carcinoma tissue stained for Bmi1 using ab269678 at 2 μg/ml in immunohistochemical analysis.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA and Sodium Azide (ab269678).

• WB

Lab

Western blot - Anti-Bmi1 antibody [BMI1/2823] - BSA and Azide free (AB269688)

This data was developed using the same antibody clone in a different buffer formulation (ab269678).

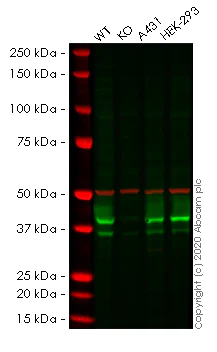

Lanes 1- 4 : Merged signal (red and green). Green - ab269678 observed at 36 kDa. Red - Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab52866) observed at 50 kDa.

ab269678 was shown to react with Bmi1 in wild-type MCF7 cells in western blot. Loss of signal was observed when knockout cell line ab262319 (knockout cell lysate ab256851) was used. Wild-type MCF7 and BMI1 knockout MCF7 cell lysates were subjected to SDS-PAGE. Membrane was blocked for 1 hour at room temperature in 0.1% TBST with 3% non-fat dried milk. ab269678 and Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab52866) overnight at 4°C at a 2 μg/ml and a 1 in 20000 dilution respectively. Blots were developed with Goat anti-Mouse IgG H&L (IRDye^®800CW) preadsorbed (ab216772) and Goat Anti-Rabbit IgG H&L (IRDye^®680RD) preadsorbed (ab216777) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-Bmi1 antibody [BMI1/2823] (<a href='/en-us/products/primary-antibodies/bmi1-antibody-bmi1-2823-ab269678'>ab269678</a>) at 2 µg/mL

Lane 1:

Wild-type MCF7 cell lysate at 20 µg

Lane 1:

Western blot - Human BMI1 knockout MCF7 cell lysate (<a href='/en-us/products/cell-lysates/human-bmi1-knockout-mcf7-cell-lysate-ab256851'>ab256851</a>)

Lane 2:

BMI1 knockout MCF7 cell lysate at 20 µg

Lane 2:

Western blot - Human BMI1 knockout MCF7 cell line (<a href='/en-us/products/cell-lines/human-bmi1-knockout-mcf7-cell-line-ab262319'>ab262319</a>)

Lane 3:

A431 cell lysate at 20 µg

Lane 4:

HEK-293 cell lysate at 20 µg

Predicted band size: 36 kDa

Observed band size: 36 kDa

false

• Protein Array

Supplier Data

Protein Array - Anti-Bmi1 antibody [BMI1/2823] - BSA and Azide free (AB269688)

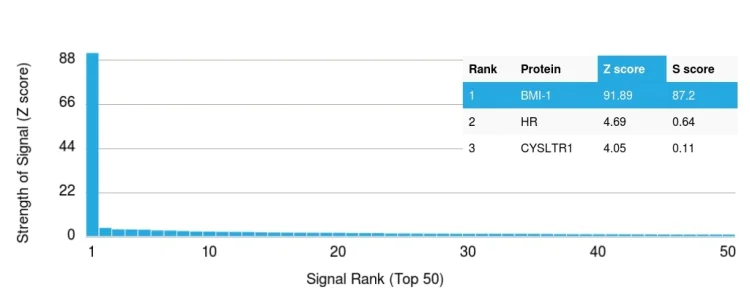

Analysis of Protein Array containing more than 19,000 full-length human proteins using ab269678.

Z- and S- Score : The Z-score represents the strength of a signal that a monoclonal antibody (MAb) (in combination with a fluorescently-tagged anti-IgG secondary antibody) produces when binding to a particular protein on the HuProt^TM array. Z-scores are described in units of standard deviations (SD's) above the mean value of all signals generated on that array. If targets on HuProt^TM are arranged in descending order of the Z-score, the S-score is the difference (also in units of SD's) between the Z-score. S-score therefore represents the relative target specificity of a MAb to its intended target. A MAb is considered to specific to its intended target, if the MAb has an S-score of at least 2.5. For example, if a MAb binds to protein X with a Z-score of 43 and to protein Y with a Z-score of 14, then the S-score for the binding of that MAb to protein X is equal to 29.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA and Sodium Azide (ab269678).

• WB

Supplier Data

Western blot - Anti-Bmi1 antibody [BMI1/2823] - BSA and Azide free (AB269688)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA and Sodium Azide (ab269678).

All lanes:

Western blot - Anti-Bmi1 antibody [BMI1/2823] (<a href='/en-us/products/primary-antibodies/bmi1-antibody-bmi1-2823-ab269678'>ab269678</a>) at 2 µg/mL

All lanes:

NIH/3T3 (mouse embryo fibroblast cell line) cell lysate

Predicted band size: 36 kDa

false
