Anti-Bmi1 antibody [EPR22604-160] - ChIP Grade

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Bmi1 antibody [EPR22604-160] - ChIP Grade (AB254253)

Immunohistochemical analysis of paraffin-embedded human gastric cancer tissue labeling Bmi1 with ab254253 at 1/500 dilution, followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Nuclear staining on human gastric cancer is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is the ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

The section was incubated with ab254253 for 30 mins at RT. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument.

• ICC/IF

Unknown

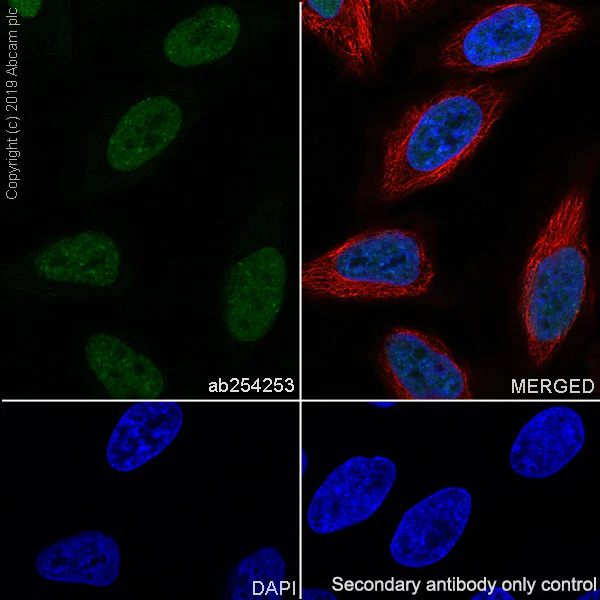

Immunocytochemistry/ Immunofluorescence - Anti-Bmi1 antibody [EPR22604-160] - ChIP Grade (AB254253)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% tritonX-100 permeabilized, HeLa (human cervix adenocarcinoma epithelial cell) cells labeling Bmi1 with ab254253 at 1/50 dilution, followed by a AlexaFluor^®488 Goat anti-Rabbit (ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing nuclear staining in Hela cells. DAPI was used as a nuclear counterstain (blue). Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594, ab195889) at 1/200 was used as a counterstain.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a AlexaFluor^®488 Goat anti-Rabbit (ab150077) secondary antibody at 1/1000 dilution.

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-Bmi1 antibody [EPR22604-160] - ChIP Grade (AB254253)

Intracellular flow cytometric analysis of 4% paraformaldehyde fixed, 90% methanol permeabilized HeLa (human cervix adenocarcinoma epithelial cell) cell line labeling Bmi1 with ab254253 at 1/60 (red) compared with a Rabbit monoclonal IgG (ab172730) (Black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) at 1/2000 dilution was used as the secondary antibody.

• Flow Cyt (Intra)

Unknown

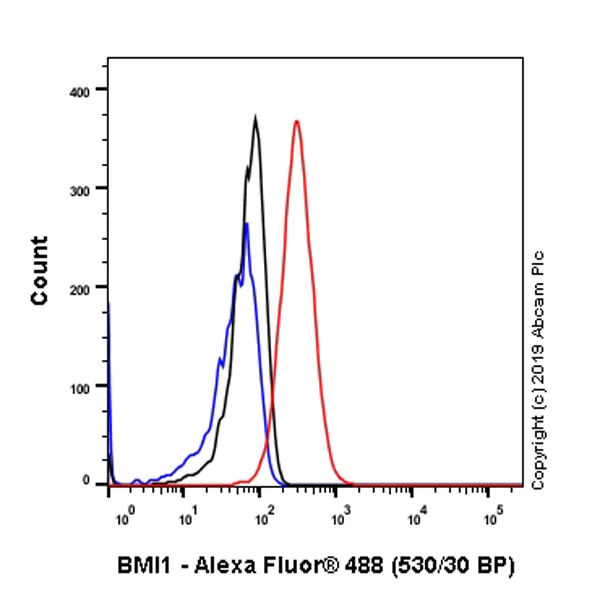

Flow Cytometry (Intracellular) - Anti-Bmi1 antibody [EPR22604-160] - ChIP Grade (AB254253)

Intracellular flow cytometric analysis of 4% paraformaldehyde fixed, 90% methanol permeabilized HeLa (human cervix adenocarcinoma epithelial cell) cell line labeling Bmi1 with ab254253 at 1/60 (red) compared with a Rabbit monoclonal IgG (ab172730) (Black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). Goat anti rabbit IgG (Alexa Fluor® 488, ab150077) at 1/2000 dilution was used as the secondary antibody.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Bmi1 antibody [EPR22604-160] - ChIP Grade (AB254253)

Immunohistochemical analysis of paraffin-embedded human prostatic hyperplasia tissue labeling Bmi1 with ab254253 at 1/500 dilution, followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Nuclear staining on human prostatic hyperplasia is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is the ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

The section was incubated with ab254253 for 30 mins at RT. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument.

• IP

Unknown

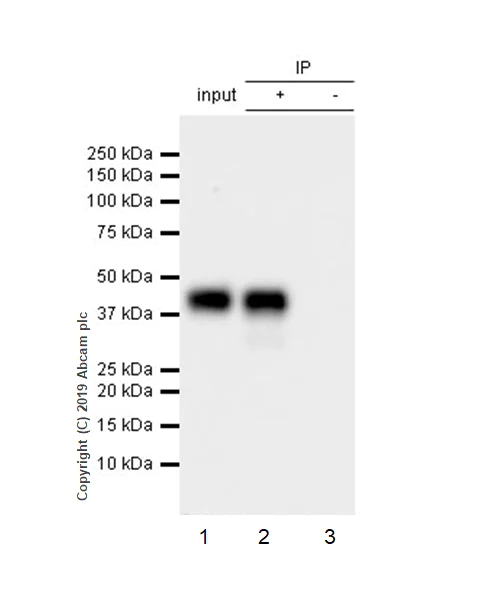

Immunoprecipitation - Anti-Bmi1 antibody [EPR22604-160] - ChIP Grade (AB254253)

Bmi1 was immunoprecipitated from 0.35mg of K562 (human chronic myelogenous leukemia lymphoblast) whole cell lysate with ab254253 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab254253 at 1/1000 dilution. VeriBlot for IP detection reagent (HRP) (ab131366) was used as secondary antibody at 1/5000 dilution.

Lane 1 : K562 whole cell lysate 10 μg (Input).

Lane 2 : ab254253 IP in K562 whole cell lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab254253 in K562 whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST

Exposure time : 15 seconds.

All lanes:

Immunoprecipitation - Anti-Bmi1 antibody [EPR22604-160] - ChIP Grade (ab254253)

Predicted band size: 36 kDa

false

• ChIP-seq

Lab

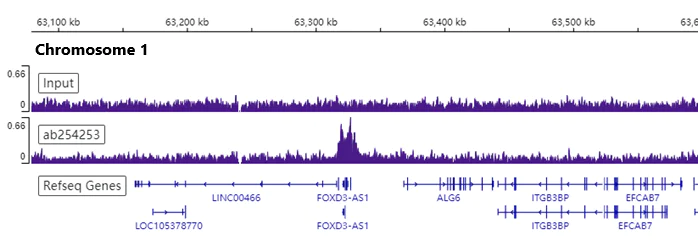

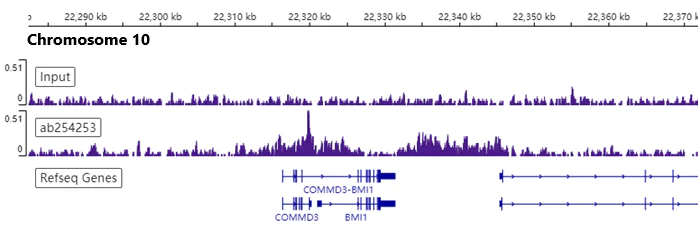

ChIP-sequencing - Anti-Bmi1 antibody [EPR22604-160] - ChIP Grade (AB254253)

Chromatin was prepared from NCCIT cells. Cells were fixed with 1% formaldehyde for 10 minutes. ChIP was performed with 10^7 NCCIT cells and 8 µg of ab254253 [EPR22604-160]. ChIP DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 30 million reads. Additional screenshots of mapped reads can be downloaded here.

• ChIP-seq

Lab

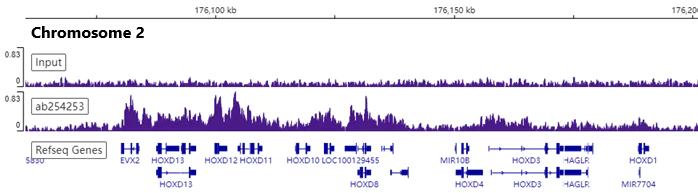

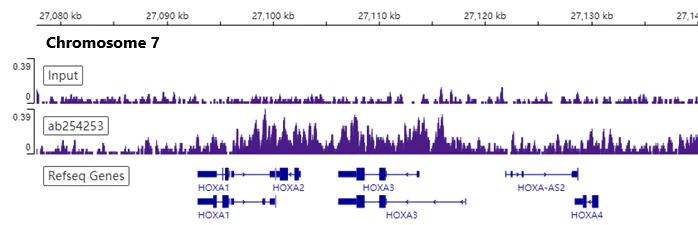

ChIP-sequencing - Anti-Bmi1 antibody [EPR22604-160] - ChIP Grade (AB254253)

Chromatin was prepared from NCCIT cells. Cells were fixed with 1% formaldehyde for 10 minutes. ChIP was performed with 10^7 NCCIT cells and 8 µg of ab254253 [EPR22604-160]. ChIP DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 30 million reads. Additional screenshots of mapped reads can be downloaded here.

• ChIP-seq

Lab

ChIP-sequencing - Anti-Bmi1 antibody [EPR22604-160] - ChIP Grade (AB254253)

Chromatin was prepared from NCCIT cells. Cells were fixed with 1% formaldehyde for 10 minutes. ChIP was performed with 10^7 NCCIT cells and 8 µg of ab254253 [EPR22604-160]. ChIP DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 30 million reads. Additional screenshots of mapped reads can be downloaded here.

• ChIP

Lab

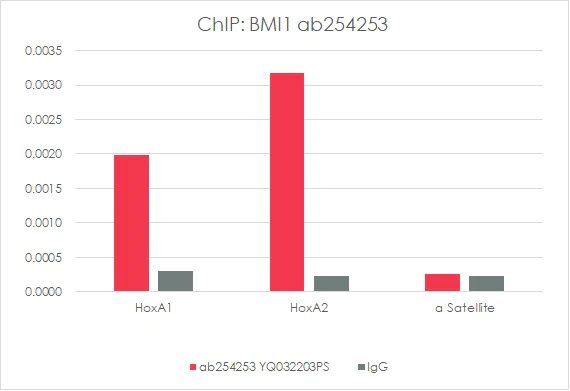

ChIP - Anti-Bmi1 antibody [EPR22604-160] - ChIP Grade (AB254253)

Chromatin was prepared from NCCIT cells according to the Abcam X-ChIP protocol. Cells were fixed with formaldehyde for 10min.

The ChIP was performed with 25 μg of chromatin, 5 μg of ab254253 (red), and 20 μl of Protein A/G Sepharose beads. 5 μg of rabbit normal IgG was added to the beads control (gray). The immunoprecipitated DNA was quantified by real time PCR (sybr green approach).

Primers and probes are located in the first kb of the transcribed region.

• ChIP-seq

Lab

ChIP-sequencing - Anti-Bmi1 antibody [EPR22604-160] - ChIP Grade (AB254253)

Chromatin was prepared from NCCIT cells. Cells were fixed with 1% formaldehyde for 10 minutes. ChIP was performed with 10^7 NCCIT cells and 8 µg of ab254253 [EPR22604-160]. ChIP DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 30 million reads. Additional screenshots of mapped reads can be downloaded here.

• ICC/IF

Unknown

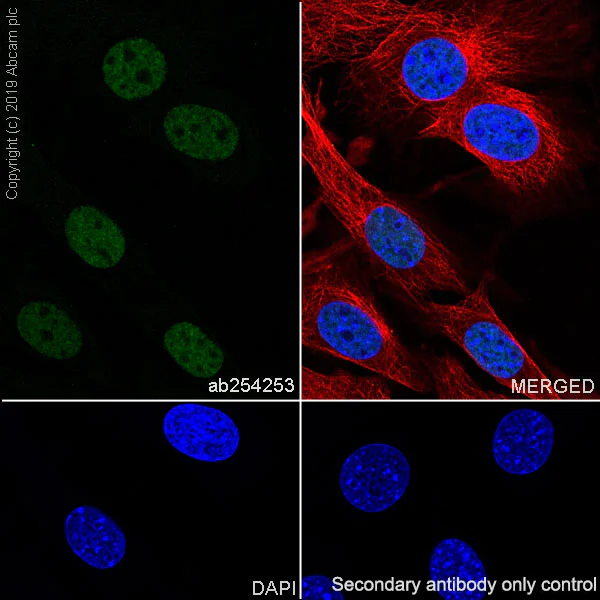

Immunocytochemistry/ Immunofluorescence - Anti-Bmi1 antibody [EPR22604-160] - ChIP Grade (AB254253)

Immunofluorescent analysis of 4% paraformaldehyde, 0.1% triton X-100 fixed, NIH/3T3 (mouse embryonic fibroblast) cells labeling Bmi1 with ab254253 at 1/50 dilution, followed by AlexaFluor^®488 Goat anti-Rabbit (ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing nuclear staining in NIH/3T3 cells. DAPI was used as a nuclear counterstain (blue). Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594, ab195889) at 1/200 was used as a counterstain.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a AlexaFluor^®488 Goat anti-Rabbit (ab150077) secondary antibody at 1/1000 dilution.

• Flow Cyt (Intra)

Unknown

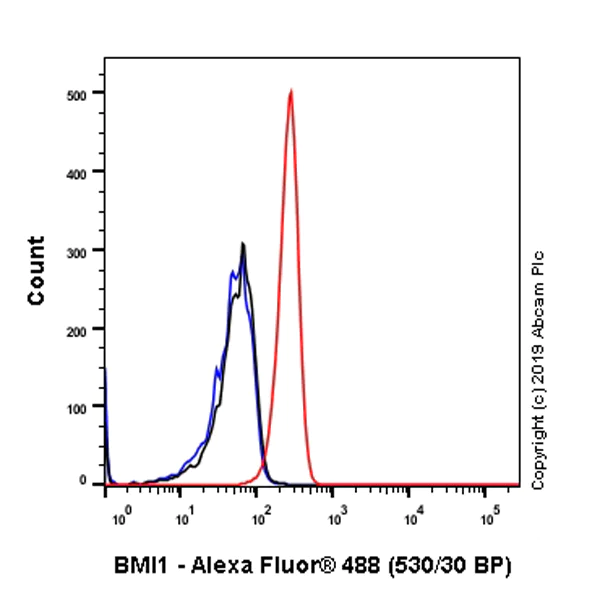

Flow Cytometry (Intracellular) - Anti-Bmi1 antibody [EPR22604-160] - ChIP Grade (AB254253)

Intracellular flow cytometric analysis of 4% paraformaldehyde fixed, 90% methanol permeabilized NIH/3T3 (mouse embryonic fibroblast) cell line labeling Bmi1 with ab254253 at 1/60 dilution (red) compared with a Rabbit monoclonal IgG (ab172730) (Black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) at 1/2000 dilution was used as the secondary antibody.

• IHC-P

Unknown

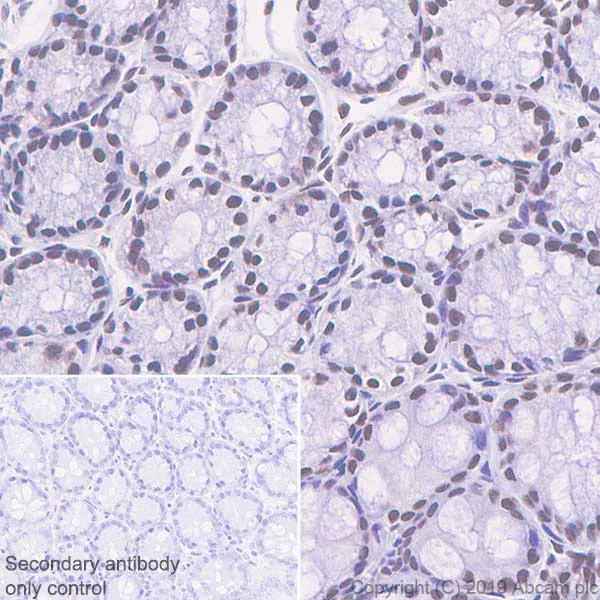

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Bmi1 antibody [EPR22604-160] - ChIP Grade (AB254253)

Immunohistochemical analysis of paraffin-embedded mouse colon tissue labeling Bmi1 with ab254253 at 1/500 dilution, followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Nuclear staining on mouse colon is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is the ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

The section was incubated with ab254253 for 30 mins at RT. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument.

• WB

Unknown

Western blot - Anti-Bmi1 antibody [EPR22604-160] - ChIP Grade (AB254253)

Exposure time :
Lane 1 : 48 seconds
Lanes 2-5 : 10 seconds

Blocking/Diluting buffer and concentration : 5% NFDM/TBST

Molecular weight observed is consistent with what has been described in the literature (PMID : 26110620)

All lanes:

Western blot - Anti-Bmi1 antibody [EPR22604-160] - ChIP Grade (ab254253) at 1/5000 dilution

Lane 1:

K562 (human chronic myelogenous leukemia lymphoblast), whole cell lysate at 20 µg

Lane 2:

HeLa (human cervix adenocarcinoma epithelial cell), whole cell lysate at 20 µg

Lane 3:

MOLT-4 (human lymphoblastic leukemia T lymphoblast), whole cell lysate at 20 µg

Lane 4:

A549 (human lung carcinoma epithelial cell), whole cell lysate at 20 µg

Lane 5:

NIH/3T3 (mouse embryonic fibroblast), whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 36 kDa

Observed band size: 42 kDa

false

• ChIC/CUT&RUN-seq

Supplier Data

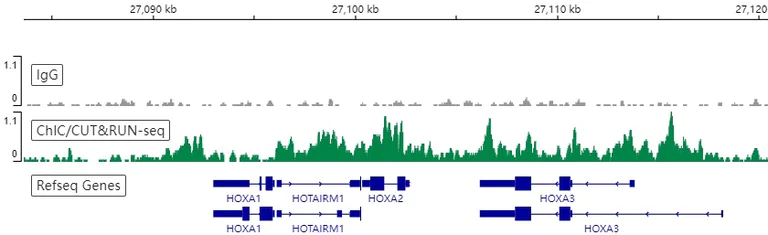

ChIC/CUT&RUN sequencing - Anti-Bmi1 antibody [EPR22604-160] - ChIP Grade (AB254253)

ChIC/CUT&RUN was performed using a pAG-MNAse at a final concentration of 700 ng/mL, 2 x 10^5 NCCIT (Human pluripotent embryonic carcinoma cell line) cells and 5µg of ab254253 [EPR22604-160]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control ab172730 is also shown. Additional screenshots of mapped reads can be found in the Protocol booklet in the Product Protocol section. The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods.
