Mouse Monoclonal CACNA1H antibody. Suitable for WB, IHC-P, IHC-Fr and reacts with Rat, Mouse, Human samples. Cited in 2 publications. Immunogen corresponding to Fusion protein corresponding to aa 1000-1300 of CACNA1H, fused to CACNA1H.

Be the first to review this product! Submit a review

Images

Immunohistochemistry (Frozen sections) - Anti-CACNA1H antibody [N55/10] (AB84815), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CACNA1H antibody [N55/10] (AB84815), expandable thumbnail
  • Western blot - Anti-CACNA1H antibody [N55/10] (AB84815), expandable thumbnail

Publications

Key facts

Isotype
IgG1
Host species
Mouse
Storage buffer

Preservative: 0.09% Sodium azide
Constituents: PBS, 50% Glycerol (glycerin, glycerine)

Form
Liquid
Clonality
Monoclonal

Immunogen

  • Fusion protein corresponding to aa 1000-1300 of CACNA1H, fused to CACNA1H. The exact immunogen used to generate this antibody is proprietary information. Database link O95180

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
WBIHC-PIHC-Fr
Human
Expected
Tested
Tested
Mouse
Expected
Expected
Expected
Rat
Tested
Expected
Expected

Tested
Tested

Species
Rat
Dilution info
1/1000
Notes

-

Expected
Expected

Species
Mouse
Dilution info
1/1000
Notes

-

Species
Human
Dilution info
1/1000
Notes

-

Tested
Tested

Species
Human
Dilution info
1/1000
Notes

-

Expected
Expected

Species
Mouse
Dilution info
1/1000
Notes

-

Species
Rat
Dilution info
1/1000
Notes

-

Tested
Tested

Species
Human
Dilution info
1/1000
Notes

-

Expected
Expected

Species
Mouse
Dilution info
1/1000
Notes

-

Species
Rat
Dilution info
-
Notes

-

Associated Products

Select an associated product type

2 products for Alternative Product

Target data

Function

Voltage-sensitive calcium channel that gives rise to T-type calcium currents. T-type calcium channels belong to the 'low-voltage activated (LVA)' group. A particularity of this type of channel is an opening at quite negative potentials, and a voltage-dependent inactivation (PubMed:27149520, PubMed:9670923, PubMed:9930755). T-type channels serve pacemaking functions in both central neurons and cardiac nodal cells and support calcium signaling in secretory cells and vascular smooth muscle (Probable). They may also be involved in the modulation of firing patterns of neurons (PubMed:15048902). In the adrenal zona glomerulosa, participates in the signaling pathway leading to aldosterone production in response to either AGT/angiotensin II, or hyperkalemia (PubMed:25907736, PubMed:27729216).

Alternative names

Recommended products

Mouse Monoclonal CACNA1H antibody. Suitable for WB, IHC-P, IHC-Fr and reacts with Rat, Mouse, Human samples. Cited in 2 publications. Immunogen corresponding to Fusion protein corresponding to aa 1000-1300 of CACNA1H, fused to CACNA1H.

Key facts

Isotype
IgG1
Form
Liquid
Clonality
Monoclonal
Immunogen
  • Fusion protein corresponding to aa 1000-1300 of CACNA1H, fused to CACNA1H. The exact immunogen used to generate this antibody is proprietary information. Database link O95180
Clone number
N55/10
Purification technique
Affinity purification Protein G
Specificity

No cross-reactivity against Cav1.3 and Cav3.1

Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Notes

The clone number has been updated from S55-10 to N55/10, both clone numbers name the same antibody clone.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

CACNA1H also known as Cav3.2 or T-type calcium channel alpha-1H subunit functions as a voltage-dependent calcium channel. The protein plays a role in the influx of calcium ions into cells. It has a molecular mass of approximately 260.7 kDa. CACNA1H expresses most abundantly in the central nervous system although you can also find it in the heart and various other tissues. This channel is part of the larger Cav3 family of T-type calcium channels which includes other subunits like Cav3.1 and Cav3.3.

Biological function summary

This calcium channel regulates numerous cellular processes through its role in calcium signaling. It does not form part of a complex but still interacts closely with various signaling molecules to influence activities such as neurotransmitter release and muscle contraction. By modulating membrane potentials and synaptic transmission CACNA1H plays a significant direct role in neuronal excitability and rhythmic activities.

Pathways

CACNA1H interacts within the calcium signaling and neurotransmission pathways. In these pathways it regulates calcium ion homeostasis and neuronal excitability working alongside other channels like L-type and N-type calcium channels. CACNA1H affects the excitation-contraction coupling critical for smooth muscle function interlinking with proteins such as calmodulin that respond to changes in calcium ion concentration.

Associated diseases and disorders

CACNA1H has been linked to epilepsy and neuropathic pain. In epilepsy mutations in CACNA1H can disrupt normal calcium flow affecting neuronal firing patterns and contributing to seizures. Its interaction with other ion channels like SCN1A further influences epileptic manifestations. Mutations may also contribute to neuropathic pain by altering pain threshold and response through its role in pain pathway modifications.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

3 product images

  • Immunohistochemistry (Frozen sections) - Anti-CACNA1H antibody [N55/10] (ab84815), expandable thumbnail

    Immunohistochemistry (Frozen sections) - Anti-CACNA1H antibody [N55/10] (ab84815)

    Immunohistochemical analysis of frozen Human brain tissue sections staining CACNA1H. Samples were fixed with 10% Formalin solution and incubated with primary antibody at 1:1000 dilution for 1 hour at room temperature. A biotinylated goat anti-mouse was used as the secondary antibody. Mayer Hematoxylin was used as a nuclear stain.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CACNA1H antibody [N55/10] (ab84815), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CACNA1H antibody [N55/10] (ab84815)

    Immunohistochemical analysis (Formalin/PFA-fixed paraffin-embedded sections) of human hippocampus tissue labelling CACNA1H with ab84815 at 1:1000 dilution, followed by secondary antibody Goat anti-mouse (green) at 1:50 for 1 hour at RT.

  • Western blot - Anti-CACNA1H antibody [N55/10] (ab84815), expandable thumbnail

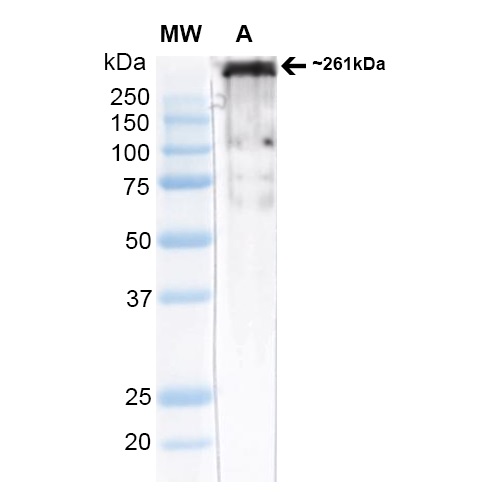

    Western blot - Anti-CACNA1H antibody [N55/10] (ab84815)

    Blocking and dilution buffer: 2% Skim Milk + 2% BSA in TBST.

    All lanes: Western blot - Anti-CACNA1H antibody [N55/10] (ab84815) at 1/1000 dilution

    All lanes: Rat brain membrane lysate

    Secondary

    All lanes: Anti-Mouse HRP at 1/4000 dilution

    Predicted band size: 261 kDa

    Observed band size: 261 kDa

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
