Anti-Calcium channel L type DHPR alpha 2 subunit/CACNA2D1 antibody [EPR23267-59]

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Calcium channel L type DHPR alpha 2 subunit/CACNA2D1 antibody [EPR23267-59] (AB313763)

Immunohistochemical analysis of paraffin-embedded (A) Wild-type Hela ( tissue labeling Calcium channel L type DHPR alpha 2 subunit/CACNA2D1 with ab313763 at 1/500 (1.046 µg/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on (A) Wild-type Hela cell pellet; no staining on (B) CACNA2D1 knockout HeLa cell pellet and (C) THP-1 cell pellet. The section was incubated with ab313763 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Incubate slides with 3% Hydrogen Peroxide for 10 mins at room temperature after secondary antibody incubation to reduce the background. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Calcium channel L type DHPR alpha 2 subunit/CACNA2D1 antibody [EPR23267-59] (AB313763)

Immunohistochemical analysis of paraffin-embedded Human skeletal muscle tissue labeling Calcium channel L type DHPR alpha 2 subunit/CACNA2D1 with ab313763 at 1/4000 (0.131 µg/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on human skeletal muscle. The section was incubated with ab313763 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Incubate slides with 3% Hydrogen Peroxide for 10 mins at room temperature after secondary antibody incubation to reduce the background. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Calcium channel L type DHPR alpha 2 subunit/CACNA2D1 antibody [EPR23267-59] (AB313763)

Immunohistochemical analysis of paraffin-embedded Human cardiac muscle tissue labeling Calcium channel L type DHPR alpha 2 subunit/CACNA2D1 with ab313763 at 1/4000 (0.131 µg/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on human cardiac muscle. The section was incubated with ab313763 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Incubate slides with 3% Hydrogen Peroxide for 10 mins at room temperature after secondary antibody incubation to reduce the background. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Calcium channel L type DHPR alpha 2 subunit/CACNA2D1 antibody [EPR23267-59] (AB313763)

Immunohistochemical analysis of paraffin-embedded Mouse skeletal muscle tissue labeling Calcium channel L type DHPR alpha 2 subunit/CACNA2D1 with ab313763 at 1/4000 (0.131 µg/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on mouse skeletal muscle (PMID : 18063658). The section was incubated with ab313763 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Incubate slides with 3% Hydrogen Peroxide for 10 mins at room temperature after secondary antibody incubation to reduce the background. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Calcium channel L type DHPR alpha 2 subunit/CACNA2D1 antibody [EPR23267-59] (AB313763)

Immunohistochemical analysis of paraffin-embedded Rat skeletal muscle tissue labeling Calcium channel L type DHPR alpha 2 subunit/CACNA2D1 with ab313763 at 1/4000 (0.131 µg/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on rat skeletal muscle. The section was incubated with ab313763 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Incubate slides with 3% Hydrogen Peroxide for 10 mins at room temperature after secondary antibody incubation to reduce the background. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

• WB

Supplier Data

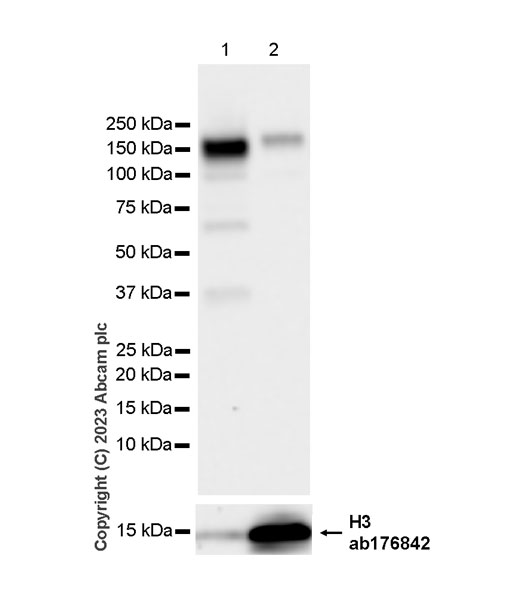

Western blot - Anti-Calcium channel L type DHPR alpha 2 subunit/CACNA2D1 antibody [EPR23267-59] (AB313763)

Blocking and diluting buffer and concentration : 5% NFDM/TBST Low expression : lung (PMID : 8955374) In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) staining at 1/100000 dilution. Exposure time : 15 seconds

All lanes:

Western blot - Anti-Calcium channel L type DHPR alpha 2 subunit/CACNA2D1 antibody [EPR23267-59] (ab313763) at 1/1000 dilution

Lane 1:

Human skeletal muscle tissue lysate at 20 µg

Lane 2:

Human lung tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 150 kDa

false

Exposure time: 15s

• WB

Supplier Data

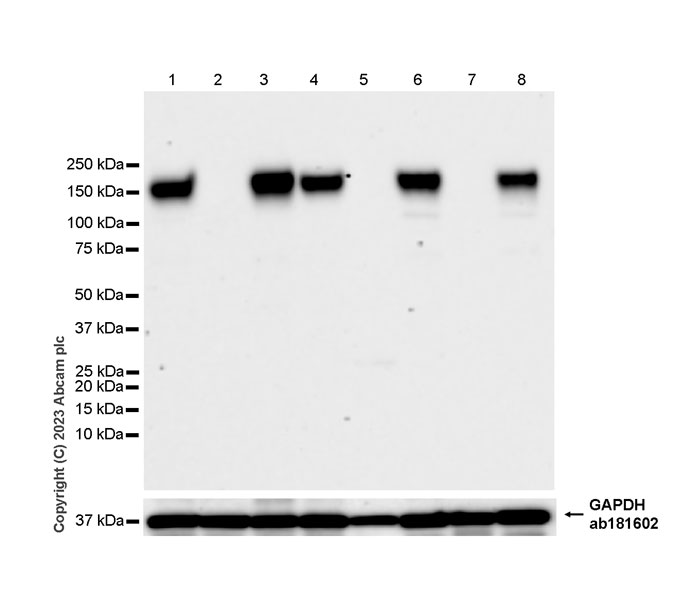

Western blot - Anti-Calcium channel L type DHPR alpha 2 subunit/CACNA2D1 antibody [EPR23267-59] (AB313763)

Blocking and diluting buffer and concentration : 5% NFDM/TBST Negative control : THP-1 Low expression : Neuro-2a(PMID : 30404013). Performed under reducing conditions. In Western blot, ab313763 was shown to bind specifically to CACNA2D1. Target of interest was observed at 150 kDa in wild-type HeLa cell lysates (lane 1, wild-type cell line ab255928) with no signal observed at this size in CACNA2D1 knockout cell line (lane 2, knockout cell line ab265080/ knockout cell lysate ab257374). In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution. Exposure time : 37 seconds

All lanes:

Western blot - Anti-Calcium channel L type DHPR alpha 2 subunit/CACNA2D1 antibody [EPR23267-59] (ab313763) at 1/1000 dilution

Lane 1:

Wild-type HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 2:

CACNA2D1 knockout HeLa whole cell lysate at 20 µg

Lane 3:

SH-SY5Y (human neuroblastoma epithelial cell) whole cell lysate at 20 µg

Lane 4:

HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 5:

THP-1 (human monocytic leukemia monocyte) whole cell lysate at 20 µg

Lane 6:

C2C12 (mouse myoblast) whole cell lysate at 20 µg

Lane 7:

Neuro-2a (mouse neuroblastoma neuroblast) whole cell lysate at 20 µg

Lane 8:

C6 (rat glial tumor glial cell) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 150 kDa

false

Exposure time: 37s

• WB

Supplier Data

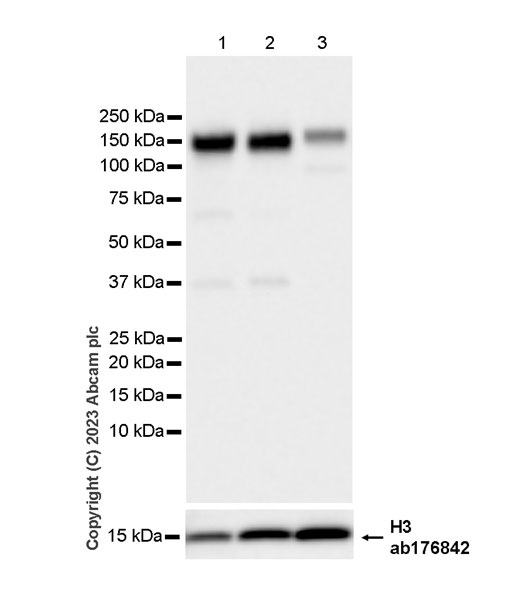

Western blot - Anti-Calcium channel L type DHPR alpha 2 subunit/CACNA2D1 antibody [EPR23267-59] (AB313763)

Blocking and diluting buffer and concentration : 5% NFDM/TBST Low expression : lung (PMID : 8955374) In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) staining at 1/100000 dilution. Exposure time : 15 seconds

All lanes:

Western blot - Anti-Calcium channel L type DHPR alpha 2 subunit/CACNA2D1 antibody [EPR23267-59] (ab313763) at 1/1000 dilution

Lane 1:

Mouse skeletal muscle tissue lysate at 20 µg

Lane 2:

Mouse brain tissue lysate at 20 µg

Lane 3:

Mouse lung tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 150 kDa

false

Exposure time: 15s

• WB

Supplier Data

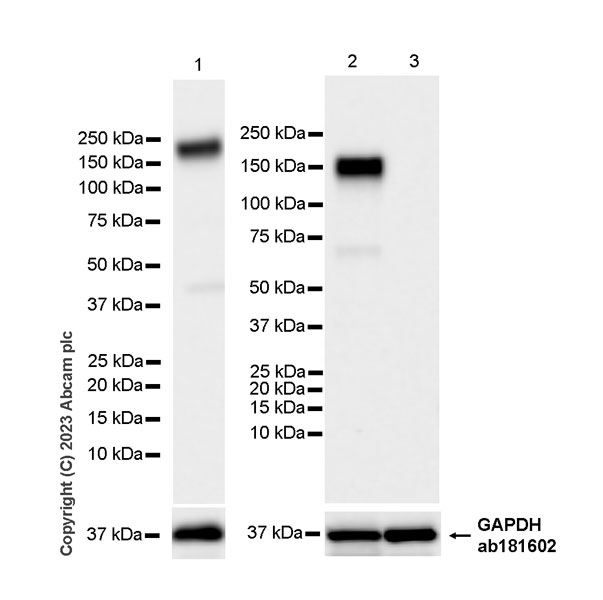

Western blot - Anti-Calcium channel L type DHPR alpha 2 subunit/CACNA2D1 antibody [EPR23267-59] (AB313763)

Blocking and diluting buffer and concentration : 5% NFDM/TBST Low expression : NR8383 In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution. Exposure time : 15 seconds

All lanes:

Western blot - Anti-Calcium channel L type DHPR alpha 2 subunit/CACNA2D1 antibody [EPR23267-59] (ab313763) at 1/1000 dilution

Lane 1:

Rat brain tissue lysate at 20 µg

Lane 2:

GH3(rat pituitary epithelial cell) whole cell lysate at 20 µg

Lane 3:

NR8383 (rat lung macrophage (alveolar)) whole cell lysate  at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 150 kDa

false

Exposure time: 15s
