Rabbit Recombinant Monoclonal Caldesmon/CDM antibody. Suitable for WB, IHC-P, Flow Cyt (Intra) and reacts with Mouse, Human, Rat samples. Cited in 2 publications.

Be the first to review this product! Submit a review

Images

Western blot - Anti-Caldesmon/CDM antibody [SP226] (AB183339), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Caldesmon/CDM antibody [SP226] (AB183339), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Caldesmon/CDM antibody [SP226] (AB183339), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Caldesmon/CDM antibody [SP226] (AB183339), expandable thumbnail
  • Western blot - Anti-Caldesmon/CDM antibody [SP226] (AB183339), expandable thumbnail

Publications

Key facts

Isotype

IgG

Host species

Rabbit

Storage buffer

pH: 7.2 - 7.4
Preservative: 0.1% Sodium azide
Constituents: PBS, 1% BSA

Form

Liquid

Clonality

Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
WBIHC-PFlow Cyt (Intra)
Human
Tested
Tested
Tested
Mouse
Tested
Expected
Expected
Rat
Expected
Tested
Expected

Tested
Tested

Species

Mouse

Dilution info

1/400

Notes

Incubate for 1 hour at room temperature.

Species

Human

Dilution info

1/400

Notes

Incubate for 1 hour at room temperature.

Expected
Expected

Species

Rat

Dilution info

Use at an assay dependent concentration.

Notes

-

Tested
Tested

Species

Rat

Dilution info

1/100

Notes

Perform heat mediated antigen retrieval before commencing with IHC staining protocol by boiling tissue section in EDTA buffer, pH 8.0 for 10 min followed by cooling at room temperature for 20 min. Primary Antibody Incubation: Incubate for 10 minutes at room temperature.

Species

Human

Dilution info

1/100

Notes

Perform heat mediated antigen retrieval before commencing with IHC staining protocol by boiling tissue section in EDTA buffer, pH 8.0 for 10 min followed by cooling at room temperature for 20 min. Primary Antibody Incubation: Incubate for 10 minutes at room temperature.

Expected
Expected

Species

Mouse

Dilution info

Use at an assay dependent concentration.

Notes

-

Tested
Tested

Species

Human

Dilution info

1/230 - 1/400

Notes

Incubate for 30 minutes at 4°C.

Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 - Rabbit monoclonal IgG, is suitable for use as an isotype control with this antibody.

Expected
Expected

Species

Mouse, Rat

Dilution info

Use at an assay dependent concentration.

Notes

-

Associated Products

Select an associated product type

15 products for Alternative Product

Target data

Function

Actin- and myosin-binding protein implicated in the regulation of actomyosin interactions in smooth muscle and nonmuscle cells (could act as a bridge between myosin and actin filaments). Stimulates actin binding of tropomyosin which increases the stabilization of actin filament structure. In muscle tissues, inhibits the actomyosin ATPase by binding to F-actin. This inhibition is attenuated by calcium-calmodulin and is potentiated by tropomyosin. Interacts with actin, myosin, two molecules of tropomyosin and with calmodulin. Also plays an essential role during cellular mitosis and receptor capping. Involved in Schwann cell migration during peripheral nerve regeneration (By similarity).

Alternative names

Caldesmon, CDM, CDM, CAD, CALD1

Recommended products

Rabbit Recombinant Monoclonal Caldesmon/CDM antibody. Suitable for WB, IHC-P, Flow Cyt (Intra) and reacts with Mouse, Human, Rat samples. Cited in 2 publications.

Key facts

Isotype

IgG

Form

Liquid

Clonality

Monoclonal

Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number

SP226

Purification technique

Affinity purification Protein A

Concentration
Loading...

Storage

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

Notes

Chicken: We have preliminary internal testing data to indicate this antibody may not react with these species. Please contact us for more information.

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

This product is FOR RESEARCH USE ONLY. For commercial use, please contact partnerships@abcam.com.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

Caldesmon also known as CDM CALD1 and h-caldesmon is a cytoskeletal protein with a molecular mass of approximately 93 to 120 kDa. This protein expresses itself abundantly in smooth muscle tissues yet it can also be found in non-muscle cells like fibroblasts and endothelial cells. Researchers often use specific caldesmon antibodies in immunohistochemistry allowing them to label various cellular components and providing insights into tissue composition. Due to its presence in muscle tissues caldesmon is essential for understanding muscle physiology and pathology.

Biological function summary

Caldesmon interacts with actin and myosin to regulate actomyosin contractility. This protein plays a critical role in controlling the contraction and relaxation processes in smooth muscle cells. Caldesmon forms part of a complex that includes calmodulin and tropomyosin enhancing its ability to stabilize actin filaments. It functions by inhibiting the ATPase activity of myosin therefore influencing cellular motility and shape change mechanisms. Researchers continually study caldesmon to comprehend its interactome and its significance within the larger cellular structure.

Pathways

Caldesmon participates in the regulation of the cytoskeletal dynamics vital for cell motility and structural integrity. In particular it is an important component of the contraction-relaxation cycle pathway in smooth muscle tissues. This protein has connections with pathways involving RhoA-Rho kinase where caldesmon modulates the phosphorylation levels influencing muscle contraction. Additionally proteins like tropomyosin and calmodulin modulate its activity especially under calcium-calmodulin-dependent pathways which further elucidates its regulatory importance.

Associated diseases and disorders

Caldesmon has associations with conditions like certain types of cancers and cardiovascular diseases. Its expression levels and distribution provide valuable information in identifying smooth muscle tumors and other pathological conditions. In oncology for example h-caldesmon serves as a marker to distinguish leiomyosarcomas from other tumors. Moreover due to its involvement in smooth muscle contractility caldesmon links with proteins such as calmodulin and tropomyosin in diseases where abnormal contraction and cellular motility play significant roles. Understanding these connections is important for developing targeted treatments and improving diagnostic accuracy.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

8 product images

  • Western blot - Anti-Caldesmon/CDM antibody [SP226] (ab183339), expandable thumbnail

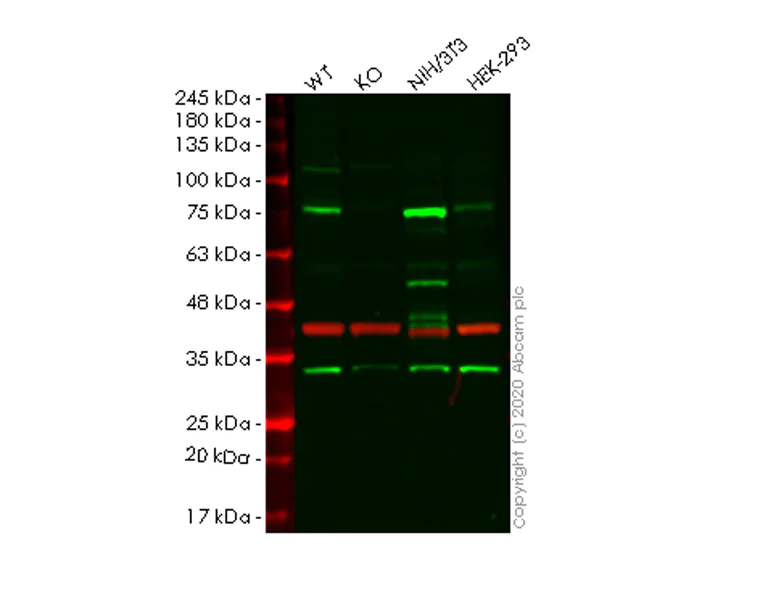

    Western blot - Anti-Caldesmon/CDM antibody [SP226] (ab183339)

    Lanes 1-4: Merged signal (red and green). Green - ab183339 observed at 75 kDa. Red - loading control Anti-GAPDH antibody [6C5] - Loading Control ab8245 observed at 36 kDa.

    ab183339 Anti-Caldesmon/CDM antibody [SP226] was shown to specifically react with Caldesmon/CDM in wild-type HeLa cells. Loss of signal was observed when knockout cell line Human CALD1 (Caldesmon/CDM) knockout HeLa cell line ab265026 (knockout cell lysate Human CALD1 (Caldesmon/CDM) knockout HeLa cell lysate ab257375) was used. Wild-type and Caldesmon/CDM knockout samples were subjected to SDS-PAGE. ab183339 and Anti-GAPDH antibody [6C5] - Loading Control (Anti-GAPDH antibody [6C5] - Loading Control ab8245) were incubated overnight at 4°C at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

    All lanes: Western blot - Anti-Caldesmon/CDM antibody [SP226] (ab183339) at 1/1000 dilution

    Lane 1: Wild-type HeLa cell lysate at 20 µg

    Lane 2: CALD1 knockout HeLa cell lysate at 20 µg

    Lane 3: NIH/3T3 cell lysate at 20 µg

    Lane 4: HEK-293 cell lysate at 20 µg

    Secondary

    All lanes: Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) at 1/10000 dilution

    Predicted band size: 93 kDa

    Observed band size: 75 kDa

    This data was developed using the same antibody clone in a different buffer formulation (ab183339).

    Lanes 1-4: Merged signal (red and green). Green - ab183339 observed at 75 kDa. Red - loading control Anti-GAPDH antibody [6C5] - Loading Control ab8245 observed at 36 kDa.

    ab183339 Anti-Caldesmon/CDM antibody [SP226] was shown to specifically react with Caldesmon/CDM in wild-type HeLa cells. Loss of signal was observed when knockout cell line Human CALD1 (Caldesmon/CDM) knockout HeLa cell line ab265026 (knockout cell lysate Human CALD1 (Caldesmon/CDM) knockout HeLa cell lysate ab257375) was used. Wild-type and Caldesmon/CDM knockout samples were subjected to SDS-PAGE. ab183339 and Anti-GAPDH antibody [6C5] - Loading Control (Anti-GAPDH antibody [6C5] - Loading Control ab8245) were incubated overnight at 4°C at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Caldesmon/CDM antibody [SP226] (ab183339), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Caldesmon/CDM antibody [SP226] (ab183339)

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Rat colon tissue sections labeling Caldesmon/CDM with ab183339 at 1/100 dilution (23.11 μg/ml). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 10mins. Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101) was used as the secondary antibody. Hematoxylin was used as a counterstain. Positive staining on smooth muscle in rat colon, performed on a Leica Biosystems BOND™ RX instrument.
    The section was incubated with ab183339 for 10 mins at room temperature.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Caldesmon/CDM antibody [SP226] (ab183339), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Caldesmon/CDM antibody [SP226] (ab183339)

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Mouse colon tissue sections labeling Caldesmon/CDM with ab183339 at 1/100 dilution (23.11 μg/ml). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 10mins. Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101) was used as the secondary antibody. Hematoxylin was used as a counterstain. Positive staining on smooth muscle in mouse colon, performed on a Leica Biosystems BOND™ RX instrument.
    The section was incubated with ab183339 for 10 mins at room temperature.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Caldesmon/CDM antibody [SP226] (ab183339), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Caldesmon/CDM antibody [SP226] (ab183339)

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human colon tissue sections labeling Caldesmon/CDM with ab183339 at 1/100 dilution (23.11 μg/ml). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 10mins. Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101) was used as the secondary antibody. Hematoxylin was used as a counterstain. Positive staining on smooth muscle in human colon, performed on a Leica Biosystems BOND™ RX instrument.
    The section was incubated with ab183339 for 10 mins at room temperature.

  • Western blot - Anti-Caldesmon/CDM antibody [SP226] (ab183339), expandable thumbnail

    Western blot - Anti-Caldesmon/CDM antibody [SP226] (ab183339)

    All lanes: Western blot - Anti-Caldesmon/CDM antibody [SP226] (ab183339) at 1/400 dilution

    All lanes: Smooth muscle cell lysate

    Predicted band size: 93 kDa

  • Flow Cytometry (Intracellular) - Anti-Caldesmon/CDM antibody [SP226] (ab183339), expandable thumbnail

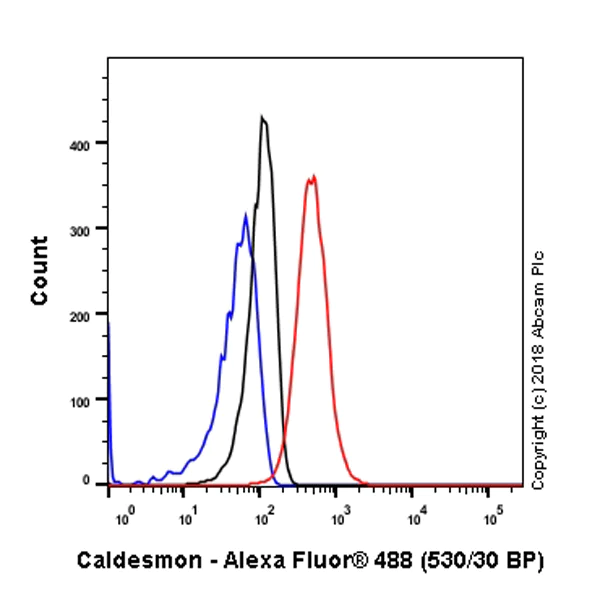

    Flow Cytometry (Intracellular) - Anti-Caldesmon/CDM antibody [SP226] (ab183339)

    Intracellular Flow Cytometry analysis of Hela (human cervix adenocarcinoma) labeling Caldesmon/CDM with purified ab183339 at 1/230 dilution (10.05μg/ml) (red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/2000 dilution was used as a secondary antibody. Isotype control - Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black). Unlableled control - Unlabelled cells (blue).

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Caldesmon/CDM antibody [SP226] (ab183339), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Caldesmon/CDM antibody [SP226] (ab183339)

    Immunohistochemical analysis of formalin-fixed, paraffin-embedded Human colon tissue labeling Caldesmon/CDM with ab183339 at 1/100 dilution.

  • Flow Cytometry (Intracellular) - Anti-Caldesmon/CDM antibody [SP226] (ab183339), expandable thumbnail

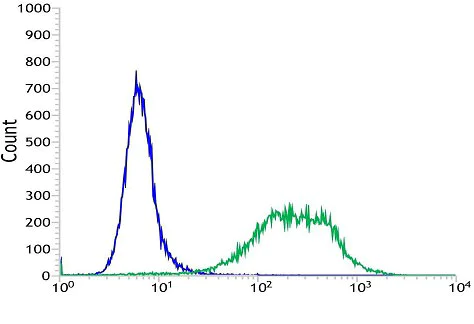

    Flow Cytometry (Intracellular) - Anti-Caldesmon/CDM antibody [SP226] (ab183339)

    Intracellular flow cytometric analysis of HeLa cells labeling Caldesmon/CDM with ab183339 at 1/400 dilution (green) compared to a negative control Rabbit IgG (blue).
