Anti-Calponin 1 antibody [EP798Y] - BSA and Azide free (ab216651)

Rabbit Recombinant Monoclonal Calponin 1 antibody. Carrier free. Suitable for WB, ICC/IF, IHC-P and reacts with Mouse, Rat, Pig, Human samples. Cited in 38 publications.

Be the first to review this product! Submit a review

Images

Immunocytochemistry/ Immunofluorescence - Anti-Calponin 1 antibody [EP798Y] - BSA and Azide free (AB216651), expandable thumbnail

Publications

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Constituents: PBS
Form: Liquid
Clonality: Monoclonal

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application

Product promiseTestedExpectedPredictedNot recommended

	Flow Cyt	WB	ICC/IF	IHC-P
Human	Not recommended	Tested	Tested	Tested
Mouse	Not recommended	Tested	Tested	Tested
Rat	Not recommended	Tested	Expected	Tested
Pig	Not recommended	Tested	Expected	Expected
Sheep	Not recommended	Predicted	Predicted	Predicted

Not recommended
Not recommended

Species	Dilution info	Notes
Species Mouse	Dilution info -	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Rat	Dilution info -	Notes -
Species Pig	Dilution info -	Notes -
Species Human	Dilution info -	Notes -
Species Sheep	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info -	Notes For unpurified use at 1/20,000.
Species Rat	Dilution info -	Notes For unpurified use at 1/20,000.
Species Pig	Dilution info -	Notes For unpurified use at 1/20,000.
Species Human	Dilution info -	Notes For unpurified use at 1/20,000.

Predicted
Predicted

Species	Dilution info	Notes
Species Sheep	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info -	Notes -
Species Human	Dilution info -	Notes For unpurified use at 1/100 - 1/250.

Expected
Expected

Species	Dilution info	Notes
Species Rat, Pig	Dilution info Use at an assay dependent concentration.	Notes -

Predicted
Predicted

Species	Dilution info	Notes
Species Sheep	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Rat	Dilution info -	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Human	Dilution info -	Notes For unpurified use at 1/100 - 1/250. Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Mouse	Dilution info -	Notes For unpurified use at 1/100 - 1/250. Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Expected
Expected

Species	Dilution info	Notes
Species Pig	Dilution info Use at an assay dependent concentration.	Notes -

Predicted
Predicted

Species	Dilution info	Notes
Species Sheep	Dilution info -	Notes -

Associated Products

Select an associated product type

8 products for Alternative Product

1 product for Alternative Version

Target data

See full target information CNN1

Function

Thin filament-associated protein that is implicated in the regulation and modulation of smooth muscle contraction. It is capable of binding to actin, calmodulin and tropomyosin. The interaction of calponin with actin inhibits the actomyosin Mg-ATPase activity (By similarity).

Alternative names

Calponin-1, Basic calponin, CNN1

Recommended products

Rabbit Recombinant Monoclonal Calponin 1 antibody. Carrier free. Suitable for WB, ICC/IF, IHC-P and reacts with Mouse, Rat, Pig, Human samples. Cited in 38 publications.

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Constituents: PBS
Form: Liquid
Clonality: Monoclonal
Immunogen: The exact immunogen used to generate this antibody is proprietary information.
Carrier free: Yes
Clone number: EP798Y
Purification technique: Affinity purification Protein A
Dissociation constant: 1.73 x 10^-10 M
Concentration

Storage

Shipped at conditions: Blue Ice
Appropriate short-term storage conditions: +4°C
Appropriate long-term storage conditions: +4°C
Storage information: Do Not Freeze

Notes

ab216651 is the carrier-free version of Anti-Calponin 1 antibody [EP798Y] ab46794.

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. The carrier-free buffer and high concentration allow for increased conjugation efficiency.

This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

This product is compatible with the Maxpar^® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar^® is a trademark of Fluidigm Canada Inc.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

Calponin 1 also known as CNN1 or calponin-a is a 34-kilodalton protein that plays an important role in muscle contraction. Found mainly in smooth muscle tissues calponin 1 interacts with actin and myosin modulating their interactions and contributing to muscle contraction mechanics. It inhibits the ATPase activity of myosin which affects the contractile capacity of smooth muscle. These interactions are important for maintaining the proper function and tone of vascular and visceral smooth muscles.

Biological function summary

Calponin 1 acts as a regulatory protein in smooth muscle contraction by stabilizing actin filaments and modulating their interaction with other contractile proteins. It forms part of the thin filament-associated complex where it functions to control the conformational state of actin. This complex includes other proteins such as tropomyosin and troponin which together regulate the calcium-sensitive interactions between actin and myosin. The regulatory ability of calponin 1 contributes to the fine-tuning of smooth muscle contraction and relaxation processes.

Pathways

Calponin 1 plays a role in the RhoA/ROCK signaling pathway and the calcium-sensitive contractile pathway. These pathways are integral to smooth muscle contraction regulation and involve proteins such as Rho kinase (ROCK) and myosin light chain kinase (MLCK). Calponin 1 contributes to the modulation of the phosphorylation status of myosin light chains influencing the contractile response to various stimuli. This points to its involvement in the physiological response mechanism to vasoconstrictive agents.

Associated diseases and disorders

Calponin 1 is linked to cardiovascular diseases like hypertension and vascular disorders. Its regulatory functions in smooth muscle contraction can influence vascular tone and blood pressure connecting it to conditions like atherosclerosis. Moreover calponin 1 interacts with proteins such as filamin and α-actinin which are also implicated in muscle contraction-related disorders. Researchers investigate these interactions to understand their contributions to the pathogenesis of such diseases.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

15 product images

Immunocytochemistry/ Immunofluorescence - Anti-Calponin 1 antibody [EP798Y] - BSA and Azide free (ab216651)
Paraformadehyde-fixed, 0.25% Triton X-100 permeabilized mouse thoracic aortic smooth muscle cells labeling Calponin 1 using Anti-Calponin 1 antibody [EP798Y] ab46794 at 1/100 dilution in ICC/IF, followed by a Goat Anti-Rabbit IgG H&L (Alexa Fluor 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/400 dilution.
1.5% BSA used used as blocking agent for 30 minutes at 25°C. Incubated with primary antibody for 24 hours at 4°C.
VSMCs were seeded to 35-mm plates in a low density avoiding overlapping of cells. After fixation, VSMCs were treated with 0.25% Triton X-100 for 20 minutes.
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Calponin 1 antibody [EP798Y] ab46794).
Image from Herington et al PLoS One. 2015 Nov 24;10(11):e0143243. doi: 10.1371/journal.pone.0143243. eCollection 2015. Fig 1.
Immunocytochemistry/ Immunofluorescence - Anti-Calponin 1 antibody [EP798Y] - BSA and Azide free (ab216651)
Representative photomicrograph of UT-myo cells (Left panel) and uterine myometrium (Right panel) stained with smooth muscle cell markers, alpha-SMA (red) and Anti-Calponin 1 antibody [EP798Y] ab46794 (green) and DAPI (blue). UT-myo cells and whole-mount uterine tissue were collected from day 19 of mouse pregnancy. The placenta and embryo were removed from whole-mount tissue sections.
For full details please see paper.
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Calponin 1 antibody [EP798Y] ab46794).
Immunocytochemistry/ Immunofluorescence - Anti-Calponin 1 antibody [EP798Y] - BSA and Azide free (ab216651)

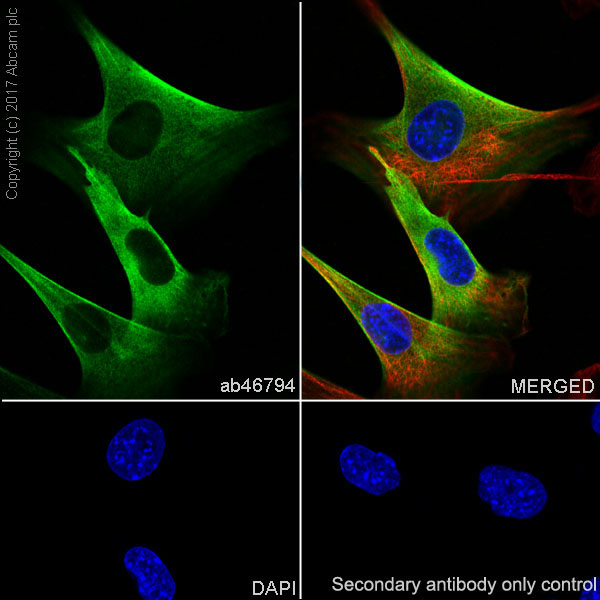

Immunocytochemistry/ Immunofluorescence analysis of C2C12 (Mouse myoblasts myoblast) cells labeling Calponin 1 with purified Anti-Calponin 1 antibody [EP798Y] ab46794 at 1:500 dilution. Cells were fixed in 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. Cells were counterstained with Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) 1:200 (2.5 μg/ml). Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 Goat anti rabbit IgG(Alexa Fluor^® 488) was used as the secondary antibody at 1:1000 dilution. DAPI nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Calponin 1 antibody [EP798Y] ab46794).
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Calponin 1 antibody [EP798Y] - BSA and Azide free (ab216651)

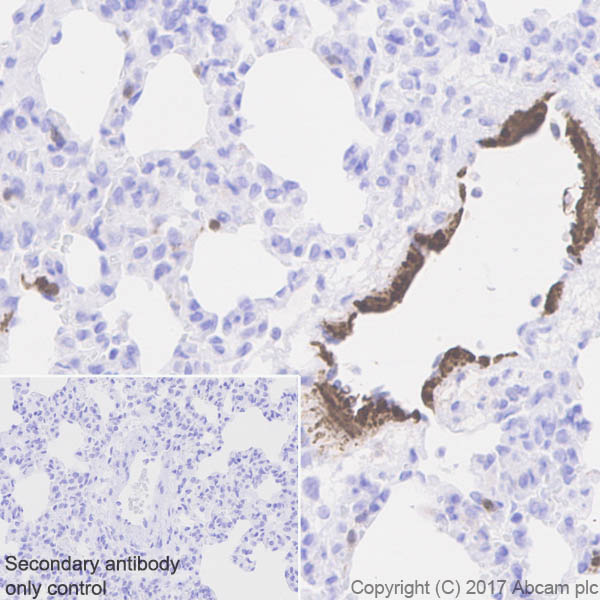

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of rat lung tissue sections labeling Calponin 1 with purified Anti-Calponin 1 antibody [EP798Y] ab46794 at 1:1000 dilution. Heat mediated antigen retrieval was performed using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0). Tissue was counterstained with hematoxylin. ImmunoHistoProbe one step HRP Polymer (ready to use) secondary antibody.
PBS instead of the primary antibody was used as the negative control (inset).
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Calponin 1 antibody [EP798Y] ab46794).
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Calponin 1 antibody [EP798Y] - BSA and Azide free (ab216651)
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of mouse cardiac muscle tissue sections labeling Calponin 1 with purified Anti-Calponin 1 antibody [EP798Y] ab46794 at 1:1000 dilution. Heat mediated antigen retrieval was performed using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0). Tissue was counterstained with hematoxylin. ImmunoHistoProbe one step HRP Polymer (ready to use) secondary antibody was used.
PBS instead of the primary antibody was used as the negative control (inset).
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Calponin 1 antibody [EP798Y] ab46794).
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Calponin 1 antibody [EP798Y] - BSA and Azide free (ab216651)
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human lung carcinoma tissue sections labeling Calponin 1 with purified Anti-Calponin 1 antibody [EP798Y] ab46794 at a 1:1000 dilution. Heat mediated antigen retrieval was performed using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0). Tissue was counterstained with hematoxylin. ImmunoHistoProbe one step HRP Polymer (ready to use) secondary antibody was used.
PBS instead of the primary antibody was used as the negative control (inset).
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Calponin 1 antibody [EP798Y] ab46794).
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Calponin 1 antibody [EP798Y] - BSA and Azide free (ab216651)
Immunohistochemical staining of paraffin-embedded human smooth muscle using unpurified Anti-Calponin 1 antibody [EP798Y] ab46794 at 1/100 dilution
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Calponin 1 antibody [EP798Y] ab46794).
This image is courtesy of a customer review submitted by Jordan Carbary.
Immunocytochemistry/ Immunofluorescence - Anti-Calponin 1 antibody [EP798Y] - BSA and Azide free (ab216651)

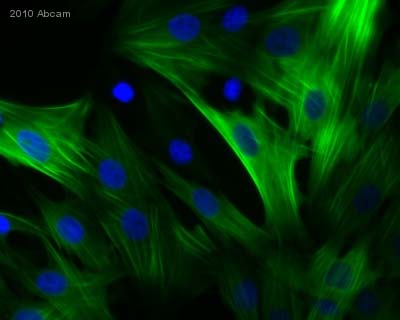

Unpurified Anti-Calponin 1 antibody [EP798Y] ab46794 staining Calponin in porcine aortic smooth muscle cells by Immunocytochemistry/ Immunofluorescence.
The cells were paraformaldehyde fixed, permeabilized in 0.1% Triton X-100. Samples were then incubated with primary antibody at 1/50 for 1 hour at 25°C. The secondary antibody used was Goat Anti-Rabbit IgG H&L (FITC) ab6717 Goat polyclonal to Rabbit IgG - H&L (FITC) (green) used at a 1/400 dilution.
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Calponin 1 antibody [EP798Y] ab46794).
Immunocytochemistry/ Immunofluorescence - Anti-Calponin 1 antibody [EP798Y] - BSA and Azide free (ab216651)

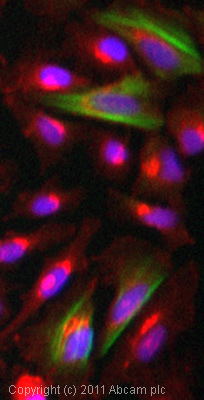

ICC/IF image of unpurifiedAnti-Calponin 1 antibody [EP798Y] ab46794 stained HeLa (Human epithelial cell line from cervix adenocarcinoma) cells.
Cells were 100% methanol fixed (5 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilize the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (Anti-Calponin 1 antibody [EP798Y] ab46794, 5µg/ml) overnight at +4°C. The secondary antibody (green) was DyLight^® 488 goat anti-rabbit IgG - H&L, pre-adsorbed (ab96899) used at a 1/250 dilution for 1h. Alexa Fluor^® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43µM.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Calponin 1 antibody [EP798Y] ab46794).
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Calponin 1 antibody [EP798Y] - BSA and Azide free (ab216651)

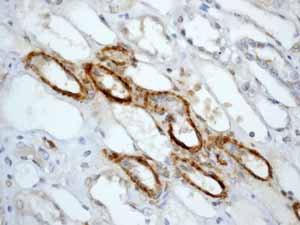

Unpurified Anti-Calponin 1 antibody [EP798Y] ab46794 showing positive staining in normal kidney vessels tissue.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Calponin 1 antibody [EP798Y] ab46794).
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Calponin 1 antibody [EP798Y] - BSA and Azide free (ab216651)

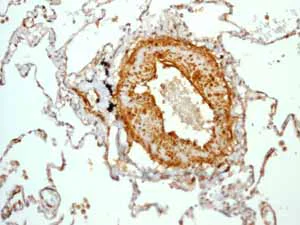

Unpurified Anti-Calponin 1 antibody [EP798Y] ab46794 showing positive staining in normal lung vessel tissue.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Calponin 1 antibody [EP798Y] ab46794).
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Calponin 1 antibody [EP798Y] - BSA and Azide free (ab216651)

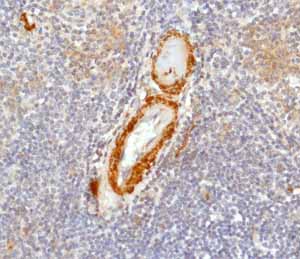

Unpurified Anti-Calponin 1 antibody [EP798Y] ab46794 showing positive staining in normal tonsil vessel tissue.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Calponin 1 antibody [EP798Y] ab46794).
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Calponin 1 antibody [EP798Y] - BSA and Azide free (ab216651)
Unpurified Anti-Calponin 1 antibody [EP798Y] ab46794 showing positive staining in normal uterus tissue.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Calponin 1 antibody [EP798Y] ab46794).
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Calponin 1 antibody [EP798Y] - BSA and Azide free (ab216651)
Unpurified Anti-Calponin 1 antibody [EP798Y] ab46794 showing negative staining in skeletal muscle tissue.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Calponin 1 antibody [EP798Y] ab46794).

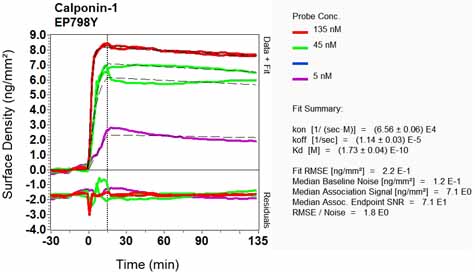

OI-RD Scanning - Anti-Calponin 1 antibody [EP798Y] - BSA and Azide free (ab216651)
We have systematically measured KD (the equilibrium dissociation constant between the antibody and its antigen), of more than 840 recombinant antibodies to assess not only their individual KD values but also to see the average affinity of antibody.
Based on the comparison with published literature values for mouse monoclonal antibodies, Recombinant antibodies appear to be on average 1-2 order of magnitude higher affinity.
