Anti-CaMKII antibody [EPR6686(2)]

• Flow Cyt (Intra)

Supplier Data

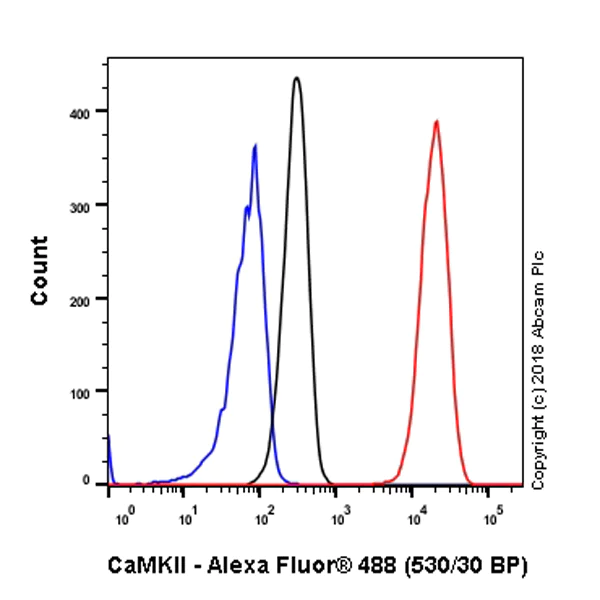

Flow Cytometry (Intracellular) - Anti-CaMKII antibody [EPR6686(2)] (AB134041)

Intracellular Flow Cytometry analysis of SH-SY5Y (Human neuroblastoma epithelial cell) cells labeling CaMKII with purified ab134041 at 1/70 dilution (10 μg/ml) (red). Cells were fixed with 4% Paraformaldehyde and then permeabilized with 90% methanol for 30min. A Goat anti rabbit IgG (Alexa Fluor^® 488) secondary antibody was used at 1/2000 dilution. Isotype control - Rabbit monoclonal IgG (Black). Unlabeled control - Cell without incubation with primary antibody and secondary antibody (Blue).

• WB

Unknown

Western blot - Anti-CaMKII antibody [EPR6686(2)] (AB134041)

All lanes:

Western blot - Anti-CaMKII antibody [EPR6686(2)] (ab134041) at 1/1000 dilution

Lane 1:

Human fetal brain lysate at 10 µg

Lane 2:

HeLa lysate at 10 µg

Secondary

All lanes:

HRP labelled goat anti- rabbit at 1/2000 dilution

Predicted band size: 54 kDa

false

• WB

Unknown

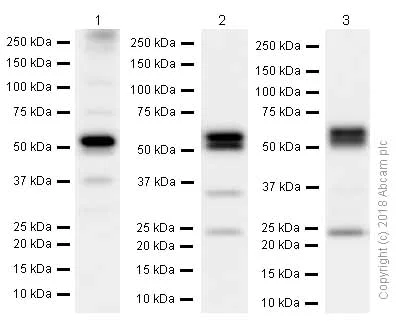

Western blot - Anti-CaMKII antibody [EPR6686(2)] (AB134041)

Blocking and diluting buffer : 5% NFDM/TBST.

This antibody might cross-react with family members based on the high immunogen homology. That might be the reason why doublet are detected.

All lanes:

Western blot - Anti-CaMKII antibody [EPR6686(2)] (ab134041) at 0.08 µg/mL

Lane 1:

HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysates at 15 µg

Lane 2:

Rat brain lysates at 15 µg

Lane 3:

Mouse brain lysates at 15 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 54 kDa

false

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CaMKII antibody [EPR6686(2)] (AB134041)

Immunohistochemical analysis of paraffin-embedded Human brain tissue labelling CaMKII with unpurified ab134041 at 1/250 dilution.

Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CaMKII antibody [EPR6686(2)] (AB134041)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human clear cell cancer of kidney tissue sections labeling CaMKII with Purified ab134041 at 1 : 500 dilution (1.5 µg/ml). Heat mediated antigen retrieval was performed using ab93684 (Tris/EDTA buffer, pH 9.0)ImmunoHistoProbe one step HRP Polymer (ready to use)was used as the secondary antibody.Negative control : PBS instead of the primary antibody.Hematoxylinwas used as a counterstain

• Flow Cyt (Intra)

Unknown

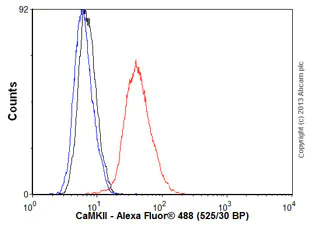

Flow Cytometry (Intracellular) - Anti-CaMKII antibody [EPR6686(2)] (AB134041)

Overlay histogram showing SH-SY5Y cells stained with ab134041 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (unpurified ab134041, 1/1000 dilution) for 30 min at 22°C. The secondary antibody used was Alexa Fluor^® 488 goat anti-rabbit IgG (H&L) (ab150077) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (0.1μg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter. This antibody gave a positive signal in SH-SY5Y cells fixed with 80% methanol (5 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-CaMKII antibody [EPR6686(2)] (AB134041)

Immunofluorescent analysis of U87-MG cells labelling CaMKII with unpurified ab134041 at 1/250 dilution.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-CaMKII antibody [EPR6686(2)] (AB134041)

ab134041 staining CaMKII in Neuro-2A cells. The cells were differentiated with 20μM Trans-retinoic acid and serum starved (0.1%FBS/DMEM) for 48hours. They were then fixed with 100% methanol (5 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at +4°C with purified ab134041 at a 5μg/ml concentration and ab78078, Mouse monoclonal [2G10] to beta III Tubulin, at 5μg/ml concentration, followed by a further incubation at room temperature for 1h with an anti-rabbit AlexaFluor® 488 (ab150081) at 2 μg/ml (shown in green) and an anti-mouse AlexaFluor® 594 (ab150120) at 2 μg/ml (shown in pseudocolor red). Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
