AB31488

Anti-CARD15/NOD2 antibody [2D9]

3

(3 Reviews)

|

(17 Publications)

Mouse Monoclonal CARD15/NOD2 antibody. Suitable for WB, IHC-P and reacts with Human samples. Cited in 17 publications.

View Alternative Names

CARD15, NOD2, Nucleotide-binding oligomerization domain-containing protein 2, Caspase recruitment domain-containing protein 15, Inflammatory bowel disease protein 1

3 Images
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CARD15/NOD2 antibody [2D9] (AB31488)
  • IHC-P

AbReview31488****

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CARD15/NOD2 antibody [2D9] (AB31488)

ab31488 staining CARD15/NOD2 in human tonsil epithelium tissue section by Immunohistochemistry (IHC-P - paraformaldehyde-fixed, paraffin-embedded sections). Tissue was fixed with formaldehyde and blocked with 3% H2O2 for 10 minutes at 25°C; antigen retrieval was by heat mediation in citrate buffer pH 6.0 for 20 minutes. Samples were incubated with primary antibody (1/150) for 20 minutes at 25°C. An undiluted HRP polymer-conjugated Goat anti-mouse IgG polyclonal was used as the secondary antibody.

This image is courtesy of an anonymous Abreview.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CARD15/NOD2 antibody [2D9] (AB31488)
  • IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CARD15/NOD2 antibody [2D9] (AB31488)

IHC image of CARD15/NOD2 staining in human tonsil formalin fixed paraffin embedded tissue section, performed on a Leica BondTM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab31488, 10μg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

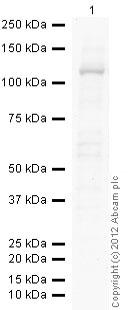

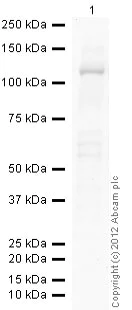

Western blot - Anti-CARD15/NOD2 antibody [2D9] (AB31488)
  • WB

Project

Western blot - Anti-CARD15/NOD2 antibody [2D9] (AB31488)

All lanes:

Western blot - Anti-CARD15/NOD2 antibody [2D9] (ab31488) at 2 µg/mL

All lanes:

HEK 293 overexpressing CARD15/NOD2 at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Mouse IgG H&L (HRP) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-mouse-igg-h-l-hrp-preadsorbed-ab97040'>ab97040</a>) at 1/5000 dilution

Predicted band size: 115 kDa

Observed band size: 115 kDa

true

Exposure time: 150s

Key facts

Host species

Mouse

Clonality

Monoclonal

Clone number

2D9

Isotype

IgG1

Light chain type

kappa

Carrier free

No

Reacts with

Human

Applications

WB, IHC-P

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "2 µg/mL", "WB-species-notes": "<p></p>", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>" } } }

Product details

Want a custom formulation?
This antibody clone is manufactured by Abcam. If you require a custom buffer formulation or conjugation for your experiments, please contact orders@abcam.com

Properties and storage information

Form
Liquid
Purification technique
Affinity purification
Storage buffer
pH: 7.4 Preservative: 0.02% Sodium azide Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

The CARD15/NOD2 protein also known as nucleotide-binding oligomerization domain-containing protein 2 is an important protein involved in immune response. It has a molecular mass of about 115 kDa. CARD15/NOD2 expresses mostly in immune cells such as monocytes macrophages and dendritic cells. Additionally it presence can be found in epithelial cells lining the gastrointestinal tract where it plays a vital role.
Biological function summary

CARD15/NOD2 detects microbial components and triggers immune responses. It primarily acts as a pattern recognition receptor identifying bacterial muramyl dipeptide (MDP). Upon activation CARD15/NOD2 initiates a signaling cascade leading to the activation of nuclear factor kappa-light-chain-enhancer of activated B cells (NF-kB) which is an important transcription factor in inflammation and immune response. The protein does not operate alone and involves complexes to enable its functions effectively.

Pathways

The CARD15/NOD2 protein engages directly in the NF-kB signaling pathway pivotal for inflammatory and immune responses. It also interacts in the MAPK pathway that participates in cellular responses to stress. CARD15/NOD2 works alongside other proteins such as RIP2 which is a kinase that further transmits signals downstream in these pathways enhancing immune regulation.

Defects or mutations in CARD15/NOD2 relate to inflammatory diseases such as Crohn's disease and Blau syndrome. In Crohn's disease mutations cause an improper immune response to intestinal flora contributing to inflammation. In these conditions CARD15/NOD2 interactions with proteins like RIP2 become altered disrupting normal cellular functions and exacerbating disease symptoms.

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

Pattern recognition receptor (PRR) that detects bacterial peptidoglycan fragments and other danger signals and plays an important role in gastrointestinal immunity (PubMed : 12514169, PubMed : 12527755, PubMed : 12626759, PubMed : 15044951, PubMed : 15998797, PubMed : 27283905, PubMed : 27748583, PubMed : 31649195). Specifically activated by muramyl dipeptide (MDP), a fragment of bacterial peptidoglycan found in every bacterial peptidoglycan type (PubMed : 12514169, PubMed : 12527755, PubMed : 12626759, PubMed : 12871942, PubMed : 15044951, PubMed : 15198989, PubMed : 15998797, PubMed : 22857257, PubMed : 23322906, PubMed : 27748583, PubMed : 36002575). NOD2 specifically recognizes and binds 6-O-phospho-MDP, the phosphorylated form of MDP, which is generated by NAGK (PubMed : 36002575). 6-O-phospho-MDP-binding triggers oligomerization that facilitates the binding and subsequent activation of the proximal adapter receptor-interacting RIPK2 (PubMed : 11087742, PubMed : 17355968, PubMed : 21887730, PubMed : 23806334, PubMed : 28436939). Following recruitment, RIPK2 undergoes 'Met-1'- (linear) and 'Lys-63'-linked polyubiquitination by E3 ubiquitin-protein ligases XIAP, BIRC2, BIRC3 and the LUBAC complex, becoming a scaffolding protein for downstream effectors, triggering activation of the NF-kappa-B and MAP kinases signaling (PubMed : 11087742, PubMed : 12514169, PubMed : 12626759, PubMed : 15198989, PubMed : 21887730, PubMed : 23322906, PubMed : 23806334, PubMed : 28436939). This in turn leads to the transcriptional activation of hundreds of genes involved in immune response (PubMed : 15198989). Its ability to detect bacterial MDP plays a central role in maintaining the equilibrium between intestinal microbiota and host immune responses to control inflammation (By similarity). An imbalance in this relationship results in dysbiosis, whereby pathogenic bacteria prevail on commensals, causing damage in the intestinal epithelial barrier as well as allowing bacterial invasion and inflammation (By similarity). Acts as a regulator of appetite by sensing MDP in a subset of brain neurons : microbiota-derived MDP reach the brain, where they bind and activate NOD2 in inhibitory hypothalamic neurons, decreasing neuronal activity, thereby regulating satiety and body temperature (By similarity). NOD2-dependent MDP-sensing of bacterial cell walls in the intestinal epithelial compartment contributes to sustained postnatal growth upon undernutrition (By similarity). Also plays a role in antiviral response by acting as a sensor of single-stranded RNA (ssRNA) from viruses : upon ssRNA-binding, interacts with MAVS, leading to activation of interferon regulatory factor-3/IRF3 and expression of type I interferon (PubMed : 19701189). Also acts as a regulator of autophagy in dendritic cells via its interaction with ATG16L1, possibly by recruiting ATG16L1 at the site of bacterial entry (PubMed : 20637199). NOD2 activation in the small intestine crypt also contributes to intestinal stem cells survival and function : acts by promoting mitophagy via its association with ATG16L1 (By similarity). In addition to its main role in innate immunity, also regulates the adaptive immune system by acting as regulator of helper T-cell and regulatory T-cells (Tregs) (By similarity). Besides recognizing pathogens, also involved in the endoplasmic reticulum stress response : acts by sensing and binding to the cytosolic metabolite sphingosine-1-phosphate generated in response to endoplasmic reticulum stress, initiating an inflammation process that leads to activation of the NF-kappa-B and MAP kinases signaling (PubMed : 27007849, PubMed : 33942347). May also be involved in NLRP1 activation following activation by MDP, leading to CASP1 activation and IL1B release in macrophages (PubMed : 18511561).. Isoform 2. Acts as a pattern recognition receptor (PRR); able to activate NF-kappa-B.. Isoform 3. Can activate NF-kappa-B in a muramyl dipeptide (MDP)-independent manner.
See full target information NOD2

Publications (17)

Recent publications for all applications. Explore the full list and refine your search

JID innovations : skin science from molecules to population health 4:100284 PubMed38859976

2024

Uncommon Variants in and Are Associated with Atopic Dermatitis in the Ethiopian Population.

Applications

Unspecified application

Species

Unspecified reactive species

Sailan Wang,Julia K Elmgren,Jesper Eisfeldt,Samina Asad,Marlene Ek,Kassahun Bilcha,Annisa Befekadu,Carl-Fredrik Wahlgren,Magnus Nordenskjöld,Fulya Taylan,Isabel Tapia-Paez,Maria Bradley

Arthritis research & therapy 26:58 PubMed38395960

2024

Identifying functional dysregulation of NOD2 variant Q902K in patients with Yao syndrome.

Applications

Unspecified application

Species

Unspecified reactive species

Jingyuan Zhang,Yi Luo,Bingxuan Wu,Xin Huang,Mengzhu Zhao,Na Wu,Junke Miao,Ji Li,Lei Zhu,Di Wu,Min Shen

Journal of oncology 2022:4537343 PubMed36304988

2022

Long Noncoding RNA XIST Promotes Resistance to Lenvatinib in Hepatocellular Carcinoma Cells via Epigenetic Inhibition of NOD2.

Applications

Unspecified application

Species

Unspecified reactive species

Anqi Duan,Hui Li,Wenlong Yu,Yongjie Zhang,Lei Yin

Frontiers in immunology 13:1021935 PubMed36248876

2022

Crosstalk of necroptosis and pyroptosis defines tumor microenvironment characterization and predicts prognosis in clear cell renal carcinoma.

Applications

Unspecified application

Species

Unspecified reactive species

Liangmin Fu,Jiahao Bao,Jinhui Li,Qiuyang Li,Hansen Lin,Yayun Zhou,Jiangbo Li,Yixuan Yan,Marvin E Langston,Tianhao Sun,Songliang Guo,Xinwei Zhou,Yuhang Chen,Yujun Liu,Yiqi Zhao,Jun Lu,Yong Huang,Wei Chen,Benjamin I Chung,Junhang Luo

Mediators of inflammation 2022:5515305 PubMed35399795

2022

Role of NOD-Like Receptors in a Miniature Pig Model of Diabetic Renal Injuries.

Applications

Unspecified application

Species

Unspecified reactive species

Yi Ren,Shaoyuan Cui,Quan Hong,Wanjun Shen,Qinggang Li,Lingling Wu,Bo Fu,Xu Wang,Qian Ma,Jiaona Liu,Xueyuan Bai,Xiangmei Chen

Journal of oncology 2022:8167496 PubMed35378772

2022

The Expression, Prognostic Value, and Immunological Correlation of MCEMP1 and its Potential Role in Gastric Cancer.

Applications

Unspecified application

Species

Unspecified reactive species

Pu Huang,Yawen Liu,Baoqing Jia

Central-European journal of immunology 46:140-151 PubMed34764783

2021

Knockdown of circular RNA hsa_circ_0003204 inhibits oxidative stress and apoptosis through the miR-330-5p/Nod2 axis to ameliorate endothelial cell injury induced by low-density lipoprotein.

Applications

Unspecified application

Species

Unspecified reactive species

Bin Zhang,Yufan Zhang,Rui Li,Yan Li,Wei Yan

Molecular medicine reports 23: PubMed33495843

2021

IL-32 exacerbates adenoid hypertrophy via activating NLRP3-mediated cell pyroptosis, which promotes inflammation.

Applications

Unspecified application

Species

Unspecified reactive species

Junmei Zhang,Xuyuan Sun,Lingling Zhong,Bei Shen

Cell death & disease 11:174 PubMed32144252

2020

NOD2 inhibits tumorigenesis and increases chemosensitivity of hepatocellular carcinoma by targeting AMPK pathway.

Applications

Unspecified application

Species

Unspecified reactive species

Xiaomin Ma,Yumin Qiu,Yanlin Sun,Lihui Zhu,Yunxue Zhao,Tao Li,Yueke Lin,Dapeng Ma,Zhenzhi Qin,Caiyu Sun,Lihui Han

Biochemical and biophysical research communication 503:586-592 PubMed29902461

2018

Knockdown of long noncoding RNA XIST alleviates oxidative low-density lipoprotein-mediated endothelial cells injury through modulation of miR-320/NOD2 axis.

Applications

Unspecified application

Species

Unspecified reactive species

Xiaohui Xu,Congmin Ma,Chao Liu,Zhihui Duan,Li Zhang
View all publications
