Anti-Cardiac Troponin T antibody [EPR20266]

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Cardiac Troponin T antibody [EPR20266] (AB209813)

Immunofluorescence staining of Cardiac Troponin T using ab209813 in ab277612, which were differentiated for 10 days post induction.

The cells were fixed with 4% formaldehyde (10 min), permeabilized with 0.1% PBS-Tween for 5 mins and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab209813 at 1.0 μg/mL and ab7291, Mouse monoclonal [DM1A] to alpha Tubulin, at 1/1000 dilution. Cells were then incubated with ab150081, Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed at 1/1000 dilution (shown in green) and ab150120, Goat Anti-Mouse IgG H&L (Alexa Fluor^® 594) preadsorbed at 1/1000 dilution (shown in red). Nuclear DNA was labelled with DAPI (shown in blue).

Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown. Gamma is adjusted to 1.5 in all channels.

The antibody ab209813 also gave a positive staining using MeOH fixation (100%, 5 min).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Cardiac Troponin T antibody [EPR20266] (AB209813)

Immunohistochemical analysis of paraffin-embedded human skeletal muscle tissue labeling Cardiac Troponin T with ab209813 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Negative control : No staining on human skeletal muscle [PMID : 11375287].

Counter stained with Hematoxylin.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Cardiac Troponin T antibody [EPR20266] (AB209813)

Immunohistochemical analysis of paraffin-embedded human cardiac muscle tissue labeling Cardiac Troponin T with ab209813 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Cytoplasmic staining on human cardiac muscle is observed [PMID : 9068591].

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• Flow Cyt (Intra)

Lab

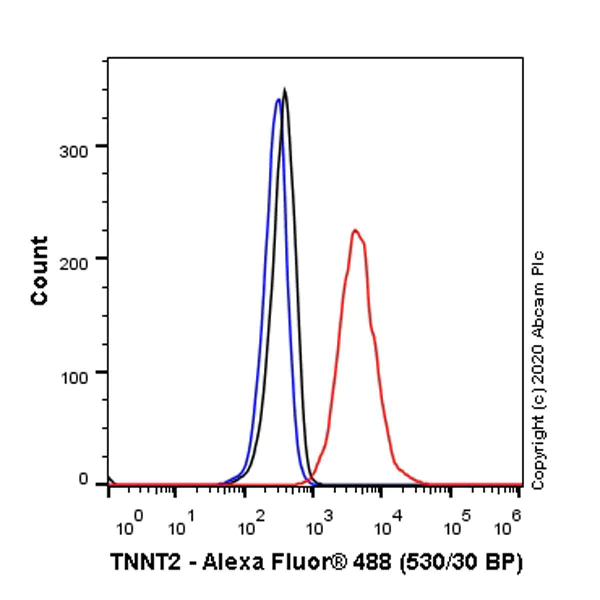

Flow Cytometry (Intracellular) - Anti-Cardiac Troponin T antibody [EPR20266] (AB209813)

Intracellular flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized HL-1 (Mouse atrial muscle cell) cells labelling Cardiac Troponin T with ab209813 at 1/500 dilution (0.1μg) (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) at 1/2000 dilution was used as the secondary antibody.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Cardiac Troponin T antibody [EPR20266] (AB209813)

Immunohistochemical analysis of paraffin-embedded mouse cardiac muscle tissue labeling Cardiac Troponin T with ab209813 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Cytoplasmic staining on mouse cardiac muscle is observed [PMID : 9068591].

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Anti-Cardiac Troponin T antibody [EPR20266] (AB209813)

Intracellular flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized L6 (Rat skeletal muscle myoblast) cells labelling Cardiac Troponin T with ab209813 at 1/500 dilution (0.1μg) (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) at 1/2000 dilution was used as the secondary antibody.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Cardiac Troponin T antibody [EPR20266] (AB209813)

Immunohistochemical analysis of paraffin-embedded rat cardiac muscle tissue labeling Cardiac Troponin T with ab209813 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Cytoplasmic staining on rat cardiac muscle is observed [PMID : 9068591].

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Cardiac Troponin T antibody [EPR20266] (AB209813)

Immunohistochemical analysis of paraffin-embedded rat skeletal muscle tissue labeling Cardiac Troponin T with ab209813 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Negative control : No staining on rat skeletal muscle [PMID : 11375287].

Counter stained with Hematoxylin.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Cardiac Troponin T antibody [EPR20266] (AB209813)

Immunohistochemical analysis of paraffin-embedded mouse skeletal muscle tissue labeling Cardiac Troponin T with ab209813 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Negative control : No staining on mouse skeletal muscle [PMID : 11375287].

Counter stained with Hematoxylin.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• WB

Supplier Data

Western blot - Anti-Cardiac Troponin T antibody [EPR20266] (AB209813)

Blocking/Dilution buffer : 5% NFDM/TBST.

Troponin T exists in three tissue-specific subtypes : slow skeletal troponin T1 (ssTnT/TNNT1), fast skeletal troponin T3 (fsTnT/TNNT3) and cardiac troponin T2 (cTnT/TNNT2). The product is specific to cTnT/TNNT2.

Negative control : human skeletal muscle (PMID : 10585344).

The observed molecular weight is consistent with the literature (PMID : 10451242).

All lanes:

Western blot - Anti-Cardiac Troponin T antibody [EPR20266] (ab209813) at 1/5000 dilution

Lane 1:

Human fetal heart lysate at 20 µg

Lane 2:

Mouse heart lysate at 20 µg

Lane 3:

Human skeletal muscle lysate at 20 µg

Secondary

All lanes:

Western blot - VeriBlot for IP Detection Reagent (HRP) (<a href='/en-us/products/reagents/veriblot-for-ip-detection-reagent-hrp-ab131366'>ab131366</a>) at 1/4000 dilution

Predicted band size: 35 kDa

Observed band size: 39 kDa

false

Exposure time: 1s

• WB

Supplier Data

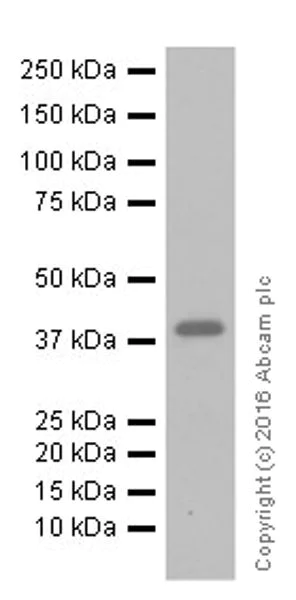

Western blot - Anti-Cardiac Troponin T antibody [EPR20266] (AB209813)

Blocking/Dilution buffer : 5% NFDM/TBST.

The observed molecular weight is consistent with the literature (PMID : 10451242).

All lanes:

Western blot - Anti-Cardiac Troponin T antibody [EPR20266] (ab209813) at 1/5000 dilution

All lanes:

Rat heart lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 35 kDa

Observed band size: 39 kDa

false

Exposure time: 1s
