AB238124

Anti-Caspase-4 antibody [EPR20921-83]

4

(1 Review)

|

(12 Publications)

Knockout Tested Rabbit Recombinant Monoclonal Caspase-4 antibody. Suitable for WB, Flow Cyt (Intra) and reacts with Human samples. Cited in 12 publications.

View Alternative Names

ICH2, CASP4, Caspase-4, CASP-4, ICE and Ced-3 homolog 2, ICE(rel)-II, Mih1, Protease TX, ICH-2

4 Images
Flow Cytometry (Intracellular) - Anti-Caspase-4 antibody [EPR20921-83] (AB238124)
  • Flow Cyt (Intra)

Unknown

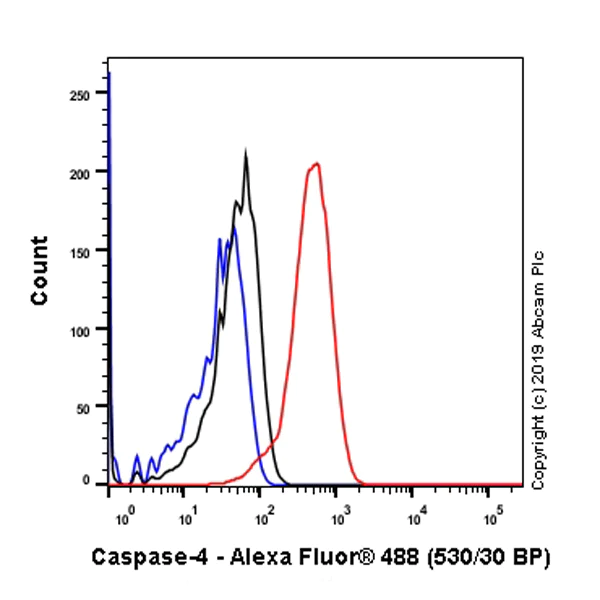

Flow Cytometry (Intracellular) - Anti-Caspase-4 antibody [EPR20921-83] (AB238124)

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol permeabilized IM-9 (human multiple myeloma B Lymphoblast) cell line labeling Caspase 4with ab238124 at 1/60 (red) compared with a Rabbit monoclonal IgG (ab172730) (black) and an unlabeled control (cells without incubation with primary antibody and secondary antibody) (blue). Goat anti rabbit IgG (Alexa Fluor® 488, ab150097), at 1/5000 dilution was used as the secondary antibody.

Flow Cytometry (Intracellular) - Anti-Caspase-4 antibody [EPR20921-83] (AB238124)
  • Flow Cyt (Intra)

Unknown

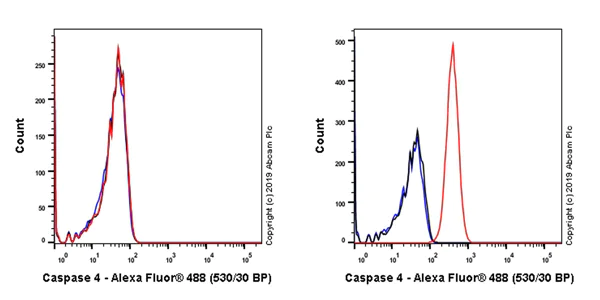

Flow Cytometry (Intracellular) - Anti-Caspase-4 antibody [EPR20921-83] (AB238124)

Intracellular flow cytometric analysis of THP-1 (Human monocytic leukemia monocyte) cellslabeling Caspase-4 with ab238124 at 1/60 (right panel, red) compared with HEK-293T (Human epithelial cell line from embryonic kidney transformed with large T antigen) cells (left panel, red). Goat anti rabbit IgG (Alexa Fluor® 488, ab150097), at 1/5000 dilution was used as the secondary antibody. Rabbit monoclonal IgG (ab172730) (black) and an unlabeled control (cells without incubation with primary antibody and secondary antibody) (blue). Negative control : HEK-293T (PMID : 25119034).

Western blot - Anti-Caspase-4 antibody [EPR20921-83] (AB238124)
  • WB

Lab

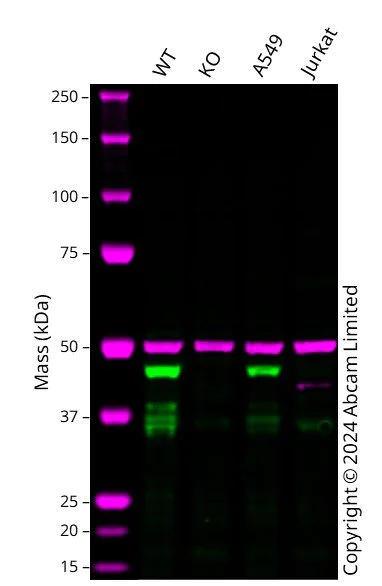

Western blot - Anti-Caspase-4 antibody [EPR20921-83] (AB238124)

Western blot : Anti-CASP4 antibody [EPR20921-83] (ab238124) staining at 1/1000 dilution, shown in green; Mouse anti-Alpha Tubulin [DM1A] (ab7291) loading control staining at 1/20000 dilution, shown in magenta. In Western blot, ab238124 was shown to bind specifically to CASP4. A band was observed at 43 kDa in wild-type HCT 116 cell lysates with no signal observed at this size in CASP4 knockout cell line. To generate this image, wild-type and CASP4 knockout HCT 116 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.

All lanes:

Western blot - Anti-Caspase-4 antibody [EPR20921-83] (ab238124) at 1/1000 dilution

Lane 1:

Wild-type HCT 116 cell lysate at 20 µg

Lane 2:

CASP4 knockout HCT 116 cell lysate at 20 µg

Lane 3:

A549 cell lysate at 20 µg

Lane 4:

Jurkat cell lysate at 20 µg

Secondary

All lanes:

Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution

Observed band size: 43 kDa

false

Western blot - Anti-Caspase-4 antibody [EPR20921-83] (AB238124)
  • WB

Unknown

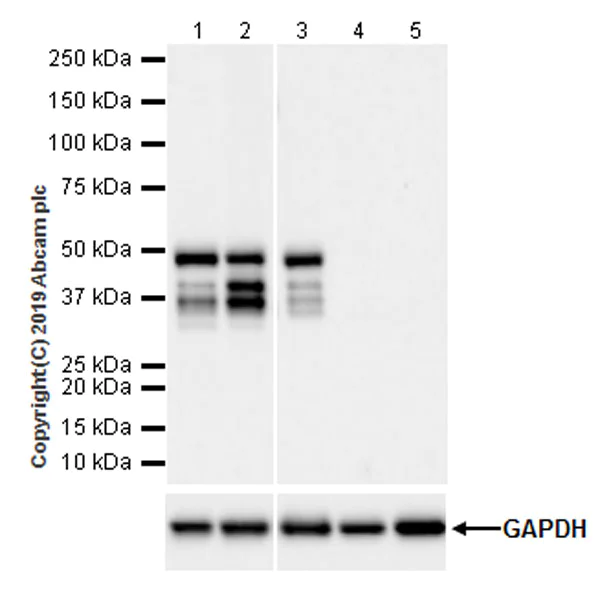

Western blot - Anti-Caspase-4 antibody [EPR20921-83] (AB238124)

Negative control : HEK-293T and Jurkat (PMID : 25119034).

The molecular weight observed is consistent with the literatures (PMID : 22246630, PMID : 25119034, PMID : 24879791, PMID : 15123740).

Blocking/Dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-Caspase-4 antibody [EPR20921-83] (ab238124) at 1/1000 dilution

Lane 1:

THP-1 (human monocytic leukemia monocyte), whole cell lysate at 20 µg

Lane 2:

KARPAS-299 (human anaplastic large cell lymphoma), whole cell lysate at 20 µg

Lane 3:

IM-9 (human multiple myeloma B Lymphoblast), whole cell lysate at 20 µg

Lane 4:

HEK-293T (human epithelial cell line from embryonic kidney transformed with large T antigen), whole cell lysate at 20 µg

Lane 5:

Jurkat (human T cell leukemia T lymphocyte), whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 43 kDa

Observed band size: 32 kDa,38 kDa,45 kDa

false

Exposure time: 10s

  • Carrier free

    Anti-Caspase-4 antibody [EPR20921-83] - BSA and Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR20921-83

Isotype

IgG

Carrier free

No

Reacts with

Human

Applications

Flow Cyt (Intra), WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/60", "FlowCytIntra-species-notes": "<p></p>" } } }

Product details

This antibody was developed in collaboration with Dr Feng Shao's lab, NIBS.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Preservative: 0.01% Sodium azide Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

Inflammatory caspase that acts as the effector of the non-canonical inflammasome by mediating lipopolysaccharide (LPS)-induced pyroptosis (PubMed : 25119034, PubMed : 26375003, PubMed : 32109412, PubMed : 34671164, PubMed : 37001519, PubMed : 37993712, PubMed : 37993714). Also indirectly activates the NLRP3 and NLRP6 inflammasomes (PubMed : 23516580, PubMed : 26375003, PubMed : 32109412, PubMed : 7797510). Acts as a thiol protease that cleaves a tetrapeptide after an Asp residue at position P1 : catalyzes cleavage of CGAS, GSDMD and IL18 (PubMed : 15326478, PubMed : 23516580, PubMed : 26375003, PubMed : 28314590, PubMed : 32109412, PubMed : 37993712, PubMed : 37993714, PubMed : 7797510). Effector of the non-canonical inflammasome independently of NLRP3 inflammasome and CASP1 : the non-canonical inflammasome promotes pyroptosis through GSDMD cleavage without involving secretion of cytokine IL1B (PubMed : 25119034, PubMed : 25121752, PubMed : 26375003, PubMed : 31268602, PubMed : 32109412, PubMed : 37993712, PubMed : 37993714). In the non-canonical inflammasome, CASP4 is activated by direct binding to the lipid A moiety of LPS without the need of an upstream sensor (PubMed : 25119034, PubMed : 25121752, PubMed : 29520027, PubMed : 32510692, PubMed : 32581219, PubMed : 37993712). LPS-binding promotes CASP4 activation and CASP4-mediated cleavage of GSDMD and IL18, followed by IL18 secretion through the GSDMD pore, pyroptosis of infected cells and their extrusion into the gut lumen (PubMed : 25119034, PubMed : 25121752, PubMed : 37993712, PubMed : 37993714). Also indirectly promotes secretion of mature cytokines (IL1A and HMGB1) downstream of GSDMD-mediated pyroptosis via activation of the NLRP3 and NLRP6 inflammasomes (PubMed : 26375003, PubMed : 32109412). Involved in NLRP3-dependent CASP1 activation and IL1B secretion in response to non-canonical activators, such as UVB radiation or cholera enterotoxin (PubMed : 22246630, PubMed : 23516580, PubMed : 24879791, PubMed : 25964352, PubMed : 26173988, PubMed : 26174085, PubMed : 26508369). Involved in NLRP6 inflammasome-dependent activation in response to lipoteichoic acid (LTA), a cell-wall component of Gram-positive bacteria, which leads to CASP1 activation and IL1B secretion (PubMed : 33377178). Involved in LPS-induced IL6 secretion; this activity may not require caspase enzymatic activity (PubMed : 26508369). The non-canonical inflammasome is required for innate immunity to cytosolic, but not vacuolar, bacteria (By similarity). Plays a crucial role in the restriction of S.typhimurium replication in colonic epithelial cells during infection (PubMed : 25121752, PubMed : 25964352). Activation of the non-canonical inflammasome in brain endothelial cells can lead to excessive pyroptosis, leading to blood-brain barrier breakdown (By similarity). Pyroptosis limits bacterial replication, while cytokine secretion promotes the recruitment and activation of immune cells and triggers mucosal inflammation (PubMed : 25121752, PubMed : 25964352, PubMed : 26375003). May also act as an activator of adaptive immunity in dendritic cells, following activation by oxidized phospholipid 1-palmitoyl-2-arachidonoyl- sn-glycero-3-phosphorylcholine, an oxidized phospholipid (oxPAPC) (By similarity). Involved in cell death induced by endoplasmic reticulum stress and by treatment with cytotoxic APP peptides found in Alzheimer's patient brains (PubMed : 15123740, PubMed : 22246630, PubMed : 23661706). Cleavage of GSDMD is not strictly dependent on the consensus cleavage site but depends on an exosite interface on CASP4 that recognizes and binds the Gasdermin-D, C-terminal (GSDMD-CT) part (PubMed : 32109412). Catalyzes cleavage and maturation of IL18; IL18 processing also depends of the exosite interface on CASP4 (PubMed : 15326478, PubMed : 37993712, PubMed : 37993714). In contrast, it does not directly process IL1B (PubMed : 7743998, PubMed : 7797510, PubMed : 7797592). During non-canonical inflammasome activation, cuts CGAS and may play a role in the regulation of antiviral innate immune activation (PubMed : 28314590).. (Microbial infection) In response to the Td92 surface protein of the periodontal pathogen T.denticola, activated by cathepsin CTSG which leads to production and secretion of IL1A and pyroptosis of gingival fibroblasts.
