Anti-Cathepsin B antibody [EPR21033] (ab214428) is a rabbit monoclonal antibody that is used to detect Cathepsin B in Western Blot, Flow Cytometry (Intra), Flow Cytometry, IHC-P, ICC/IF. Suitable for Mouse, Rat samples.



- Using biophysical QC, antibody identity is confirmed at a molecular level for unrivalled batch-batch consistency

-Over 10 publications


Images

Western blot - Anti-Cathepsin B antibody [EPR21033] (AB214428), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Cathepsin B antibody [EPR21033] (AB214428), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Cathepsin B antibody [EPR21033] (AB214428), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Anti-Cathepsin B antibody [EPR21033] (AB214428), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Anti-Cathepsin B antibody [EPR21033] (AB214428), expandable thumbnail

Publications

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Abcam Recommends

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
WBICC/IFFlow Cyt (Intra)IHC-P
Human
Not recommended
Not recommended
Not recommended
Not recommended
Mouse
Tested
Tested
Tested
Tested
Rat
Tested
Tested
Expected
Tested

Tested
Tested

Species
Mouse
Dilution info
1/1000
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species
Rat
Dilution info
1/1000
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Not recommended
Not recommended

Species
Human
Dilution info
-
Notes

-

Tested
Tested

Species
Mouse
Dilution info
1/250
Notes

-

Species
Rat
Dilution info
1/250
Notes

-

Not recommended
Not recommended

Species
Human
Dilution info
-
Notes

-

Tested
Tested

Species
Mouse
Dilution info
1/500
Notes

-

Expected
Expected

Species
Rat
Dilution info
Use at an assay dependent concentration.
Notes

-

Not recommended
Not recommended

Species
Human
Dilution info
-
Notes

-

Tested
Tested

Species
Mouse
Dilution info
1/1000
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species
Rat
Dilution info
1/1000
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Not recommended
Not recommended

Species
Human
Dilution info
-
Notes

-

Associated Products

Select an associated product type

6 products for Alternative Product

Target data

Function

Thiol protease which is believed to participate in intracellular degradation and turnover of proteins (By similarity). Cleaves matrix extracellular phosphoglycoprotein MEPE (By similarity). Involved in the solubilization of cross-linked TG/thyroglobulin in the thyroid follicle lumen (PubMed:12782676). Has also been implicated in tumor invasion and metastasis (By similarity).

Alternative names

Cathepsin B, Cathepsin B1, Ctsb

Recommended products

Anti-Cathepsin B antibody [EPR21033] (ab214428) is a rabbit monoclonal antibody that is used to detect Cathepsin B in Western Blot, Flow Cytometry (Intra), Flow Cytometry, IHC-P, ICC/IF. Suitable for Mouse, Rat samples.



- Using biophysical QC, antibody identity is confirmed at a molecular level for unrivalled batch-batch consistency

-Over 10 publications

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EPR21033
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Notes

What is this antibody validated in?


Anti-Cathepsin B antibody [EPR21033] (ab214428) is a rabbit recombinant monoclonal antibody and is validated for use in Western Blot (WB), Flow Cytometry (Intra), Flow Cytometry (Flow Cyt), Immunohistochemistry (IHC-P), Immunocytochemistry/immunofluorescence (ICC/IF), in Mouse, Rat samples.

What is the molecular weight of Cathepsin B?


Anti-Cathepsin B [EPR21033] (ab214428) specifically detects a band for Cathepsin B (UniProt: P10605) at a molecular weight of 37kDa.

Recommended positive controls


WB: Mouse kidney tissue lysate; Rat thymus and kidney tissue lysates; RAW 264.7 and PC-12 whole cell lysates.IHC-P: Mouse and rat kidney tissues.ICC/IF: RAW 264.7 and PC-12 cells.Flow Cyt (intra): RAW 264.7 cells.

Trusted by the scientific community


Anti-Cathepsin B [EPR21033] (ab214428) was first used in a scientific publication in 2017 and has been cited over 10 times in peer-reviewed journals.

Reviewed by scientists


Anti-Cathepsin B [EPR21033] (ab214428) has over 5 independent reviews from customers.

Trial sizes available!


Test your antibody or perform pre-screening before committing to a larger quantity. Sold in 10µl. Discover our selection of trial-size antibodies.Other related products


We have a range of other formats of antibody clone [EPR21033] also available for your convenience:
ab214428, Carrier free - Anti-Cathepsin B antibody [EPR21033] - BSA and Azide free ab227811



Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

Cathepsin B also known as CTSB or cathepsin beta is a lysosomal cysteine protease belonging to the papain family. This enzyme possesses a molecular weight of approximately 25 to 30 kDa. You can find cathepsin B expressed in various tissues with high levels observed in the liver kidney and spleen. It plays a mechanical role in protein degradation within lysosomes operating optimally in acidic environments. The enzyme has active and inactive forms depending on structural modifications and environmental conditions.

Biological function summary

Cathepsin B participates as a proteolytic enzyme involved in protein turnover and processing. It does not function in isolation but often associates with various other proteases forming complexes essential for efficient substrate breakdown. Cathepsin B assists in the activation of other enzymes by cleaving propeptides therefore facilitating the initiation of cascade reactions. This role is critical in maintaining cellular homeostasis and modulating physiological processes including cell migration and immune response modulation.

Pathways

Cathepsin B significantly contributes to the lysosomal protein degradation pathway and the autophagy-lysosome pathway. It interacts with proteins such as B protein which are important for cellular recycling and energy homeostasis. Its activity supports the MHC class II antigen processing pathway playing an essential part in immune system functionality. Cathepsin B also exhibits interactions with Ctsb protein inhibitors which regulate its proteolytic activity within these pathways.

Associated diseases and disorders

Cathepsin B has strong associations with cancer progression and neurological disorders such as Alzheimer's disease. Its overexpression and dysregulation are linked to tumor metastasis where it degrades extracellular matrix components promoting invasion. Ctsb protein interactions with corey mazo proteins influence tumor microenvironment and immune evasion. In Alzheimer's disease cathepsin B can influence amyloid beta peptide processing connected to neurodegenerative pathology progression. These roles highlight the potential for cathepsin B as a therapeutic target in addressing these conditions.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

7 product images

  • Western blot - Anti-Cathepsin B antibody [EPR21033] (ab214428), expandable thumbnail

    Western blot - Anti-Cathepsin B antibody [EPR21033] (ab214428)

    Exposure times: Lanes 1,2: 23 seconds; Lane 3: 50 seconds; Lane 4: 15 seconds; Lane 5: 2 minutes.

    Blocking/Dilution buffer: 5% NFDM/TBST.

    The expression profile and molecular mass is consistent with what has been described in the literature (PMID:20536394; PMID: 10447678).

    All lanes: Western blot - Anti-Cathepsin B antibody [EPR21033] (ab214428) at 1/1000 dilution

    Lane 1: Mouse kidney tissue lysate at 10 µg

    Lane 2: RAW 264.7 (mouse macrophage cell line transformed with Abelson murine leukemia virus) whole cell lysate at 10 µg

    Lane 3: Rat thymus tissue lysate at 10 µg

    Lane 4: Rat kidney tissue lysate at 10 µg

    Lane 5: PC-12 (rat adrenal gland pheochromocytoma cell line) whole cell lysate at 10 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

    Developed using the ECL technique.

    Predicted band size: 38 kDa

    Observed band size: 25 kDa, 31 kDa, 43 kDa

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Cathepsin B antibody [EPR21033] (ab214428), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Cathepsin B antibody [EPR21033] (ab214428)

    Immunohistochemical analysis of paraffin-embedded mouse kidney tissue labeling Cathepsin B with ab214428 at 1/1000 dilution, followed by secondary Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Punctate cytoplasmic staining on mouse kidney (PMID: 20668705; PMID: 26831567) is observed. Counter stained with hematoxylin.

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

    Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Cathepsin B antibody [EPR21033] (ab214428), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Cathepsin B antibody [EPR21033] (ab214428)

    Immunohistochemical analysis of paraffin-embedded rat kidney tissue labeling Cathepsin B with ab214428 at 1/1000 dilution, followed by secondary Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Punctate cytoplasmic staining on rat kidney (PMID: 20668705; PMID: 26831567) is observed. Counter stained with hematoxylin.

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

    Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

  • Immunocytochemistry/ Immunofluorescence - Anti-Cathepsin B antibody [EPR21033] (ab214428), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-Cathepsin B antibody [EPR21033] (ab214428)

    Immunofluorescent analysis of 100% methanol-fixed RAW 264.7 (mouse macrophage cell line transformed with Abelson murine leukemia virus) cells labeling Cathepsin B with ab214428 at 1/250 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing cytoplasmic staining in RAW 264.7 cells.

    The nuclear counterstain is DAPI (blue). Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) (Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889) at 1/200 dilution (red).

    Secondary antibody only control: Used PBS instead of primary antibody, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/1000 dilution.

  • Immunocytochemistry/ Immunofluorescence - Anti-Cathepsin B antibody [EPR21033] (ab214428), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-Cathepsin B antibody [EPR21033] (ab214428)

    Immunofluorescent analysis of 100% methanol-fixed PC-12 (rat adrenal gland pheochromocytoma cell line) cells labeling Cathepsin B with ab214428 at 1/250 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing cytoplasmic staining on PC-12 cells.

    The nuclear counterstain is DAPI (blue). Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) (Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889) at 1/200 dilution (red).

    Secondary antibody only control: Used PBS instead of primary antibody, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/1000 dilution.

  • Flow Cytometry (Intracellular) - Anti-Cathepsin B antibody [EPR21033] (ab214428), expandable thumbnail

    Flow Cytometry (Intracellular) - Anti-Cathepsin B antibody [EPR21033] (ab214428)

    Intracellular flow cytometric analysis of4% paraformaldehyde-fixed, 90% methanol-permeabilized RAW 264.7 (mouse macrophage cell line transformed with Abelson murine leukemia virus) cell line labeling Cathepsin B with ab214428 at 1/500 dilution (red) compared with a Rabbit IgG, monoclonal [EPR25A] - Isotype Control (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (black) and an unlabeled control (cells without incubation with primary antibody and secondary antibody) (blue). Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077), at 1/2000 dilution was used as the secondary antibody.

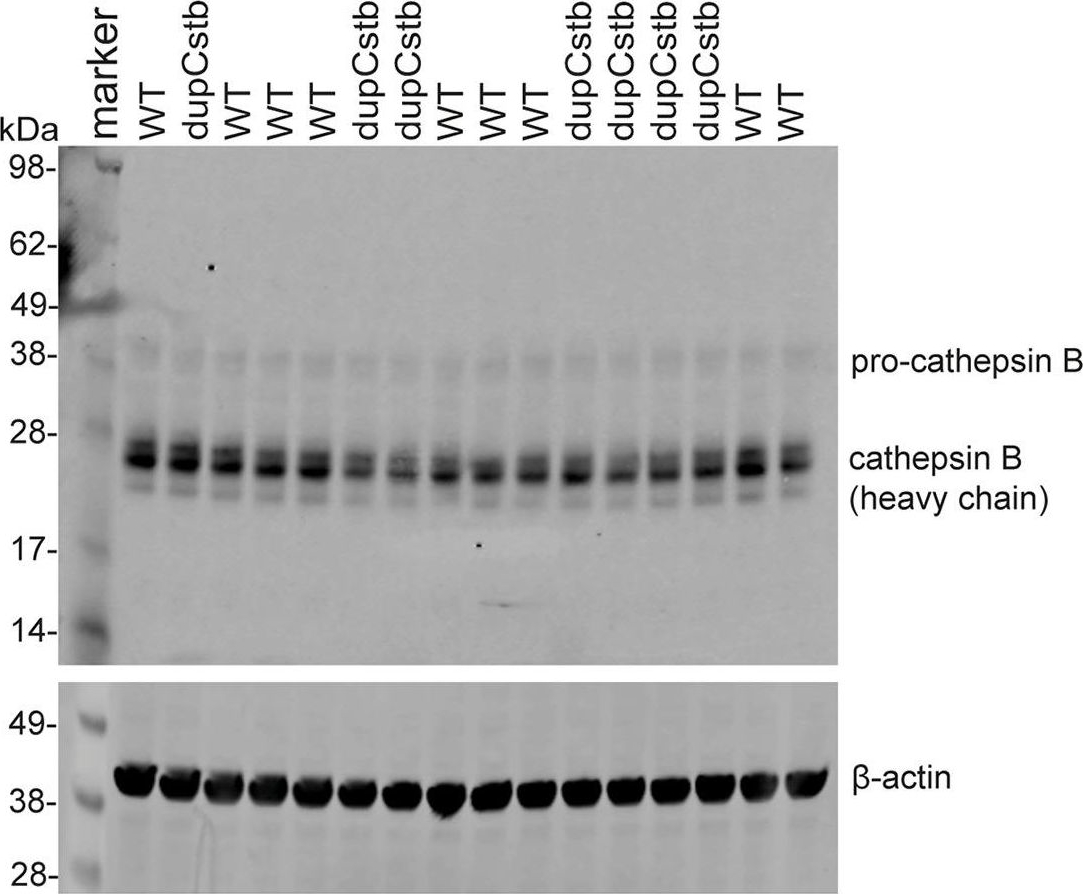

  • Western blot - Anti-Cathepsin B antibody [EPR21033] (ab214428), expandable thumbnail

    Image collected and cropped by CiteAb under a CC-BY license from the publication

    Western blot - Anti-Cathepsin B antibody [EPR21033] (ab214428)

    Cathepsin B western blot using anti-Cathepsin B antibody [EPR21033] ab214428. Publication image and figure legend from Wu, Y., Whittaker, H. T., et al., 2021, PLoS One, PubMed 34292972.


    ab214428 was used in this publication in western blot. This may not be the same as the application(s) guaranteed by Abcam. For a full list of applications guaranteed by Abcam for ab214428 please see the product overview.

    Activity of cathepsin B in cortical lysates of 3- and 6- month-old mice.Total cortical proteins were used to determine enzyme activity, as the gain in fluorescence during the linear portion of the reaction curve relative to the wildtype mean. (A) Cortical relative cathepsin B activity at 3-months of age, graphed as group means ± SEM (n = 18 per genotype; (22 females and 14 males in total), revealed no statistically significant effects of dupCstb or sex (univariate ANOVA). (B) Cortical relative cathepsin B activity at 6-months of age, graphed as group means ± SEM, (dupCstb n = 7, wildtype n = 9; 7 females and 9 males in total), revealed no statistically significant effects of dupCstb or sex (univariate ANOVA). Recombinant human cathepsin B (R&D Systems, Cat. No. 953-CY-010) was used as a positive control. (C) Representative western blot probed with an anti-cathepsin B antibody that recognises pro-cathepsin B and cathepsin B heavy chain and an anti-β-actin antibody. (D) Protein band densities of pro-cathepsin B and cathepsin B heavy chain were quantified using ImageJ, normalised to β-actin, and are shown as cathepsin B/pro-cathepsin B ratio in the dupCstb group relative to the ratio in wildtype, graphed as group mean ± SEM (dupCstb n = 7, wildtype n = 9; 7 females and 9 males in total).
