Anti-Cathepsin D antibody [EPR3057Y] - Chicken IgY (Chimeric) - BSA and Azide free

• Flow Cyt (Intra)

Supplier Data

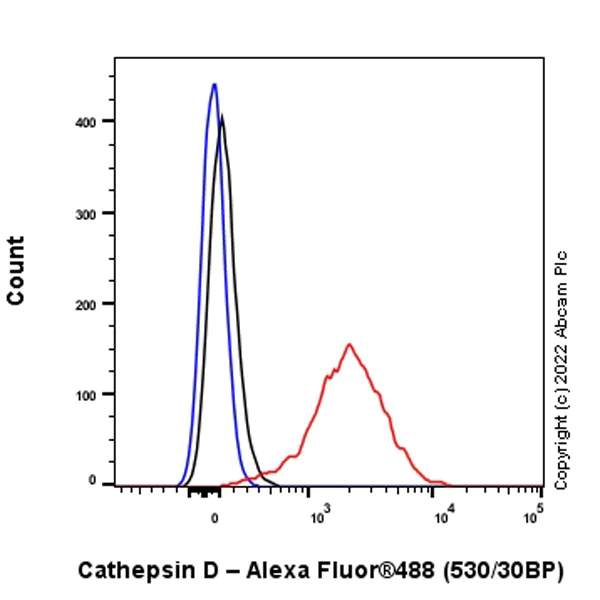

Flow Cytometry (Intracellular) - Anti-Cathepsin D antibody [EPR3057Y] - Chicken IgY (Chimeric) - BSA and Azide free (AB302647)

This data was developed using ab302646, the same antibody clone in a different buffer formulation.Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized HepG2 (human hepatocellular carcinoma epithelial cell) cells labelling CTSD (cathepsin D) with ab302646 at 1/1000 dilution (0.1ug) (Red) compared with a Chicken IgY (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti-Chicken IgY H&L (Alexa Fluor® 488, ab150173) at 1/2000 dilution was used as the secondary antibody.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-Cathepsin D antibody [EPR3057Y] - Chicken IgY (Chimeric) - BSA and Azide free (AB302647)

This data was developed using ab302646, the same antibody clone in a different buffer formulation.Immunofluorescent analysis of 100% methanol-fixed, 0.1% TritonX-100 permeabilized HepG2 (human hepatocellular carcinoma epithelial cell) cells labelling CTSD (cathepsin D) with ab302646 at 1/100 (8.1 ug/ml ) dilution, followed by ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2 ug/ml dilution (Green). Confocal image showing cytoplasmic staining in HepG2 cell line is observed. ab179513 Anti-beta Tubulin rabbit monoclonal antibody was used to counterstain tubulin at 1/200 10ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control : Secondary antibody is ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/ml dilution.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Cathepsin D antibody [EPR3057Y] - Chicken IgY (Chimeric) - BSA and Azide free (AB302647)

This data was developed using ab302646, the same antibody clone in a different buffer formulation. Immunohistochemical analysis of paraffin-embedded Human breast carcinoma tissue labeling CTSD (cathepsin D) with ab302646 at 1/10000 (0.08 µg/mL) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used. Cytoplasmic with granular staining on human breast carcinoma. The section was incubated with ab302646 for 30 mins at room temperature, followed by Anti-Chicken IgY antibody (ab97136) for 8 mins during the LeicaDS9800 kit staining procedure. The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Cathepsin D antibody [EPR3057Y] - Chicken IgY (Chimeric) - BSA and Azide free (AB302647)

This data was developed using ab302646, the same antibody clone in a different buffer formulation. Immunohistochemical analysis of paraffin-embedded Human liver tissue labeling CTSD (cathepsin D) with ab302646 at 1/10000 (0.08 µg/mL) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Cytoplasmic with granular staining on human liver. The section was incubated with ab302646 for 30 mins at room temperature, followed by Anti-Chicken IgY antibody (ab97136) for 8 mins during the LeicaDS9800 kit staining procedure.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins

• Flow Cyt (Intra)

Supplier Data

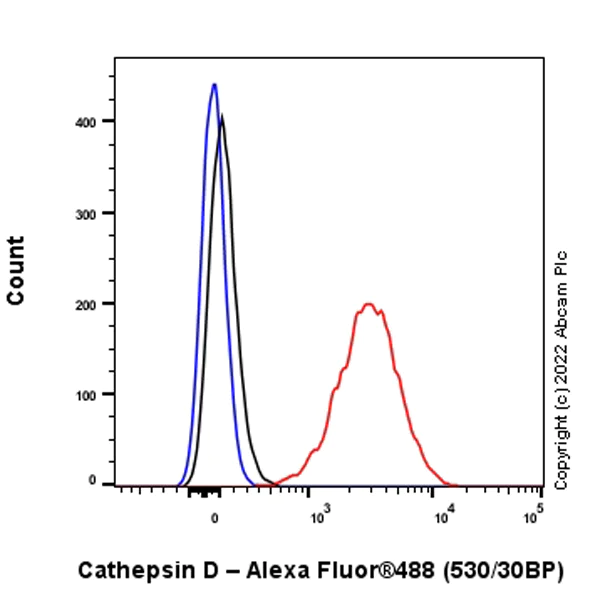

Flow Cytometry (Intracellular) - Anti-Cathepsin D antibody [EPR3057Y] - Chicken IgY (Chimeric) - BSA and Azide free (AB302647)

This data was developed using ab302646, the same antibody clone in a different buffer formulation.Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized Neuro-2a (mouse neuroblastoma neuroblast) cells labelling CTSD (cathepsin D) with ab302646 at 1/1000 dilution (0.1ug) (Red) compared with a Chicken IgY (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti-Chicken IgY H&L (Alexa Fluor® 488, ab150173) at 1/2000 dilution was used as the secondary antibody.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-Cathepsin D antibody [EPR3057Y] - Chicken IgY (Chimeric) - BSA and Azide free (AB302647)

This data was developed using ab302646, the same antibody clone in a different buffer formulation.Immunofluorescent analysis of 100% methanol-fixed, 0.1% TritonX-100 permeabilized Neuro-2a (mouse neuroblastoma neuroblast) cells labelling CTSD (cathepsin D) with ab302646 at 1/100 (8.1 ug/ml ) dilution, followed by ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2 ug/ml dilution (Green). Confocal image showing cytoplasmic staining in Neuro-2a cell line is observed. ab179513 Anti-beta Tubulin rabbit monoclonal antibody was used to counterstain tubulin at 1/200 10ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control : Secondary antibody is ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/ml dilution.

• WB

Supplier Data

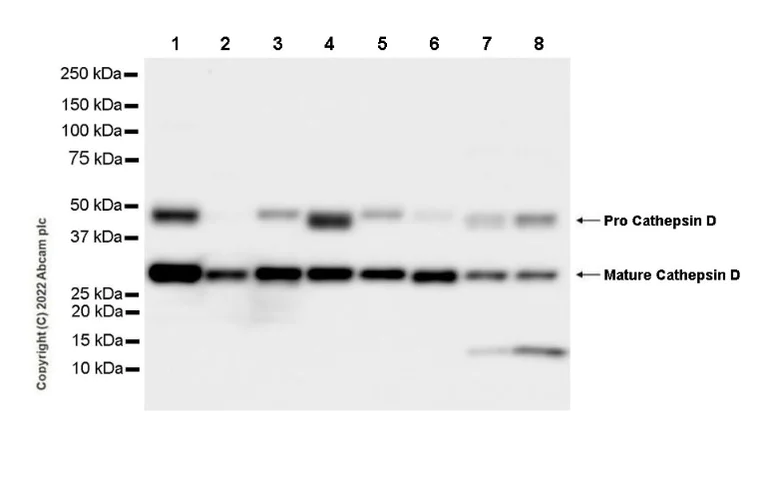

Western blot - Anti-Cathepsin D antibody [EPR3057Y] - Chicken IgY (Chimeric) - BSA and Azide free (AB302647)

This data was developed using ab302646, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Exposure time : 5.5 seconds.

All lanes:

Western blot - Anti-Cathepsin D antibody [EPR3057Y] - Chicken IgY (Chimeric) (<a href='/en-us/products/primary-antibodies/cathepsin-d-antibody-epr3057y-chicken-igy-chimeric-ab302646'>ab302646</a>) at 1/1000 dilution

Lane 1:

MCF7 (human breast adenocarcinoma epithelial cell), whole cell lysate at 20 µg

Lane 2:

SH-SY5Y (human neuroblastoma epithelial cell), whole cell lysate at 20 µg

Lane 3:

SK-BR-3 (human breast adenocarcinoma epithelial cell), whole cell lysate at 20 µg

Lane 4:

U937 (human histiocytic lymphoma monocyte), whole cell lysate at 20 µg

Lane 5:

A431 (human epidermoid carcinoma epithelial cell), whole cell lysate at 20 µg

Lane 6:

HepG2 (human hepatocellular carcinoma epithelial cell), whole cell lysate at 20 µg

Lane 7:

RAW264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage), whole cell lysate at 20 µg

Lane 8:

Neuro-2a (mouse neuroblastoma neuroblast), whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Chicken IgY H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-chicken-igy-h-l-hrp-ab6877'>ab6877</a>) at 1/20000 dilution

Observed band size: 14 kDa,28 kDa,46 kDa

false

Exposure time: 5.5s

• WB

Supplier Data

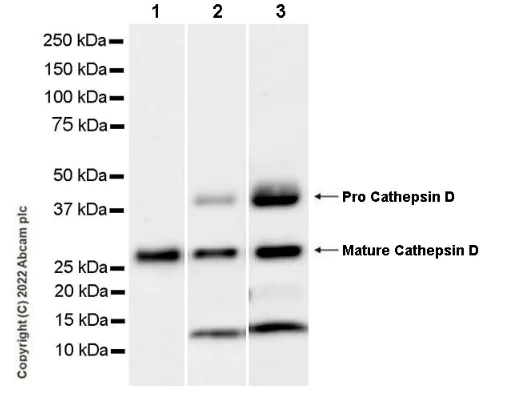

Western blot - Anti-Cathepsin D antibody [EPR3057Y] - Chicken IgY (Chimeric) - BSA and Azide free (AB302647)

This data was developed using ab302646, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Exposure time : 10 seconds.

All lanes:

Western blot - Anti-Cathepsin D antibody [EPR3057Y] - Chicken IgY (Chimeric) (<a href='/en-us/products/primary-antibodies/cathepsin-d-antibody-epr3057y-chicken-igy-chimeric-ab302646'>ab302646</a>) at 1/1000 dilution

Lane 1:

Human heart tissue lysate at 20 µg

Lane 2:

Mouse brain tissue lysate at 20 µg

Lane 3:

Rat stomach tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Chicken IgY H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-chicken-igy-h-l-hrp-ab6877'>ab6877</a>) at 1/20000 dilution

Observed band size: 14 kDa,28 kDa,46 kDa

false

Exposure time: 10s
