Name: Anti-CCR2 antibody [EPR20844-15]
SKU: ab273050
Rating: 4 (2 reviews)

Anti-CCR2 antibody [EPR20844-15] is a rabbit recombinant monoclonal antibody that is used to detect CCR2 in Flow cytometry, ICC/IF, IHC-P, IP, Western blot. Suitable for Mouse, Rat samples.

- Using biophysical QC, antibody identity is confirmed at a molecular level for unrivaled batch-batch consistency
- Specificity confirmed with CCR2 knockout cell line validation
- Specificity and sensitivity confirmed in IHC with multi-tissue microarray (TMA) validation

Images

Flow Cytometry - Anti-CCR2 antibody [EPR20844-15] (AB273050), expandable thumbnail

Publications

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Monoclonal

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application

Product promiseTestedExpectedPredictedNot recommended

	IP	Flow Cyt	WB	ICC/IF	IHC-P
Human	Not recommended	Not recommended	Not recommended	Not recommended	Not recommended
Mouse	Tested	Tested	Tested	Expected	Tested
Rat	Expected	Expected	Not recommended	Expected	Tested
Transfected cell line - Mouse	Not recommended	Not recommended	Not recommended	Tested	Not recommended

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/30	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Expected
Expected

Species	Dilution info	Notes
Species Rat	Dilution info Use at an assay dependent concentration.	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human, Transfected cell line - Mouse	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/600	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Expected
Expected

Species	Dilution info	Notes
Species Rat	Dilution info Use at an assay dependent concentration.	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human, Transfected cell line - Mouse	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info -	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Rat, Human, Transfected cell line - Mouse	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Transfected cell line - Mouse	Dilution info 1/250	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Mouse, Rat	Dilution info Use at an assay dependent concentration.	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/250	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Rat	Dilution info 1/250	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human	Dilution info -	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Transfected cell line - Mouse	Dilution info -	Notes -

Associated Products

Select an associated product type

1 product for Alternative Version

Target data

See full target information Ccr2

Function

Key functional receptor for CCL2 but can also bind CCL7 and CCL12 chemokines (PubMed:8631787, PubMed:8662823, PubMed:8996246). Its binding with CCL2 on monocytes and macrophages mediates chemotaxis and migration induction through the activation of the PI3K cascade, the small G protein Rac and lamellipodium protrusion (By similarity). Also acts as a receptor for the beta-defensin DEFB106A/DEFB106B (By similarity). Regulates the expression of T-cell inflammatory cytokines and T-cell differentiation, promoting the differentiation of T-cells into T-helper 17 cells (Th17) during inflammation (PubMed:28507030). Facilitates the export of mature thymocytes by enhancing directional movement of thymocytes to sphingosine-1-phosphate stimulation and up-regulation of S1P1R expression; signals through the JAK-STAT pathway to regulate FOXO1 activity leading to an increased expression of S1P1R (PubMed:29930553). Plays an important role in mediating peripheral nerve injury-induced neuropathic pain (PubMed:29993042). Increases NMDA-mediated synaptic transmission in both dopamine D1 and D2 receptor-containing neurons, which may be caused by MAPK/ERK-dependent phosphorylation of GRIN2B/NMDAR2B (PubMed:29993042). Mediates the recruitment of macrophages and monocytes to the injury site following brain injury (PubMed:24806994, PubMed:29632244).

Alternative names

CD192, Cmkbr2, Ccr2, C-C chemokine receptor type 2, C-C CKR-2, CC-CKR-2, CCR-2, CCR2, JE/FIC receptor, MCP-1 receptor

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Monoclonal
Immunogen: The exact immunogen used to generate this antibody is proprietary information.
Clone number: EPR20844-15
Purification technique: Affinity purification Protein A
Concentration

Storage

Shipped at conditions: Blue Ice
Appropriate short-term storage duration: 1-2 weeks
Appropriate short-term storage conditions: +4°C
Appropriate long-term storage conditions: -20°C
Aliquoting information: Upon delivery aliquot
Storage information: Avoid freeze / thaw cycle

Notes

Anti-CCR2 antibody [EPR20844-15] (ab273050) was developed by Abcam using patented rabbit monoclonal antibody technology and is validated for use in Flow Cyt, ICC/IF, IHC-P, IP, WB in mouse, rat samples.

Anti-CCR2 antibody [EPR20844-15] (ab273050) has been cited over 17 times in peer reviewed journals and is trusted by the scientific community.

Abcam's high quality manufacturing and validation processes ensure Anti-CCR2 antibody [EPR20844-15] (ab273050) has high sensitivity and specificity alongside high lot-to-lot consistency and reproducibility.

The specificity of Anti-CCR2 antibody [EPR20844-15] (ab273050) has been confirmed by testing in knockout samples.

Anti-CCR2 antibody [EPR20844-15] (ab273050) specifically detects CCR2 (UniProt ID: P51683; Molecular weight: 43kDa) and is sold in 100 µL and 1 mL selling sizes.

Conjugation-ready, carrier free format available for antibody clone EPR20844-15 - Anti-CCR2 antibody [EPR20844-15] - BSA and Azide free ab273061.

Antibody clone EPR20844-15 is also available pre-conjugated to a variety of labels for your convenience - Alexa Fluor® 488, Alexa Fluor® 647, Alexa Fluor® 594, APC (Alexa Fluor® 488 Anti-CCR2 antibody [EPR20844-15] ab302579, Alexa Fluor® 647 Anti-CCR2 antibody [EPR20844-15] ab302666, Alexa Fluor® 594 Anti-CCR2 antibody [EPR20844-15] ab303469, APC Anti-CCR2 antibody [EPR20844-15] ab314258).

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

CCR2 also known as C-C chemokine receptor type 2 is a protein involved in immune cell trafficking. It is a member of the G-protein-coupled receptor family and has a molecular mass of approximately 43 kDa. CCR2 is primarily expressed on monocytes dendritic cells and certain subsets of T cells. It functions as a receptor for monocyte chemoattractant proteins (MCPs) with MCP-1 (CCL2) being the most well-known ligand. The interaction between CCR2 and its ligands directs the movement of these immune cells to sites of inflammation or tissue injury.

Biological function summary

CCR2 plays an important role in mediating leukocyte migration. It acts in the immune system to guide monocytes from the bloodstream into tissues contributing to immune surveillance and response. CCR2 operates not as part of a larger receptor complex but it does interact closely with other chemokine receptors which may influence its signaling. The receptor's activity has critical implications for inflammatory processes and lies at the heart of many immune responses.

Pathways

CCR2 is integrally involved in the chemokine signaling pathway and the inflammatory response pathway. Its function in these pathways highlights its role in modulating immune cell infiltration during immune challenges. The receptor also interfaces with other important signaling proteins such as CCR5 which like CCR2 is another chemokine receptor involved in mediating immune cell movement. These interactions overlap and complement each other offering nuanced regulation of immune cell dynamics.

Associated diseases and disorders

CCR2 has connections to conditions such as atherosclerosis and rheumatoid arthritis. In atherosclerosis the receptor's involvement in monocyte recruitment to the arterial wall is an important step in plaque formation. Its role in rheumatoid arthritis centers on the promotion of leukocyte infiltration into the joint tissues contributing to inflammation and joint damage. CCR2's connection to such disorders often aligns with a similar role played by other chemokine receptors like CCR5 highlighting its relevance in inflammation-related pathologies.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

9 product images

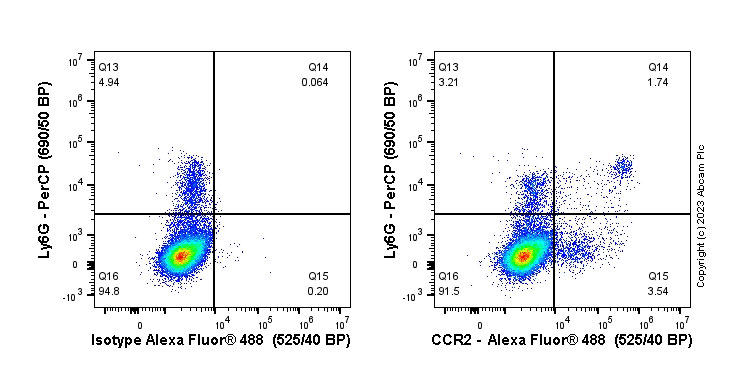

Flow Cytometry - Anti-CCR2 antibody [EPR20844-15] (ab273050)
Flow cytometry staining of C57 BL/6 mouse splenocytes with ab273050 (right) or Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (left). Cells were incubated for 30 min on ice in 1x PBS containing 10μg/ml anti CD16/CD32 and 10% normal goat serum to block FC receptors and non-specific protein-protein interaction followed by the antibody ab273050 or Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (1x 10^6 in 100 µl at 1.0 μg/ml (1/644)) for 30min on ice. The cells were simultaneously stained with Ly6G.

The secondary antibody Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed was incubated at 1/4000 for 30min on ice.

Acquisition of >30000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter. Events were gated on viable cells.

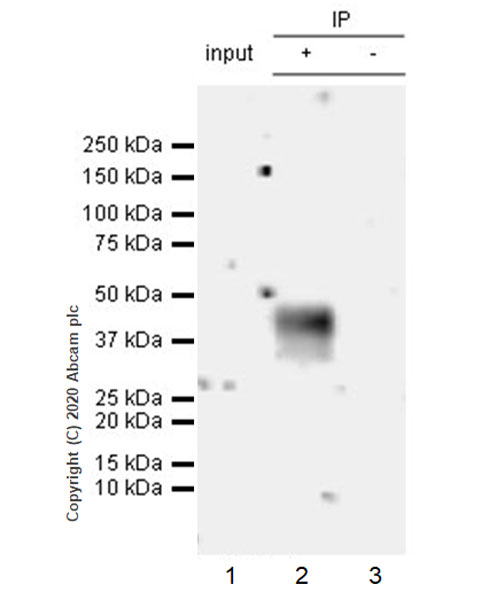

Immunoprecipitation - Anti-CCR2 antibody [EPR20844-15] (ab273050)
CCR2 was immunoprecipitated from 0.35 mg Mouse lymph node tissue lysate with ab273050 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab273050 at 1/500 dilution. VeriBlot for IP Detection Reagent (HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/1000 dilution.
Lane 1: Mouse lymph node tissue lysate 10 ug.
Lane 2: ab273050 IP in Mouse lymph node tissue lysate.
Lane 3:Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab273050 in mouse lymph node tissue lysate.
Blocking and dilution buffer and concentration: 5% NFDM/TBST.
Exposure time: 3 minutes.
All lanes: Immunoprecipitation - Anti-CCR2 antibody [EPR20844-15] (ab273050)
Predicted band size: 42 kDa
Observed band size: 40 kDa
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CCR2 antibody [EPR20844-15] (ab273050)
Immunohistochemical analysis of paraffin-embedded (A) Lymph node tissue from wild-type C57BL/6JGpt mice (B) Lymph node tissue from CCR2 knockout mice staining with ab273050 at 1/300 dilution and ready-to-use Goat Anti-Rabbit IgG H&L (HRP) secondary. Counterstaining with hematoxylin. Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins. Positive staining on (A) Lymph node tissue from wild-type C57BL/6JGpt mice and no staining on (B) Lymph node tissue from CCR2 knockout mice. The section was incubated with ab273050 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND™ RX instrument. The tissue samples were kindly provided by GemPharmatech. C57BL/6JGpt wildtype mice and CCR2-KO homozygous mice (Strain ID: T006112).

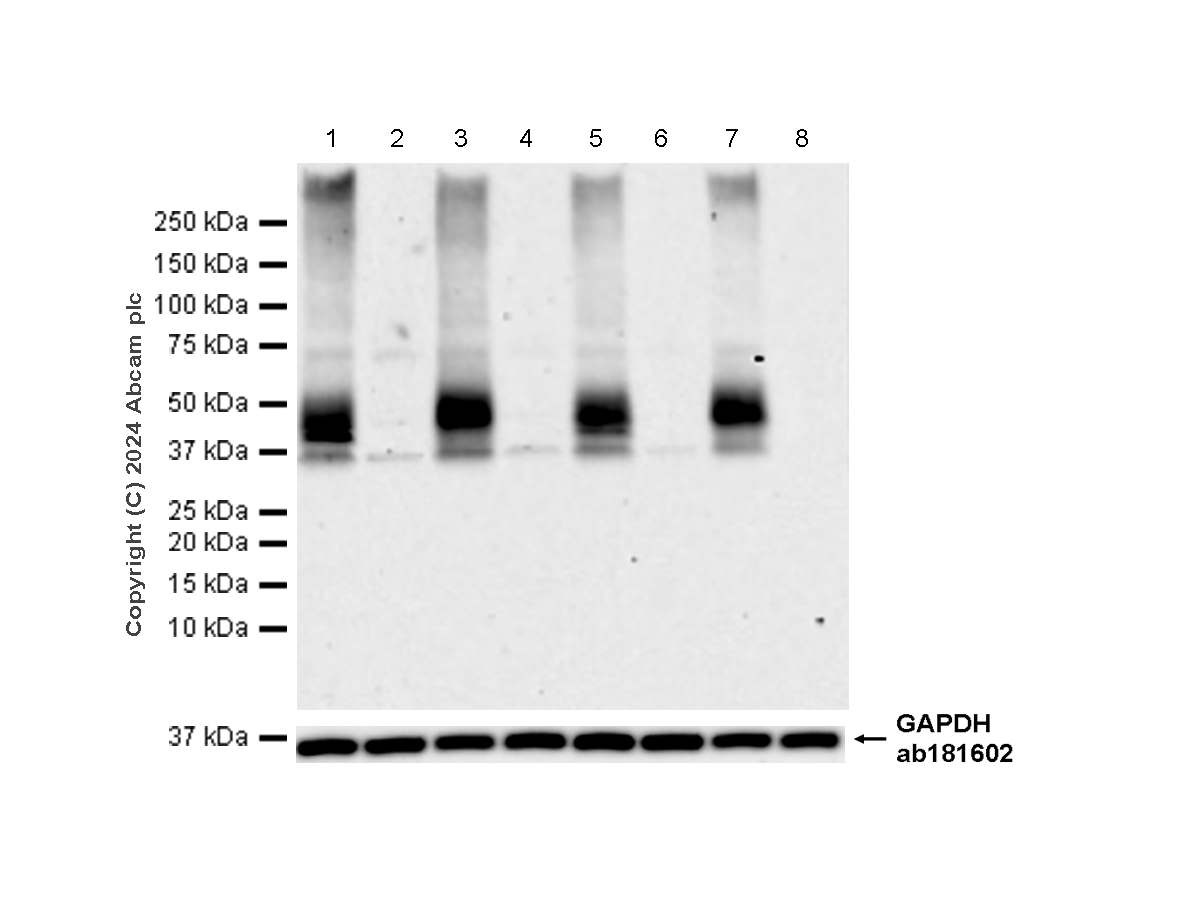

Western blot - Anti-CCR2 antibody [EPR20844-15] (ab273050)
The tissue samples were kindly provided by GemPharmatech. C57BL/6JGpt wildtype mice and CCR2-KO homozygous mice (Strain ID: T006112).
All lanes: Western blot - Anti-CCR2 antibody [EPR20844-15] (ab273050) at 1/1000 dilution
Lane 1: Wild-type mouse spleen tissue lysate (male)
Lane 2: CCR2 knockout mouse spleen tissue lysate (male)
Lane 3: Wild-type mouse lung tissue lysate (male)
Lane 4: CCR2 knockout mouse lung tissue lysate (male)
Lane 5: Wild-type mouse spleen tissue lysate (female)
Lane 6: CCR2 knockout mouse spleen tissue lysate (female)
Lane 7: Wild-type mouse lung tissue lysate (female)
Lane 8: CCR2 knockout mouse lung tissue lysate (female)

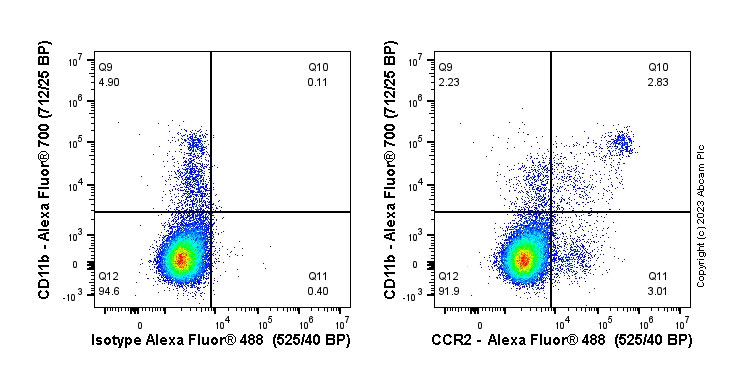

Flow Cytometry - Anti-CCR2 antibody [EPR20844-15] (ab273050)
Flow cytometry staining of C57 BL/6 mouse bone marrow cells with ab273050 (right) or Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (left). Cells were incubated for 30 min on ice in 1x PBS containing 10μg/ml anti CD16/CD32 and 10% normal goat serum to block FC receptors and non-specific protein-protein interaction followed by the antibody ab273050 or Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (1x 10^6 in 100 µl at 0.2 μg/ml (1/3120)) for 30min on ice. The cells were simultaneously stained with Ly6G.

The secondary antibody Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed was incubated at 1/4000 for 30min on ice.

Acquisition of >30000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter. Events were gated on viable cells.

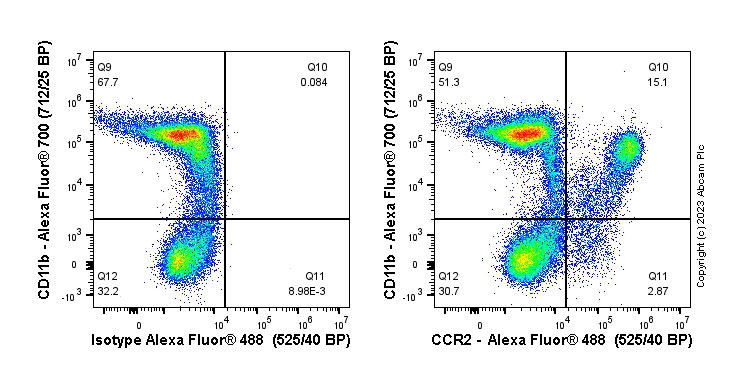

Flow Cytometry - Anti-CCR2 antibody [EPR20844-15] (ab273050)
Flow cytometry staining of C57 BL/6 mouse bone marrow cells with ab273050 (right) or Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (left). Cells were incubated for 30 min on ice in 1x PBS containing 10μg/ml anti CD16/CD32 and 10% normal goat serum to block FC receptors and non-specific protein-protein interaction followed by the antibody ab273050 or Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (1x 10^6 in 100 µl at 0.2 μg/ml (1/3120)) for 30min on ice. The cells were simultaneously stained with Ly6G.

The secondary antibody Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed was incubated at 1/4000 for 30min on ice.

Acquisition of >30000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter. Events were gated on viable cells.

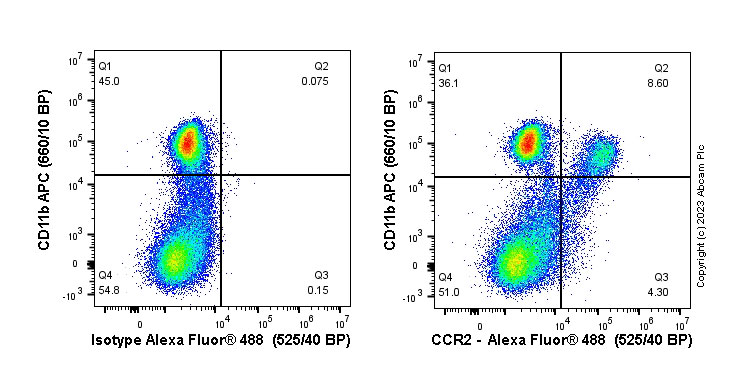

Flow Cytometry - Anti-CCR2 antibody [EPR20844-15] (ab273050)
Flow cytometry staining of C57 BL/6 mouse splenocytes with ab273050 (right) or Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (left). Cells were incubated for 30 min on ice in 1x PBS containing 10μg/ml anti CD16/CD32 and 10% normal goat serum to block FC receptors and non-specific protein-protein interaction followed by the antibody ab273050 or Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (1x 106 in 100 µl at 1.0 μg/ml (1/644)) for 30min on ice. The cells were simultaneously stained with CD11b.

The secondary antibody Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed was incubated at 1/4000 for 30min on ice.

Acquisition of >30000 events were collected using a n/a. Events were gated on viable cells.

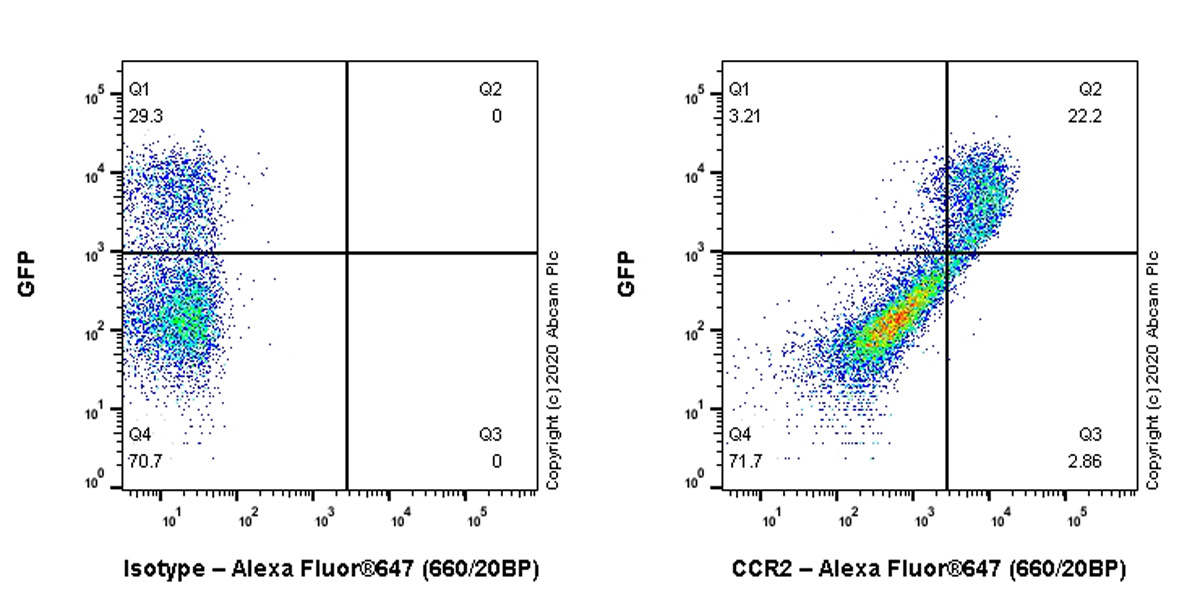

Flow Cytometry - Anti-CCR2 antibody [EPR20844-15] (ab273050)
Flow cytometric analysis of HEK-293T (human embryonic kidney epithelial cell) (transfected with GFP tagged mouse CCR2 overexpression construct) cells labelling CCR2 with ab273050 at 1/600 dilution (Right) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) isotype control (Left). Goat anti rabbit IgG (Alexa Fluor^® 647, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 647) ab150079) at 1/2000 dilution was used as the secondary antibody.
Gated on viable cells.
Flow Cytometry - Anti-CCR2 antibody [EPR20844-15] (ab273050)
Flow cytometry staining of C57 BL/6 mouse bone marrow cells with ab273050 (right) or Recombinant Rabbit IgG, monoclonal [EPR25A] - Isotype Control (left). Cells were incubated for 30 min on ice in 1x PBS containing 10μg/ml anti CD16/CD32 and 10% normal goat serum to block FC receptors and non-specific protein-protein interaction followed by the antibody ab273050 or Recombinant Rabbit IgG, monoclonal [EPR25A] - Isotype Control (1x 106 in 100 µl at 0.2 μg/ml (1/12000)) for 30min on ice. The cells were simultaneously stained with CD11b.

The secondary antibody Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed was incubated at 1/4000 for 30min on ice

Acquisition of >30000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter. Events were gated on viable cells.
